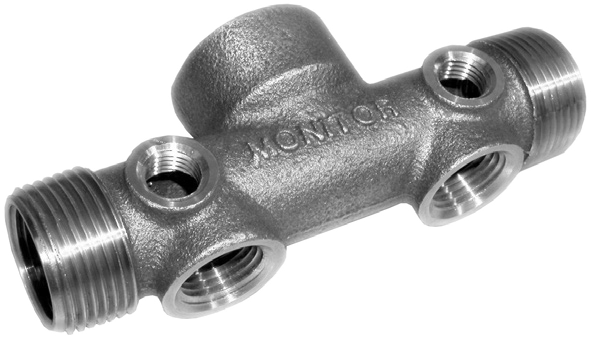

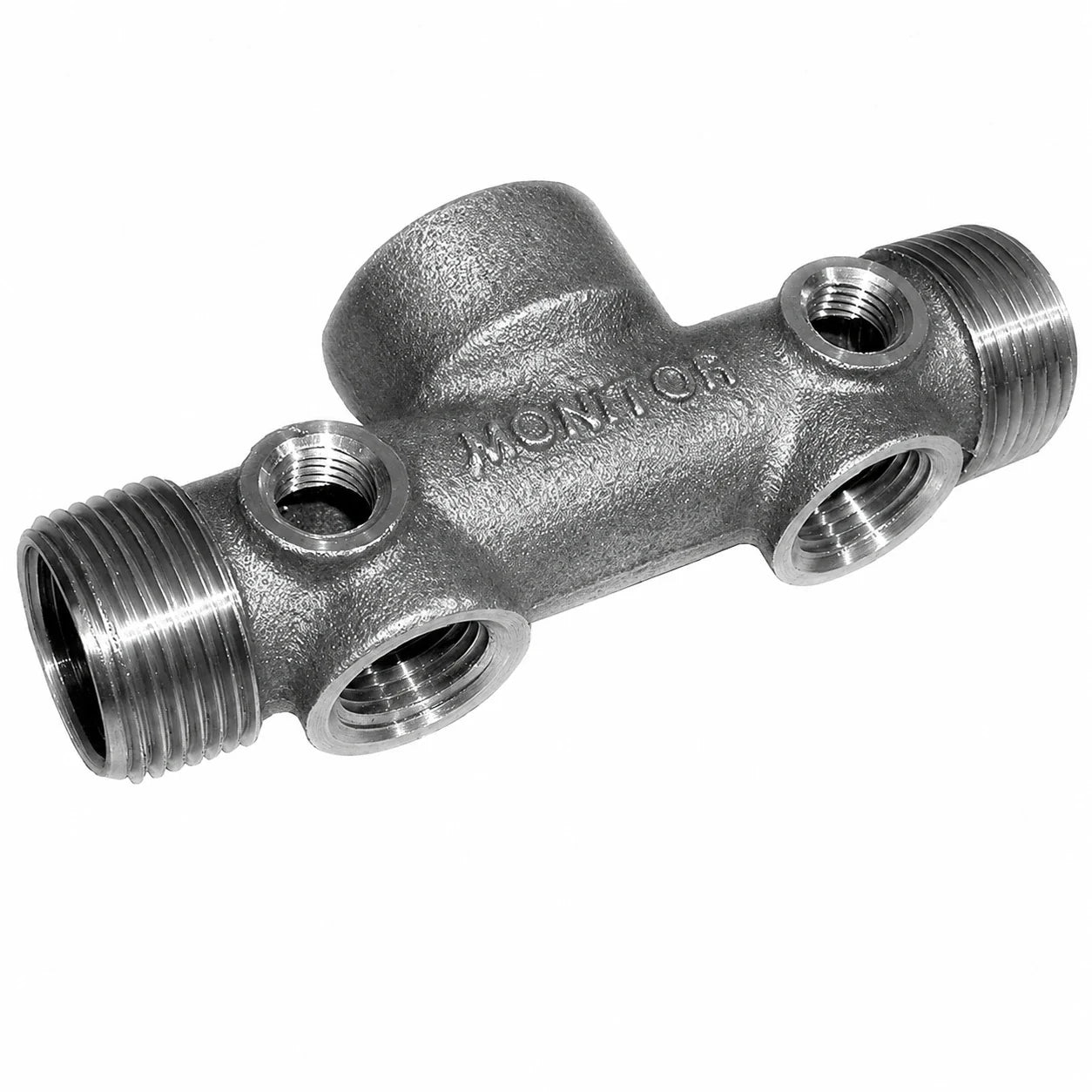

The Monitor Pump Control Tank Tee is more versatile than conventional tank fittings and can be located anywhere in the piping, letting the pressure switch and gauge move above the floor. It is used like a tee with almost any tank, with a 10 in long 1 in pipe nipple.
Precision-machined from lead-free red brass, it adapts to any 1 in discharge tank and costs less to install than most brass tank tees. Pressure rated 100 psi; conforms to NSF/ANSI 372.
| Body | Lead-free red brass |
| Pipe size | 3/4 in x 1 in |
| Control threads | 1/4 in |
| Tank connection | 1 in |
| Pressure rating | 100 psi |
| Standards | NSF/ANSI 372 |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
