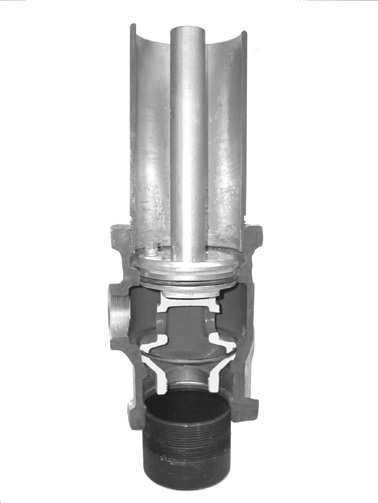

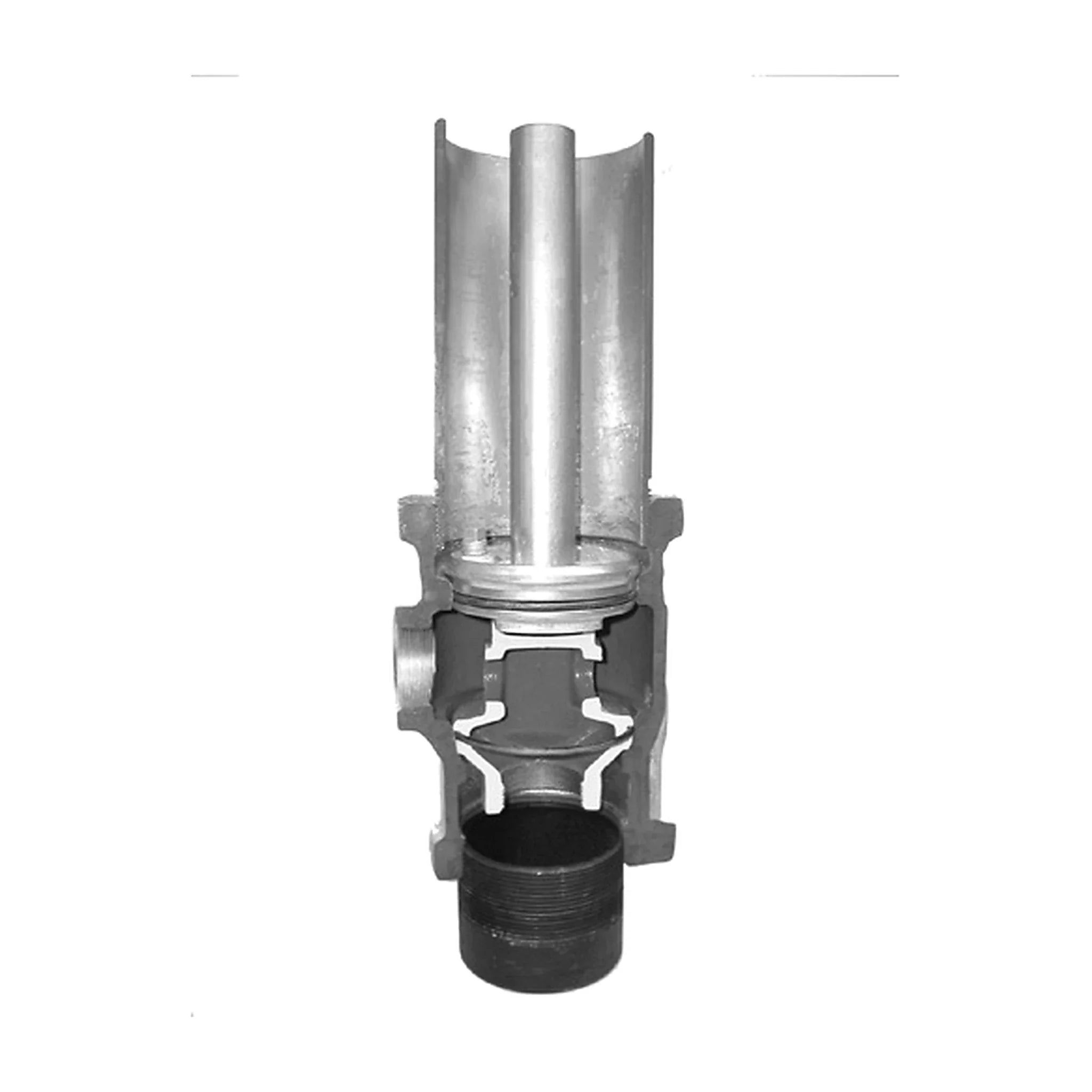

The Monitor PS Domestic Pitless Unit forms a sanitary, frost-proof connection with all water passages below the frost line. Spool sealing lets the entire inner assembly lift out of the casing for service, and patented O-ring seal protection prevents seal damage during installation.

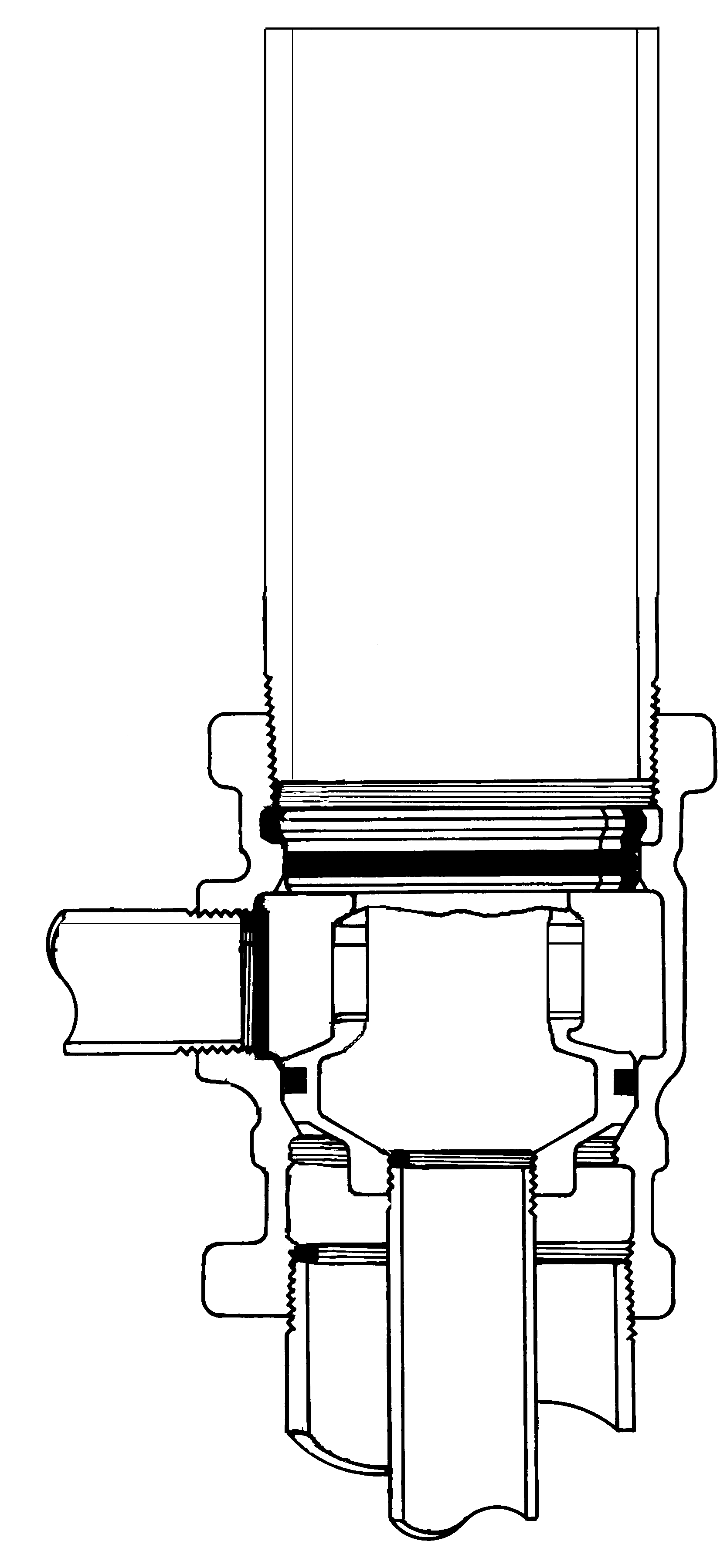

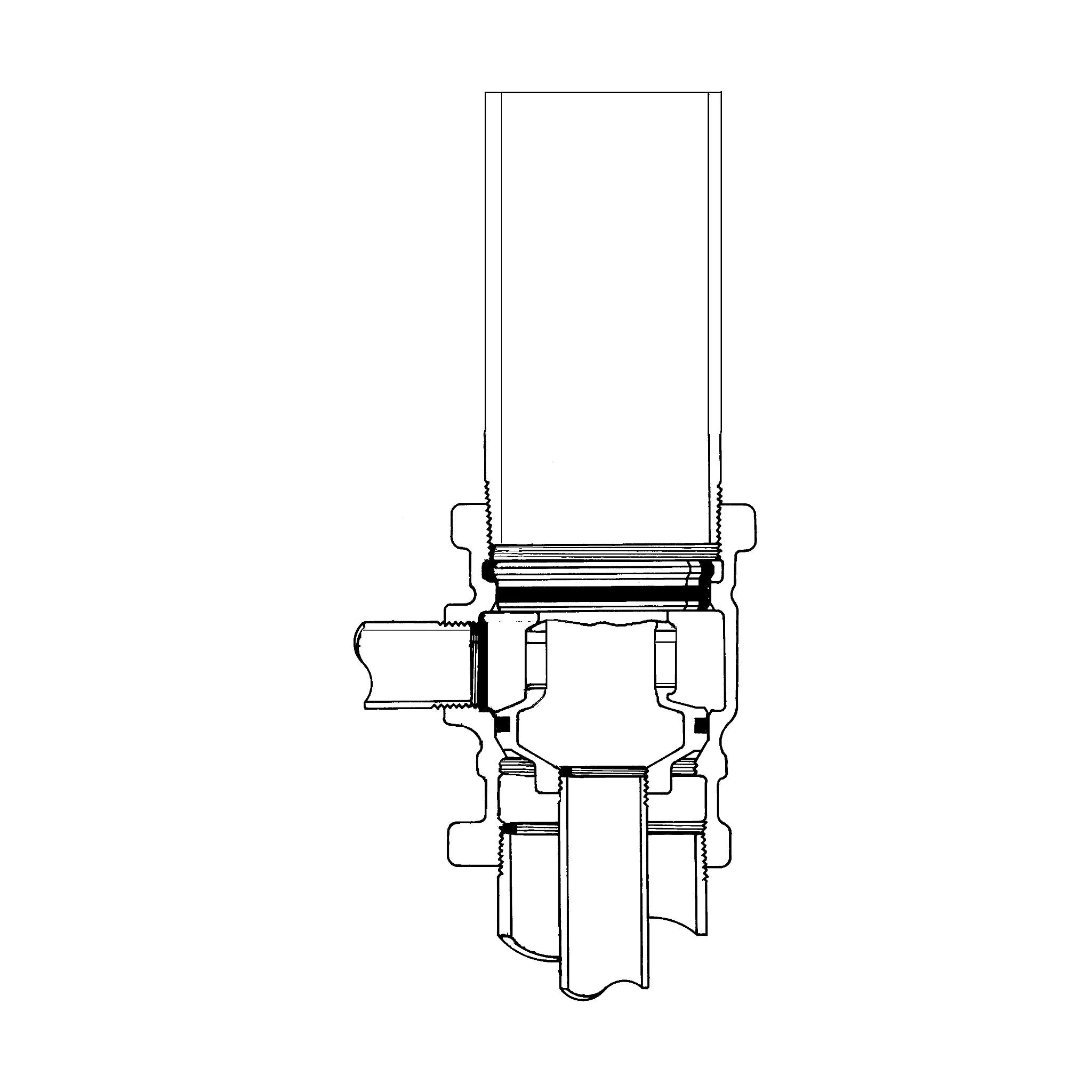

Threaded style connects to a male-threaded casing (or via welding nipple, pitless connector, or swagged nipple). Supplied as a spool without check valves, less cap; order the well cap separately. Select well size and bury depth.
| Type | Spool pitless unit for submersible pump |
| Pitless case | Meets ASTM A53 |
| Seals | Neoprene O-rings, hot-dipped lead-free galvanized |
| Well sizes | 4 in, 5 in, 6 in I.D. |
| Bury depths | 0 ft to 8 ft |
| Standards | Water Systems Council PAS-97(2017) |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
