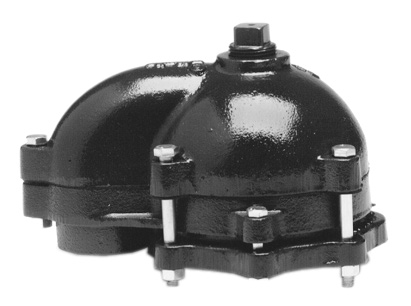

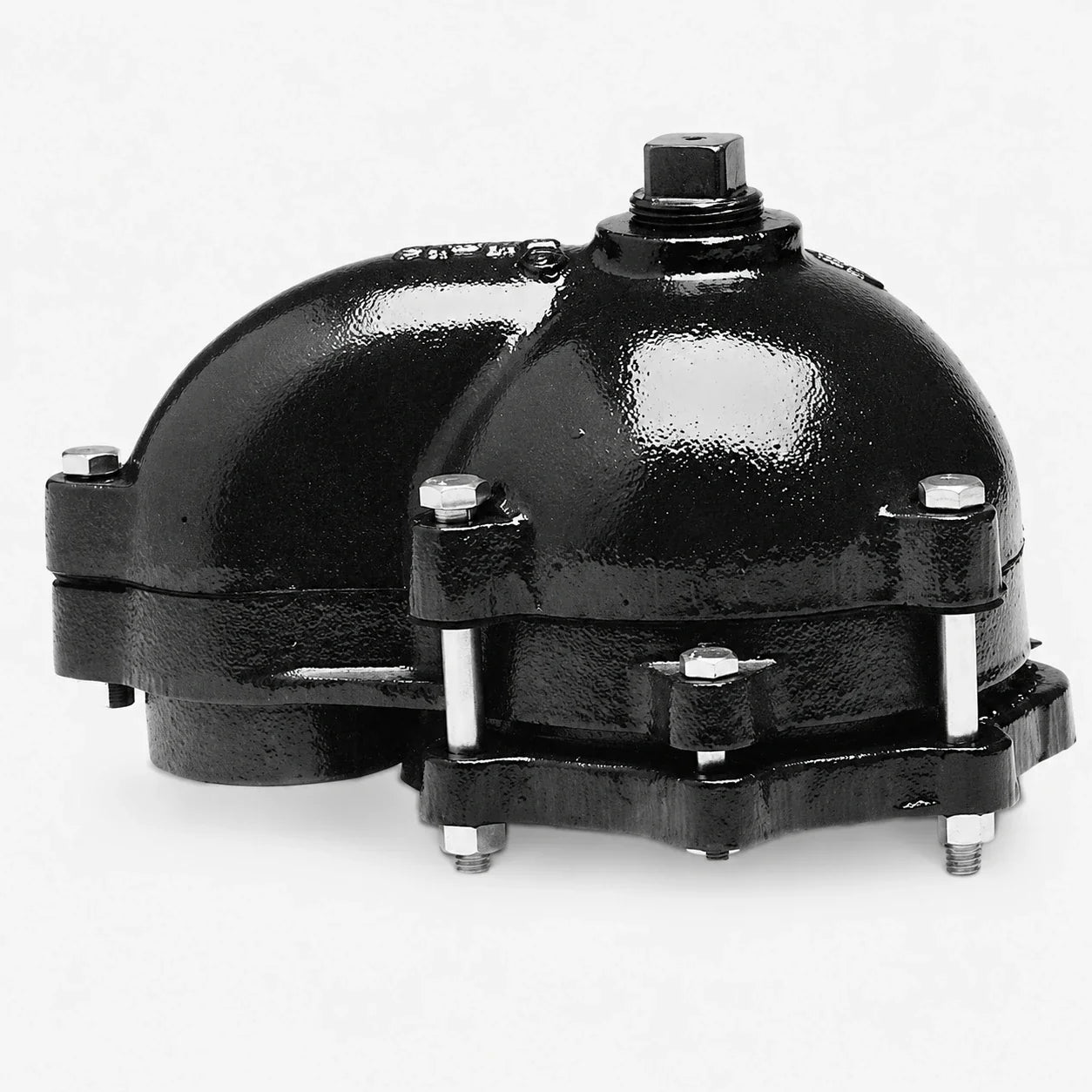

The Monitor Premium Watertight Well Cap secures to the pitless casing with a compression gasket for a truly watertight closure. The top removes without disturbing the seal, conduit, or wiring, and it can serve as a vacuum seal to 20 psi when the conduit is plugged.
Cast from high quality gray iron, painted green and oven-dried, with stainless steel hardware. Select by casing outside diameter. For a factory-vented version, see the Monitor Premium Watertight Cap with Screened Air Vent.
| Material | Gray cast iron, green oven-dried finish |
| Seal | Compression gasket, watertight |
| Vacuum seal | To 20 psi (conduit plugged) |
| Conduit tap | 1-1/2 in |
| Vent tap | 1 in to 1-1/2 in by size |
| Casing sizes | 4-1/2 in to 7-5/8 in O.D. |
| Hardware | Stainless steel |
| Standards | Water Systems Council PAS-97(2017) |
| Origin | Made in USA |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
