The Monitor Hand Pump Stand is a rugged cast iron pump for windmill, pump jack, or hand-pump use. The 11HA lift stand suits shallow wells under 25 ft; the 11HD and 12HD force stands have a built-in surge chamber, packing nut, and adjustable stroke and can be used to depths of 200 ft.
Force models offer a syphon spout (11HD) or bibb spout (12HD), an optional 2 in drop-pipe tapping (A), and an optional factory sanitary shroud (S). Order pump rod, drop pipe, cylinder, and flange separately. Select configuration.
| Construction | Cast iron |
| Lift model | 11HA, shallow wells under 25 ft |
| Force models | 11HD/12HD, to 200 ft |
| Stroke | 5 in, 7-1/2 in, 10 in (force) |
| Spout | Syphon or bibb |
| Rod thread | 7/16-14NC |

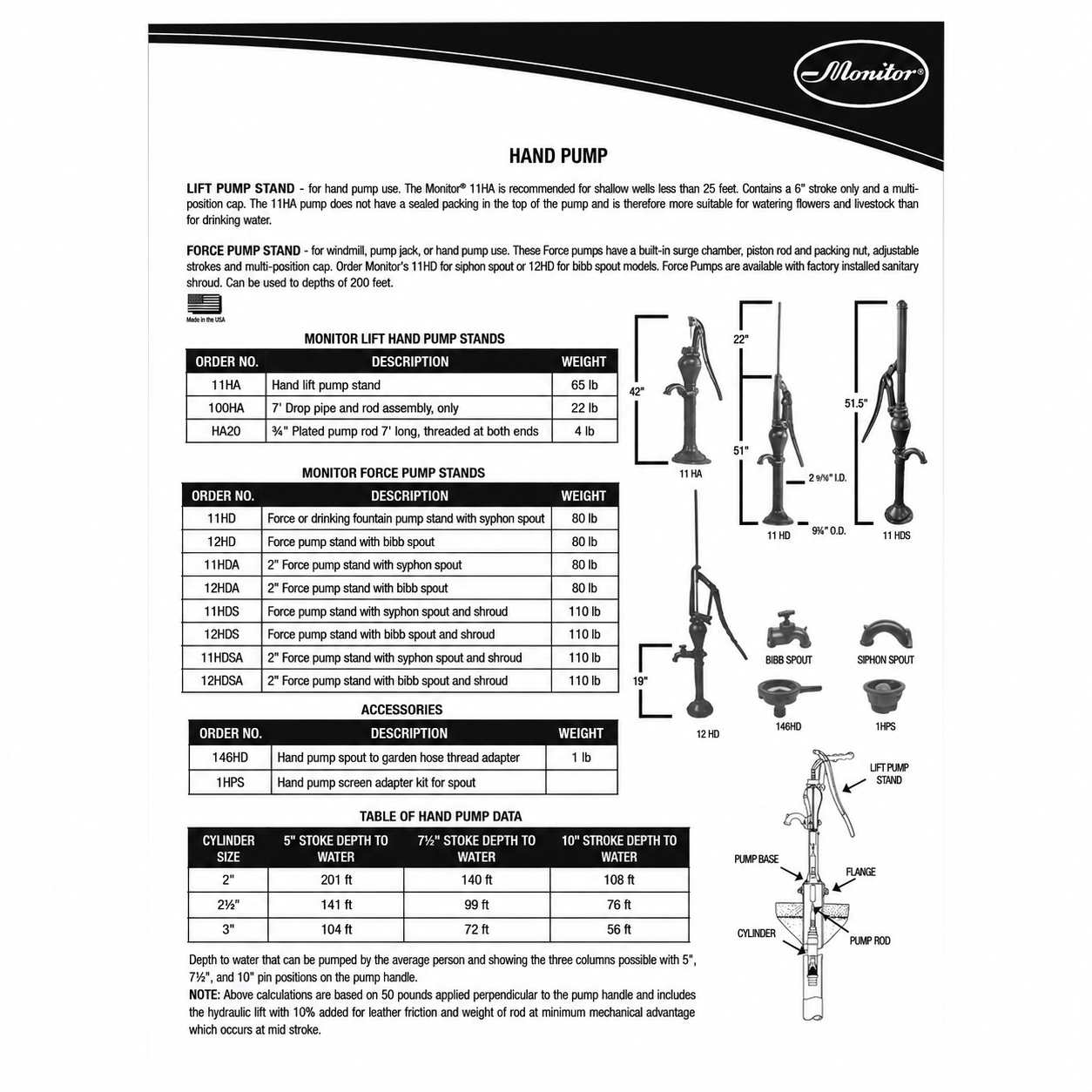

Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
