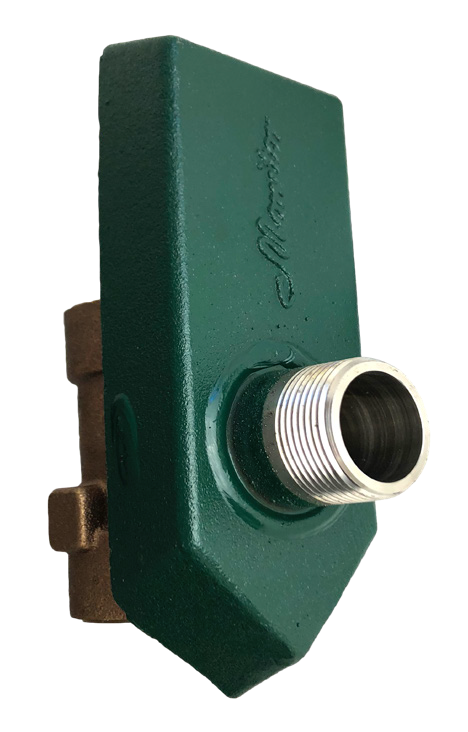

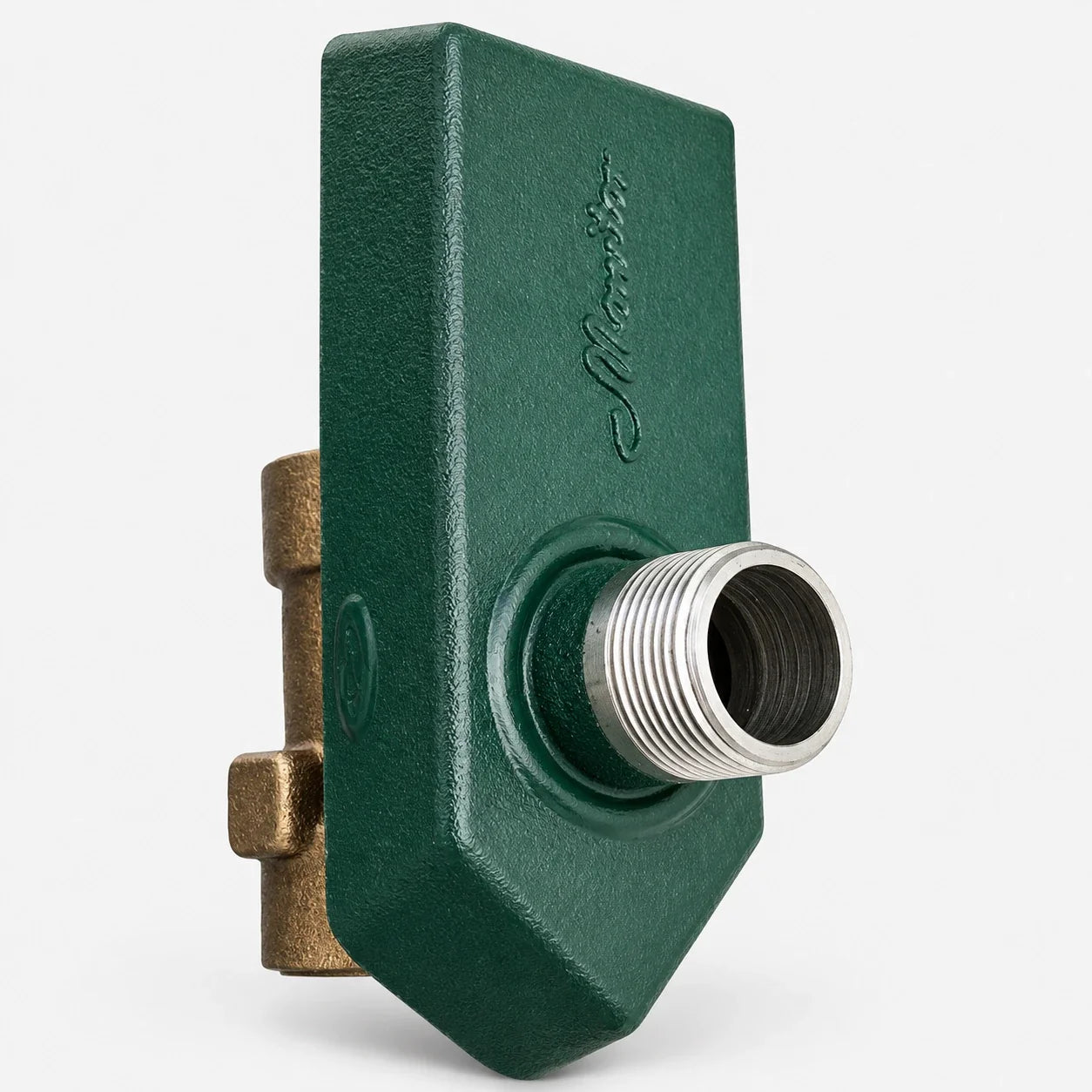

The Monitor E-Z Weld-On Pitless Adapter welds to the well casing with a tapered bottom for easy bottom-side welding and a positive interior stop for a proper O-ring seal. The long-sweep drop fitting centers the pump in the well.
304 stainless steel male nipple and locating pins with a lead-free red brass female drop fitting and large neoprene O-ring; chamfered 1 in pull pipe port and a backside drainage hole. Factory pressure tested to 85 psi. Conforms to PAS-97(2017) and NSF/ANSI 372. Select by drop pipe size and standard or flat bottom.
| Nipple | 304 stainless steel |
| Drop fitting | Lead-free red brass |
| Drop and discharge | 1 in, 1-1/4 in, or 2 in |
| Safe load | 1,600 lb to 6,000 lb by model |
| Factory test | 85 psi |
| Standards | PAS-97(2017), NSF/ANSI 372 |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
