Monitor E-Z Clamp-On Pitless Adapter - 304 SS Nipple, Brass Drop

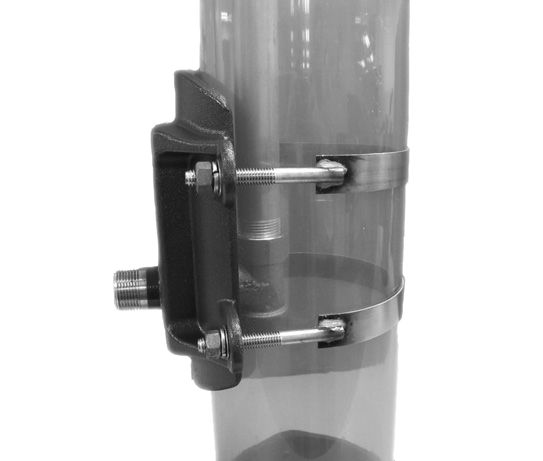

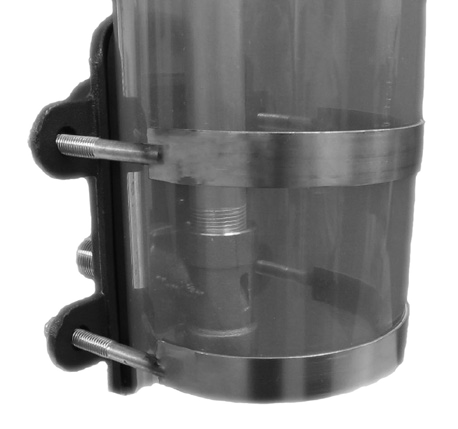

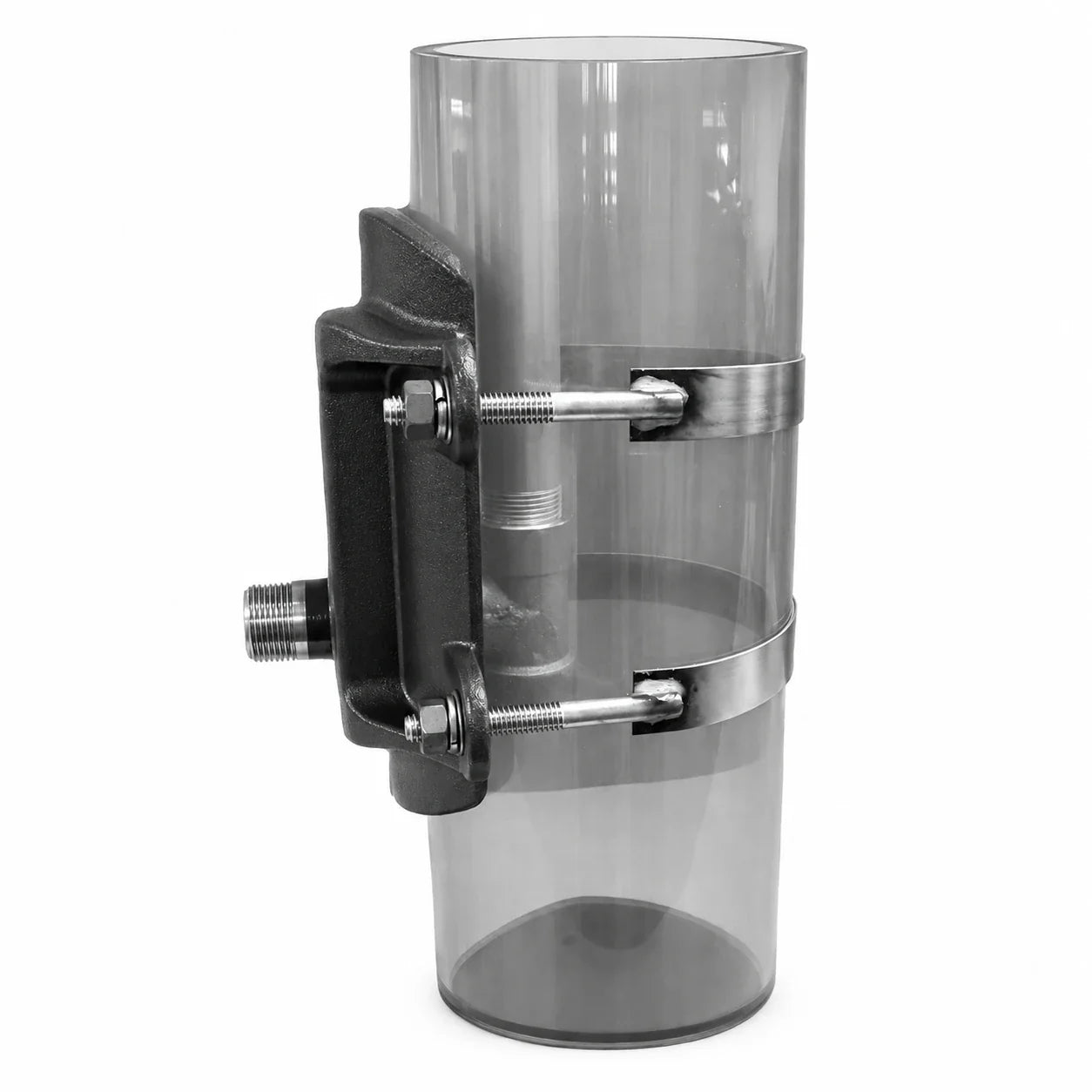

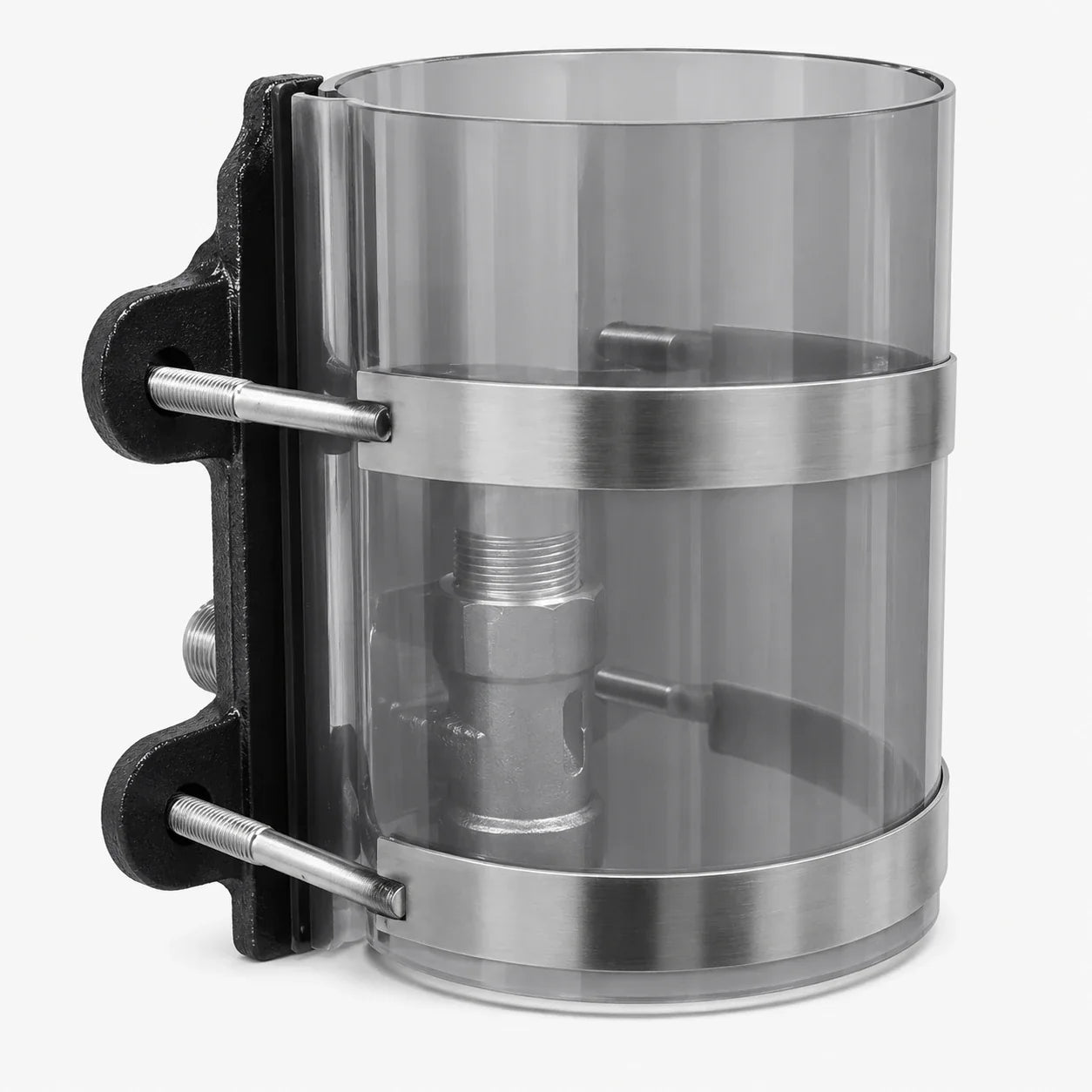

The Monitor E-Z Clamp-On Pitless Adapter clamps to 5 in and 6 in I.D. casing with stainless straps, no welding required, and a positive interior stop ensures a proper O-ring seal. The long-sweep drop fitting centers the pump in the well.

304 stainless steel nipple and locating pins with a lead-free red brass drop fitting and large neoprene O-ring; 1,600 lb maximum safe load, chamfered 1 in pull pipe port. Factory pressure tested to 100 psi. Conforms to PAS-97(2017) and NSF/ANSI 372.

Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog

For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
