The Monitor DQ Pitless Unit Kit offers the features of a full PS pitless unit but ships without the upper casing, with a Kwikonect connection on the top and bottom of the discharge body for fast installation. The customer supplies the upper casing in steel or SDR26 PVC.

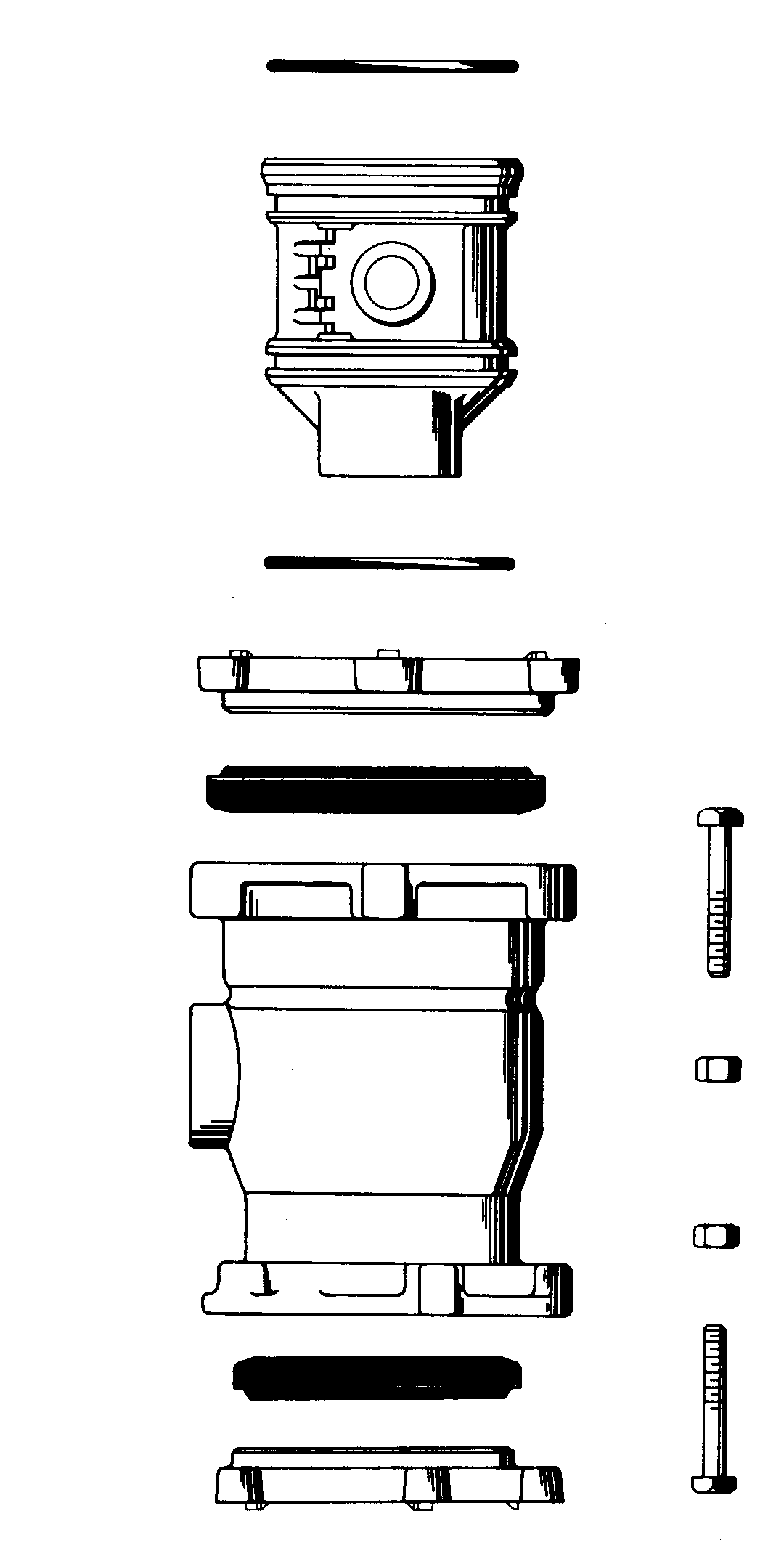

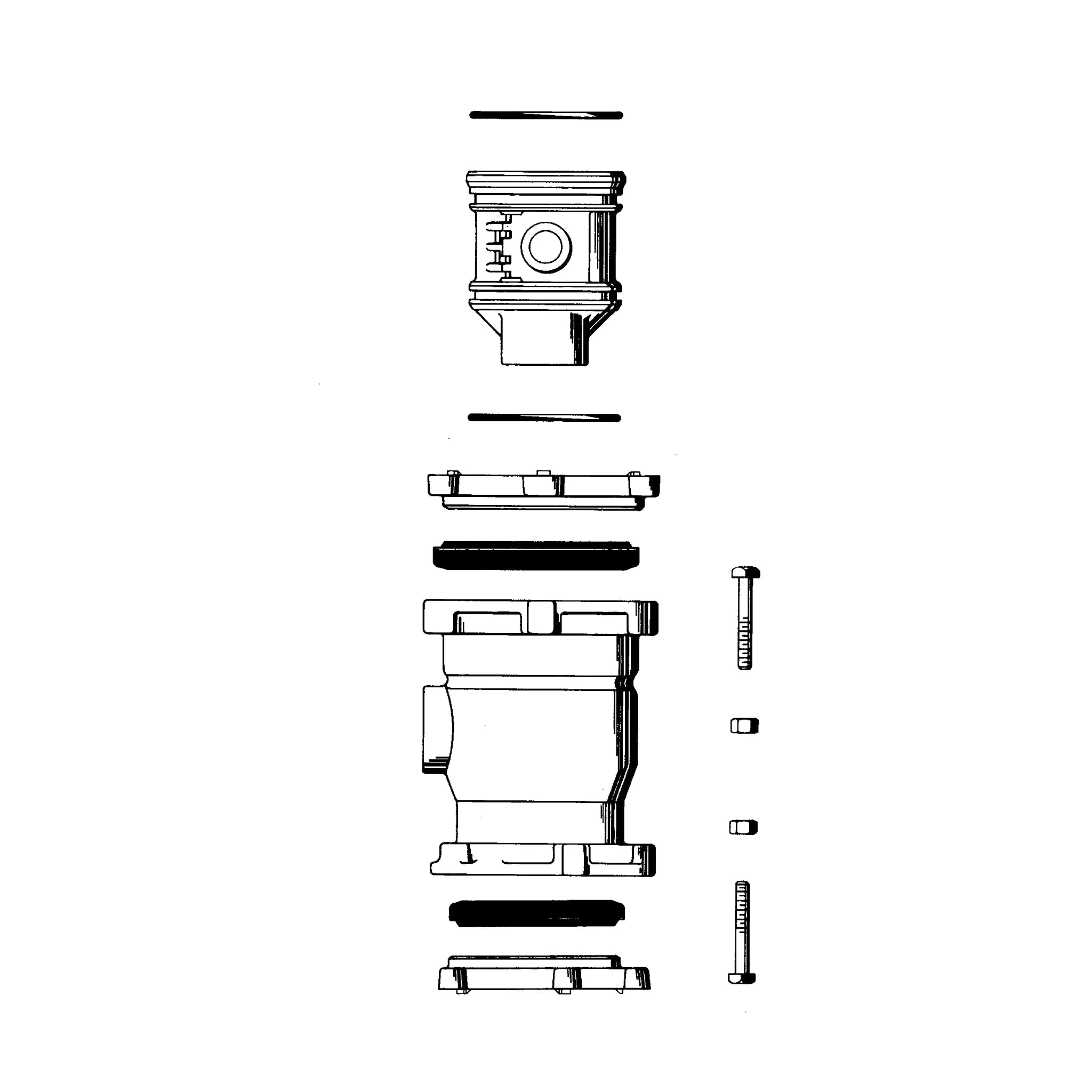

Consists of the double-Kwikonect discharge body and spool with O-rings; order the cap separately. Select well size, or the flowing-well version for artesian applications.
| Type | Double-Kwikonect kit, less upper casing |
| Well sizes | 4 in and 5 in I.D. |
| Upper casing | Customer-supplied steel or SDR26 PVC |

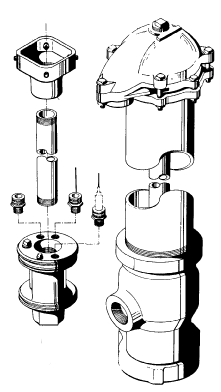

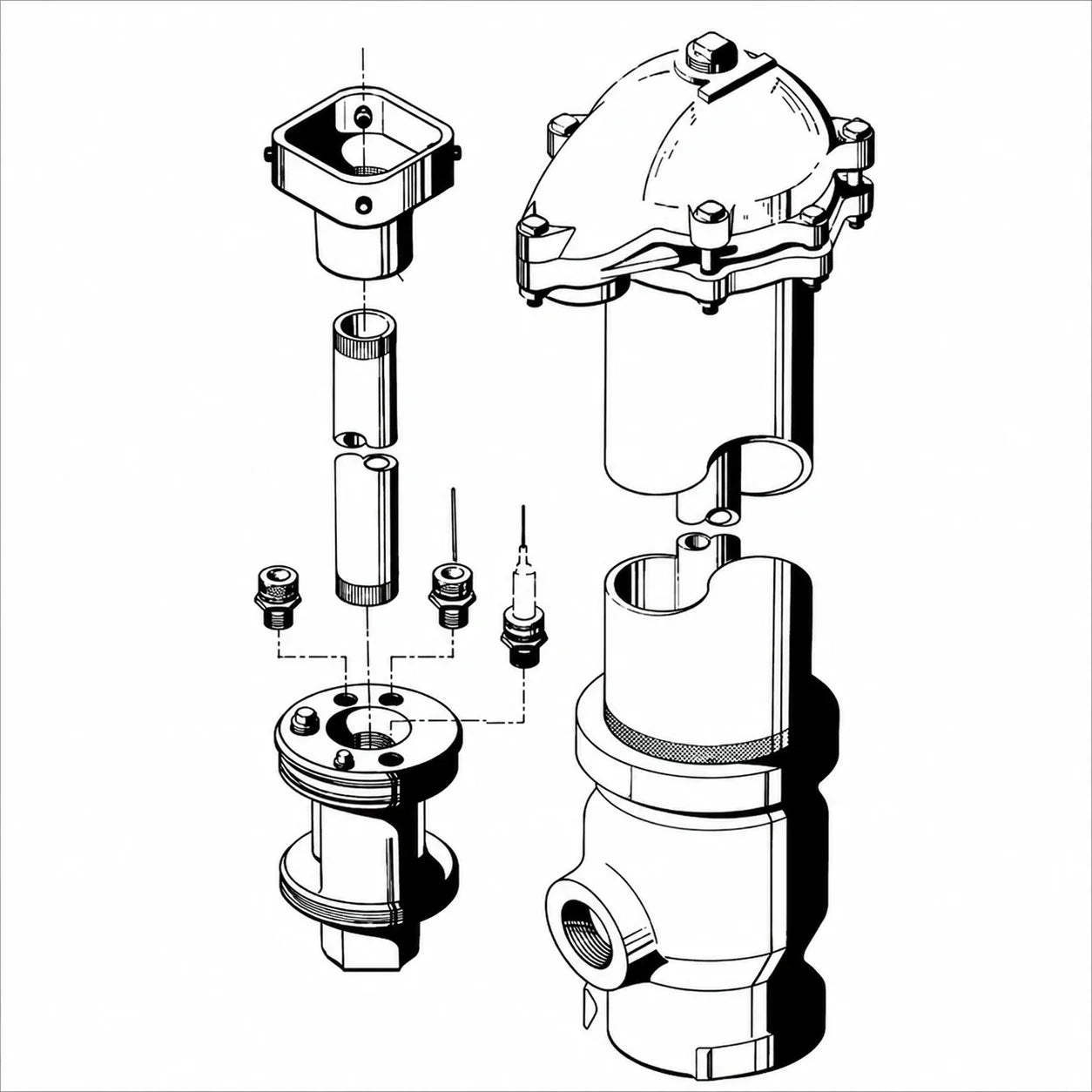

| Flowing well | DQ500F for artesian applications |
| Standards | PAS-97(2017) |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
