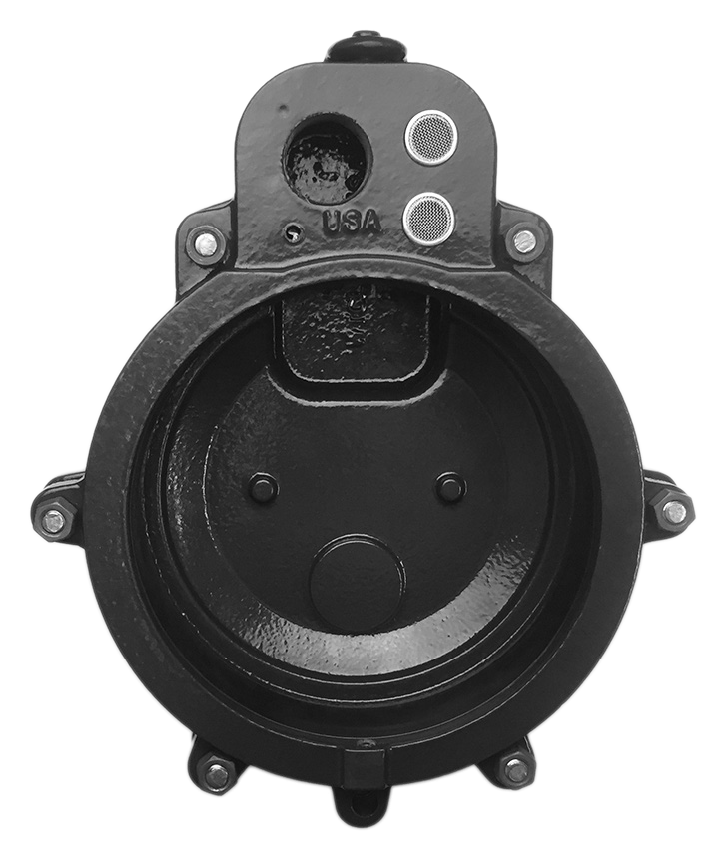

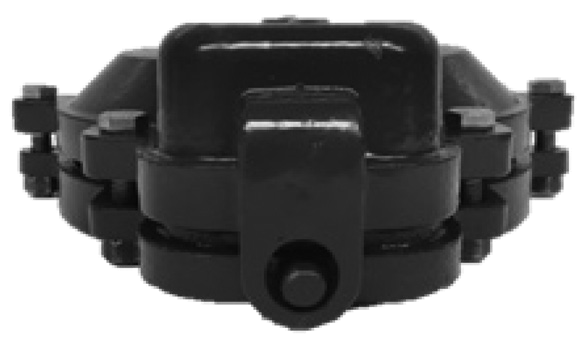

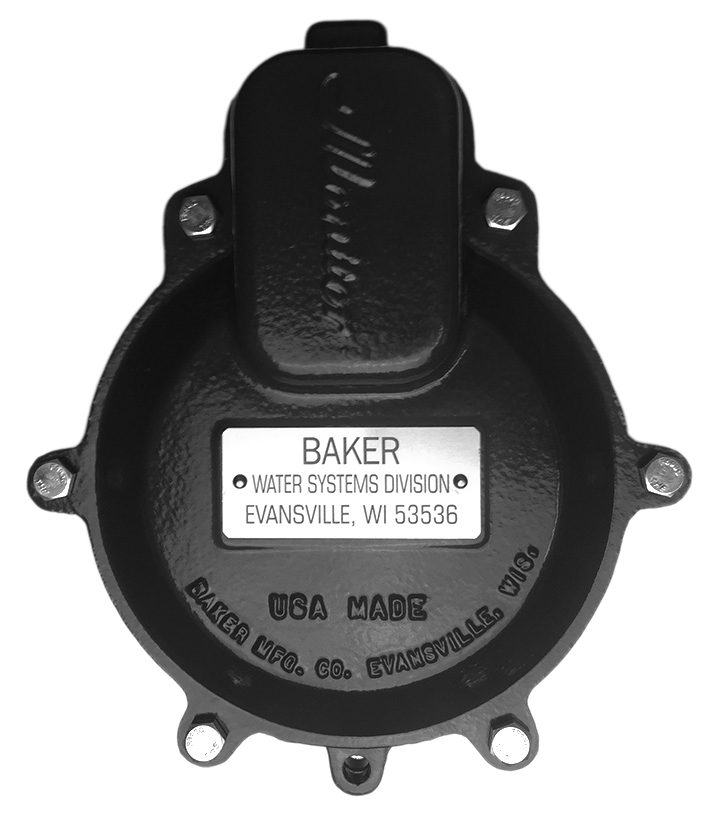

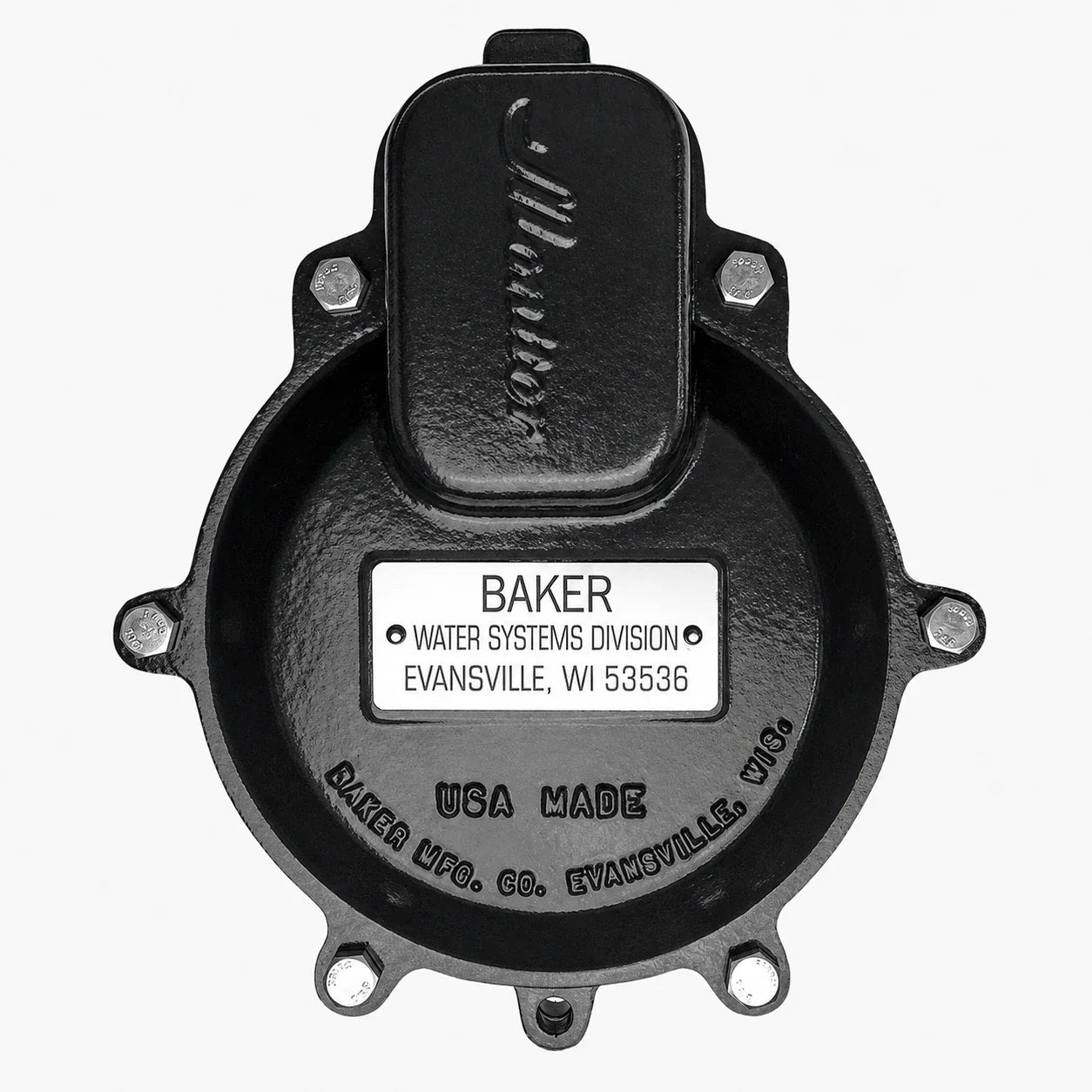

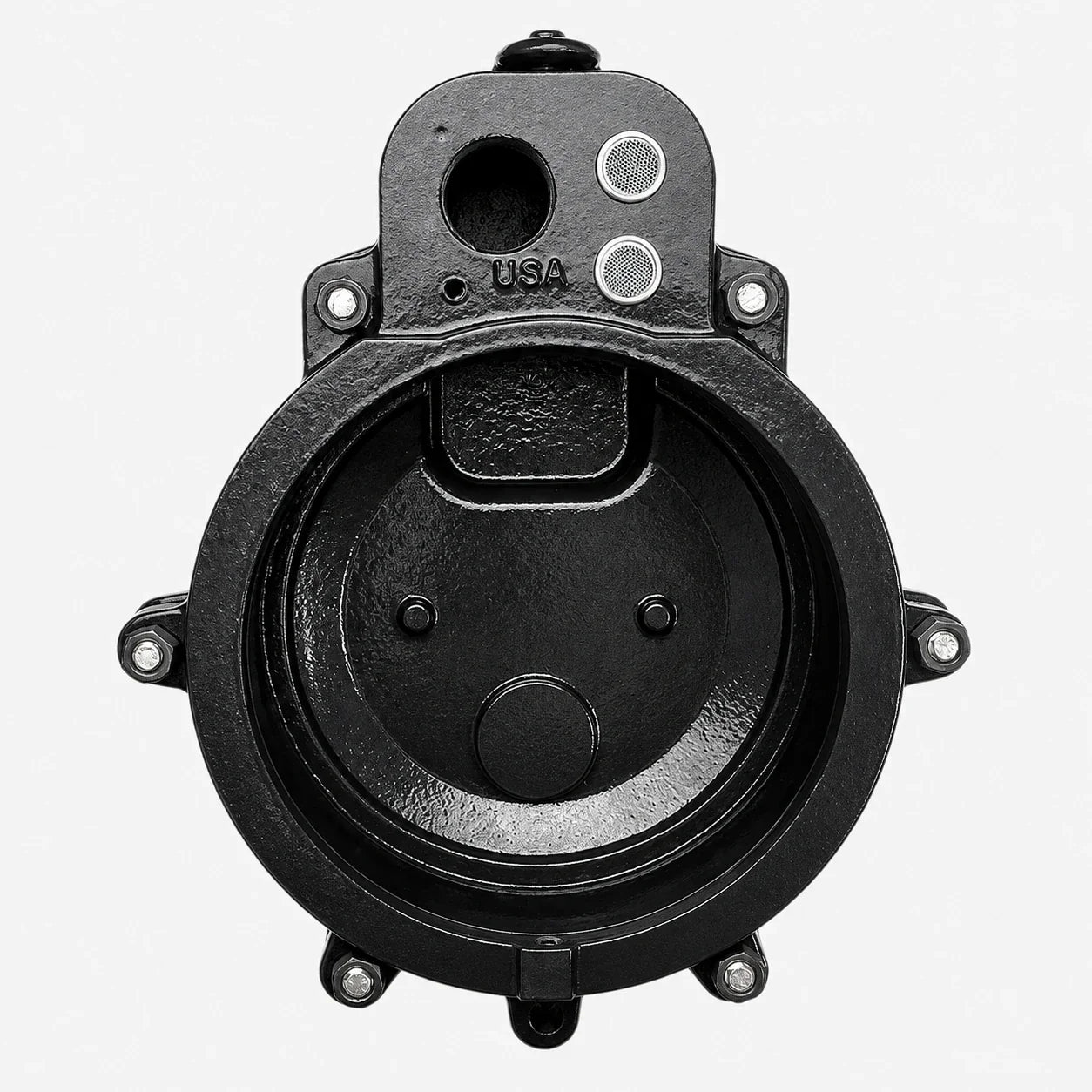

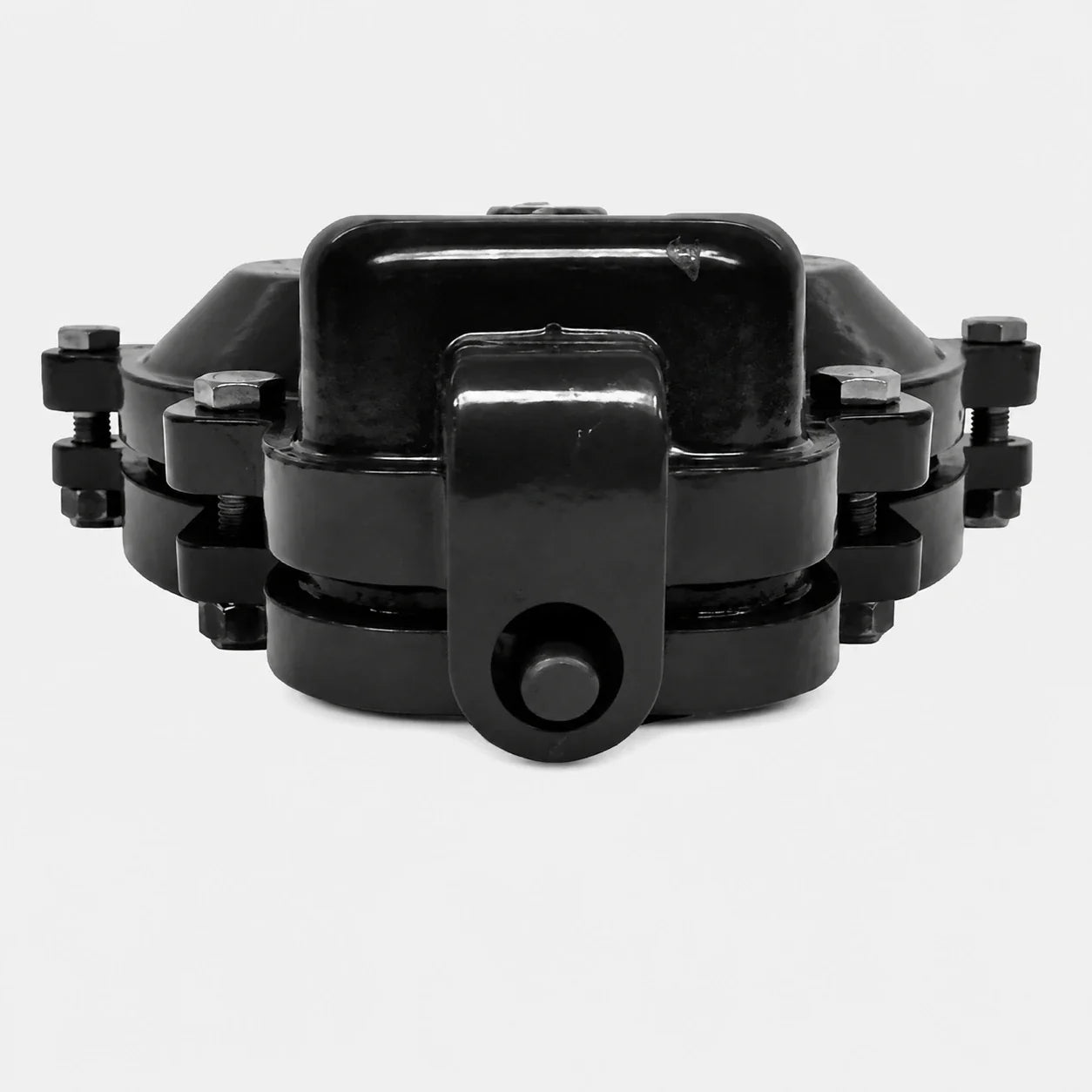

The Monitor Cast Iron Watertight Locking Cap seals the upper casing of steel or PVC wells. Tightening six bolts compresses the seal between cap and ring, and the hinged, padlockable lid makes for a secure, tamper-resistant closure.
Two large screened air vents keep the well breathing while the cap stays vermin- and contaminant-resistant. Green powder-coat finish and stainless steel hardware; the improved conduit design leaves extra room for submersible pump and motor cables. Offered US-made or imported, with a 1 in or 1-1/4 in FPT conduit tap, for 6 in O.D. casing.
| Casing size | 6 in O.D. |
| Seal | Six-bolt compression seal, steel or PVC casing |
| Locking | Hinged lid with padlock provision |
| Ventilation | Two 1/2 in screened air vents |
| Conduit tap | 1 in or 1-1/4 in FPT |
| Finish | Green powder coat |
| Hardware | Stainless steel |
| Weight | 11.5 lb |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
