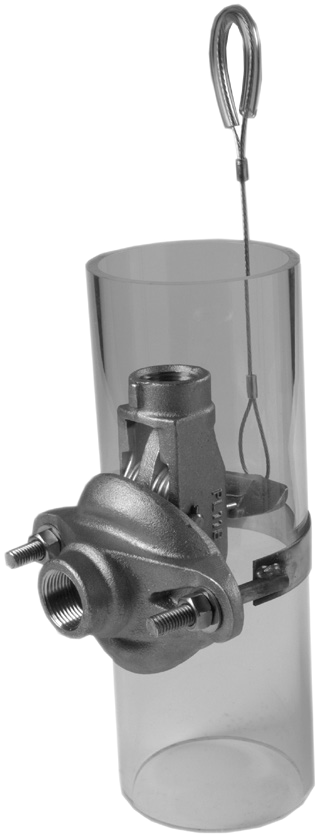

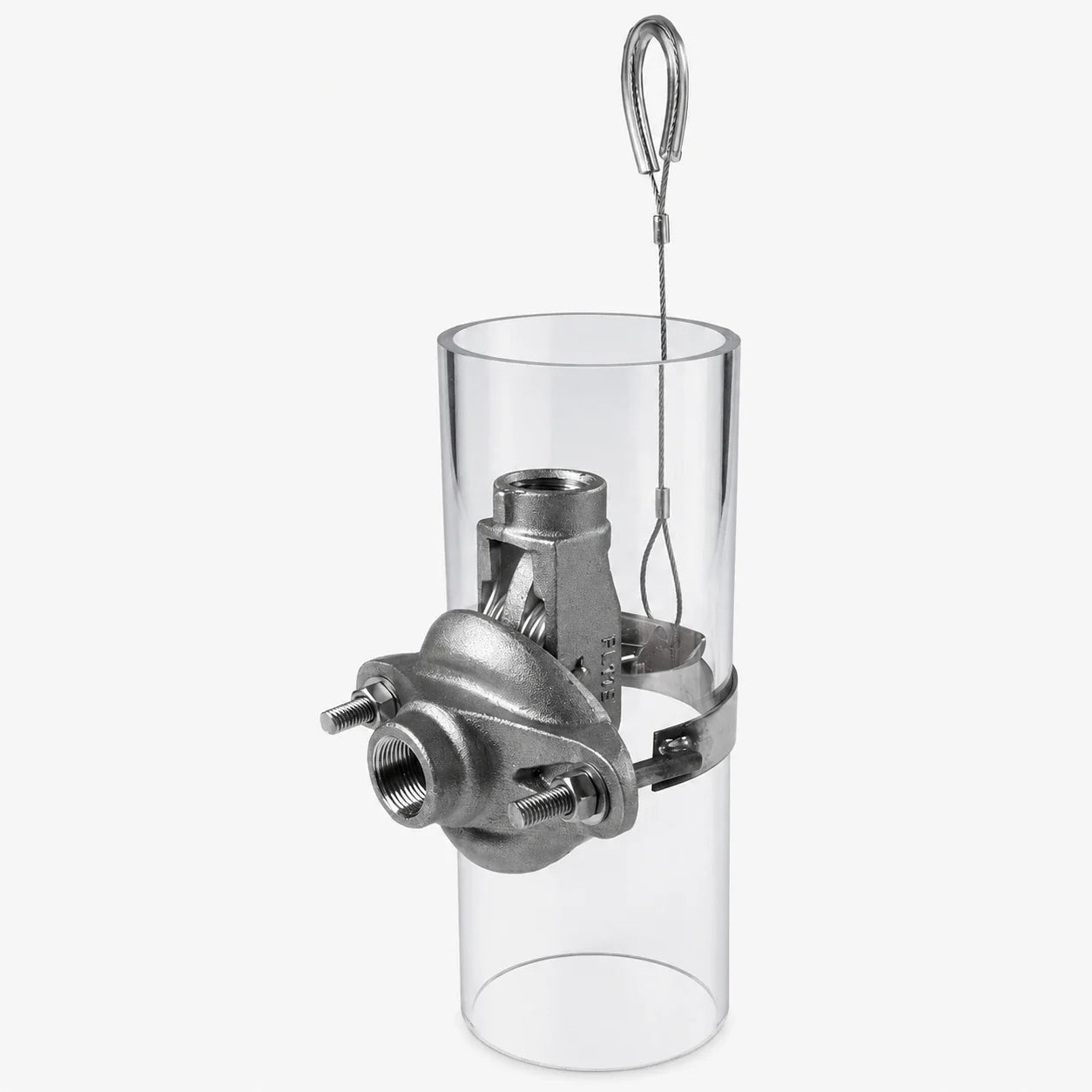

The Monitor Bulldog Pitless Adapter is a high-quality lead-free red brass adapter that makes a sanitary, frost-proof service connection below the frost line. The drop fitting locks into the casing fitting as the pump and drop pipe are set.
All cast parts are lead-free red brass conforming to NSF/ANSI 372; remaining parts are 304 stainless steel or other corrosion-resistant material. Supports 1,000 lb, rated 250 psi, conforms to PAS-97(2017). Select by well I.D. and drop pipe size.
| Material | Lead-free red brass |
| Well sizes | 4 in, 5 in, 6 in I.D. |
| Drop and discharge | 1 in or 1-1/4 in |
| Support | 1,000 lb |
| Pressure rating | 250 psi |
| Standards | PAS-97(2017), NSF/ANSI 372 |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
