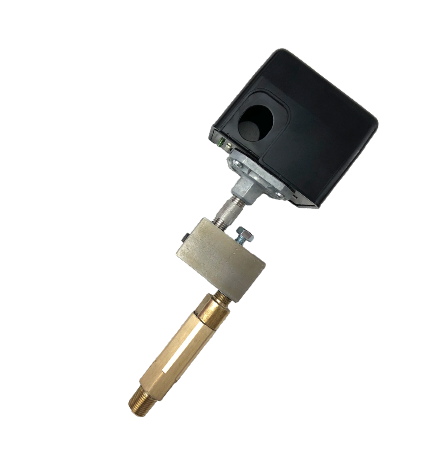

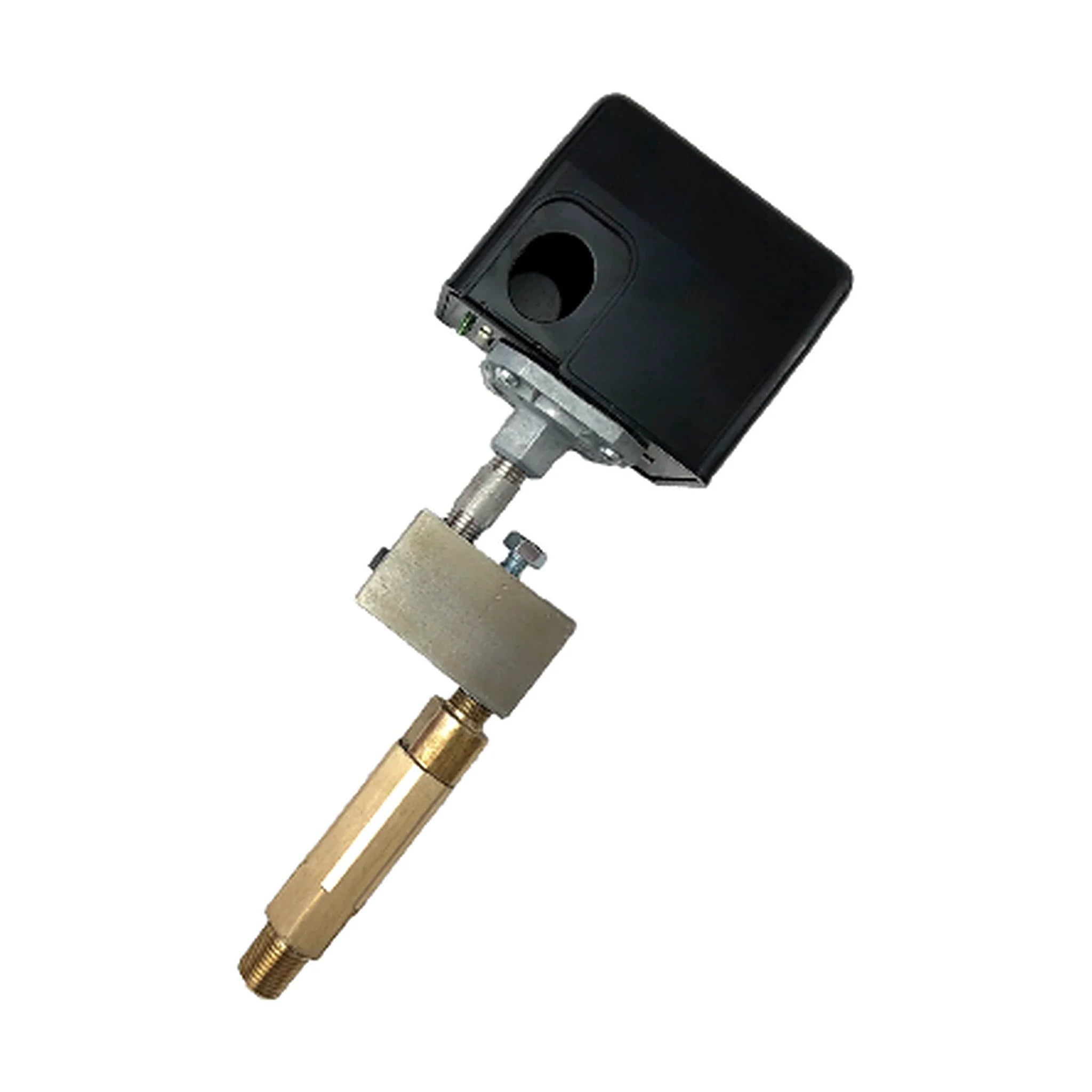

The Monitor At-The-Well Control Kit locates the pressure switch and controls inside the well casing, so the whole automatic water system can be installed at the well head with minimal wire and piping. This plug-in kit is for submersible pumps.
Available with an all-weather pressure switch or without a switch, sized to the pitless unit bury depth. 120 psi maximum pressure rating; conforms to NSF/ANSI 372. A pressure relief valve is recommended on all installations.
| Pump type | Submersible |
| Connection | Plug-in |
| Pressure rating | 120 psi max |
| Bury depths | 0 ft to 7 ft |
| Standards | NSF/ANSI 372 |
Downloads: Monitor Domestic Products Catalog | Monitor Repair Parts & Installation Catalog
For engineering-led selection support or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
