Grundfos · Commercial Booster System
Hydro Multi-E Triplex

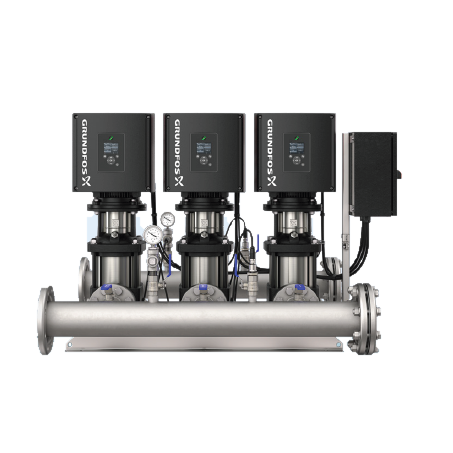

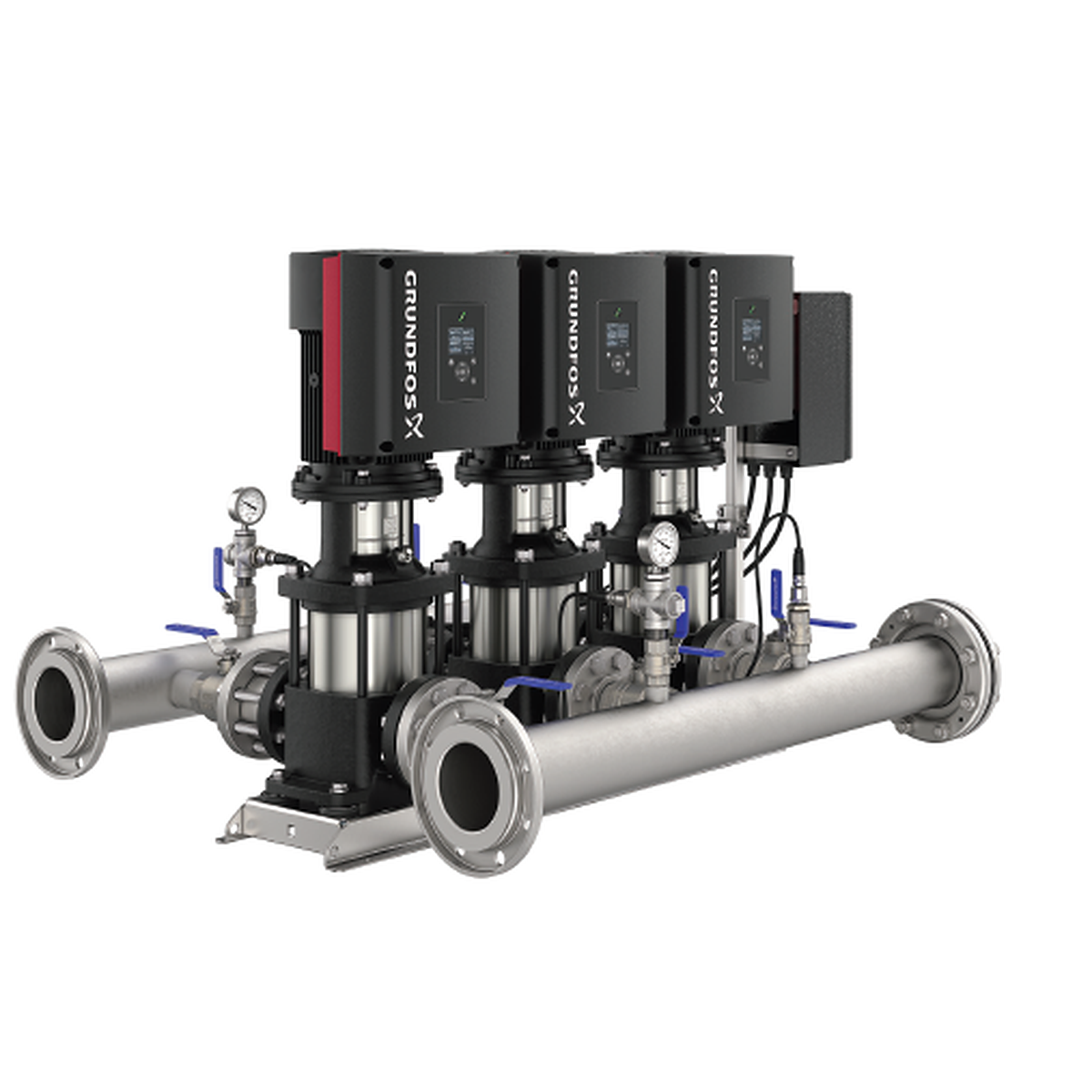

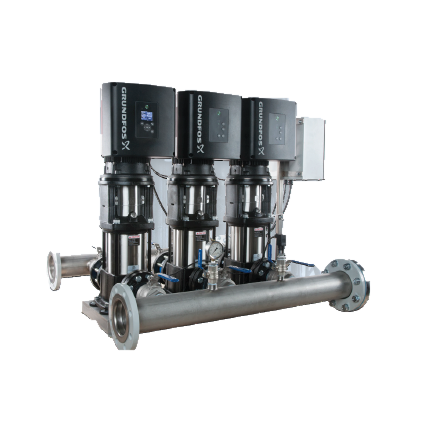

Three CRE 3 or CRE 5 vertical multistage pumps with integrated IE5 variable-speed motors on one stainless base. Eight builds from CRE 3-6 to CRE 5-16, 1 to 5 HP per pump, three voltages, with an inlet pressure switch or inlet pressure sensors for dry-running protection.
Three CRE Pumps · Triplex
205 psi (475 ft) Max Boost
135 GPM Max Flow
232 psi Max System Pressure
1-5 HP per Pump
200-240V 1Ph or 3Ph · 440-480V 3Ph
2 in NPT (CRE 3) · 2.5 in NPT (CRE 5) Manifolds
Integrated VFD · IE5 Motors
UL Listed · NSF 61/372 (Most Builds)
44.4 W x 24.6-28.4 D x 30.7-333 H in
260-471 lb Net Weight
Indoor Installation
Overview
Hydro Multi-E Triplex with CRE 3 or CRE 5 pumps is a factory-built constant-pressure booster: three Grundfos CRE vertical multistage pumps piped in parallel on a common stainless steel base frame, with AISI 316 inlet and outlet manifolds, isolating and check valves on every pump, pressure gauges, two outlet-pressure sensors, dry-running protection and a breaker cabinet. It is pre-piped, pre-wired and pressure- and function-tested at the factory.
There is no separate control panel. Each pump carries a Grundfos MLE permanent-magnet motor with its own frequency converter and PI controller, and the pumps talk to each other. The system holds one outlet pressure by varying speed, cuts pumps in and out as demand changes, and alternates duty so run hours even out. Any pump with an outlet-pressure sensor can take over as master, so the system keeps running if one pump or one sensor drops out. Optional CIM modules connect it to BACnet, Modbus, PROFINET or EtherNet/IP building management systems.
CRE 3 and CRE 5 are the small-flow builds: up to 135 GPM with 3 pumps and the highest heads in the Hydro Multi-E range, for apartment buildings, hotels, schools, offices and process boosting. They sit outside the DOE Pump Energy Index scope, so they carry no PEI rating; for the DOE PEI-rated CRE 10, 15 and 20 builds see Hydro Multi-E Triplex (DOE PEI rated).
Standard hydraulics expect a flooded or pressurized inlet. For suction lift, Grundfos moves the check valve to the inlet side as a factory option, specified at order. The system is rated for indoor installation only. Systems built with CRE 3-15 and CRE 5-16 pumps are not NSF/ANSI 61 and 372 approved.
What Ships and What It Needs to Run

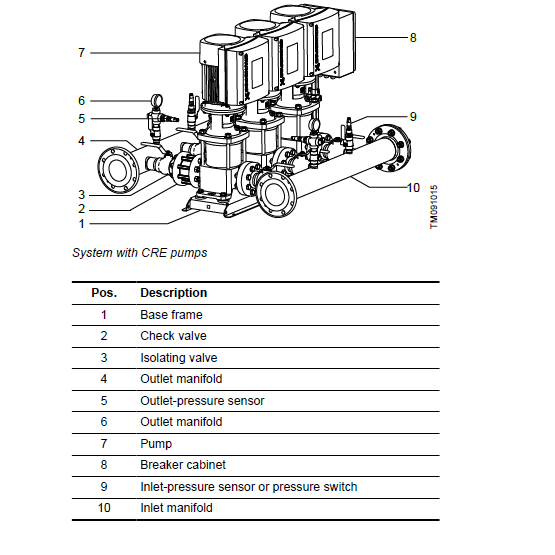

Included: three Grundfos CRE pumps with MLE motors and built-in frequency converters on a common stainless steel base frame, AISI 316 inlet and outlet manifolds, an isolating valve on each side of every pump, a check valve per pump, pressure gauges, two outlet-pressure sensors, dry-running protection (inlet pressure switch or inlet sensors, by part number) and a breaker cabinet; pre-piped, pre-wired and factory-tested.
Diaphragm tank required, ordered separately. Grundfos ships the system without a tank and lists a recommended minimum size for each pump size; see the Grundfos Diaphragm Tank for Hydro Multi listing.
Supply and discharge piping to the manifolds, and the electrical feeder: sized to your installation and ordered separately.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Grundfos Limited Warranty
Grundfos warrants consumer purchases in the United States against defects in design, material and workmanship for up to 30 months from the date of manufacture shown on the nameplate. Commercial purchases are covered under clause 10 of Grundfos US Terms and Conditions of Sale. Grundfos notes that when a product is bought online, the buyer should check the date of manufacture and the warranty duration with the seller. Source: Grundfos Installation and Operating Instructions 98419766, appendix B.1.
Triplex or Duplex — Chosen at Purchase

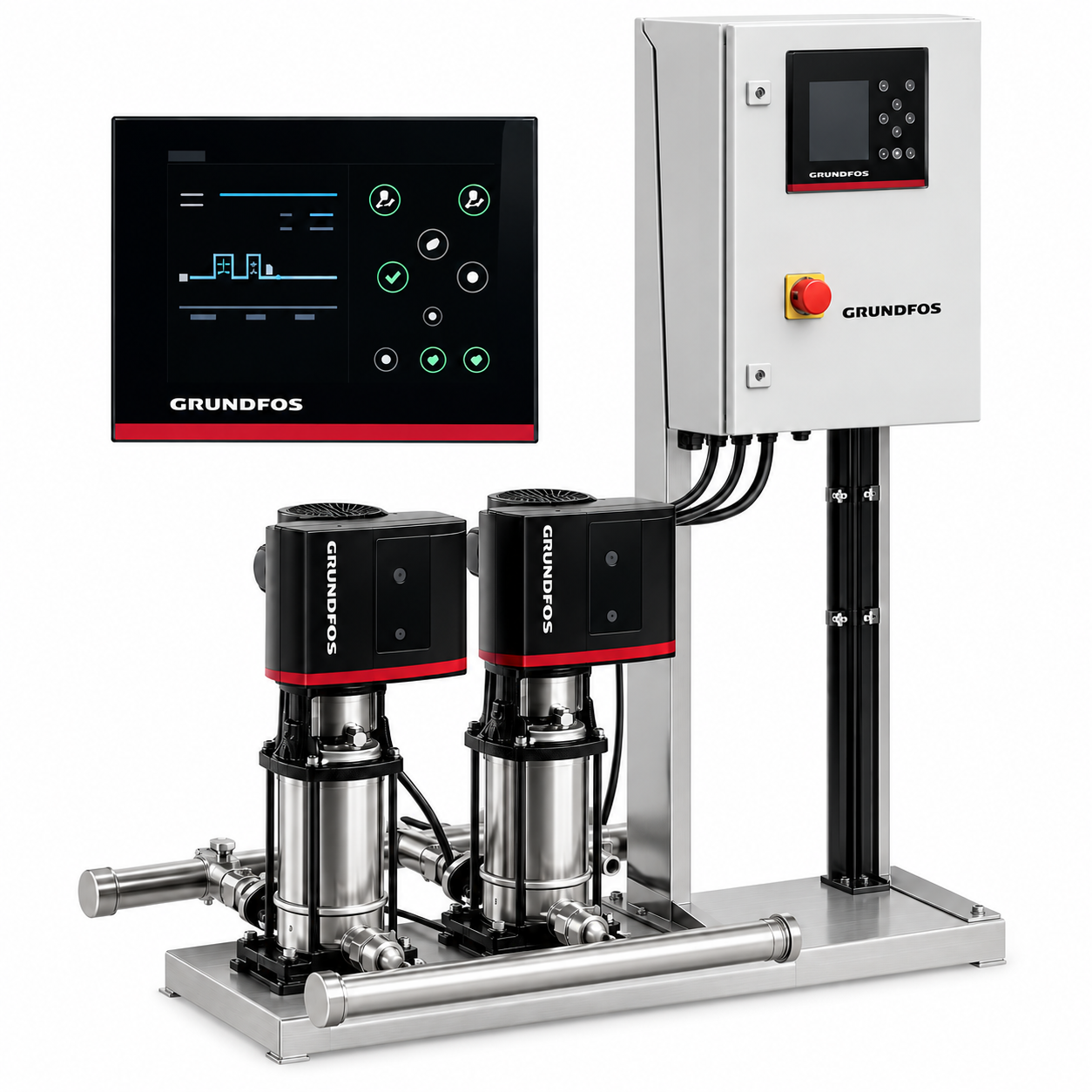

Hydro Multi-E ships as a factory-built duplex or triplex, chosen at purchase. Each added pump adds flow at the same pressure, and the system cascades pumps in and out on demand. The duplex version is listed separately: Hydro Multi-E Duplex with CRE 3 and CRE 5.
More pumps hold more pressure at the flow the building actually draws. Each pump carries a share of the water, so each sits higher on its own curve: at 80 GPM a CRE 5-9 system adds 162 ft (70 psi) on two pumps and 232 ft (100 psi) on three. The shut-off pressure at zero flow is the one figure that does not rise, because it is set by the pump build.
Figures read from the Grundfos CRE 5 curve chart, Data Booklet 99347082, printed page 34.
Check the Part Number — Switch or Sensors
Every build comes in two dry-running protection versions with different part numbers. Inlet pressure switch versions (part numbers beginning 99334 and 99445) use a normally open switch on the inlet manifold that stops the pumps at 3 psi and resets above 5 psi. Inlet pressure sensor versions (part numbers beginning 99761) carry two inlet-pressure transducers, one to each master motor, with the trip level set in the operating panel or Grundfos GO. The sensor version also reads the actual inlet pressure.
Models and Ratings (60 Hz)
| Model |
Voltage |
Part No. — Inlet Switch |
Part No. — Inlet Sensors |
| CRE 3-6 |
200-240V 1Ph |
99334684 |
99761503 |
| CRE 3-6 |
200-240V 3Ph |
99445643 |
99761474 |
| CRE 3-6 |
440-480V 3Ph |
99334035 |
99761428 |
| CRE 3-9 |
200-240V 1Ph |
99334685 |
99761504 |
| CRE 3-9 |
200-240V 3Ph |
99445645 |
99761475 |
| CRE 3-9 |
440-480V 3Ph |
99334036 |
99761429 |
| CRE 3-12 |
200-240V 1Ph |
99334686 |
99761505 |
| CRE 3-12 |
200-240V 3Ph |
99445646 |
99761476 |
| CRE 3-12 |
440-480V 3Ph |
99334037 |
99761430 |
| CRE 3-15 * |
200-240V 3Ph |
99445647 |
99761477 |
| CRE 3-15 * |
440-480V 3Ph |
99334038 |
99761431 |
| CRE 5-4 |
200-240V 1Ph |
99334687 |
99761506 |
| CRE 5-4 |
200-240V 3Ph |
99445648 |
99761478 |
| CRE 5-4 |
440-480V 3Ph |
99334039 |
99761432 |
| CRE 5-6 |
200-240V 3Ph |
99445649 |
99761479 |
| CRE 5-6 |
440-480V 3Ph |
99334040 |
99761433 |
| CRE 5-9 |
200-240V 3Ph |
99445650 |
99761480 |
| CRE 5-9 |
440-480V 3Ph |
99334041 |
99761434 |
| CRE 5-16 * |
200-240V 3Ph |
99445651 |
99761481 |
| CRE 5-16 * |
440-480V 3Ph |
99334042 |
99761435 |
* Not NSF/ANSI 61 and 372 approved. Max boost is the peak of the curve near zero flow, a ceiling rather than a working point; max flow is the end of the triplex curve; both read from the Grundfos curve charts (Data Booklet pages 33 and 34). HP is rated motor power per pump. Part numbers from the Grundfos price list effective January 1, 2026; HP, weights and connections from the Data Booklet, printed pages 45 to 46.
Voltage is fixed per part number. Single-phase and three-phase units, and 200-240V and 440-480V units, are not interchangeable. Confirm the service before ordering.
Shared Specifications
| Pumps |
Three Grundfos CRE 3 or CRE 5 vertical multistage pumps in parallel |
| Motors |
Grundfos MLE permanent-magnet motors with integrated frequency converter; efficiency exceeds IE5 (IEC 60034-30-1); built-in thermal protection |
| Control |
Constant pressure as standard; proportional pressure; automatic cascade; pump alternation; multi-master; stop function; pipe filling; limit exceeded 1 and 2 |
| Sensors |
Two outlet-pressure sensors as standard; inlet pressure switch or two inlet-pressure sensors for dry-running protection |
| Maximum permissible operating pressure |
232 psi (16 bar) |
| Liquid temperature |
41 to 140 °F (5 to 60 °C) |
| Ambient temperature |
32 to 104 °F (0 to 40 °C) |
| Maximum humidity |
95% |
| Enclosure class |
UL Type 3R |
| Manifolds |
2 in NPT (CRE 3); 2.5 in NPT (CRE 5) |
| Approvals |
UL listed package pumping system; NSF/ANSI 61 and 372 except CRE 3-15 and CRE 5-16 builds |
| DOE PEI |
Not applicable — CRE 3 and CRE 5 are outside the DOE PEI rating scope |
Sources: Data Booklet 99347082 (10.2025) pages 3 to 13; Installation and Operating Instructions 98419766 pages 26 to 29; Grundfos price list (NSF note and PEI scope).
Performance — Will It Do What You Need?
A pump curve plots what the system adds to whatever pressure arrives at the inlet — never the discharge pressure and never the setpoint. Each cell reads feet of head added (psi added). The one-pump row is what the system delivers at low demand, before the next pump cuts in.

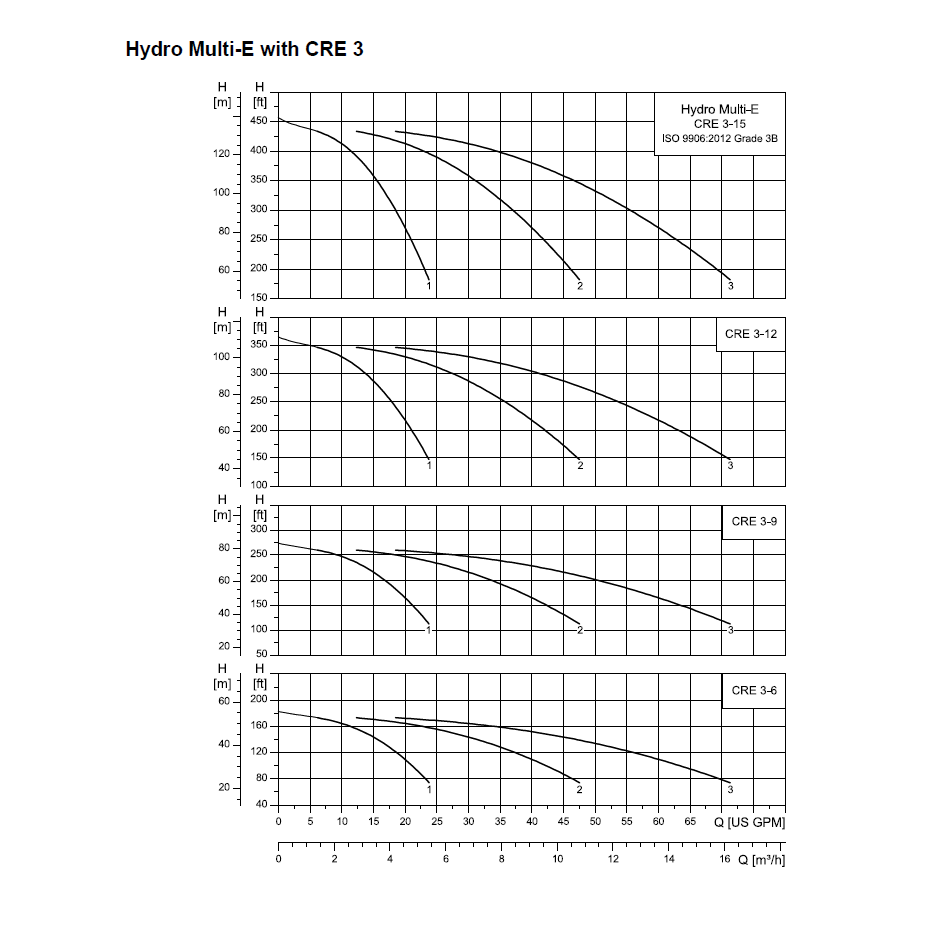

CRE 3 builds — flow in US GPM across the top
| Pressure Added, ft (psi) |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
Max flow |
|
CRE 3-6 — 1 pump |
183 (79) |
164 (71) |
109 (47) |
|
|
|
|
|
23 GPM |
|
CRE 3-6 — 2 pumps |
|
|
165 (71) |
144 (62) |
109 (47) |
|
|
|
47 GPM |
|
CRE 3-6 — 3 pumps |
|
|
173 (74) |
164 (71) |
152 (65) |
134 (58) |
110 (47) |
79 (34) |
71 GPM |
|
CRE 3-9 — 1 pump |
274 (118) |
247 (106) |
165 (71) |
|
|
|
|
|
23 GPM |
|
CRE 3-9 — 2 pumps |
|
|
247 (106) |
215 (93) |
165 (71) |
|
|
|
47 GPM |
|
CRE 3-9 — 3 pumps |
|
|
259 (112) |
247 (106) |
229 (99) |
202 (87) |
165 (71) |
119 (51) |
71 GPM |
|
CRE 3-12 — 1 pump |
364 (157) |
330 (142) |
216 (93) |
|
|
|
|
|
23 GPM |
|
CRE 3-12 — 2 pumps |
|
|
329 (142) |
287 (124) |
217 (93) |
|
|
|
47 GPM |
|
CRE 3-12 — 3 pumps |
|
|
345 (149) |
330 (142) |
304 (131) |
266 (115) |
216 (93) |
156 (67) |
71 GPM |
|
CRE 3-15 — 1 pump |
455 (197) |
412 (178) |
269 (116) |
|
|
|
|
|
23 GPM |
|
CRE 3-15 — 2 pumps |
|
|
412 (178) |
358 (155) |
269 (116) |
|
|
|
47 GPM |
|
CRE 3-15 — 3 pumps |
|
|
431 (186) |
412 (178) |
379 (164) |
331 (143) |
270 (116) |
193 (83) |
71 GPM |

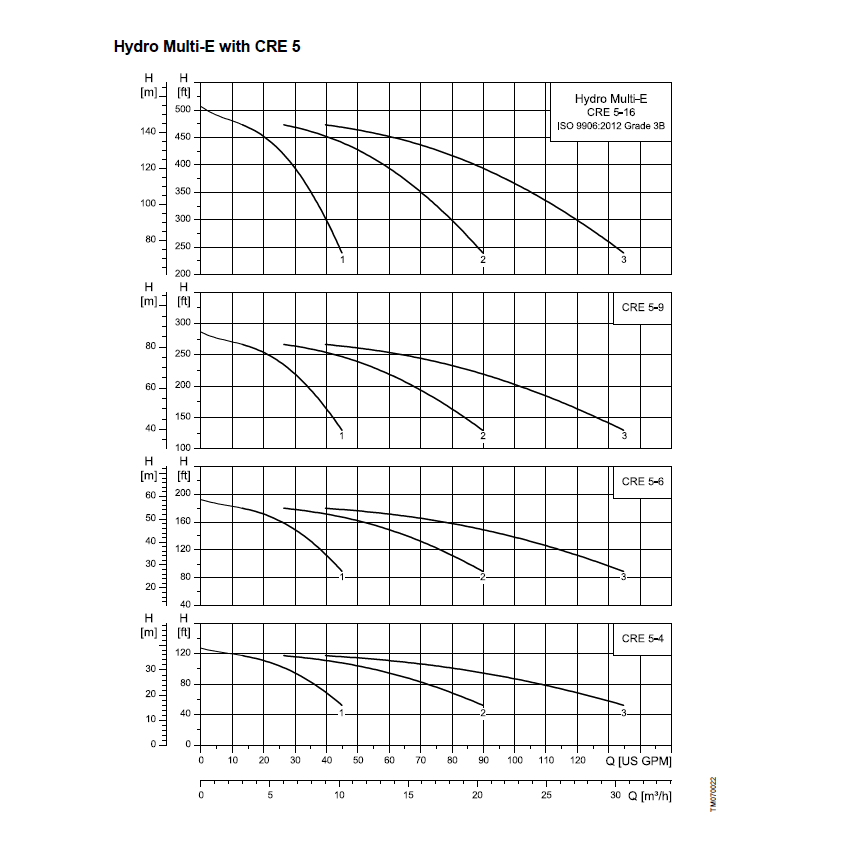

CRE 5 builds — flow in US GPM across the top
| Pressure Added, ft (psi) |
0 |
20 |
40 |
60 |
80 |
100 |
120 |
Max flow |
|
CRE 5-4 — 1 pump |
126 (54) |
110 (47) |
68 (29) |
|
|
|
|
45 GPM |
|
CRE 5-4 — 2 pumps |
|
|
110 (47) |
94 (40) |
68 (29) |
|
|
89 GPM |
|
CRE 5-4 — 3 pumps |
|
|
117 (50) |
110 (47) |
101 (43) |
86 (37) |
68 (29) |
135 GPM |
|
CRE 5-6 — 1 pump |
192 (83) |
172 (74) |
112 (48) |
|
|
|
|
45 GPM |
|
CRE 5-6 — 2 pumps |
|
|
171 (74) |
149 (64) |
112 (48) |
|
|
89 GPM |
|
CRE 5-6 — 3 pumps |
|
|
180 (77) |
171 (74) |
158 (68) |
138 (59) |
112 (48) |
135 GPM |
|
CRE 5-9 — 1 pump |
285 (123) |
253 (109) |
163 (70) |
|
|
|
|
45 GPM |
|
CRE 5-9 — 2 pumps |
|
|
253 (109) |
218 (94) |
162 (70) |
|
|
89 GPM |
|
CRE 5-9 — 3 pumps |
|
|
266 (115) |
253 (109) |
232 (100) |
202 (87) |
162 (70) |
135 GPM |
|
CRE 5-16 — 1 pump |
475 (205) |
453 (196) |
299 (129) |
|
|
|
|
45 GPM |
|
CRE 5-16 — 2 pumps |
|
|
452 (195) |
394 (170) |
298 (129) |
|
|
89 GPM |
|
CRE 5-16 — 3 pumps |
|
|
473 (204) |
453 (196) |
417 (180) |
366 (158) |
298 (129) |
135 GPM |
Drawing from a tank, cistern or well — nothing arrives with pressure, so what the system adds is what you get. Read the table straight through: a triplex CRE 5-9 at 100 GPM comes out at 202 ft (87 psi).
Fed by a city main — the system adds on top of what already arrives, and the controller holds the total at the setpoint. With 127 psi wanted at the outlet on a 40 psi main, the triplex CRE 5-9 only has to add 87 psi and delivers about 100 GPM; with 110 psi wanted, it adds 70 psi and delivers about 120 GPM. Incoming pressure buys you more flow, not more pressure — and inlet pressure plus the closed-valve pressure must stay under the 232 psi system rating.
Ask the system for more than it can deliver at your setpoint and all pumps run at full speed continuously, which is where motors and seals wear out. Grundfos also sets a floor: do not run below 10% of one pump's rated flow. Sizing to the building rather than to the headline maximums is what makes it last. Send us the peak flow, the setpoint and the inlet pressure and we will return the build with the manufacturer's curve for it.

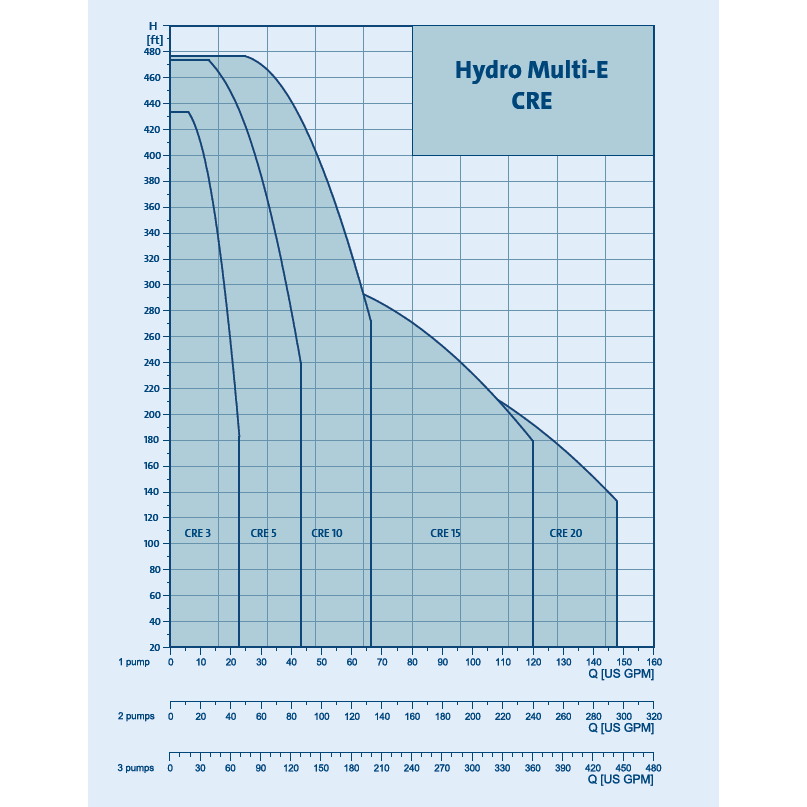

Grundfos publishes these systems' performance as curve charts, not tables. The figures above are read from those charts (Data Booklet 99347082, 10.2025, printed pages 33 and 34; the charts are also in the image gallery), heads rounded down to the whole foot and psi = ft x 0.433 rounded down; a blank cell means Grundfos does not draw that curve at that flow. The first column is the ceiling at or near zero flow, not a working point. Curves are at a fixed 3,480 rpm, 60 Hz, airless water at 68 °F, ISO 9906:2012 Grade 3B; fitting and valve losses are not included. Grundfos does not publish a best operating range for these systems.
Before You Buy — The Limits That Decide the Fit
| Maximum system pressure |
232 psi. Inlet pressure plus the pressure against a closed valve must stay below it. |
| Inlet conditions |
Flooded or pressurized inlet for standard hydraulics; suction lift needs the factory inlet-side check valve option. Check minimum inlet pressure against NPSH (Data Booklet page 10). |
| Dry-running protection |
Pressure switch (trips at 3 psi, resets above 5 psi) or two inlet sensors, chosen by part number. |
| Minimum flow |
Do not operate below 10% of one pump's rated flow. |
| Power |
Voltage and phase fixed per part number; see feeder protection above. Maximum 4 power-supply starts per hour. |
| Location |
Indoor only, out of direct sunlight, well ventilated, 3 ft clearance on all sides. Ambient 32 to 104 °F. |
| Liquid temperature |
41 to 140 °F for CRE 3 and CRE 5. |
| Drinking water |
CRE 3-15 and CRE 5-16 builds are not NSF/ANSI 61 and 372 approved. |
| Diaphragm tank |
Not integrated; recommended for low-flow operation, precharged to 0.7 times the setpoint. |
| Options |
Level switch, inlet-side check valve, sensor on each pump, breaker cabinet position and CIM modules are factory-fitted and must be specified when ordering. |
Materials of Construction
| Component |
Material |
| Manifolds |
Stainless steel AISI 316 |
| Base frame |
Stainless steel AISI 316 |
| Isolating valves |
Nickel-plated brass |
| Check valves |
POM (polyoxymethylene) |
Source: Data Booklet 99347082, printed page 13.
Accessories
| Accessory |
Part No. |
Notes |
| Diaphragm tank for CR 3 and CR 5 systems, 4.4 gal (non-code) |
91121888 |
Grundfos recommended minimum size |
| Grundfos MI 301 mobile interface |
98046408 |
Connects Grundfos GO on a smartphone |
| CIM 500 — PROFINET IO, Modbus TCP, EtherNet/IP, BACnet IP |
98301408 |
BMS over Ethernet |
| CIM 300 — BACnet MS/TP |
96893770 |
BMS, serial |
| CIM 200 — Modbus RTU |
96824796 |
BMS, serial |
| CIM 280-US — 3G/4G cellular GiC |
99895386 |
Grundfos iSolutions Cloud |
| CIM 550 — Ethernet GiC |
92546689 |
Grundfos iSolutions Cloud |
| CIM 150 — PROFIBUS DP |
96824793 |
|
| CIM 110 — LonWorks |
96824798 |
|
CIM modules fit in the pump terminal box and must be fitted by authorized persons. Tank sizes from the Grundfos price list effective January 1, 2026 (recommended minimum sizes); CIM part numbers from Data Booklet 99347082, printed page 53.
