Grundfos Hydro Multi-E Triplex Constant Pressure Booster - DOE PEI 0.38-0.45

Max Boost: 41 PSI - CRE 10-2
HP - Voltage: 3 x 1 1/2 HP - 200-240V 1Ph
Max Flow - Dry-Run: 212 GPM - Switch

Product variant with selected options does not exist!

Price
$31,401
SKU: 99334689
Weight : 496.0 lb
Loading locations...
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Grundfos · Commercial Booster System

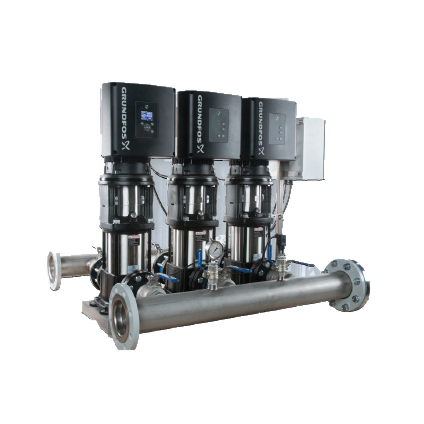

Hydro Multi-E Triplex
Three CRE vertical multistage pumps with integrated IE5 variable-speed motors on one stainless base. Sixteen builds from CRE 10-2 to CRE 20-4, 1.5 to 10 HP per pump, three voltages, with an inlet pressure switch or inlet pressure sensors for dry-running protection.

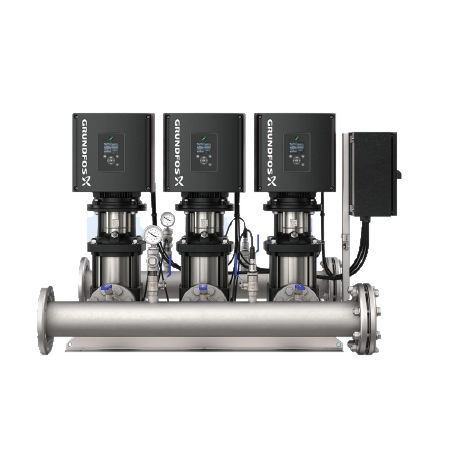

Three CRE Pumps · Triplex
205 psi (475 ft) Max Boost
462 GPM Max Flow
232 psi Max System Pressure
1.5-10 HP per Pump
200-240V 1Ph or 3Ph · 440-480V 3Ph
3 in NPT to 4 in ANSI Manifolds
DOE PEI 0.38-0.45 (Pumps)
Integrated VFD · IE5 Motors
NSF 61/372 · UL Listed
47.2-64.5 W x 38.2-44.8 D x 30.7-44 H in
496-904 lb Net Weight
Indoor Installation
Overview

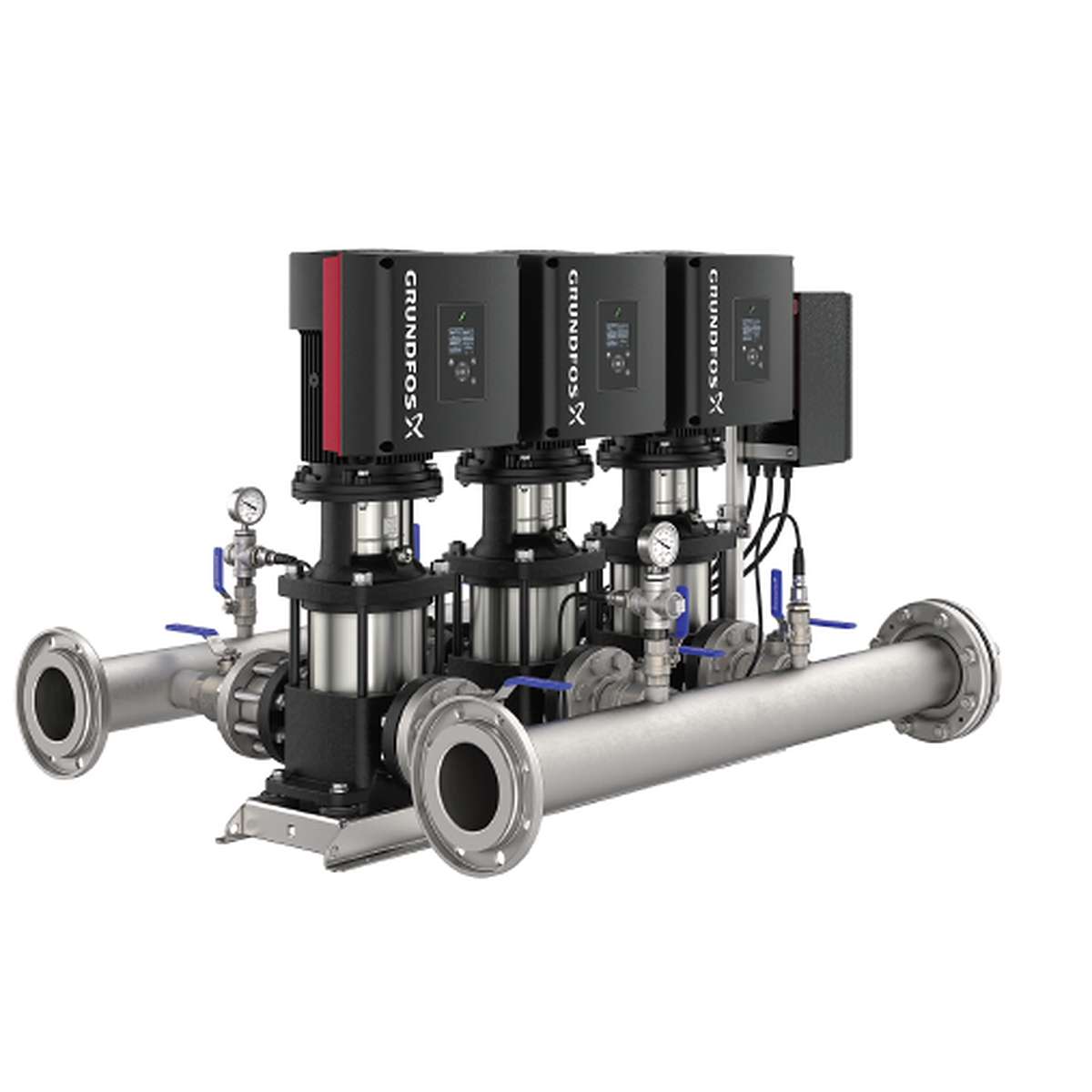

Hydro Multi-E Triplex is a factory-built constant-pressure booster: three Grundfos CRE vertical multistage pumps piped in parallel on a common stainless steel base frame, with AISI 316 inlet and outlet manifolds, an isolating valve on each side of every pump, a check valve per pump, pressure gauges, two outlet-pressure sensors, dry-running protection and a breaker cabinet. It is pre-piped, pre-wired and pressure- and function-tested at the factory, and arrives ready to connect.

There is no separate control panel. Each pump carries a Grundfos MLE permanent-magnet motor with its own frequency converter and PI controller, and the pumps talk to each other. The system holds one outlet pressure by varying speed, cuts pumps in and out as demand changes, and alternates duty so run hours even out. Constant pressure is the factory setup; proportional pressure, setpoint influence, pipe filling and limit-exceeded monitoring are built in.

Built for sites where the water cannot stop. Any pump with an outlet-pressure sensor can take over as master, and two outlet sensors are standard, so the system keeps running if one pump or one sensor drops out. Optional Grundfos CIM modules put it on the building management system over BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP, PROFINET or EtherNet/IP, or on Grundfos iSolutions Cloud. That combination, plus DOE PEI-rated pumps, is why we offer it for data centers, hospitals, hotels and office buildings.

This listing covers the CRE 10, CRE 15 and CRE 20 builds, the sizes that carry a DOE Pump Energy Index. Hydro Multi-E systems with CRE 3 and CRE 5 pumps sit outside the DOE PEI scope and are listed separately: Hydro Multi-E Triplex with CRE 3 and CRE 5.

Standard hydraulics expect a flooded or pressurized inlet. For suction lift, Grundfos moves the check valve to the inlet side as a factory option, specified at order. The system is rated for indoor installation only.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Grundfos Limited Warranty

Grundfos warrants consumer purchases in the United States against defects in design, material and workmanship for up to 30 months from the date of manufacture shown on the nameplate. Commercial purchases are covered under clause 10 of Grundfos US Terms and Conditions of Sale. Grundfos notes that when a product is bought online, the buyer should check the date of manufacture and the warranty duration with the seller. Source: Grundfos Installation and Operating Instructions 98419766, appendix B.1.

Triplex or Duplex — Chosen at Purchase

Hydro Multi-E ships as a factory-built duplex or triplex, chosen at purchase. Each added pump adds flow at the same pressure, and the system cascades pumps in and out on demand, so a light load runs one pump slowly and a peak runs all of them. The duplex version is listed separately: Hydro Multi-E Duplex.

More pumps hold more pressure at the flow the building actually draws. Each pump carries a share of the water, so each sits higher on its own curve. Grundfos draws the one-, two- and three-pump curves for every build on the same chart in the data booklet (printed pages 35 to 37), so the gain can be read straight down a flow column: at 240 GPM a CRE 15-3 system adds 114 ft (49 psi) on two pumps and 165 ft (71 psi) on three. The shut-off pressure at zero flow is the one figure that does not rise, because it is set by the pump build.

Figures read from the Grundfos CRE 15 curve chart, Data Booklet 99347082, printed page 36.

DOE Pump Energy Index — What the Number Means

PEI is the U.S. Department of Energy yardstick for clean-water pump efficiency. It is the pump energy rating divided by the rating of a pump that only just meets the federal standard for its type. A value of 1.00 is the legal ceiling; pumps above it could no longer be manufactured after January 26, 2020. Lower is better: a PEI of 0.38 means the pump is rated at 38% of the energy the minimally compliant baseline would use at the DOE test points.

Two versions exist. PEICL (constant load) applies to a bare pump or a pump sold with a motor. PEIVL (variable load) applies to a pump sold with a motor and a speed controller, which is how every CRE pump on this system is supplied, so these are PEIVL figures.

Pump Motor per pump 1 x 200-240V 3 x 200-240V 3 x 440-480V
CRE 10 1.5 to 2 HP 0.41 0.38 0.39
CRE 10 3 to 7.5 HP — 0.38 0.39
CRE 15 2 HP 0.45 0.41 0.40
CRE 15 5 to 10 HP — 0.41 0.40
CRE 20 3 to 10 HP — 0.41 0.41

PEIVL of each individual CRE pump. Grundfos states that the packaged skid does not carry a PEI value of its own, only the pumps in it do, and that PEI is a generalized value that cannot be used to calculate efficiency in a specific application. Source: Grundfos Hydro Multi-E Data Booklet 99347082 (10.2025), printed pages 3 and 4.

Check the Part Number — Switch or Sensors

Every build comes in two dry-running protection versions with different part numbers. Inlet pressure switch versions (part numbers beginning 99334, 99445 and 99449909) use a normally open switch on the inlet manifold that stops the pumps at 3 psi and resets above 5 psi. Inlet pressure sensor versions (part numbers beginning 99761) carry two inlet-pressure transducers, one to each master motor, with the trip level set in the operating panel or Grundfos GO. The sensor version also reads the actual inlet pressure, which proportional-pressure and limit-exceeded functions can use.

Models and Ratings (60 Hz)
Model Max boost Max flow Motors Voltage Manifolds Part No. — Inlet Switch Part No. — Inlet Sensors PEIVL per pump Net weight
CRE 10-2 41 psi 212 GPM 3 x 1 1/2 HP 200-240V 1Ph 3 in NPT 99334689 99761508 0.41 496 lb
CRE 10-2 41 psi 212 GPM 3 x 1 1/2 HP 200-240V 3Ph 3 in NPT 99445652 99761482 0.38 513 lb
CRE 10-2 41 psi 212 GPM 3 x 1 1/2 HP 440-480V 3Ph 3 in NPT 99334043 99761436 0.39 513 lb
CRE 10-3 60 psi 212 GPM 3 x 3 HP 200-240V 3Ph 3 in NPT 99445653 99761483 0.38 618 lb
CRE 10-3 60 psi 212 GPM 3 x 3 HP 440-480V 3Ph 3 in NPT 99334044 99761437 0.39 618 lb
CRE 10-4 82 psi 212 GPM 3 x 3 HP 200-240V 3Ph 3 in NPT 99445654 99761484 0.38 625 lb
CRE 10-4 82 psi 212 GPM 3 x 3 HP 440-480V 3Ph 3 in NPT 99334045 99761438 0.39 625 lb
CRE 10-5 103 psi 212 GPM 3 x 5 HP 200-240V 3Ph 3 in NPT 99445655 99761485 0.38 724 lb
CRE 10-5 103 psi 212 GPM 3 x 5 HP 440-480V 3Ph 3 in NPT 99334046 99761439 0.39 724 lb
CRE 10-6 124 psi 212 GPM 3 x 5 HP 200-240V 3Ph 3 in NPT 99445656 99761486 0.38 750 lb
CRE 10-6 124 psi 212 GPM 3 x 5 HP 440-480V 3Ph 3 in NPT 99334047 99761440 0.39 750 lb
CRE 10-8 165 psi 212 GPM 3 x 7 1/2 HP 200-240V 3Ph 3 in NPT 99445657 99761487 0.38 834 lb
CRE 10-8 165 psi 212 GPM 3 x 7 1/2 HP 440-480V 3Ph 3 in NPT 99334048 99761441 0.39 834 lb
CRE 10-10 205 psi 212 GPM 3 x 7 1/2 HP 200-240V 3Ph 3 in NPT 99449909 99761488 0.38 847 lb
CRE 10-10 205 psi 212 GPM 3 x 7 1/2 HP 440-480V 3Ph 3 in NPT 99334049 99761442 0.39 847 lb
CRE 15-1 26 psi 375 GPM 3 x 2 HP 200-240V 1Ph 4 in ANSI 99334690 99761509 0.45 542 lb
CRE 15-1 26 psi 375 GPM 3 x 2 HP 200-240V 3Ph 4 in ANSI 99445658 99761489 0.41 609 lb
CRE 15-1 26 psi 375 GPM 3 x 2 HP 440-480V 3Ph 4 in ANSI 99334050 99761443 0.40 548 lb
CRE 15-2 56 psi 375 GPM 3 x 5 HP 200-240V 3Ph 4 in ANSI 99445659 99761490 0.41 768 lb
CRE 15-2 56 psi 375 GPM 3 x 5 HP 440-480V 3Ph 4 in ANSI 99334051 99761444 0.40 700 lb
CRE 15-3 83 psi 375 GPM 3 x 7 1/2 HP 200-240V 3Ph 4 in ANSI 99445660 99761491 0.41 893 lb
CRE 15-3 83 psi 375 GPM 3 x 7 1/2 HP 440-480V 3Ph 4 in ANSI 99334052 99761445 0.40 755 lb
CRE 15-4 110 psi 375 GPM 3 x 7 1/2 HP 200-240V 3Ph 4 in ANSI 99445661 99761492 0.41 900 lb
CRE 15-4 110 psi 375 GPM 3 x 7 1/2 HP 440-480V 3Ph 4 in ANSI 99334053 99761446 0.40 781 lb
CRE 15-5 137 psi 375 GPM 3 x 10 HP 440-480V 3Ph 4 in ANSI 99334054 99761447 0.40 876 lb
CRE 20-1 28 psi 462 GPM 3 x 3 HP 200-240V 3Ph 4 in ANSI 99445662 99761493 0.41 616 lb
CRE 20-1 28 psi 462 GPM 3 x 3 HP 440-480V 3Ph 4 in ANSI 99334055 99761448 0.41 616 lb
CRE 20-2 57 psi 462 GPM 3 x 5 HP 200-240V 3Ph 4 in ANSI 99445663 99761494 0.41 708 lb
CRE 20-2 57 psi 462 GPM 3 x 5 HP 440-480V 3Ph 4 in ANSI 99334056 99761449 0.41 708 lb
CRE 20-3 86 psi 462 GPM 3 x 7 1/2 HP 200-240V 3Ph 4 in ANSI 99445664 99761495 0.41 858 lb
CRE 20-3 86 psi 462 GPM 3 x 7 1/2 HP 440-480V 3Ph 4 in ANSI 99334057 99761450 0.41 858 lb
CRE 20-4 114 psi 462 GPM 3 x 10 HP 440-480V 3Ph 4 in ANSI 99334058 99761451 0.41 904 lb

Max boost is the peak of the curve near zero flow, a ceiling rather than a working point; max flow is the end of the triplex curve. Both read from the Grundfos curve charts (Data Booklet pages 35 to 37). HP is the rated motor power (P2) per pump. Part numbers and model pairings from the Grundfos price list effective January 1, 2026, checked against the part-number tables in Data Booklet 99347082. Weights and connections from the Data Booklet, printed pages 43 to 46.

Voltage is fixed per part number. The MLE motor has no terminal-board changeover, so single-phase and three-phase units, and 200-240V and 440-480V units, are not interchangeable. Confirm the service before ordering.

Dimensions and Weights
Model Voltage A, in A1, in B, in C, in Net, lb Gross, lb
CRE 10-2 200-240V 1Ph 27.3 30.7 47.2 38.2 496 719
CRE 10-2 200-240V 3Ph 28.1 30.7 47.2 38.2 513 735
CRE 10-2 440-480V 3Ph 28.1 30.7 47.2 38.2 513 735
CRE 10-3 200-240V 3Ph 33.1 30.7 47.2 38.2 618 840
CRE 10-3 440-480V 3Ph 30.7 30.7 47.2 38.2 618 840
CRE 10-4 200-240V 3Ph 34.3 30.7 47.2 38.2 625 847
CRE 10-4 440-480V 3Ph 31.9 30.7 47.2 38.2 625 847
CRE 10-5 200-240V 3Ph 35.5 30.7 47.2 38.2 724 946
CRE 10-5 440-480V 3Ph 35.5 30.7 47.2 38.2 724 946
CRE 10-6 200-240V 3Ph 36.7 30.7 47.2 38.2 750 972
CRE 10-6 440-480V 3Ph 36.7 30.7 47.2 38.2 750 972
CRE 10-8 200-240V 3Ph 41.6 35.6 64.5 38.2 834 1054
CRE 10-8 440-480V 3Ph 40.6 35.6 47.2 38.2 834 1054
CRE 10-10 200-240V 3Ph 44 35.6 64.5 38.2 847 1069
CRE 10-10 440-480V 3Ph 43 35.6 47.2 38.2 847 1069
CRE 15-1 200-240V 1Ph 28.5 30.7 48.4 44.1 542 827
CRE 15-1 200-240V 3Ph 30 30.7 48.4 44.1 609 893
CRE 15-1 440-480V 3Ph 30 30.7 48.4 44.1 548 832
CRE 15-2 200-240V 3Ph 33.1 30.7 48.4 44.1 768 1052
CRE 15-2 440-480V 3Ph 33.1 30.7 48.4 44.1 700 984
CRE 15-3 200-240V 3Ph 37.3 30.7 64.5 44.1 893 1177
CRE 15-3 440-480V 3Ph 36.4 30.7 48.4 44.1 755 1039
CRE 15-4 200-240V 3Ph 39.1 30.7 64.5 44.1 900 1184
CRE 15-4 440-480V 3Ph 38.2 30.7 48.4 44.1 781 1065
CRE 15-5 440-480V 3Ph 40.9 30.7 48.4 44.1 876 1159
CRE 20-1 200-240V 3Ph 33.1 30.6 48.4 44.8 616 900
CRE 20-1 440-480V 3Ph 30.8 30.6 48.4 44.8 616 900
CRE 20-2 200-240V 3Ph 33.1 30.6 48.4 44.8 708 992
CRE 20-2 440-480V 3Ph 33.1 30.6 48.4 44.8 708 992
CRE 20-3 200-240V 3Ph 37.3 30.6 64.5 44.8 858 1142
CRE 20-3 440-480V 3Ph 36.4 30.6 48.4 44.8 858 1142
CRE 20-4 440-480V 3Ph 39.2 30.6 64.5 44.8 904 1188

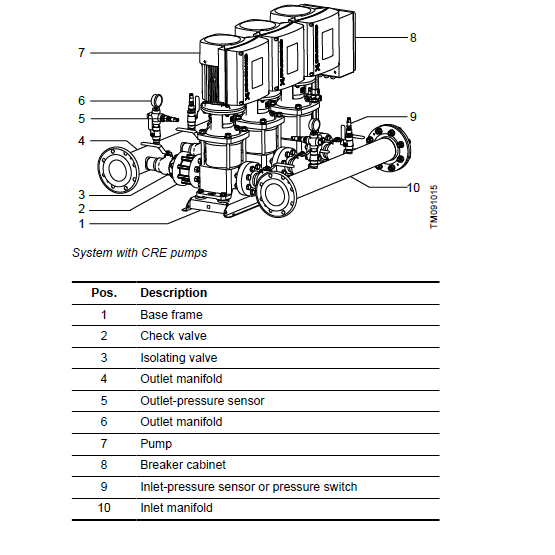

From the Grundfos dimensional drawing: A is pump height, A1 breaker cabinet height, B length, C depth; overall height is the taller of A and A1. Dimensions may vary by plus or minus 0.5 in. Net weight is the system; gross weight includes packing. Grundfos asks for one meter (3 ft) of clearance on all sides for inspection and removal. Source: Data Booklet 99347082, printed pages 45 to 46.

Shared Specifications
Pumps Three Grundfos CRE vertical multistage pumps in parallel
Motors Grundfos MLE permanent-magnet motors with integrated frequency converter; efficiency exceeds IE5 (IEC 60034-30-1); thermal protection built in, no external motor protection required
Control Constant pressure as standard; proportional pressure; automatic cascade; pump alternation; multi-master; stop function; pipe filling; external setpoint influence; limit exceeded 1 and 2
Sensors Two outlet-pressure sensors as standard; inlet pressure switch or two inlet-pressure sensors for dry-running protection
Maximum permissible operating pressure 232 psi (16 bar)
Liquid temperature 41 to 180 °F (5 to 82 °C)
Ambient temperature 32 to 104 °F (0 to 40 °C)
Maximum humidity 95%
Altitude Full motor output to 3,281 ft (1,000 m); installable to 11,483 ft (3,500 m) with derating
Enclosure class UL Type 3R
Insulation class F
Manifolds 3 in NPT (CRE 10); 4 in ANSI (CRE 15, CRE 20)
Approvals System NSF/ANSI 61 and NSF/ANSI 372 certified; UL listed package pumping system
Communication (optional) CIM modules for LonWorks, PROFIBUS DP, Modbus RTU, BACnet MS/TP, PROFINET IO, Modbus TCP, EtherNet/IP, BACnet IP, 3G/4G cellular and Ethernet GiC
Power-supply starts Maximum 4 per hour; pumps start about 5 seconds after power-up

Sources: Data Booklet 99347082 (10.2025) pages 3 to 13 and 51 to 53; Installation and Operating Instructions 98419766 pages 26 to 29; Hydro Multi-E brochure (11.2025) and leaflet LHMESL02 (07.2024) for approvals.

Electrical — Feeder Protection
Supply Motor per pump Max feeder OCPD, triplex, A
1 x 200-240V 1.5 HP 50
1 x 200-240V 2 HP 60
3 x 200-240V 1.5 HP 30
3 x 200-240V 2 HP 35
3 x 200-240V 3 HP 45
3 x 200-240V 5 HP 70
3 x 200-240V 7.5 HP 100
3 x 440-480V 1.5 HP 20
3 x 440-480V 2 HP 20
3 x 440-480V 3 HP 20
3 x 440-480V 5 HP 35
3 x 440-480V 7.5 HP 50
3 x 440-480V 10 HP 60

Maximum feeder overcurrent protective device rating for the whole system, as printed by Grundfos. Supply tolerance plus or minus 10%. Motors of 5 to 7.5 HP need an especially reliable earth connection because leakage current exceeds 3.5 mA. Source: Installation and Operating Instructions 98419766, page 28.

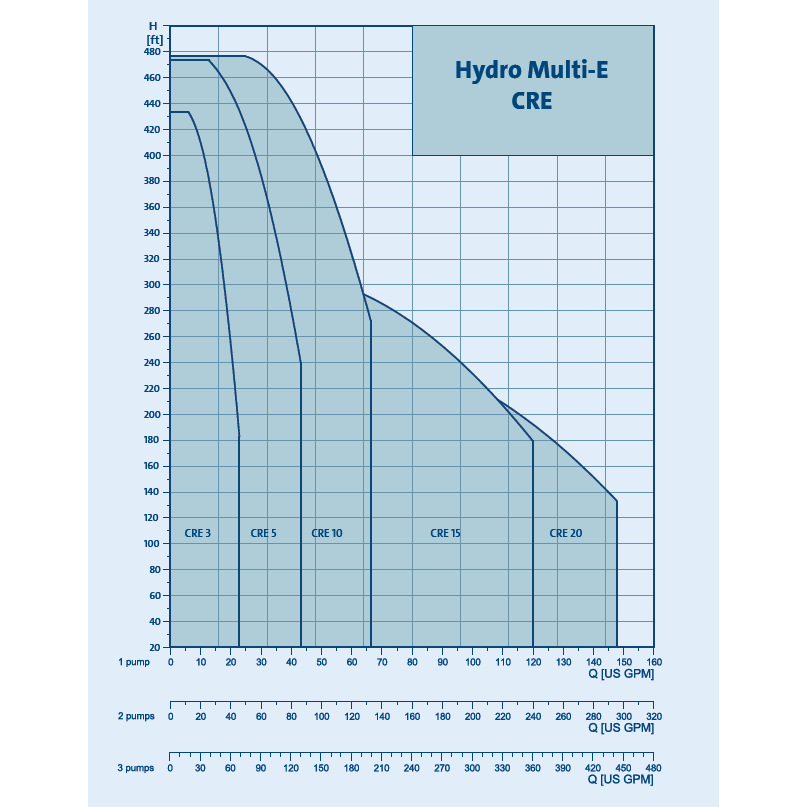

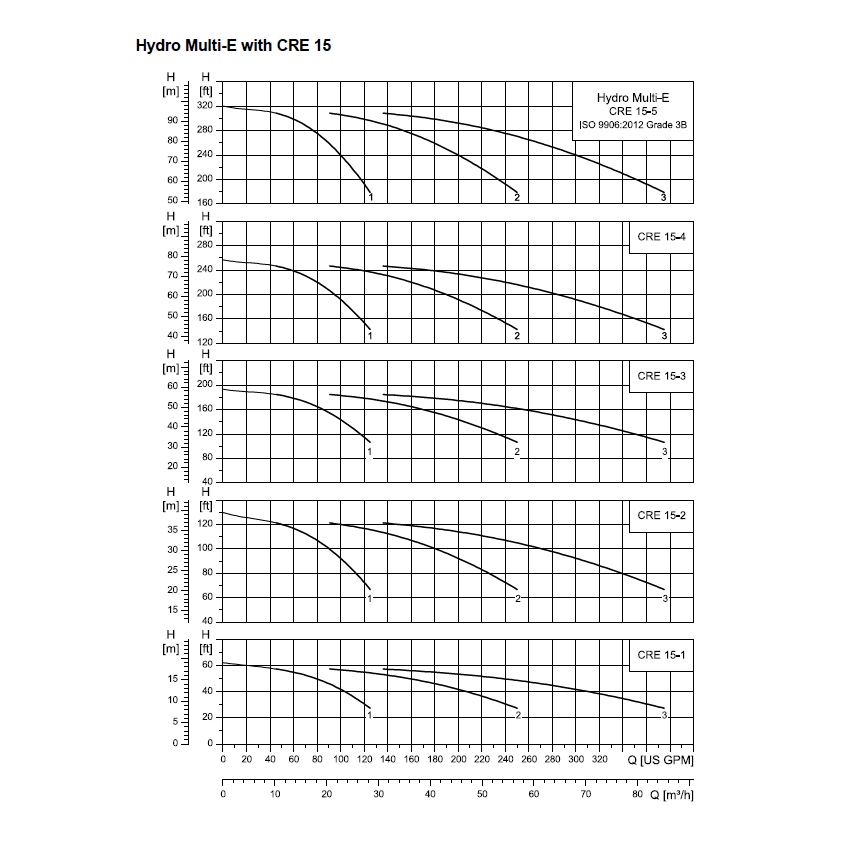

Performance — Will It Do What You Need?

A pump curve plots what the system adds to whatever pressure arrives at the inlet — never the discharge pressure and never the setpoint. Each cell reads feet of head added (psi added). The one-pump row is what the system delivers at low demand, before the next pump cuts in.

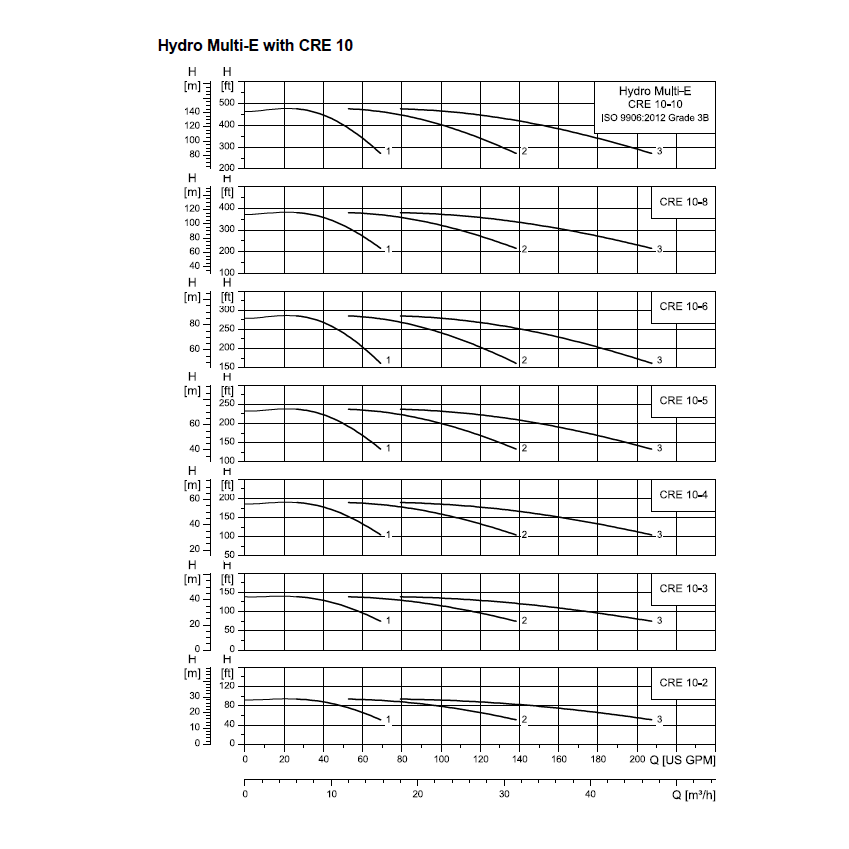

CRE 10 builds — flow in US GPM across the top

Pressure Added, ft (psi) 0 20 40 60 80 100 120 140 160 180 200 Max flow
CRE 10-2 — 1 pump 92 (39) 95 (41) 87 (37) 66 (28) 73 GPM
CRE 10-2 — 2 pumps 93 (40) 91 (39) 78 (33) 65 (28) 53 (22) 143 GPM
CRE 10-2 — 3 pumps 92 (39) 87 (37) 82 (35) 75 (32) 65 (28) 54 (23) 212 GPM
CRE 10-3 — 1 pump 139 (60) 139 (60) 130 (56) 96 (41) 73 GPM
CRE 10-3 — 2 pumps 138 (59) 134 (58) 115 (49) 96 (41) 78 (33) 143 GPM
CRE 10-3 — 3 pumps 135 (58) 129 (55) 120 (51) 109 (47) 96 (41) 81 (35) 212 GPM
CRE 10-4 — 1 pump 185 (80) 189 (81) 177 (76) 133 (57) 73 GPM
CRE 10-4 — 2 pumps 188 (81) 159 (68) 133 (57) 107 (46) 143 GPM
CRE 10-4 — 3 pumps 185 (80) 177 (76) 166 (71) 152 (65) 132 (57) 112 (48) 212 GPM
CRE 10-5 — 1 pump 232 (100) 238 (103) 223 (96) 168 (72) 73 GPM
CRE 10-5 — 2 pumps 235 (101) 201 (87) 168 (72) 137 (59) 143 GPM
CRE 10-5 — 3 pumps 232 (100) 222 (96) 209 (90) 190 (82) 167 (72) 142 (61) 212 GPM
CRE 10-6 — 1 pump 278 (120) 286 (123) 268 (116) 204 (88) 73 GPM
CRE 10-6 — 2 pumps 282 (122) 268 (116) 241 (104) 203 (87) 161 (69) 143 GPM
CRE 10-6 — 3 pumps 285 (123) 280 (121) 267 (115) 252 (109) 230 (99) 202 (87) 173 (74) 212 GPM
CRE 10-8 — 1 pump 372 (161) 381 (164) 358 (155) 272 (117) 73 GPM
CRE 10-8 — 2 pumps 379 (164) 322 (139) 272 (117) 219 (94) 143 GPM
CRE 10-8 — 3 pumps 373 (161) 358 (155) 336 (145) 307 (132) 273 (118) 231 (100) 212 GPM
CRE 10-10 — 1 pump 463 (200) 475 (205) 445 (192) 340 (147) 73 GPM
CRE 10-10 — 2 pumps 471 (203) 403 (174) 338 (146) 143 GPM
CRE 10-10 — 3 pumps 474 (205) 465 (201) 446 (193) 419 (181) 383 (165) 339 (146) 290 (125) 212 GPM

CRE 15 builds — flow in US GPM across the top

Pressure Added, ft (psi) 0 40 80 120 160 200 240 280 320 360 Max flow
CRE 15-1 — 1 pump 62 (26) 57 (24) 49 (21) 31 (13) 124 GPM
CRE 15-1 — 2 pumps 55 (23) 49 (21) 41 (17) 30 (12) 250 GPM
CRE 15-1 — 3 pumps 55 (23) 53 (22) 49 (21) 45 (19) 38 (16) 30 (12) 375 GPM
CRE 15-2 — 1 pump 129 (55) 122 (52) 107 (46) 72 (31) 124 GPM
CRE 15-2 — 2 pumps 116 (50) 107 (46) 92 (39) 72 (31) 250 GPM
CRE 15-2 — 3 pumps 119 (51) 113 (48) 107 (46) 98 (42) 86 (37) 72 (31) 375 GPM
CRE 15-3 — 1 pump 193 (83) 186 (80) 165 (71) 114 (49) 124 GPM
CRE 15-3 — 2 pumps 179 (77) 165 (71) 144 (62) 114 (49) 250 GPM
CRE 15-3 — 3 pumps 182 (78) 174 (75) 165 (71) 151 (65) 134 (58) 114 (49) 375 GPM
CRE 15-4 — 1 pump 256 (110) 248 (107) 219 (94) 154 (66) 124 GPM
CRE 15-4 — 2 pumps 237 (102) 219 (94) 192 (83) 153 (66) 250 GPM
CRE 15-4 — 3 pumps 242 (104) 233 (100) 220 (95) 202 (87) 180 (77) 153 (66) 375 GPM
CRE 15-5 — 1 pump 311 (134) 275 (119) 192 (83) 124 GPM
CRE 15-5 — 2 pumps 299 (129) 275 (119) 239 (103) 191 (82) 250 GPM
CRE 15-5 — 3 pumps 304 (131) 292 (126) 275 (119) 253 (109) 225 (97) 191 (82) 375 GPM

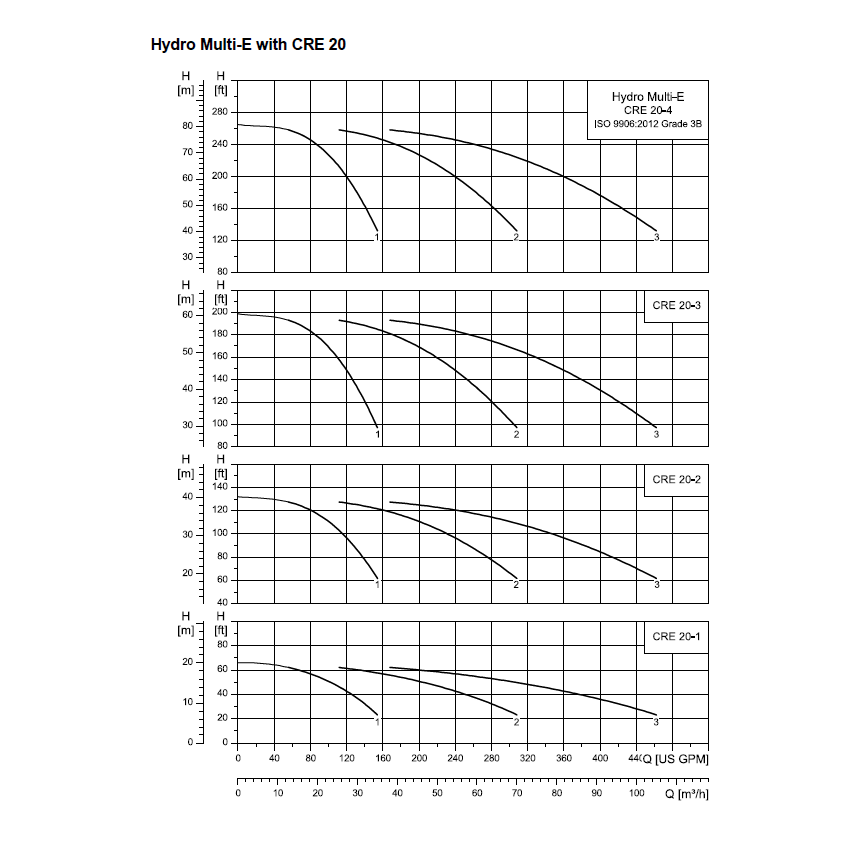

CRE 20 builds — flow in US GPM across the top

Pressure Added, ft (psi) 0 40 80 120 160 200 240 280 320 360 400 440 Max flow
CRE 20-1 — 1 pump 66 (28) 64 (27) 56 (24) 42 (18) 154 GPM
CRE 20-1 — 2 pumps 61 (26) 56 (24) 50 (21) 42 (18) 32 (13) 308 GPM
CRE 20-1 — 3 pumps 60 (25) 56 (24) 53 (22) 48 (20) 42 (18) 36 (15) 28 (12) 462 GPM
CRE 20-2 — 1 pump 132 (57) 129 (55) 120 (51) 96 (41) 154 GPM
CRE 20-2 — 2 pumps 126 (54) 121 (52) 110 (47) 96 (41) 77 (33) 308 GPM
CRE 20-2 — 3 pumps 124 (53) 121 (52) 114 (49) 106 (45) 96 (41) 84 (36) 70 (30) 462 GPM
CRE 20-3 — 1 pump 198 (85) 196 (84) 183 (79) 148 (64) 154 GPM
CRE 20-3 — 2 pumps 191 (82) 183 (79) 168 (72) 148 (64) 120 (51) 308 GPM
CRE 20-3 — 3 pumps 189 (81) 183 (79) 174 (75) 163 (70) 147 (63) 130 (56) 109 (47) 462 GPM
CRE 20-4 — 1 pump 265 (114) 261 (113) 245 (106) 199 (86) 154 GPM
CRE 20-4 — 2 pumps 256 (110) 245 (106) 226 (97) 200 (86) 163 (70) 308 GPM
CRE 20-4 — 3 pumps 254 (109) 245 (106) 234 (101) 218 (94) 199 (86) 176 (76) 148 (64) 462 GPM

Drawing from a tank, cistern or well — nothing arrives with pressure, so what the system adds is what you get. Read the table straight through: a triplex CRE 15-3 at 320 GPM comes out at 134 ft (58 psi).

Fed by a city main — the system adds on top of what already arrives, and the controller holds the total at the setpoint. With 98 psi wanted at the outlet on a 40 psi main, the triplex CRE 15-3 only has to add 58 psi and delivers about 320 GPM; with 89 psi wanted, it adds 49 psi and delivers about 360 GPM. Incoming pressure buys you more flow, not more pressure — and inlet pressure plus the closed-valve pressure must stay under the 232 psi system rating.

Ask the system for more than it can deliver at your setpoint and all pumps run at full speed continuously, which is where motors and seals wear out. Grundfos also sets a floor: do not run below 10% of one pump's rated flow. Sizing to the building rather than to the headline maximums is what makes it last. Send us the peak flow, the setpoint and the inlet pressure and we will return the build with the manufacturer's curve for it.

Grundfos publishes Hydro Multi-E performance as curve charts, not tables. The figures above are read from those charts (Data Booklet 99347082, 10.2025, printed pages 35 to 37; the charts are also in the image gallery), heads rounded down to the whole foot and psi = ft x 0.433 rounded down; a blank cell means Grundfos does not draw that curve at that flow. The first column is the ceiling at or near zero flow, not a working point. Curves are at a fixed 3,480 rpm, 60 Hz, airless water at 68 °F, ISO 9906:2012 Grade 3B; fitting and valve losses are not included, and Grundfos Product Center, which uses actual motor speed, reads slightly lower at the high-flow end. Grundfos does not publish a best operating range for these systems. Grundfos range maximums: 462 GPM and 475 ft (brochure 11.2025).

Before You Buy — The Limits That Decide the Fit
Maximum system pressure 232 psi. Inlet pressure plus the pressure against a closed valve must stay below it — a strong main can push a well-matched system past its rating.
Inlet conditions Standard hydraulics expect a flooded or pressurized inlet. Check minimum inlet pressure against NPSH with the Grundfos formula (Data Booklet page 10). Suction lift needs the factory inlet-side check valve option, specified at order.
Dry-running protection Pressure switch (trips at 3 psi, resets above 5 psi) or two inlet sensors, chosen by part number. For a tank or well source Grundfos recommends a level switch or electrode relay, a factory option.
Minimum flow Do not operate below 10% of one pump's rated flow.
Power Voltage and phase fixed per part number; check the feeder protection table above. Maximum 4 power-supply starts per hour.
Location Indoor installation only, out of direct sunlight, in a well-ventilated room with 3 ft clearance on all sides and 2 in behind each fan cover. Ambient 32 to 104 °F.
Liquid temperature 41 to 180 °F (5 to 82 °C) for CRE 10, 15 and 20.
Diaphragm tank Not integrated. A tank sized to the application is recommended for low-flow operation, precharged to 0.7 times the setpoint. A thermal expansion tank is still required at any storage water heater.
Options Level switch, inlet-side check valve, sensor on each pump, left-side or wall-mounted breaker cabinet, PN 25 rating and CIM modules are factory-fitted and must be specified when ordering.
Materials of Construction
Component Material
Manifolds Stainless steel AISI 316
Base frame Stainless steel AISI 316
Isolating valves Nickel-plated brass
Check valves (CRE 10, 15, 20) Ductile iron body, bronze disc
Pump housing Cast iron (CRE)

Source: Data Booklet 99347082, printed page 13; pump housing per Grundfos Product Center data sheets.

Accessories
Accessory Part No. Notes
Diaphragm tank for CR 10 systems, 10.3 gal (non-code) 91121890 Grundfos recommended minimum size
Diaphragm tank for CR 15 systems, 34 gal (non-code) 91121893 Grundfos recommended minimum size
Diaphragm tank for CR 20 systems, 44 gal (non-code) 91121894 Grundfos recommended minimum size
Grundfos MI 301 mobile interface 98046408 Connects Grundfos GO on a smartphone
CIM 500 — PROFINET IO, Modbus TCP, EtherNet/IP, BACnet IP 98301408 BMS over Ethernet
CIM 300 — BACnet MS/TP 96893770 BMS, serial
CIM 200 — Modbus RTU 96824796 BMS, serial
CIM 280-US — 3G/4G cellular GiC 99895386 Grundfos iSolutions Cloud
CIM 550 — Ethernet GiC 92546689 Grundfos iSolutions Cloud
CIM 150 — PROFIBUS DP 96824793
CIM 110 — LonWorks 96824798

CIM modules fit in the pump terminal box and must be fitted by authorized persons. Tank sizes from the Grundfos price list effective January 1, 2026; CIM part numbers from Data Booklet 99347082, printed page 53.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Videos

No manufacturer video is currently published for this system. Call 1-888.510.4036 and we will walk you through installation and setup.

Grundfos GO App
Set Up and Monitor From Your Phone

Hydro Multi-E is set up and run from the advanced operating panel on the master pump, with no app required. Grundfos GO adds guided commissioning, live operating data, alarm troubleshooting and PDF reports on a smartphone. Grundfos lists the MI 301 mobile interface as the accessory for this: it pairs with the phone by Bluetooth and reaches the pumps by radio or infrared. It is sold separately.

Grundfos GO is a free app from Grundfos Holding A/S. The MI 301 mobile interface is sold separately.

You May Also Like
