Pump Boost: 62 PSI
Phase: Single Phase
Voltage: 208-230
MAP
Call for pricing
SKU: 6012-020
Weight: 1.0 lb
Free Shipping $499 or more
Available For Order! Call Sales Counter for accurate lead-time!
Description

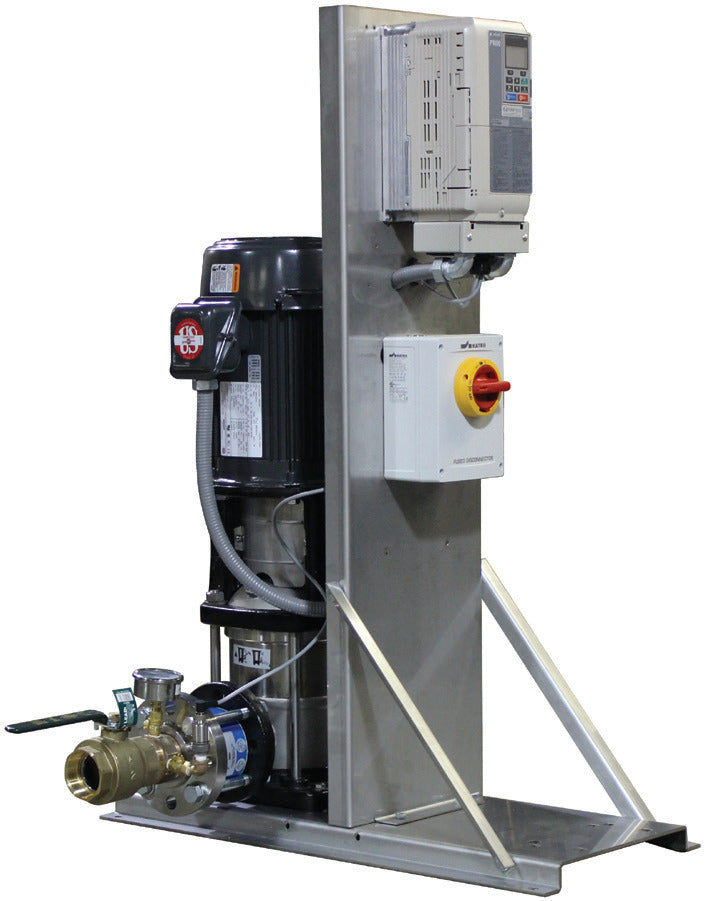

The DuraMAC™ Boosting system is simple, versatile, sophisticated, and reliable. The Vertical Multistage Variable Speed Booster System changes motor speed based on demands of the system, which allows users to save energy costs over traditional constant speed booster systems.


Technical Details
  • Easy set-up installation

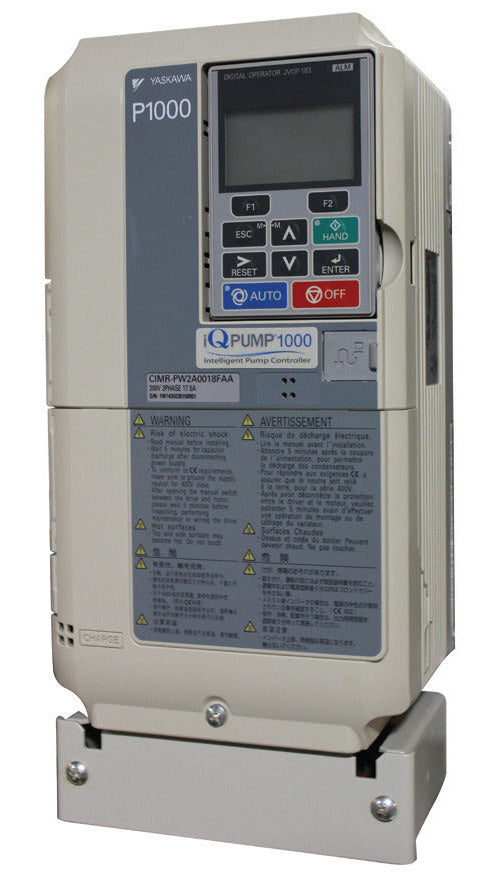

  • Variable speed control
  • Stainless steel pump
  • Energy efficient NEMA TEFC motors
  • Liquid filled gauges
  • Wafer check valves with soft seat
  • Stainless steel base
  • 2" Brass No-Lead isolation valves
  • NEMA 1 enclosure
  • Suction and discharge transducers
  • Fused disconnect
  • 2" Suction and discharge
  • Certified to: NSF/ANSI/CAN 61, NSF/ANSI 372

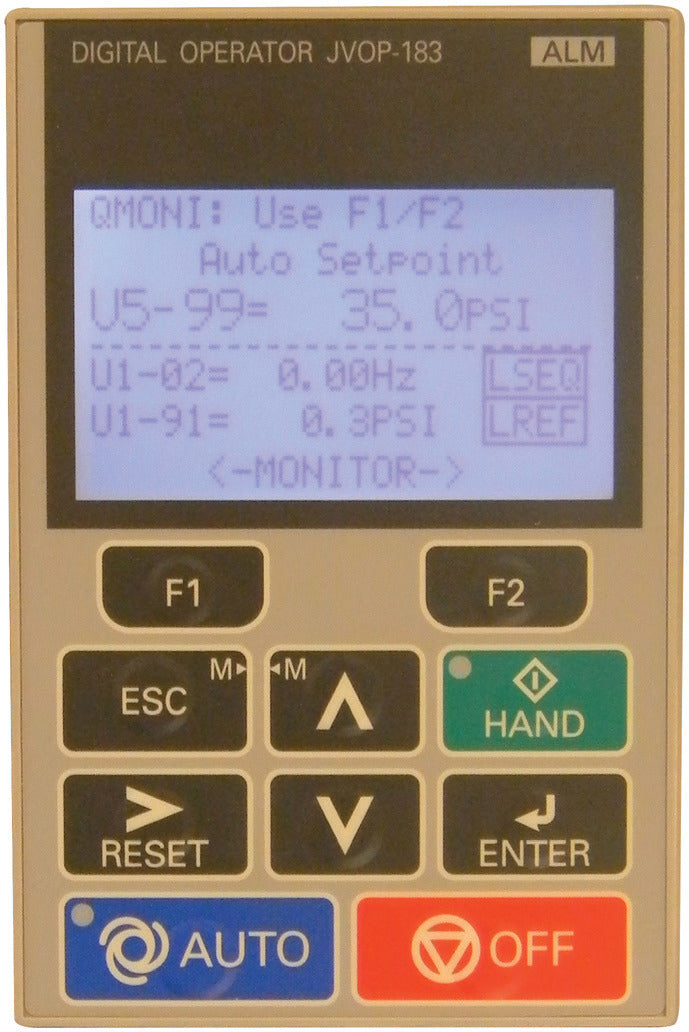

Control Features

  • Variable speed control, speeds up and slows down based on the demand of system, maintaining a constant pressure.
  • Date and time stamp for all faults.
  • Better system efficiency by applying only the power needed based on the load.
  • Password protected parameter settings.
  • Real time clock.
  • No Flow Mode – puts pump to sleep during no flow conditions.
  • Low Suction Alarm to prevent the pump from running if the incoming supply of water is interrupted.
  • Internal monitors prevent the pump from running if a pipe is broken or demand exceeds capability.
  • Live Zero protects the pump if the transducer cable is broken or damaged.

Material of Construction

  • Impellers — 304 Stainless Steel
  • Pump Casing Inlet — 301 Stainless Steel
  • Pump Casing Outlet — 301 Stainless Steel
  • Pump Seal (stationary) — Silicon Carbide
  • Pump Seal (rotating) — Carbon / NBR
  • Diffuser — 304 Stainless Steel
  • Base — 304 Stainless Steel



Datasheets

Booster Pump Guide
Simplex Vertical Multistage Variable Speed Spec Sheet

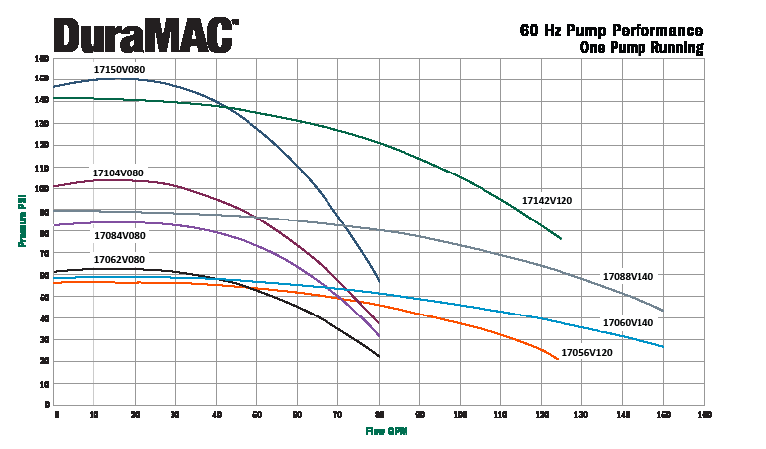

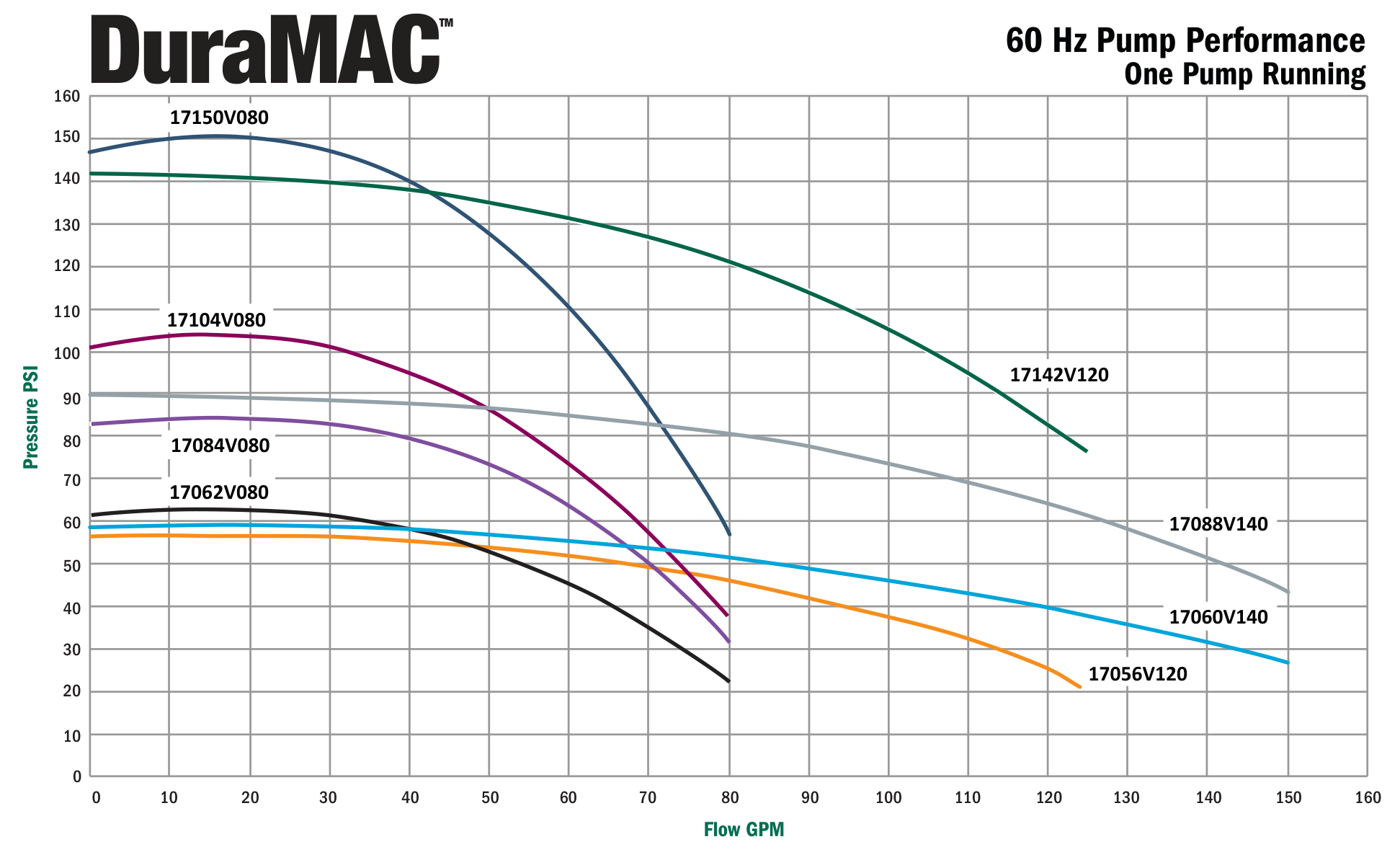

Part No. Model No. Description Pump Boost Voltage HP

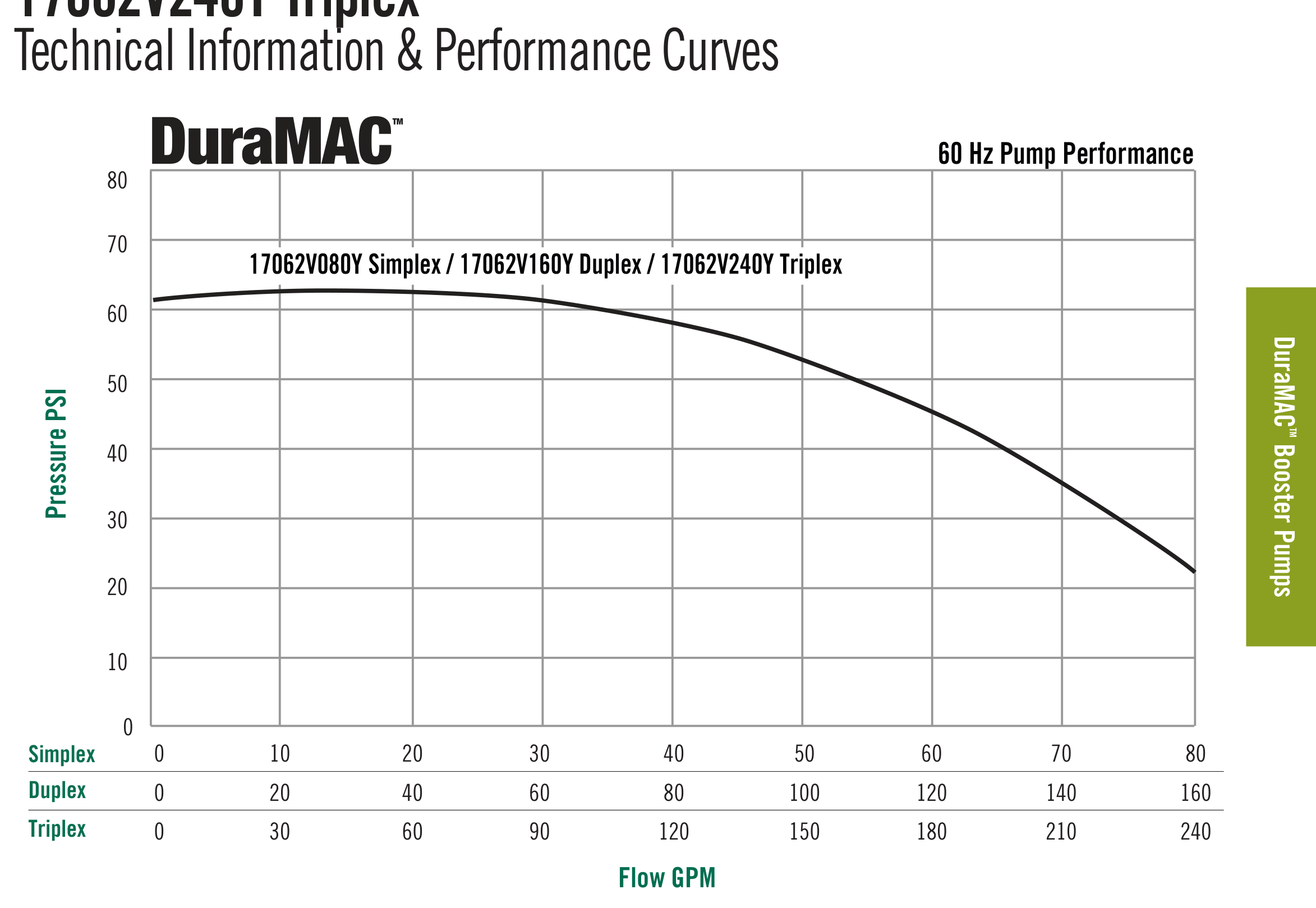

6012-020 17062V080Y-1 62 PSI 230V VFD Booster 62 PSI 208-230V Single Phase 3
6012-021 17062V080Y-3 62 PSI 230V VFD Booster 62 PSI 208-230V Three Phase 3

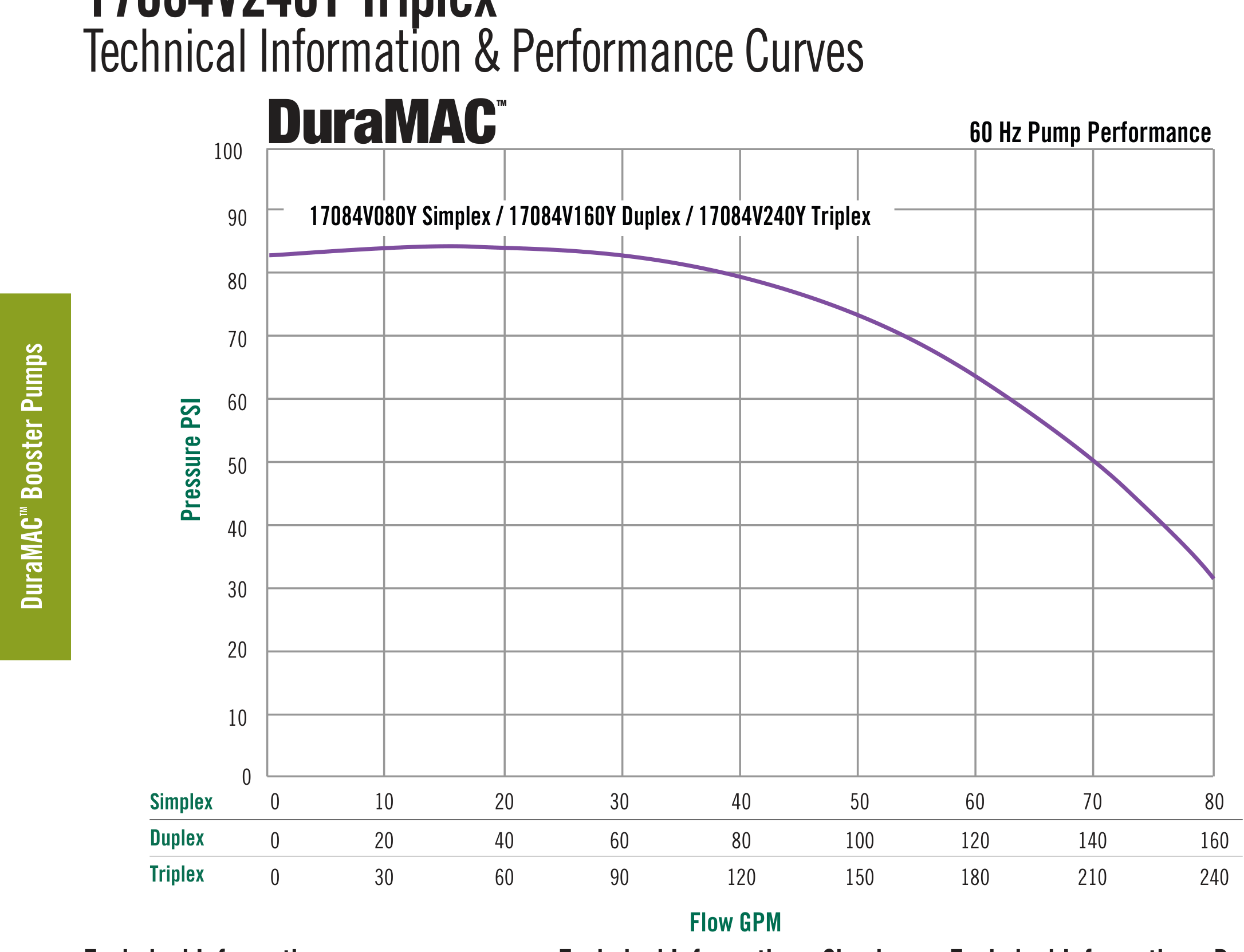

6012-022 17084V080Y-1 84 PSI 230V VFD Booster 84 PSI 208-230V Single Phase 5
6012-023 17084V080Y-3 84 PSI 230V VFD Booster 84 PSI 208-230V Three Phase 5

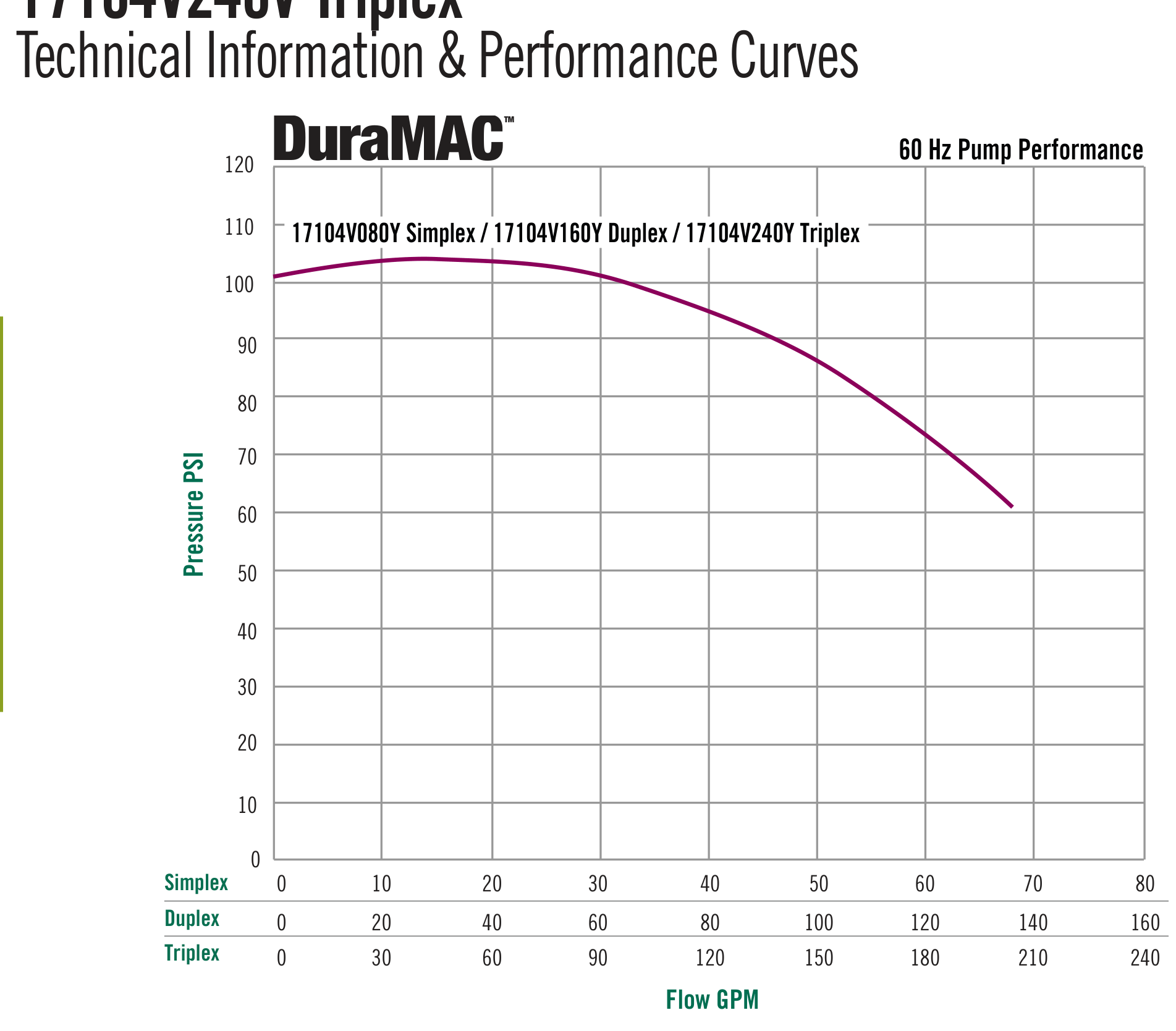

6012-024 17104V080Y-1 104 PSI 230V VFD Booster 104 PSI 208-230V Single Phase 5
6012-025 17104V080Y-3 104 PSI 230V VFD Booster 104 PSI 208-230V Three Phase 5

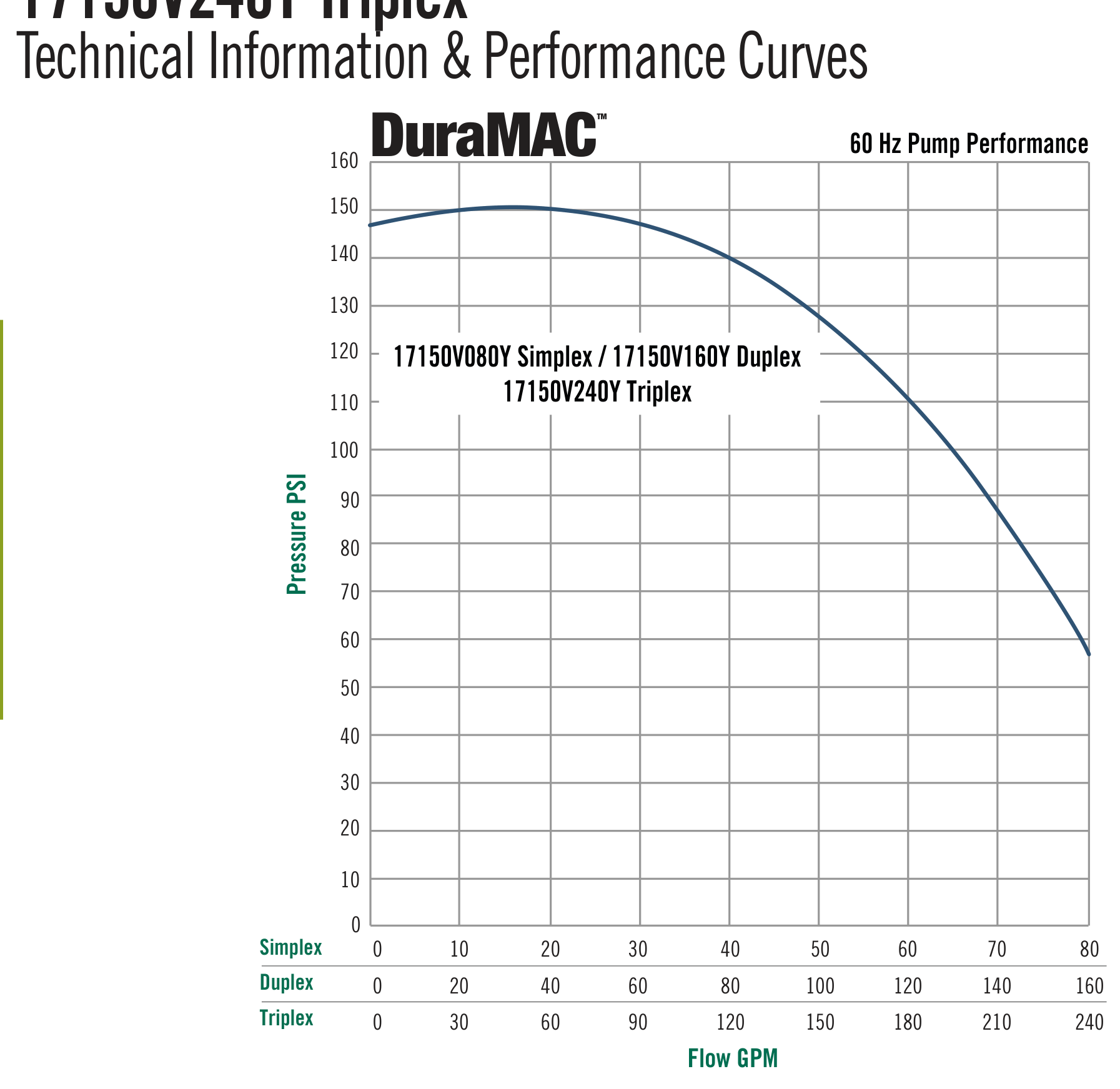

6012-026 17150V080Y-3 150 PSI 230V VFD Booster 150 PSI 208-230V Three Phase 7 1/2

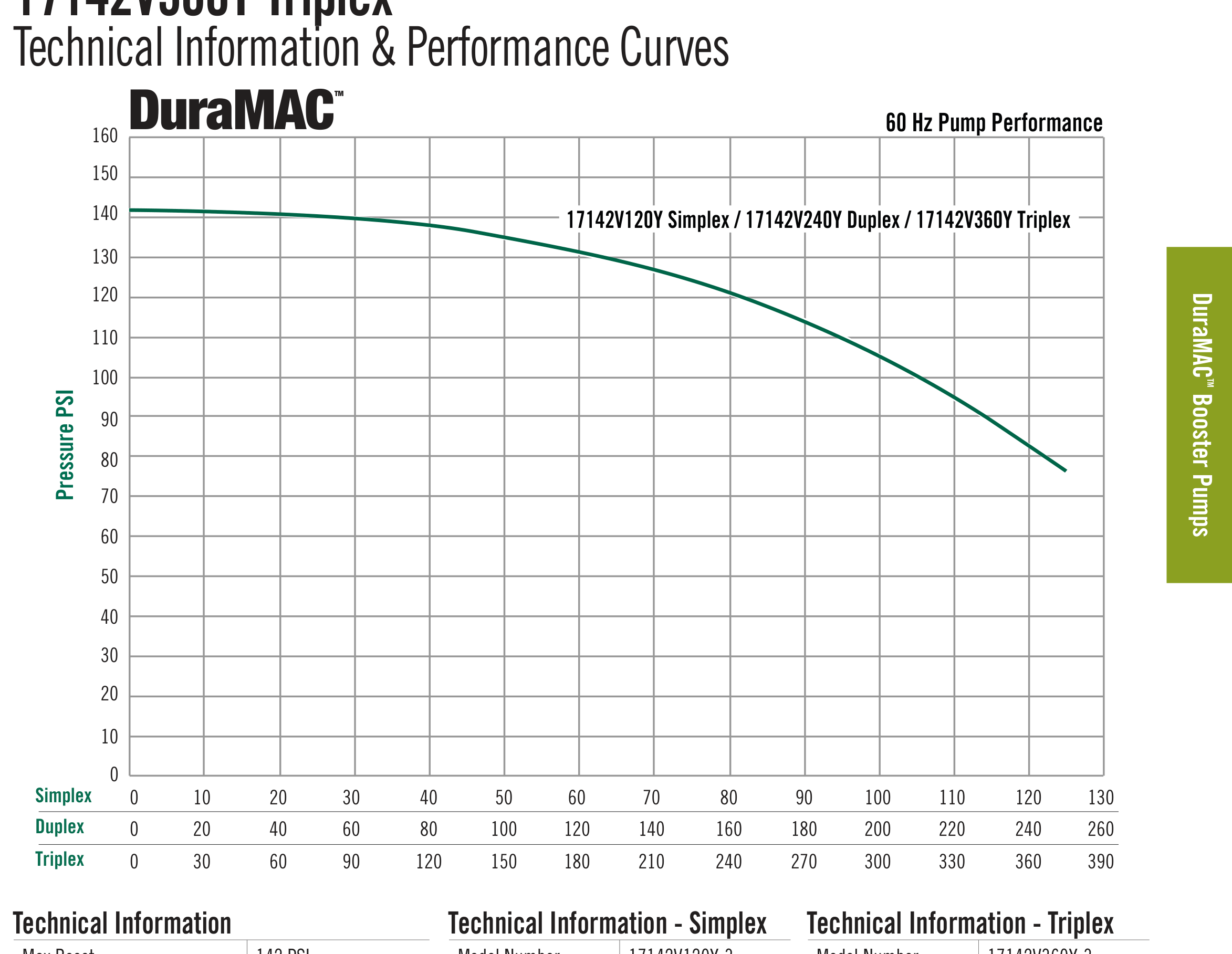

6012-027 17142V120Y-3 142 PSI 230V VFD Booster 142 PSI 208-230V Three Phase 10

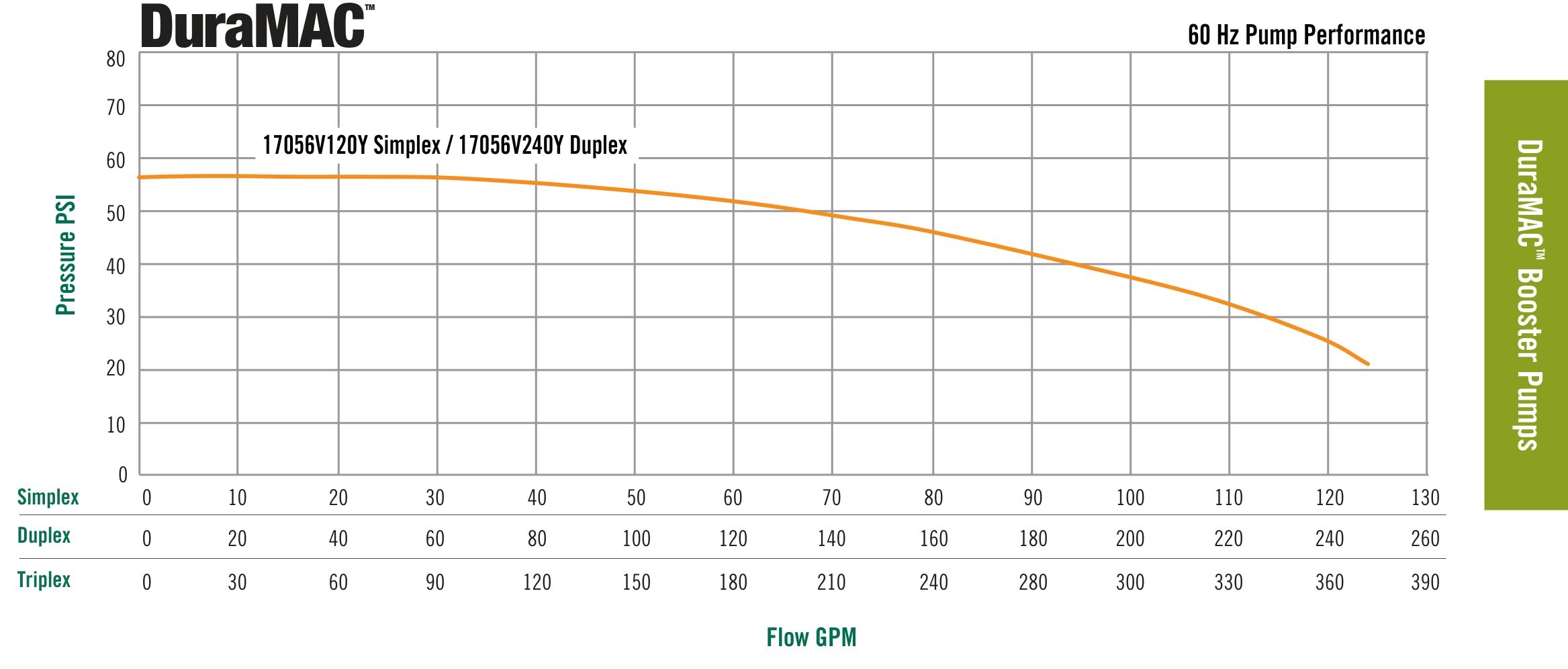

6012-028 17056V120Y-1 56 PSI 230V VFD Booster 56 PSI 208-230V Single Phase 5

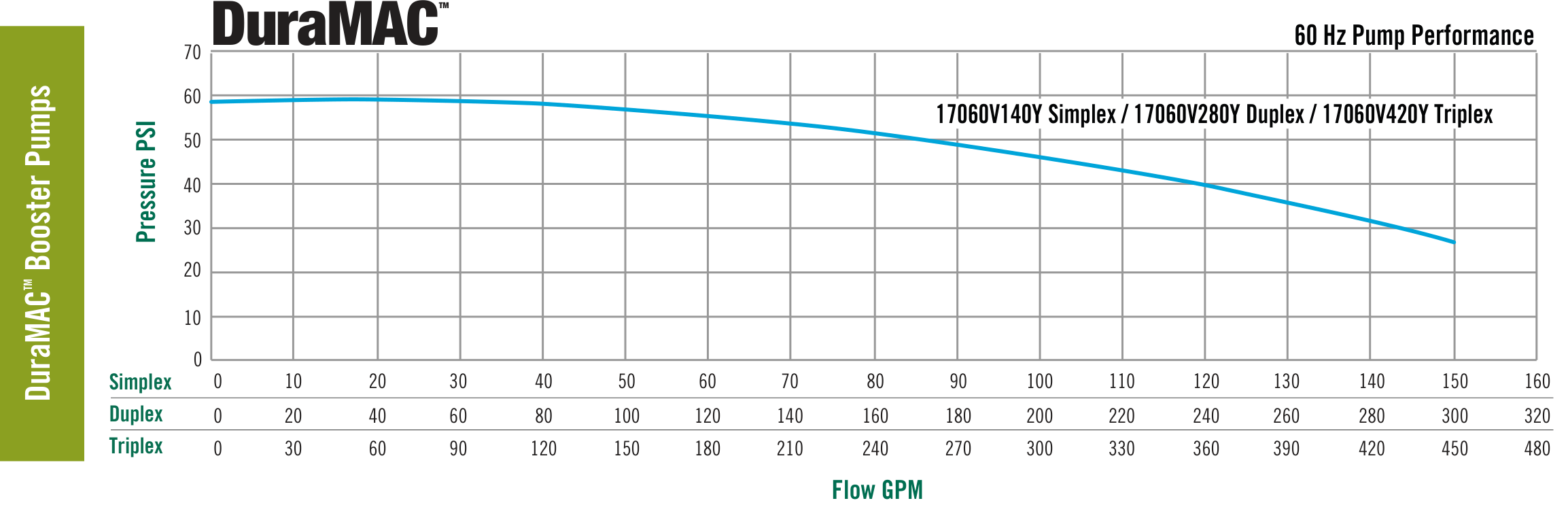

6012-029 17060V140Y-3 60 PSI 230V VFD Booster 60 PSI 208-230V Three Phase 5

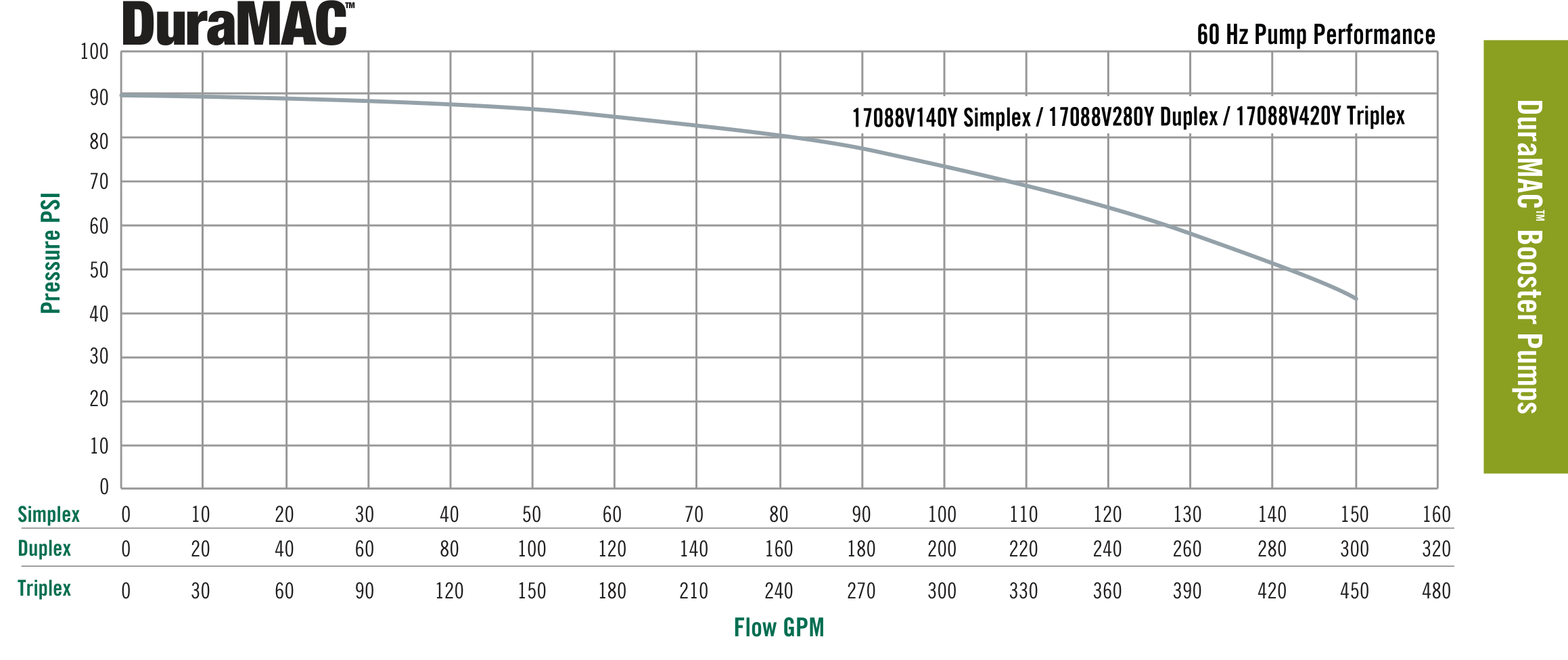

6012-030 17088V140Y-3 88 PSI 230V VFD Booster 88 PSI 208-230V Three Phase 7 1/2
— 17062V080Y-34 62 PSI 460V VFD Booster 62 PSI 460V Three Phase 3
— 17084V080Y-34 84 PSI 460V VFD Booster 84 PSI 460V Three Phase 5
— 17104V080Y-34 104 PSI 460V VFD Booster 104 PSI 460V Three Phase 5
— 17150V080Y-34 150 PSI 460V VFD Booster 150 PSI 460V Three Phase 7 1/2
— 17142V120Y-34 142 PSI 460V VFD Booster 142 PSI 460V Three Phase 10
— 17060V140Y-34 60 PSI 460V VFD Booster 60 PSI 460V Three Phase 5
— 17088V140Y-34 88 PSI 460V VFD Booster 88 PSI 460V Three Phase 7 1/2
