The figures below are the pressure this system adds at full speed, all pumps running. That is what a pump curve measures — the impeller does not know what pressure is already on its inlet. The drive holds lower pressures by running slower, so the curve is the ceiling at each flow.

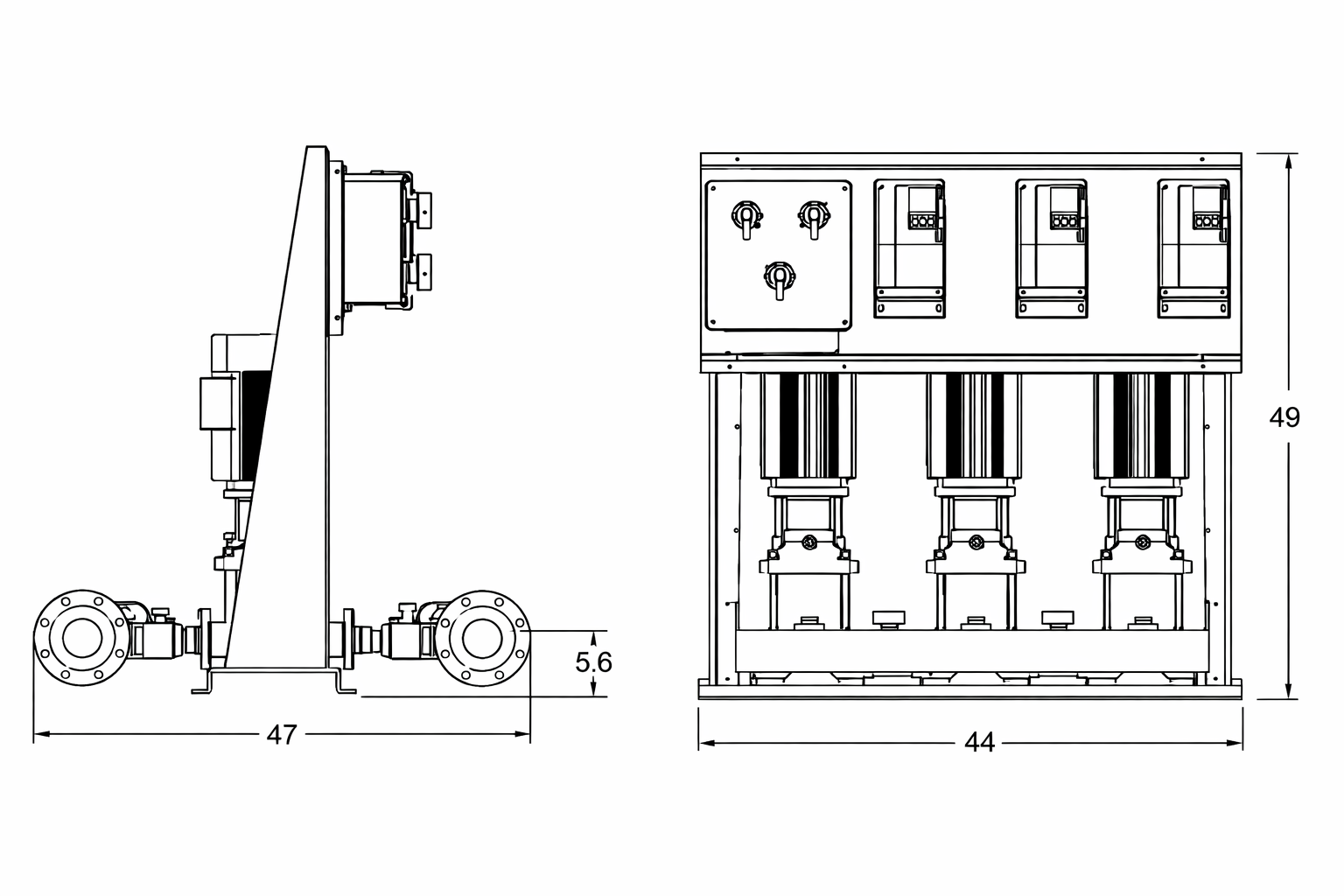

Models · 240 GPM
| Model |
HP |
Voltage |
Motor frame |
Min. tank |
PEI |
| 17062V240Y-1 |
3 x 3 HP |
208-230V 1Ph |
182TC |
52 gal |
0.89 |
| 17062V240Y-3 |
3 x 3 HP |
208-230V 3Ph |
182TC |
52 gal |
0.89 |
| 17062V240Y-34 |
3 x 3 HP |
460V 3Ph |
182TC |
52 gal |
0.89 |
| 17084V240Y-1 |
3 x 5 HP |
208-230V 1Ph |
184TC |
52 gal |
0.89 |
| 17084V240Y-3 |
3 x 5 HP |
208-230V 3Ph |
184TC |
52 gal |
0.89 |
| 17084V240Y-34 |
3 x 5 HP |
460V 3Ph |
184TC |
52 gal |
0.89 |
| 17104V240Y-1 |
3 x 5 HP |
208-230V 1Ph |
184TC |
52 gal |
0.89 |
| 17104V240Y-3 |
3 x 5 HP |
208-230V 3Ph |
184TC |
52 gal |
0.89 |
| 17104V240Y-34 |
3 x 5 HP |
460V 3Ph |
184TC |
52 gal |
0.89 |
| 17150V240Y-3 |
3 x 7 1/2 HP |
208-230V 3Ph |
213TC |
52 gal |
0.89 |
| 17150V240Y-34 |
3 x 7 1/2 HP |
460V 3Ph |
213TC |
52 gal |
0.89 |
Models · 360 and 420 GPM
| Model |
HP |
Voltage |
Motor frame |
Min. tank |
PEI |
| 17056V360Y-1 |
3 x 5 HP |
208-230V 1Ph |
184TC |
86 gal |
0.94 |
| 17060V420Y-3 |
3 x 5 HP |
208-230V 3Ph |
184TC |
86 gal |
0.96 |
| 17060V420Y-34 |
3 x 5 HP |
460V 3Ph |
184TC |
86 gal |
0.96 |
| 17088V420Y-3 |
3 x 7 1/2 HP |
208-230V 3Ph |
213TC |
86 gal |
0.96 |
| 17088V420Y-34 |
3 x 7 1/2 HP |
460V 3Ph |
213TC |
86 gal |
0.96 |
| 17142V360Y-3 |
3 x 10 HP |
208-230V 3Ph |
215TC |
86 gal |
0.94 |
| 17142V360Y-34 |
3 x 10 HP |
460V 3Ph |
215TC |
86 gal |
0.94 |
Source: Baker Water Systems DuraMAC Booster Pumps catalog, rev 3/26, pp. 249–254 and 261–268. Minimum tank, motor frame and PEI from A.Y. McDonald’s technical information pages. — = no PEI published for that model.

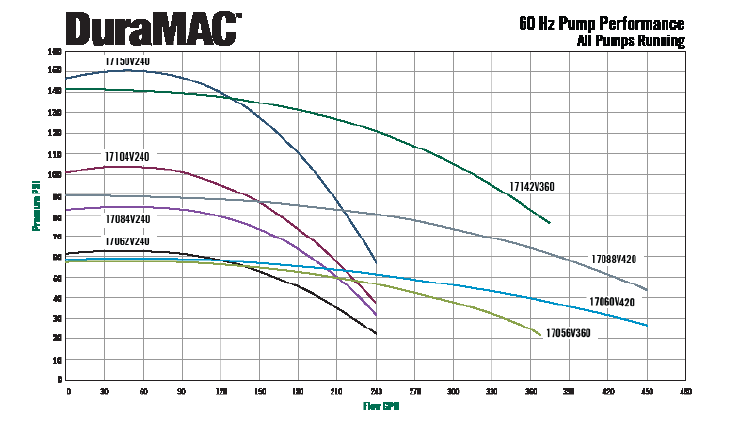

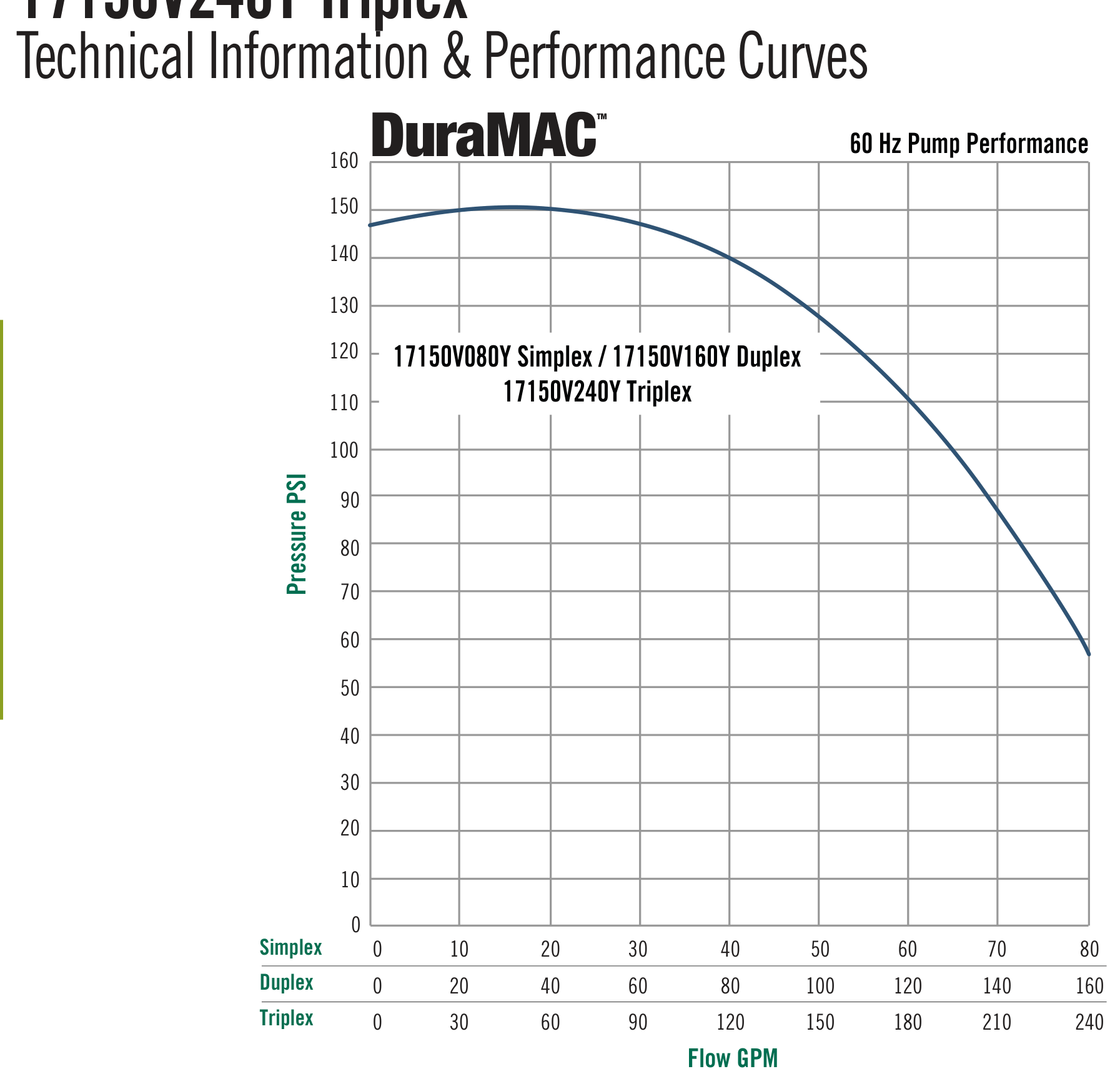

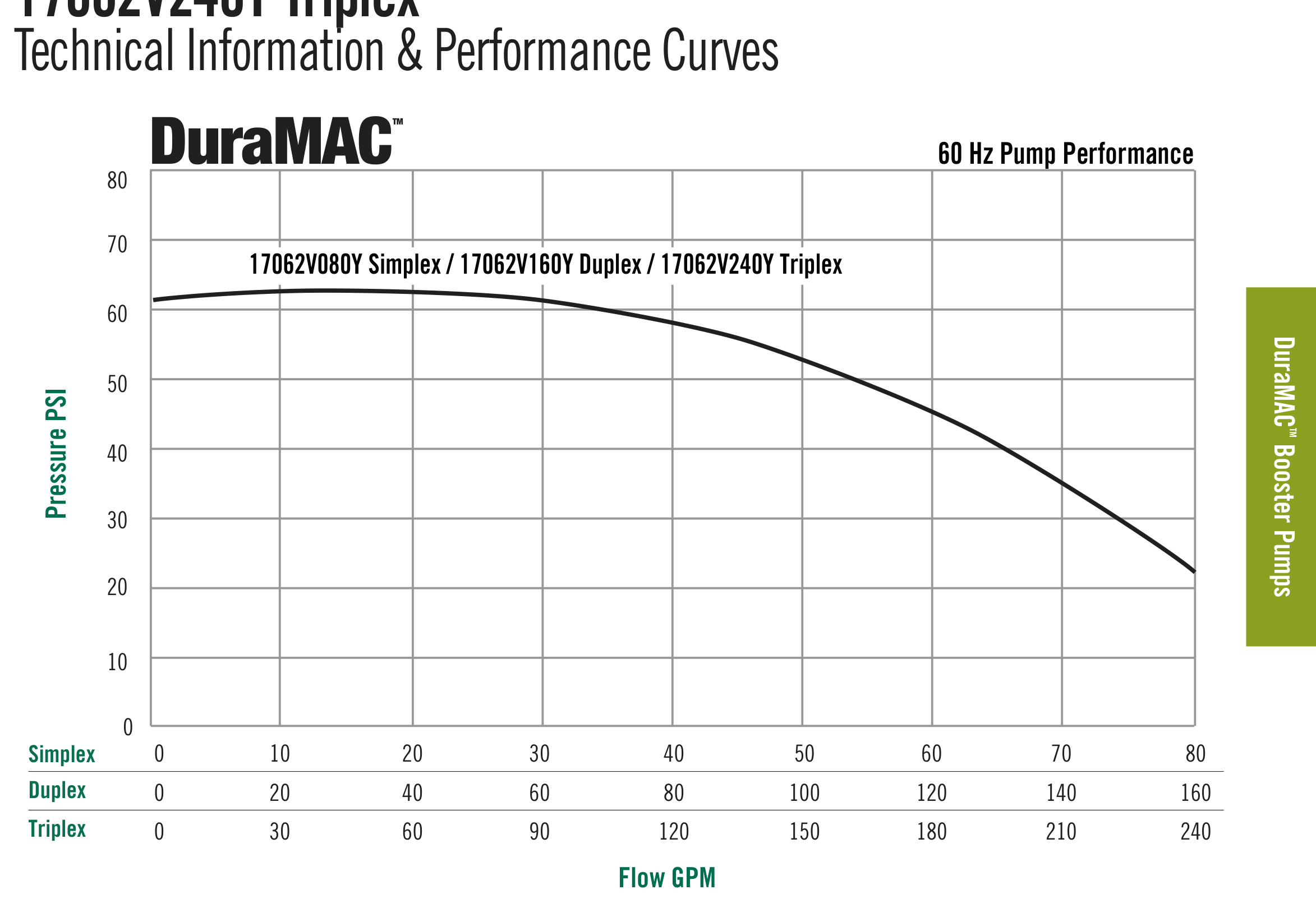

Pressure added in PSI, all three pumps running, by system flow · 240 GPM models
| Model |
0 GPM (Shut-off) |
60 GPM |
120 GPM |
180 GPM |
240 GPM (Max) |
| 17062V240Y |
62 |
62 |
58 |
45 |
22 |
| 17084V240Y |
84 |
84 |
79 |
63 |
32 |
| 17104V240Y |
104 |
103 |
95 |
73 |
38 |
| 17150V240Y |
150 |
150 |
139 |
110 |
57 |

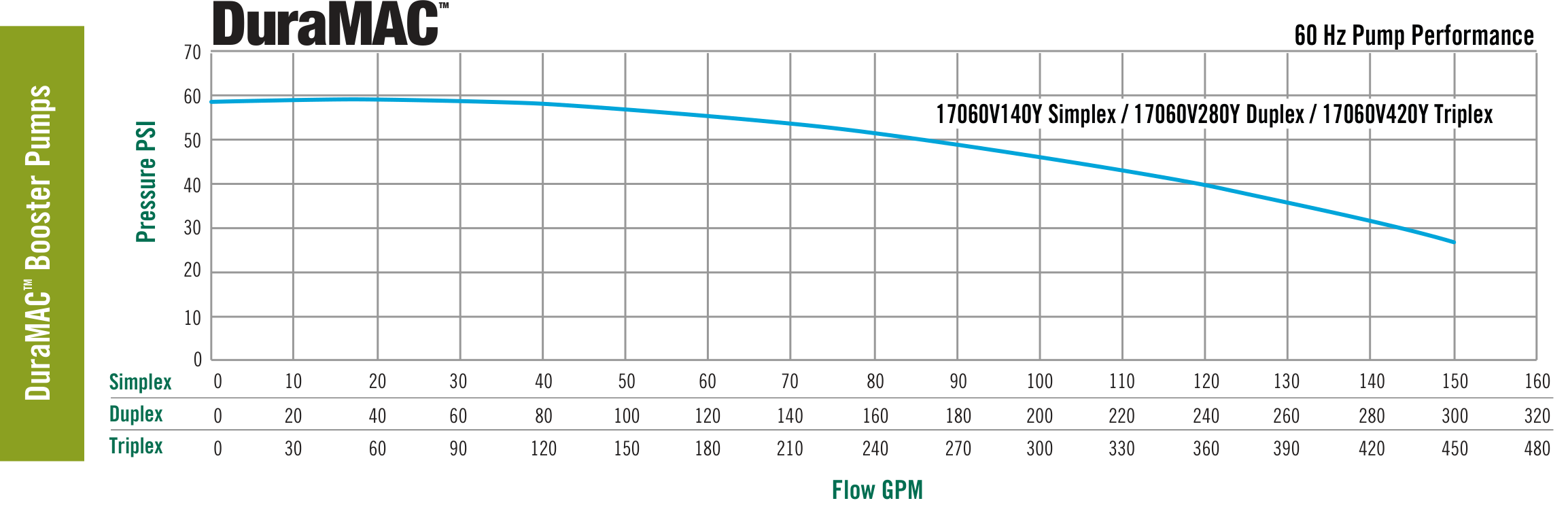

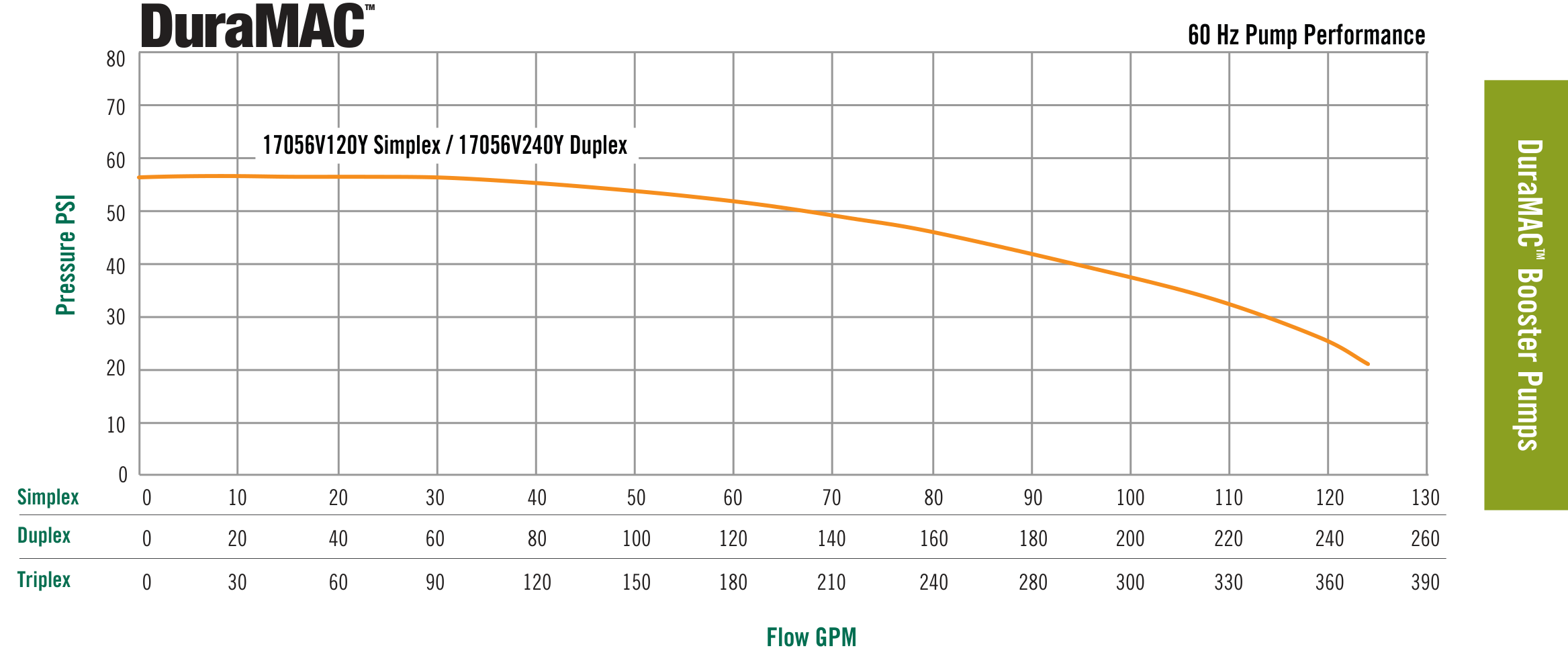

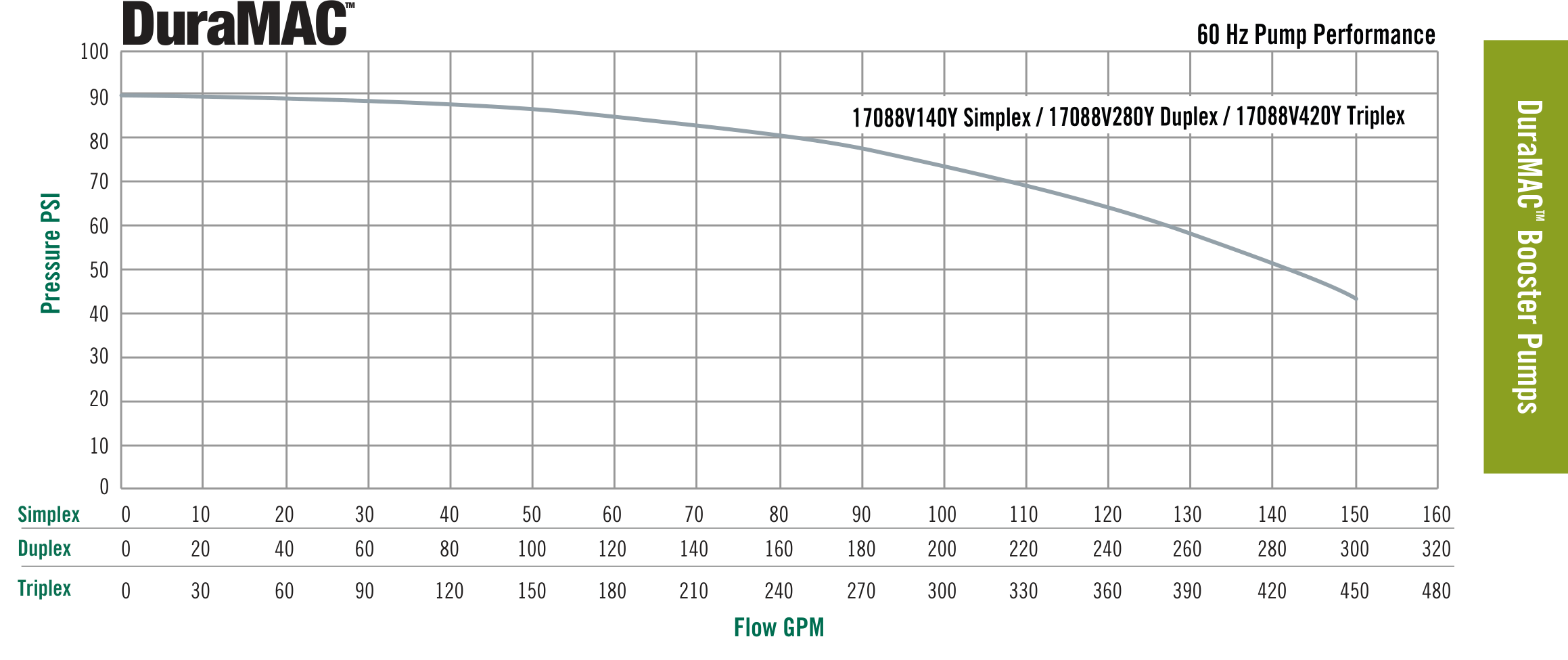

Pressure added in PSI, all three pumps running, by system flow · 360 and 420 GPM models
| Model |
0 GPM (Shut-off) |
120 GPM |
180 GPM |
240 GPM |
300 GPM |
360 GPM |
420 GPM (Max) |
| 17056V360Y |
56 |
56 |
53 |
46 |
38 |
25 |
— |
| 17060V420Y |
60 |
58 |
55 |
51 |
46 |
40 |
32 |
| 17088V420Y |
88 |
87 |
85 |
80 |
73 |
64 |
51 |
| 17142V360Y |
142 |
138 |
131 |
121 |
105 |
82 |
— |
Drawing from a tank or cistern — nothing arrives with pressure, so what the pump adds is what you get. Read the table straight through at the flow the building needs.

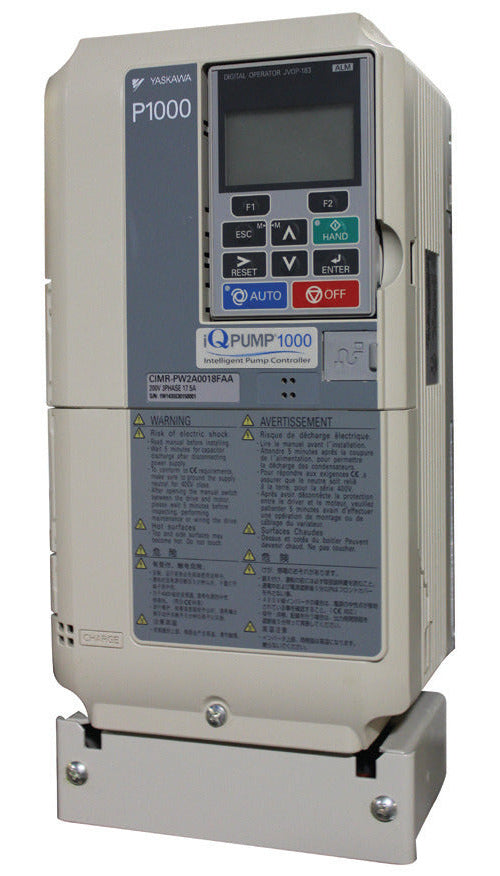

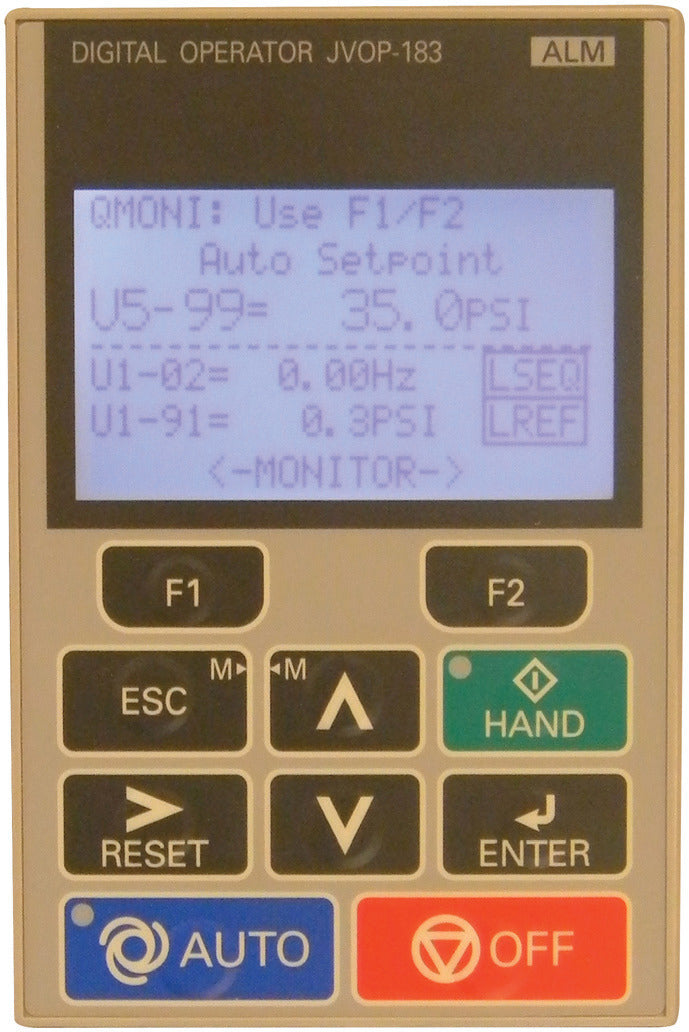

Fed by a city main — the pump adds on top of what already arrives, and the drive holds the set point you program. Incoming pressure turns into extra flow at the same set point.
Size to the published curve. This is where the pump turns the most electricity into water pressure. Ask for more flow than it can deliver at your setting and it runs at full speed continuously, which is where motors and seals wear out. Sizing a booster to the building rather than to the headline numbers is what makes it last.

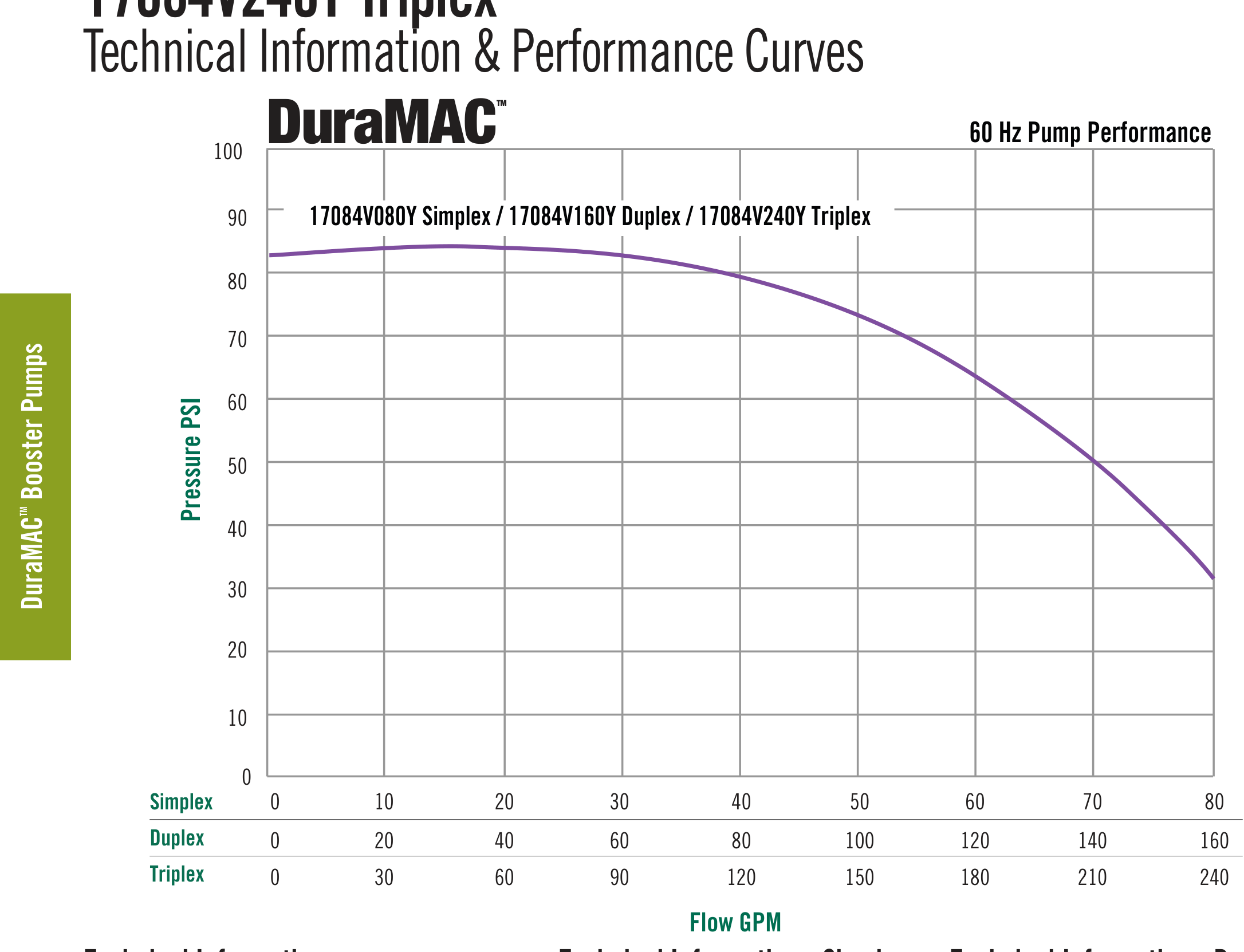

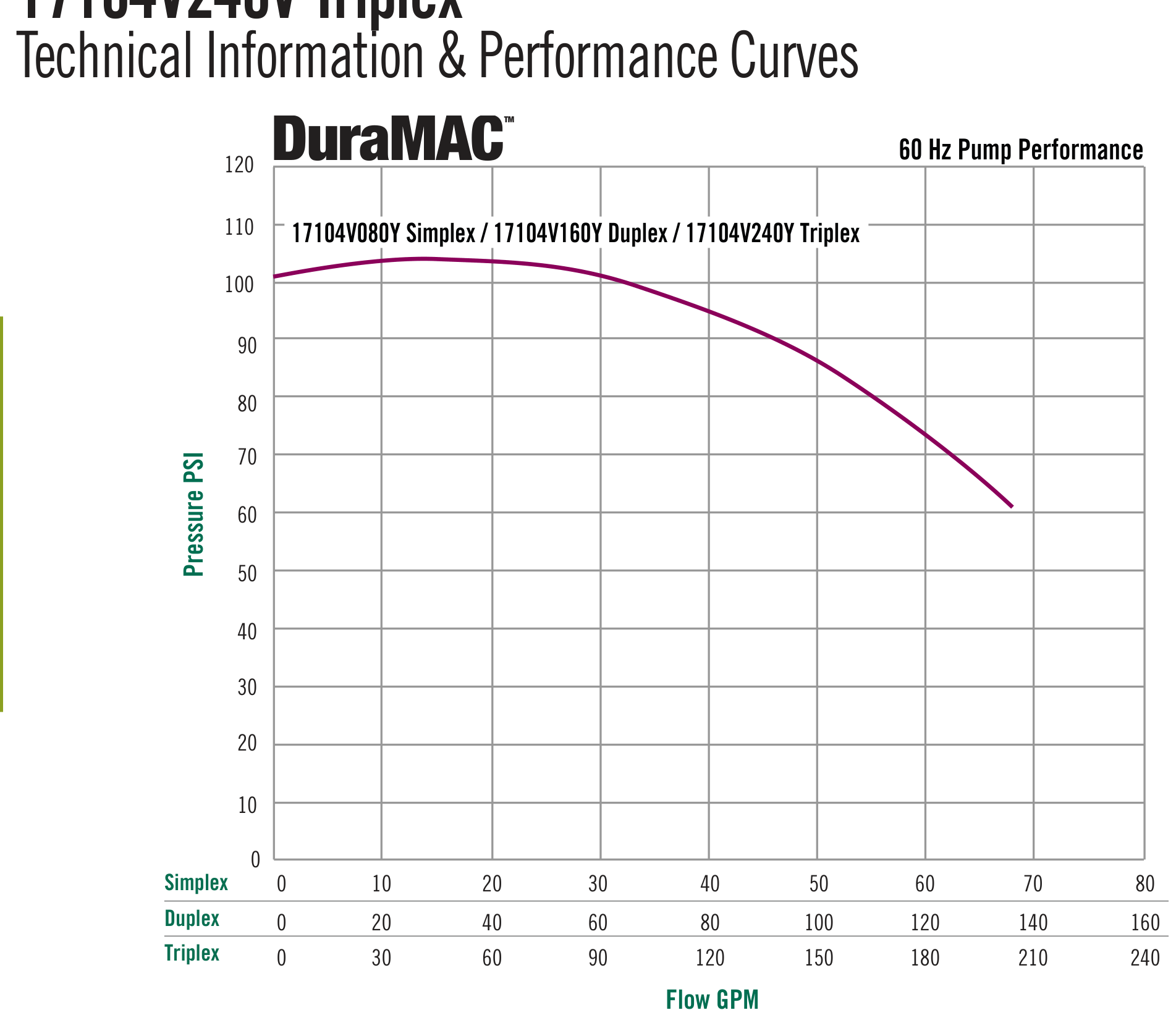

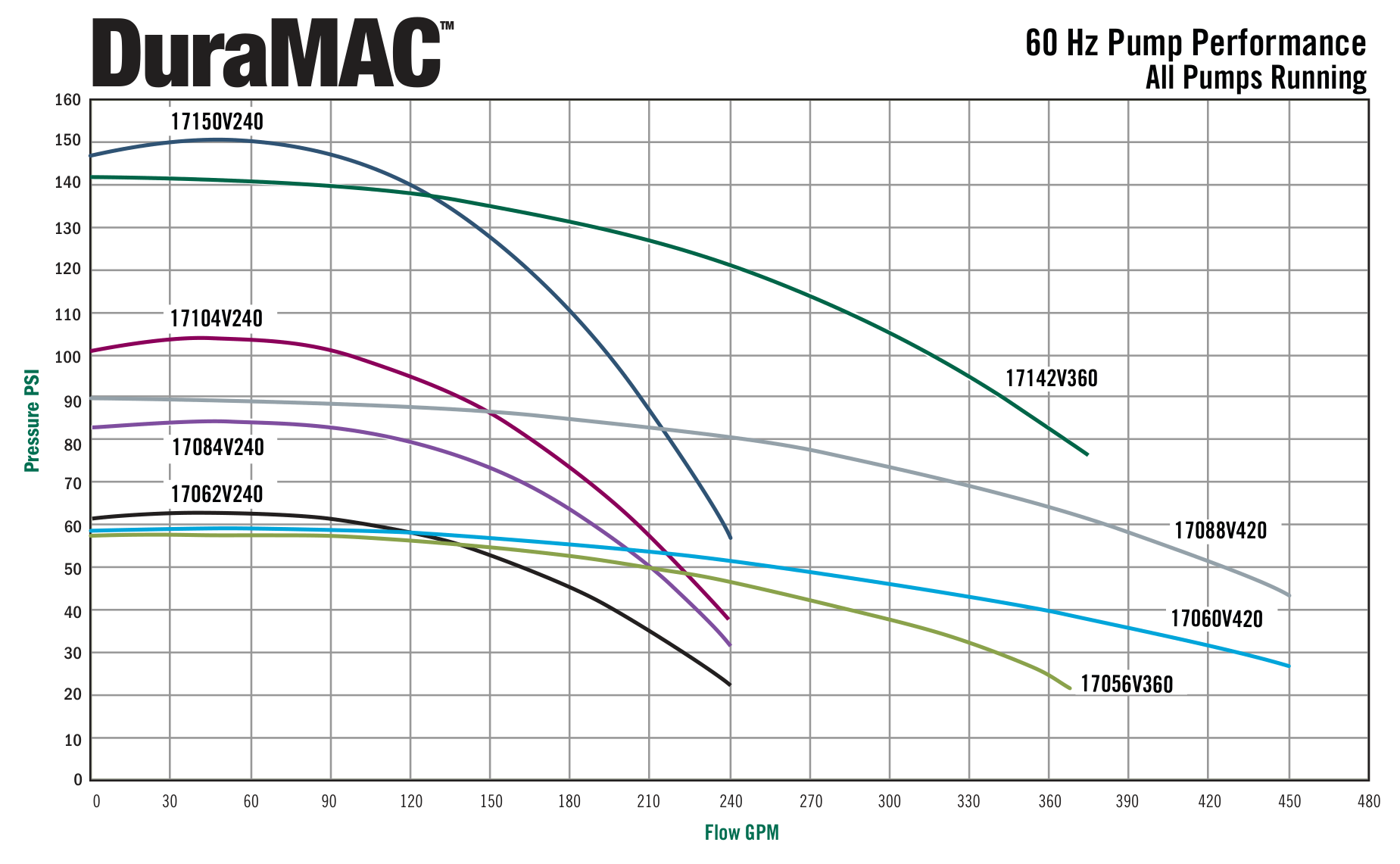

Zero flow is the shut-off point — a ceiling, not a working point; the zero-flow column shows the published model boost. Figures are 60 Hz US data at full speed, digitized from the published curves in the Baker Water Systems DuraMAC Booster Pumps catalog, rev 3/26, p. 254, and rounded down. A.Y. McDonald publishes no efficiency curve for these models, so no best operating range is stated. Bold = the last point on that model’s curve, its max flow; — = beyond it. Voltage builds of the same model (-1, -3, -34) run on the same curve. Points left out to keep the tables readable: 60 GPM on the 360 and 420 GPM models table. The full curves are in the image gallery. Feet of head = PSI × 2.31.
