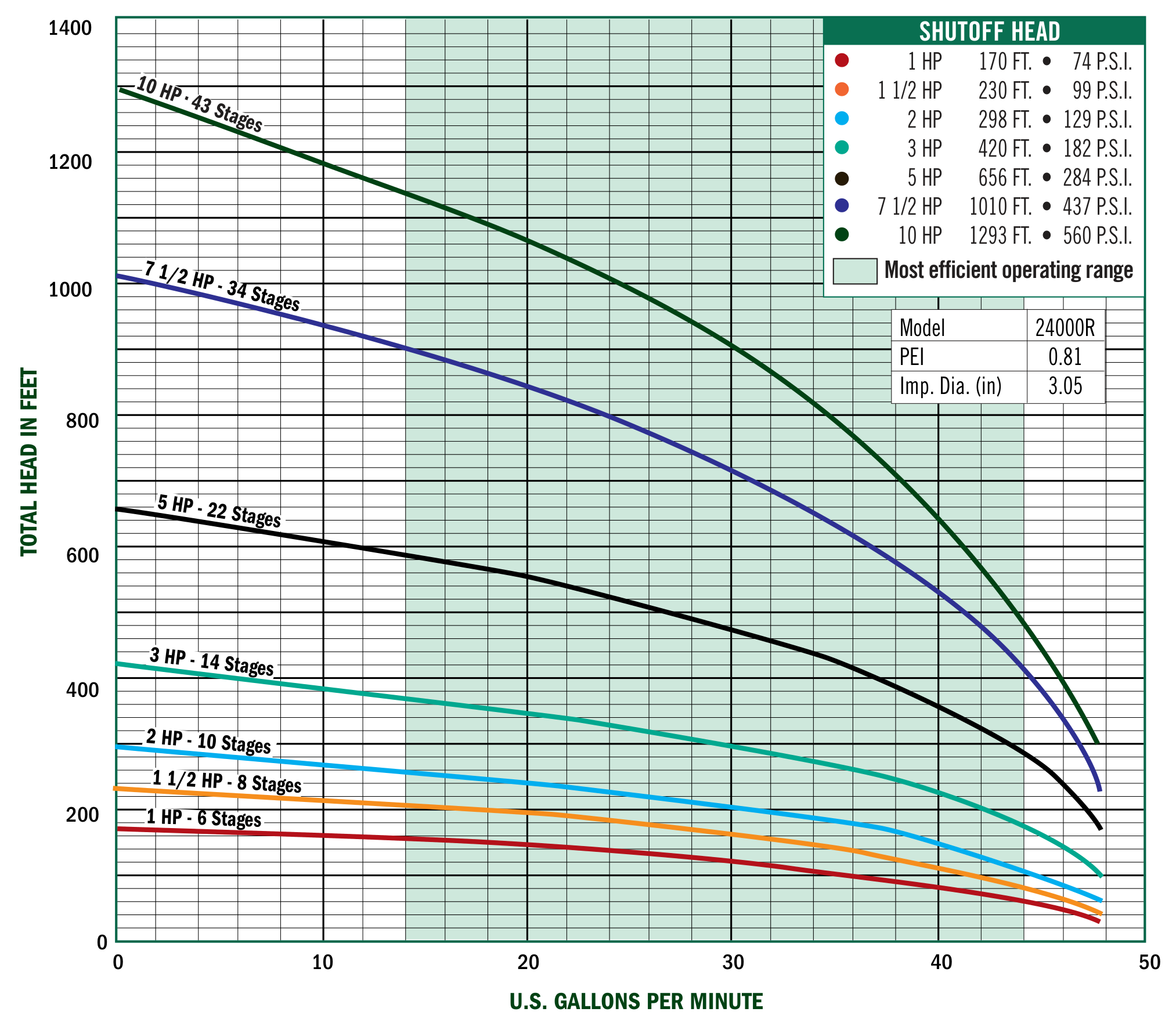

A.Y. McDonald 24000 Series High Flow R - 35 GPM Pump End performance curve: total head vs flow by horsepower, Pumps by Baker catalog p. 82
A.Y. McDonald 24000 Series - R-35 GPM High Flow Stainless Steel Pump End, 1-10 HP
A.Y. McDonald 24000 Series High Flow R - 35 GPM Pump End performance curve: total head vs flow by horsepower, Pumps by Baker catalog p. 82

A.Y. McDonald 24000 Series R - 35 GPM 4 in High Flow Stainless Steel Submersible Pump End

HP: 1 HP
Model - Head: 24100R - 109 ft at 35 GPM

Product variant with selected options does not exist!
MAP
$808.87
SKU: 6630-052
Weight : 8.0006 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
A.Y. McDonald · Submersible Pump End
24000 Series High Flow R - 35 GPM Pump End
High Flow Stainless Steel 4 in pump end for Baker NEMA 4 in motors, 1 to 10 HP, 7 models.
109-798 ft at 35 GPM
1-10 HP
Fits NEMA 4 in Motors
1293 ft Max Head (Shut-off)
2 in NPT Discharge
Built-In Check Valve
Drinking Water ANSI/NSF 61
4 in Pump End, 14.1-51.9 in L
8-31 lb Weight
What Ships and What It Needs to Run

Included: the 24000 Series R - 35 GPM pump end with its built-in check valve.

Motor required, ordered separately: a Baker 4 in motor of the same horsepower. Part numbers for the 230V motors are in the motor table under Models & Performance.

And the motor’s control: two-wire motors need none; single-phase three-wire motors need a control box; three-phase motors need a starter kit.

Overview

The 24000 Series R - 35 GPM pump end is the hydraulic end of Baker’s 24000 Series High Flow 4 in submersible pump, sold without the motor. It mounts on a NEMA 4 in Baker motor of the same horsepower, to build a new pump or rebuild one in the field.

The discharge casting (2 in NPT), check valve, bowls, shell, screen, shaft, cable guard and NEMA motor bracket are stainless steel; the impellers are Noryl. Across the line the High Flow series delivers up to 124 GPM and up to 1300 ft of head at 3450 rpm.

This listing covers 1 to 10 HP (7 models), all with a 2 in NPT discharge.

Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
A.Y. McDonald Limited Warranty

Covered for 2 years from the date of manufacture or 1 year from the date of installation, whichever comes first, under A.Y. McDonald’s standard limited warranty for Baker products.

Room to Grow

One pump end per motor. Need more head later? Step up in horsepower within the R - 35 GPM class with the matching larger motor. Need more flow? Move to a higher flow class of the 24000 Series High Flow; every class uses the same 2 in NPT discharge, so the drop pipe connection stays the same.

Shared Specifications
Included Pump end with built-in check valve
Discharge 2 in NPT (female)
Motor fit NEMA 4 in Baker submersible motor of the same horsepower
Well size 4 in and larger
Check valve Built in
Pump energy index (PEI) 0.81
Certification Drinking Water ANSI/NSF 61
App connection None

Source: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 81-82.

Models & Performance — Will It Do What You Need?

Find your horsepower in the row, then read across. Total head is the lift from the pumping water level to the discharge, plus the pressure you want at the tank (2.31 ft for every PSI), plus friction in the drop pipe.

Total head in feet · curves end at 47.5 GPM

HP 0 GPM (Shut-off) 10 GPM 25 GPM 35 GPM 45 GPM
1 HP 170 ft 169 ft 143 ft 109 ft 62 ft
1 1/2 HP 230 ft 222 ft 188 ft 149 ft 80 ft
2 HP 298 ft 276 ft 231 ft 190 ft 103 ft
3 HP 420 ft 393 ft 332 ft 275 ft 167 ft
5 HP 656 ft 618 ft 524 ft 434 ft 273 ft
7 1/2 HP 1010 ft 948 ft 794 ft 640 ft 384 ft
10 HP 1293 ft 1195 ft 1002 ft 798 ft 446 ft

Read from the published curve in the Pumps by Baker catalog (Sept 2025, rev 3/26), p. 82, digitized and rounded down, at the flows nearest 20%, 50% and 75% of the curve’s 47.8 GPM end. 0 GPM is the printed shut-off. For the 1 HP and 1 1/2 HP curves, the published curve and A.Y. McDonald’s printed output tables disagree by about 13 and 12 ft on average; the head figures are read from the curve, and the output tables below are the printed figures. The last column is the last flow every curve reaches; the curve ends are named in the table title.

Output in GPM at 30 PSI (switch cut-in), by depth to water · 1–3 HP

HP 20 ft 40 ft 60 ft 100 ft 120 ft 140 ft 160 ft
1 HP 38 32 24 — — — —
1 1/2 HP — 40 37 25 22 10 —
2 HP — — 42 39 35 30 21
3 HP — — — 44 42.5 41 40

Output in GPM at 50 PSI (switch cut-out), by depth to water · 1–3 HP

HP 20 ft 40 ft 60 ft 100 ft 120 ft 140 ft 160 ft
1 HP 24 14 — — — — —
1 1/2 HP 37 28 25 8 — — —
2 HP — 41 39 30 21 16 8
3 HP — — 42.5 40.5 39 36 34

Output in GPM at 30 PSI (switch cut-in), by depth to water · 5–10 HP

HP 200 ft 300 ft 400 ft 500 ft 550 ft 600 ft 650 ft
5 HP 44.5 39 30 16.8 — — —
7 1/2 HP — — 41 38 35 32.3 29
10 HP — — — 43.2 41.2 40.3 38.3

Output in GPM at 50 PSI (switch cut-out), by depth to water · 5–10 HP

HP 200 ft 300 ft 400 ft 500 ft 550 ft 600 ft 650 ft
5 HP 42.5 35.8 25 — — — —
7 1/2 HP — 43 40 — 31.3 29 26
10 HP — — — 42.2 40.5 39.5 37

Output tables as printed in the Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 81-82, at the 30 and 50 PSI rows. Riser-pipe friction is not included (manufacturer note): add it for long or small drop pipe. — marks a point A.Y. McDonald does not print for that horsepower. Left blank as apparent misprints (printed out of sequence; confirm with the factory): 1 HP, 30 PSI, 100 ft: printed 19; 7 1/2 HP, 50 PSI, 500 ft: printed 5.

Baker 4 in motor by horsepower (230V unless marked, ordered separately)

HP Motor
1 HP 2-wire 3132-007 · 3-wire 3132-001 · 3Ph 3132-529
1 1/2 HP 2-wire 3132-009 · 3-wire 3132-002 · 3Ph 3132-531
2 HP 3-wire 3132-510 · 3Ph 3132-534
3 HP 3-wire 3132-512 · 3Ph 3132-514
5 HP 3-wire 3132-513 · 3Ph 3132-517
7 1/2 HP 3Ph 3132-520
10 HP 3Ph 460V 3132-523

Best operating range: the published curve shades the most efficient operating range for each model; the catalog prints no figures for it. The curve is in the image gallery.

Before You Buy — The Limits That Decide the Fit
Motor NEMA 4 in Baker submersible motor of the same horsepower; the pump end does not run without one
Motor control Two-wire motors: none. Single-phase three-wire: control box. Three-phase: starter kit
Well size 4 in casing and larger
Riser friction Not included in the output tables; add it before choosing
Pairing One pump end per motor, one pump per well
Materials of Construction
Discharge head Stainless steel 304, 2 in NPT discharge
Motor adapter Stainless steel 304, NEMA standard
Check valve Stainless steel 304
External shell Stainless steel 304, polished
Impellers Noryl
Diffusers Polycarbonate
Bearing Polyacetal
Shaft coupling Stainless steel 304, NEMA standard
Strainer Stainless steel 304
Shaft Stainless steel 304
Cable guard Stainless steel 304

Source: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 79-80.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
