8000 E-Series Convertible Jet Pump
Cast iron E-Series convertible jet pump, 1/2 to 1 1/2 HP, up to 46 GPM, for shallow wells to 25 ft or deep wells with the matching ejector kit. Certified for drinking water.
Shallow to 25 ft · Deep Well with Ejector Kit
1/2-1 1/2 HP
115/230V 1Ph
56-90 PSI Max Shut-Off by Ejector
20/40 or 30/50 PSI Switch
1 1/4 in Suction · 1 in Discharge
304 Stainless Steel Shaft
NSF/ANSI 61 and 372
54-70 lb Ship Weight
What Ships and What It Needs to Run
Included: the pump, motor, and a pressure switch factory set to 20/40 PSI on the 1/2 HP or 30/50 PSI on the 3/4, 1 and 1 1/2 HP models.
Jet ejector package required, ordered separately. Shallow well: the 8000 Series shallow well ejector package by HP (8050JP, 8050HPJP high pressure, 8070JP, 8010JP, 8015JP). Deep well: the 4 in two-pipe or 2 in single-pipe ejector kits; A.Y. McDonald’s kits include venturis and nozzles for all depths.
Pressure tank, foot valve and well piping: sized to your well and ordered separately. A reliable foot valve is a must on a deep well jet.
Overview
The 8000 E-Series is A.Y. McDonald’s convertible jet pump in 1/2, 3/4, 1 and 1 1/2 HP, with flows up to 46 GPM. Bolt the shallow well ejector to the pump for water up to 25 ft below; put the deep well ejector down the well for deeper water. Without an ejector it moves high volume at low pressure for transfer work.
Certified for drinking water to NSF/ANSI 61 and NSF/ANSI 372, for private wells and home water systems.
-
304 stainless steel motor shaft with wrench flat, impeller insert, wear ring between impeller and diffuser, and pump-to-motor bolts.
-
All iron pump housing and seal plate.
- Easy 115V / 230V switch-over.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
12-Month A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms, as set out in the A.Y. McDonald Pumps & Accessories Price List. Components made by other manufacturers, such as the motor and the pressure switch, carry their original manufacturer’s warranty.
Single Unit
Each pump runs on its own pressure switch and tank. Size it to peak demand at your depth to water. For deep wells at higher pressure, the 1500 Multi-Stage reaches 160 ft.
Models & Ratings (60 Hz)
| Model |
Part No. |
Power |
Voltage |
Max Amps |
Switch, factory set |
Impeller |
Ship weight |
| 8050 |
6156-152 |
1/2 HP |
115/230V 1Ph |
10.8 |
20/40 PSI |
Plastic |
54 lb |
| 8070 |
6156-153 |
3/4 HP |
230/115V 1Ph |
7.1 |
30/50 PSI |
Plastic |
57 lb |
| 8010 |
6156-154 |
1 HP |
230/115V 1Ph |
8.3 |
30/50 PSI |
Plastic |
63 lb |
| 8015 |
6156-155 |
1 1/2 HP |
230/115V 1Ph |
10.5 |
30/50 PSI |
Plastic |
70 lb |
Where two voltages are shown, the first is the factory wiring setting. Voltage is changed with the voltage change device on the motor, never at the pressure switch, and must match your supply before power is applied. All models listed are single phase unless the table states 3Ph.
Source: Pumps by Baker catalog, rev 3/26, p. 217. Weights are shipping weights as printed.
Specifications
| Suction / discharge |
1 1/4 in suction; 1 in outlet |
| Depth to water |
Shallow well to 25 ft; deep well with the deep well ejector kit |
| Motor |
E-Series motor, dual voltage 115V / 230V, 304 stainless steel shaft with wrench flat |
| Wear parts |
Stainless steel wear ring between impeller and diffuser; 304 stainless steel insert on the plastic impeller |
| Housing |
All iron pump housing and seal plate |
| Certification |
NSF/ANSI 61 and NSF/ANSI 372 |
| App or remote connectivity |
None — runs from its pressure switch |
Performance — Will It Do What You Need?
Each figure is gallons per minute from A.Y. McDonald’s published tables; the last column is the shut-off pressure at that lift. The ejector named on the row is the one that delivers it.
Shallow well, ejector package on the pump — GPM at discharge pressure
| Model |
HP |
Ejector |
Suction lift, ft |
20 PSI |
30 PSI |
40 PSI |
50 PSI |
60 PSI |
Max shut-off, PSI |
| 8050 |
1/2 |
8050JP High Capacity |
5 |
16.7 |
16.4 |
12.2 |
6.4 |
|
63 |
| 10 |
15.2 |
15 |
10 |
4.8 |
|
60 |
| 15 |
12.7 |
12.8 |
9.1 |
4 |
|
58 |
| 20 |
10.5 |
10.4 |
9.1 |
3.6 |
|
58 |
| 25 |
8.2 |
8.1 |
8 |
2.7 |
|
56 |
| 8050 |
1/2 |
8050HPJP High Pressure |
5 |
12 |
11.7 |
11.5 |
8.3 |
5 |
80 |
| 10 |
10.6 |
10.5 |
10.3 |
7.3 |
4 |
79 |
| 15 |
9 |
8.9 |
8.3 |
6 |
3.5 |
77 |
| 20 |
7.1 |
7.1 |
7 |
6.4 |
3.5 |
75 |
| 25 |
5.7 |
5.7 |
5.7 |
5.7 |
3 |
74 |
| 8070 |
3/4 |
8070JP High Capacity |
5 |
22.6 |
21.5 |
14.6 |
8.5 |
|
72 |
| 10 |
20.9 |
19.4 |
12.6 |
6.6 |
|
69 |
| 15 |
17.6 |
17.4 |
11.7 |
5.1 |
|
68 |
| 20 |
14.4 |
14.4 |
12.5 |
5.4 |
|
67 |
| 25 |
11.5 |
11.5 |
10.3 |
3.1 |
|
64 |
| 8010 |
1 |
8010JP High Capacity |
5 |
24.2 |
24 |
18.9 |
11 |
|
73 |
| 10 |
21.5 |
21.4 |
15.6 |
7.3 |
|
70 |
| 15 |
19.2 |
19.1 |
16.9 |
8.4 |
|
69 |
| 20 |
15.7 |
15.5 |
14.2 |
7 |
|
68 |
| 25 |
12.6 |
12.5 |
11.7 |
4.1 |
|
65 |
| 8015 |
1 1/2 |
8015JP High Capacity |
5 |
24.6 |
24.5 |
24.4 |
20 |
|
90 |
| 10 |
22.6 |
22.5 |
22.5 |
17.6 |
|
84 |
| 15 |
19.1 |
19 |
19 |
17.6 |
|
83 |
| 20 |
16.5 |
16.4 |
16.4 |
15.1 |
|
82 |
| 25 |
13.1 |
13.1 |
13.1 |
12.8 |
|
77 |

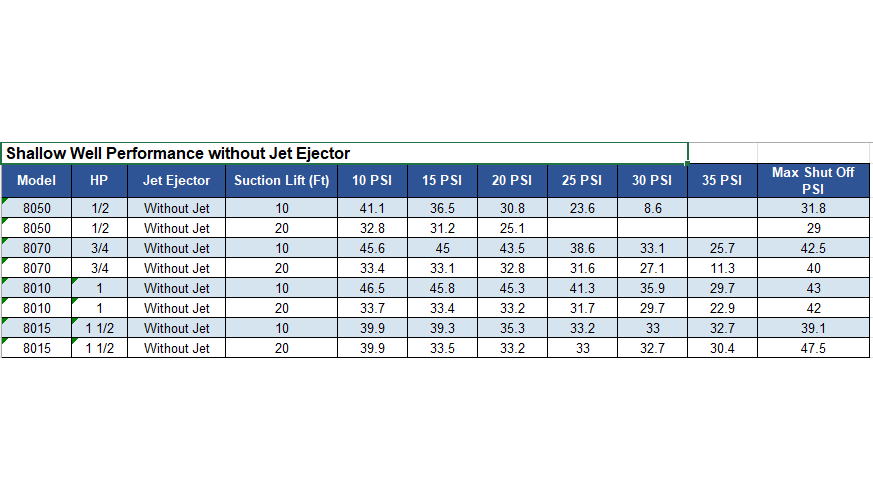

Shallow well without an ejector — GPM at low discharge pressure
| Model |
HP |
Suction lift, ft |
10 PSI |
15 PSI |
20 PSI |
25 PSI |
30 PSI |
35 PSI |
Max shut-off, PSI |
| 8050 |
1/2 |
10 |
41.1 |
36.5 |
30.8 |
23.6 |
8.6 |
|
31.8 |
| 20 |
32.8 |
31.2 |
25.1 |
|
|
|
29 |
| 8070 |
3/4 |
10 |
45.6 |
45.0 |
43.5 |
38.6 |
33.1 |
25.7 |
42.5 |
| 20 |
33.4 |
33.1 |
32.8 |
31.6 |
27.1 |
11.3 |
40 |
| 8010 |
1 |
10 |
46.5 |
45.8 |
45.3 |
41.3 |
35.9 |
29.7 |
43 |
| 20 |
33.7 |
33.4 |
33.2 |
32.7 |
29.7 |
22.9 |
42.7 |
| 8015 |
1 1/2 |
10 |
45.9 |
45.5 |
45.1 |
44.9 |
44.7 |
39.1 |
48.2 |
| 20 |
33.9 |
33.5 |
33.2 |
33 |
32.7 |
30.4 |
47.5 |
High capacity or high pressure ejector: at 1/2 HP from 15 ft, the 8050JP gives 9.1 GPM at 40 PSI and shuts off at 58 PSI; the 8050HPJP gives 8.3 GPM at 40 PSI and still 3.5 GPM at 60 PSI, with a 77 PSI shut-off. A 40/60 PSI switch at 1/2 HP needs the High Pressure ejector.

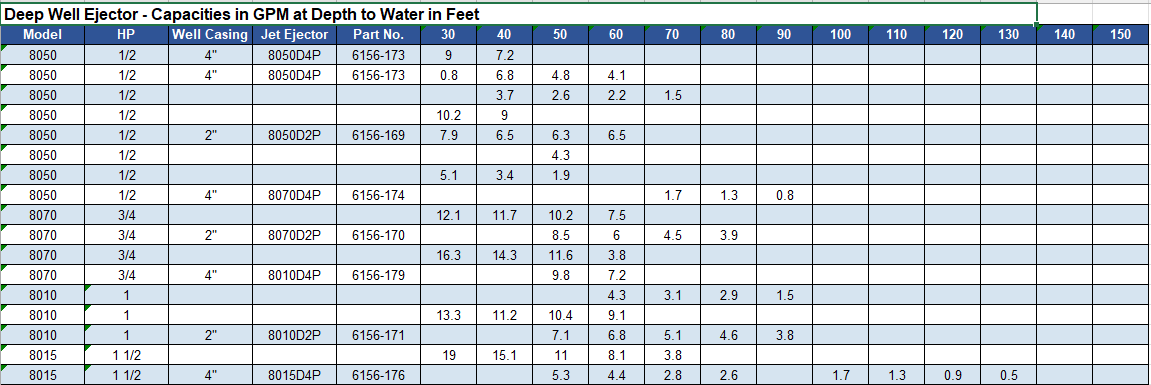

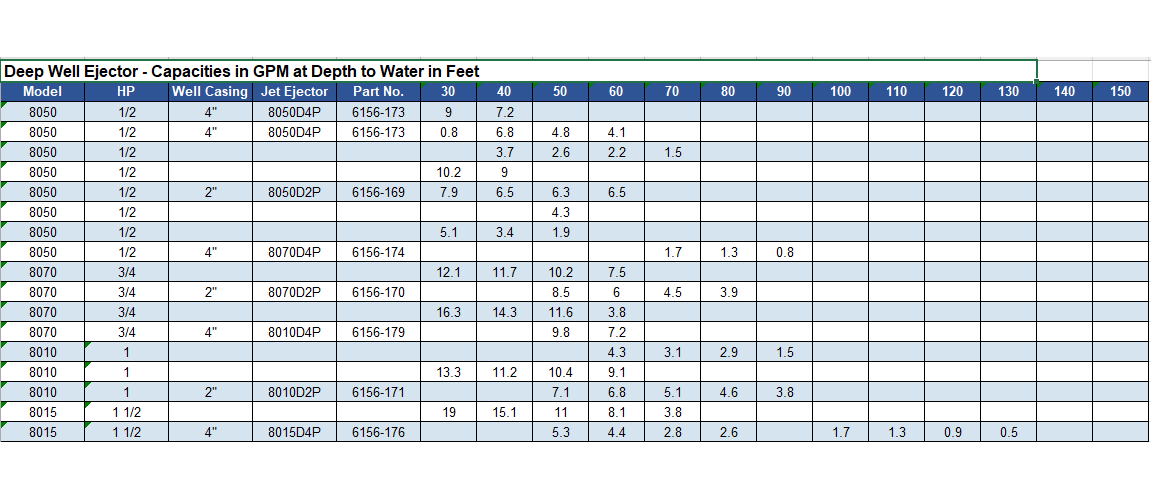

Max shut-off is the pressure at zero flow at that lift — a ceiling, not a working point. Deep well capacities by ejector and depth to water are printed on catalog p. 218 (Data Sheet tab). Source: Pumps by Baker catalog, rev 3/26, p. 218.
Before You Buy — The Limits That Decide the Fit
| Ejector |
Required and ordered separately: shallow well package by HP, or deep well kit by casing size. |
| Pressure switch |
Factory set 20/40 PSI on the 1/2 HP and 30/50 PSI on the larger models. The cut-out has to sit below the shut-off pressure for your lift and ejector, shown in the tables. |
| Depth to water |
Shallow well to 25 ft; deeper with the deep well ejector kit. |
| Priming |
Start it with the pump and piping completely full of water. A reliable foot valve is a must on a deep well jet; an air leak in the suction line makes it lose prime. |
| Power |
Dual voltage, single phase, easy switch between 115V and 230V. Max amps 10.8, 7.1, 8.3 and 10.5 by HP. |
| Drinking water |
Certified to NSF/ANSI 61 and NSF/ANSI 372. |
| Pressure tank |
Sized separately: the Tank Calculator works it from pump GPM and the switch setting. |
| Pairing |
Single unit. |
