GRUNDFOS · DRIVE ACCESSORIES
CUE Drive Accessories
Option modules, local control panel, panel mounting kit, terminal connection kit and floor-mounting options for Grundfos CUE drives.
MCB 114, MCA 121 and MCO 101
Local control panel
Mounting kits
Genuine Grundfos
Overview
Grundfos CUE accessories from the CUE Controls section of the Grundfos price book. The MCB 114 sensor input module adds analog sensor inputs to the drive; the MCA 121 module adds an EtherNet/IP connection; the MCO 101 multipump module runs several CUE-driven pumps as one system. The local control panel and its mounting kit relocate the operator panel to a cabinet door; the connection kit supplies terminals; the floor-mounting options carry the D-frame drives.
What Ships and What It Needs to Run
Included: the one accessory you select: a sensor input or multipump module, local control panel, mounting kit, terminal kit or floor stand.
Required: a Grundfos CUE Variable Frequency Drive; the floor-mounting options fit only the D-frame drives named in each option.
Match: each accessory to the drive part number before ordering.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty
24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.
Models & Part Numbers
| Accessory |
Grundfos description |
Part No. |

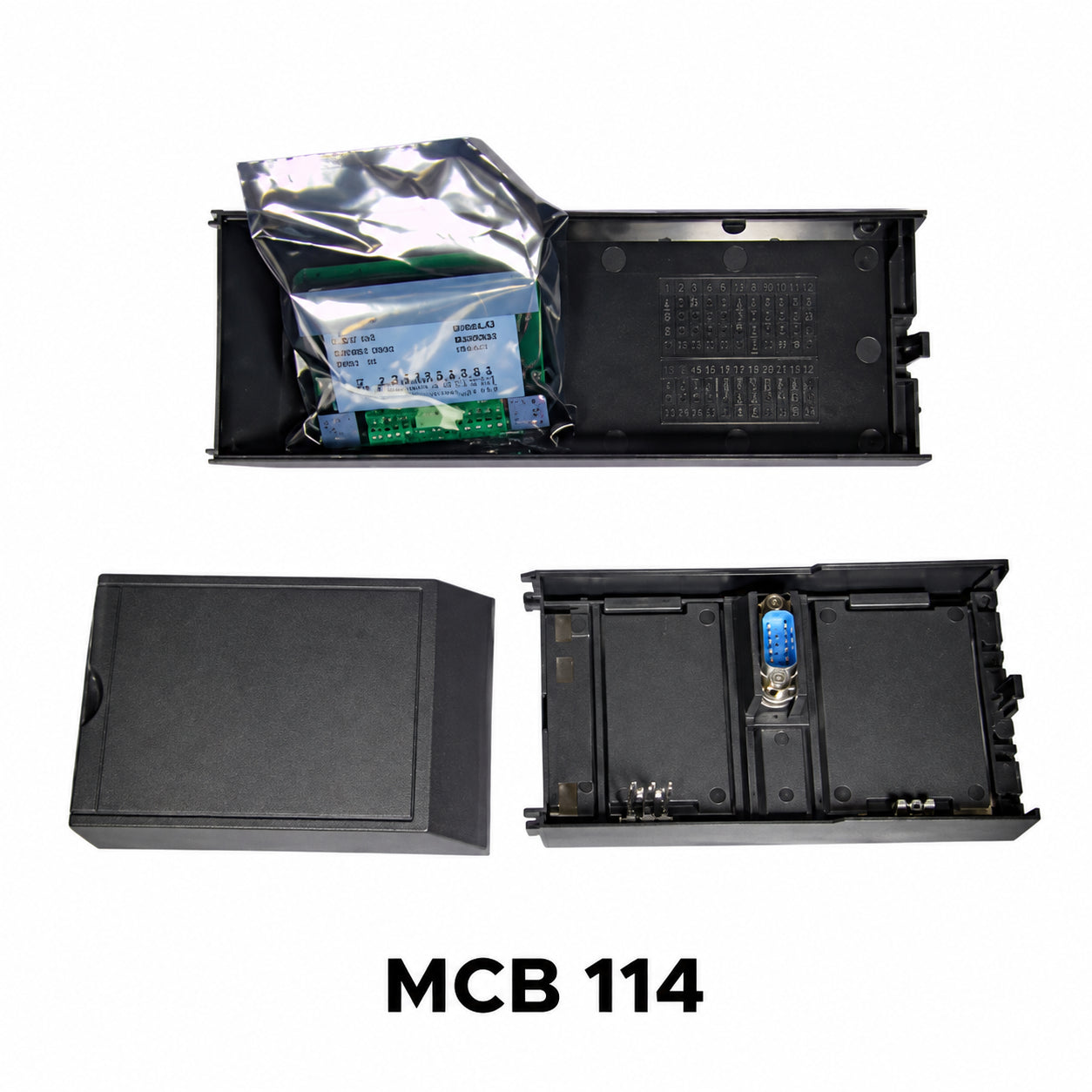

| MCB 114 Sensor Input Module |
Sensor input module |
96760901 |
| MCA 121 EtherNet/IP Module |
MCA 121 EtherNet/IP module |
93465136 |
| MCO 101 Multipump Module |
Multipump module |
99753103 |
| Local Control Panel |
Grundfos local control panel |
99591437 |
| Control Panel Mounting Kit |
Control panel mounting kit |
96801229 |
| Connection Kit - Terminals |
Connection kit (terminals) |
97641449 |
| Floor Mounting Option - D1 and D2 |
Floor mounting option for D1 and D2 enclosures |
96801230 |
| Floor Mounting Option - D1h |
Floor mounting option for D1h enclosure |
98606900 |
| Floor Mounting Option - D2h |
Floor mounting option for D2h enclosure |
98606903 |
Before You OrderMatch each accessory to the drive part number and frame. Floor-mounting options are frame-specific: D1 and D2, D1h, or D2h.
