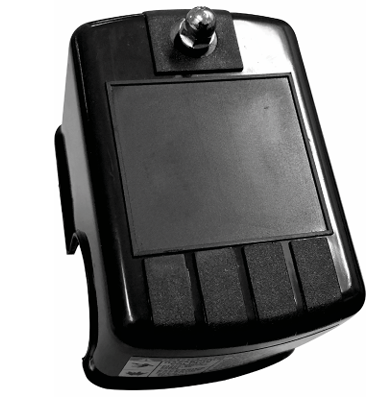

Goulds Pressure Switch

Pressure Setting: 20-40 PSI

20-40 PSI

$49.40

30-50 PSI

$49.40

40-60 PSI

$52.00

30-50 PSI (higher HP)

$58.50

30-50 PSI (Square D, 200 PSI max)

$62.40

20-40 PSI (low-pressure cutout)

$54.60

Product variant with selected options does not exist!

Quantity

Price: $49.40

SKU: AS3

Weight : 0.5 lb

Vendor : Goulds Water Technology

Free Shipping $499 or more

Need it fast? Call for same-day shipping options: 281.664.8000

Description

Goulds Water Technology

Pressure Switch

Genuine Goulds preset pressure switches for water-system pumps — AS series covering 20–60 PSI ranges plus low-pressure cutout.

Genuine Goulds

Preset 30–50 PSI

20–60 PSI Range

AS Series

Low-Pressure Cutout

Overview

Genuine Goulds Water Technology pressure switches start and stop the pump at preset pressures. This listing covers the full AS range — standard 20–40, 30–50 and 40–60 PSI, a higher-HP version, a Square D gray switch rated to 200 PSI max, and a low-pressure cutout model.

Select your model / pressure setting above.

Key Features

Preset Settings

Factory-set cut-in / cut-out pressures (20-40, 30-50, 40-60 PSI) for quick installation.

Adjustable Differential

Differential pre-set at 20 PSI with field-adjustable cut-in and cut-out settings.

Higher-HP Option

AS10 carries higher horsepower — up to 5 HP at 230 V three-phase.

Low-Pressure Cutout

AS16 turns the pump off on a 10 PSI drop to protect against loss of prime.

Square D 200 PSI

AS14 gray Square D switch rated to 200 PSI maximum system pressure.

Individually Cartoned

Genuine Goulds switches, individually boxed for aftermarket service.

Specifications

Product	Goulds Water Technology preset pressure switch
Standard Setting	30 – 50 PSI (most common)
Available Ranges	20–40, 30–50, 40–60 PSI; max pressure 100 PSI (200 PSI on AS14, 65 PSI on AS16)
Differential	Pre-set 20 PSI, field adjustable
Connection	1/4 in FNPT female threads
Use	Controls pump on/off for jet, submersible and booster systems

Models in This Listing

Model	Setting / Spec	Description
AS3	20-40 PSI, 1/4 in FNPT	Pressure switch, Goulds blue
AS4	30-50 PSI	Pressure switch, Goulds blue
AS5	40-60 PSI	Pressure switch, Goulds blue
AS10	30-50 PSI	Pressure switch, higher HP
AS14	30-50 PSI / 200 max	Pressure switch, Square D gray
AS16	20-40 PSI, cuts out 10 PSI drop	Low-pressure cutout switch

Maximum HP Rating by Voltage & Phase

Model	Cover	Setting / Max PSI	1Ø 115 V	1Ø 230 V	3Ø 230 V
AS3	Goulds Blue	20-40 / 100	—	—	—
AS4	Goulds Blue	30-50 / 100	1.5 HP	2 HP	3 HP
AS5	Goulds Blue	40-60 / 100	—	—	—
AS10	Goulds Blue	30-50 / 100	2 HP	3 HP	5 HP
AS14	Square D Gray	30-50 / 200	2 HP	5 HP	5 HP
AS16	Black	20-40 / 65	1.5 HP	2 HP	3 HP

AS16 is a low-pressure cutout switch — it turns the pump off on a 10 PSI drop in pressure. If a motor exceeds the ratings above, wire the switch to the pilot circuit of a magnetic starter or contactor.

⚠ Before You Order

Match the pressure setting to your tank pre-charge and system design (tank pre-charge is typically 2 PSI below cut-in). Higher-HP pumps may require AS10. Wire per local and National Electrical Code requirements.

"""

Ready to Order?

Confirm HP and your well type before placing your order.
