Franklin Electric · Vertical Multistage Pump

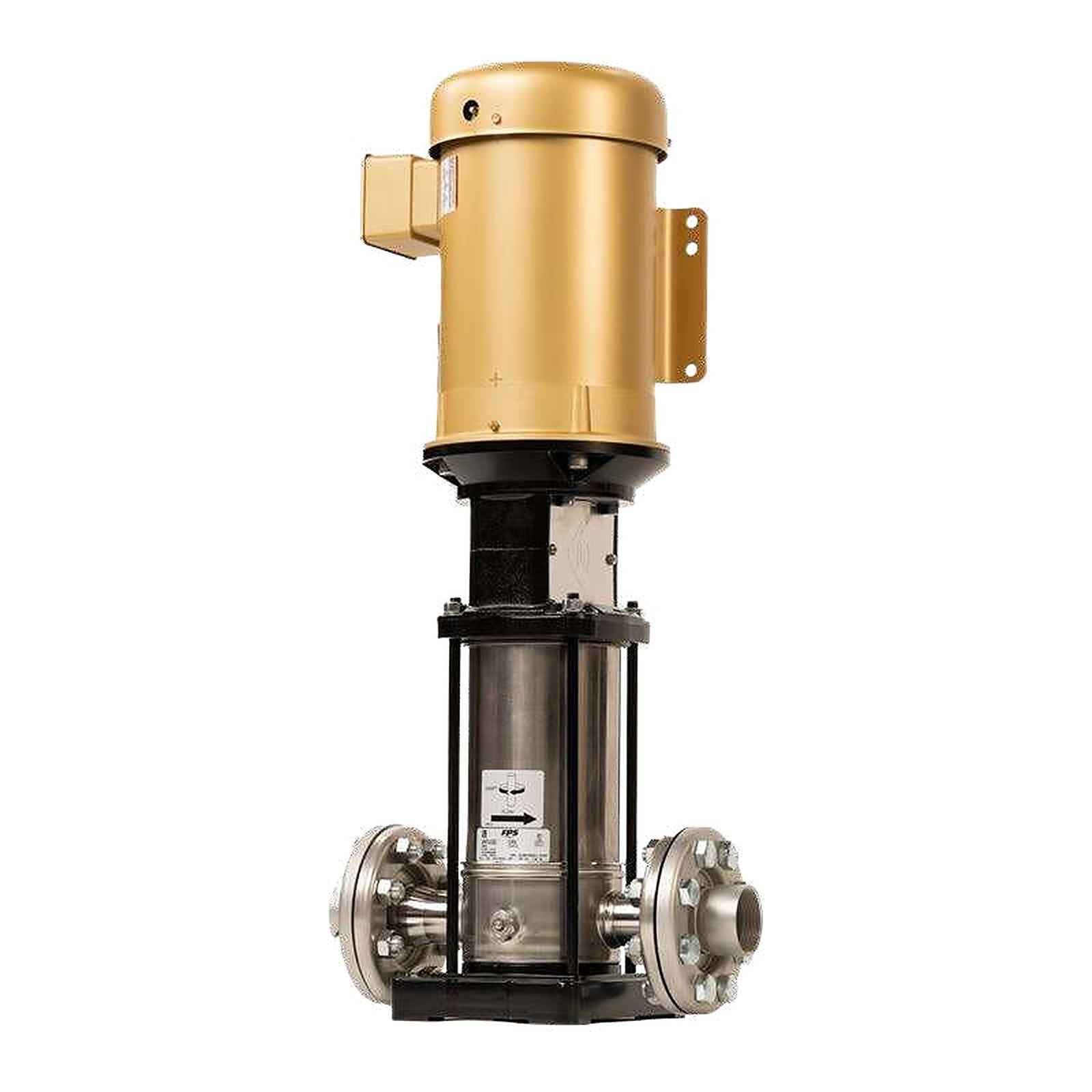

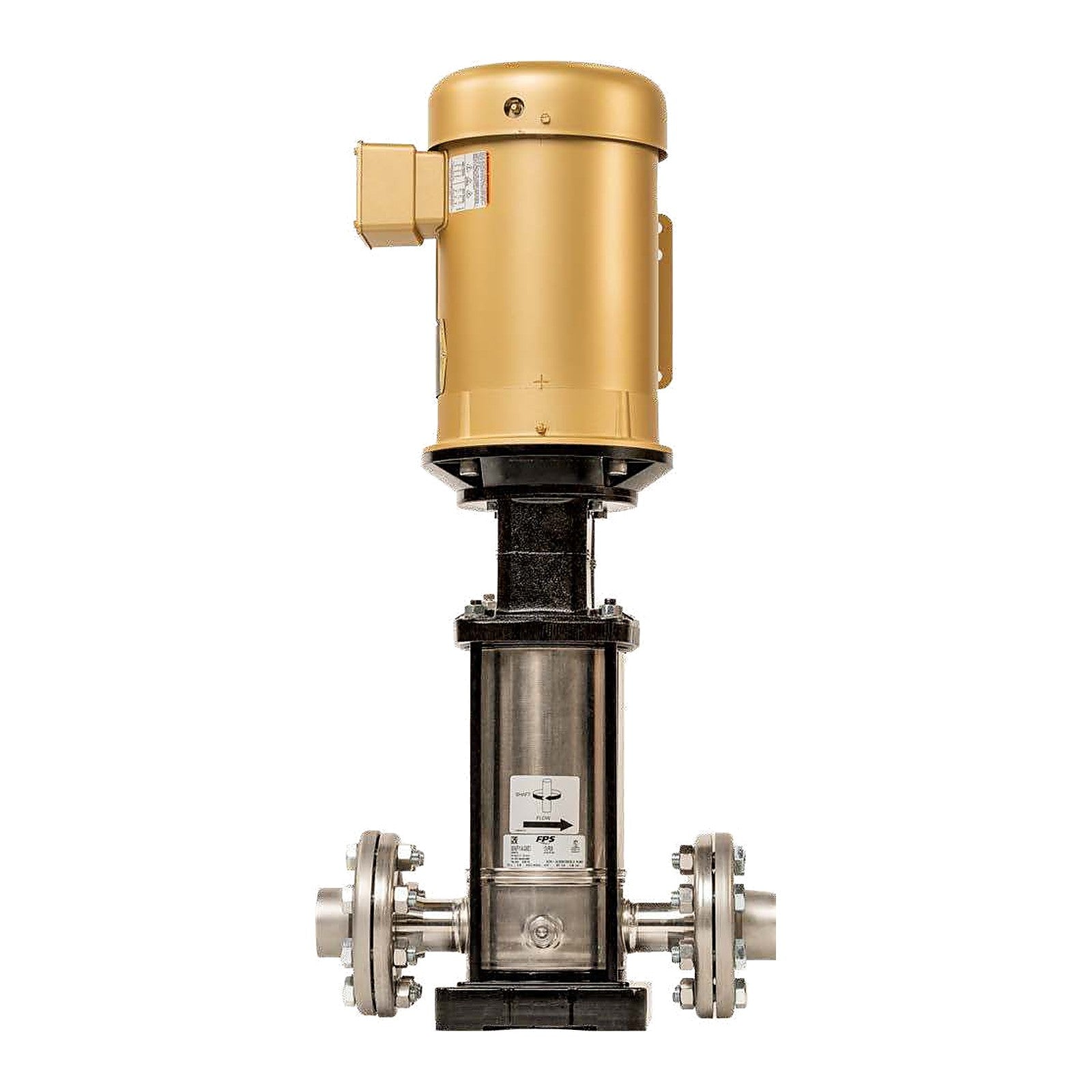

65VRL Vertical Multistage Pump
4-pole, 1,800 RPM vertical multistage centrifugal pump with motor, 1 to 15 HP, nominal best-efficiency flow 180 GPM, shut-off pressures 9-116 PSI.
22-269 ft (9-116 PSI) Max Head · 242 GPM Max
1-15 HP
115/230V or 230V 1Ph · 230/460V or 575V 3Ph
1,800 RPM (4-pole)
4 in Round Flange, In-Line
Cast Iron Casing · 316 SS Hydraulics
ODP or TEFC Baldor Motor
Type 1 Cartridge Seal
230-360 PSI Max Working Pressure
+14 to +248 °F Liquid
NSF/ANSI 61 and 372
178-519 lb Weight
Overview
The 65VRL is a vertical multi-stage centrifugal pump from the Franklin Electric VR Series, used for water supply and pressure boosting, water treatment, light industry, irrigation and agriculture, and HVAC. In-line suction and discharge connections with round flanges keep the installation compact on a small footprint.
This size is the G version: cast iron casing and upper flange with 316 stainless steel hydraulics. 30, 45, 65 and 95VR pumps carry two rotatable steel flanges with oval-shaped bolt holes that fit both DIN and ANSI flanges. The pump end mounts a standard NEMA motor on an oversized thrust bearing, so special high-thrust motors are not required.
- In-line suction and discharge with round ANSI flanges for a compact footprint
- NEMA motor mounting with an oversized thrust bearing in the pump end: no special high-thrust motor needed
- Silicon carbide/graphite/EPDM Type 1 cartridge seal
- Three-phase motors are premium efficiency and inverter-duty rated
- NSF/ANSI 61 and 372 certified
What Ships and What It Needs to Run
Included: the complete pump with its Baldor motor, assembled and ready to pipe.
Companion flanges, starter or drive, and piping: ordered separately; companion flanges adapt the round flanges to threaded pipe.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
1-Year Franklin Electric Warranty
Covered by Franklin Electric’s limited warranty for 1 year from the date of original purchase by the consumer (VR Series manual 106821101).
Specifications
| Series and speed |
VRL Series, 4-pole, 1800 RPM at 60 Hz |
| Nominal best-efficiency flow |
180 GPM |
| Connections |
In-line, round flange, 4.00 in inlet and outlet |
| Flange rating |
PN16 on lower stage counts, PN25 or PN32 on higher stage counts; see the flange table in the VR catalog |
| Casing and hydraulics |
Cast iron casing and upper flange, 316 stainless steel hydraulics (G version) |
| Mechanical seal |
Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel |
| Liquid temperature |
+14 °F to +248 °F (-10 °C to +120 °C) |
| Rotation |
Clockwise, looking at the pump from the top down |
| Motor |
Baldor NEMA C-face, ODP or TEFC; three-phase motors premium efficiency and inverter-duty rated |
| Certification |
NSF/ANSI 61 and 372 |
Performance — Will It Do What You Need?
Pick the horsepower, then the stage count that gives the pressure you need at your flow. Pressure in the tables is what the pump adds to its inlet pressure; total discharge pressure is inlet pressure plus the table value.
65VRL selection by horsepower
| HP |
Stages |
Shut-off pressure |
Models |
| 1 HP |
1 |
9 PSI |
1 |
| 1-1/2 HP |
1 |
14 PSI |
1 |
| 2 HP |
2 |
19 PSI |
1 |
| 3 HP |
2 |
24-29 PSI |
2 |
| 5 HP |
3-4 |
34-52 PSI |
5 |
| 7-1/2 HP |
4-6 |
58-77 PSI |
5 |
| 10 HP |
6-7 |
82-101 PSI |
5 |
| 15 HP |
8 |
107-116 PSI |
3 |
65VRL standard impellers — pressure at flow (8 models)
65VRL standard impellers — pressure in PSI at flow
| Model |
HP |
0 GPM (Shut-off) |
50 GPM |
120 GPM |
180 GPM |
242 GPM (Max) |
| 65VRL0100GF1A |
1-1/2 HP |
14 |
13 |
12 |
10 |
7 |
| 65VRL0200GF1A |
3 HP |
29 |
26 |
24 |
21 |
15 |
| 65VRL0300GF1A |
5 HP |
43 |
39 |
36 |
31 |
22 |
| 65VRL0400GF1A |
7-1/2 HP |
58 |
54 |
49 |
42 |
31 |
| 65VRL0500GF1A |
7-1/2 HP |
72 |
67 |
60 |
52 |
38 |
| 65VRL0600GF1A |
10 HP |
87 |
81 |
73 |
63 |
46 |
| 65VRL0700GF1A |
10 HP |
101 |
94 |
85 |
74 |
53 |
| 65VRL0800GF1A |
15 HP |
116 |
107 |
97 |
84 |
61 |
65VRL trimmed impellers — pressure at flow (15 models)
65VRL trimmed impellers (1A = one stage trimmed, 2A = two) — pressure in PSI at flow
| Model |
HP |
0 GPM (Shut-off) |
50 GPM |
120 GPM |
180 GPM |
242 GPM (Max) |
| 65VRL011AGF1A |
1 HP |
9 |
9 |
9 |
7 |
— |
| 65VRL022AGF1A |
2 HP |
19 |
19 |
18 |
14 |
— |
| 65VRL021AGF1A |
3 HP |
24 |
23 |
21 |
17 |
— |
| 65VRL032AGF1A |
5 HP |
34 |
33 |
30 |
24 |
— |
| 65VRL031AGF1A |
5 HP |
38 |
36 |
33 |
27 |
— |
| 65VRL042AGF1A |
5 HP |
48 |
46 |
41 |
34 |
— |
| 65VRL041AGF1A |
5 HP |
52 |
49 |
44 |
37 |
— |
| 65VRL052AGF1A |
7-1/2 HP |
63 |
60 |
55 |
46 |
— |
| 65VRL051AGF1A |
7-1/2 HP |
68 |
63 |
57 |
49 |
— |
| 65VRL062AGF1A |
7-1/2 HP |
77 |
73 |
66 |
56 |
— |
| 65VRL061AGF1A |
10 HP |
82 |
77 |
70 |
60 |
— |
| 65VRL072AGF1A |
10 HP |
92 |
87 |
79 |
67 |
— |
| 65VRL071AGF1A |
10 HP |
97 |
90 |
82 |
70 |
— |
| 65VRL082AGF1A |
15 HP |
107 |
100 |
91 |
78 |
— |
| 65VRL081AGF1A |
15 HP |
111 |
104 |
94 |
81 |
— |
Digitized from the published 65VRL curves in the Franklin Electric VR Series Catalog Mi9041, p. 96 (vector data), and rounded down; feet of head = PSI × 2.31. Each curve was read on the feet scale and checked against the metric scale of the same chart (within 3%). Franklin prints no head or flow table for the VR Series, so the curve is the source. Curves end at 229-242 GPM by model. The 0 GPM column is the shut-off pressure, the most the pump can add to its inlet pressure. Bold = the last point on that model’s curve. — = beyond the end of that model’s published curve.
Before You Buy — The Limits That Decide the Fit
| Pressure |
Inlet pressure plus the shut-off pressure (0 GPM column) must stay within the 230 PSI (PN16) or 360 PSI (PN25/40) flange rating of your build |
| Suction |
Available NPSH must exceed the pump’s NPSH required at your maximum flow (curve pages in the catalog) |
| Liquid |
Ratings are for clean water, +14 to +248 °F; ask us before ordering for another liquid, viscosity or specific gravity |
| Power |
See the HP - Voltage selector; the starter or drive is not included |
| Flanges |
Companion flanges are required to adapt to threaded pipe and are ordered separately |
| Rotation |
Clockwise looking down from the top; check three-phase rotation before running |
Materials of Construction
| Pump casing and upper flange (G version) |
Cast iron, ASTM A48 Class 35 |
| Outer case |
Stainless steel, AISI 316 |
| Pump shaft |
Stainless steel, AISI 329 |
| Impellers, stage housings and diffusers |
Stainless steel, AISI 316 |
| Journal sleeve |
Stainless steel, tungsten carbide |
| Floating neck ring |
PTFE |
| Mechanical seal |
Silicon carbide, graphite, EPDM, stainless steel |
| O-rings |
EPDM |
