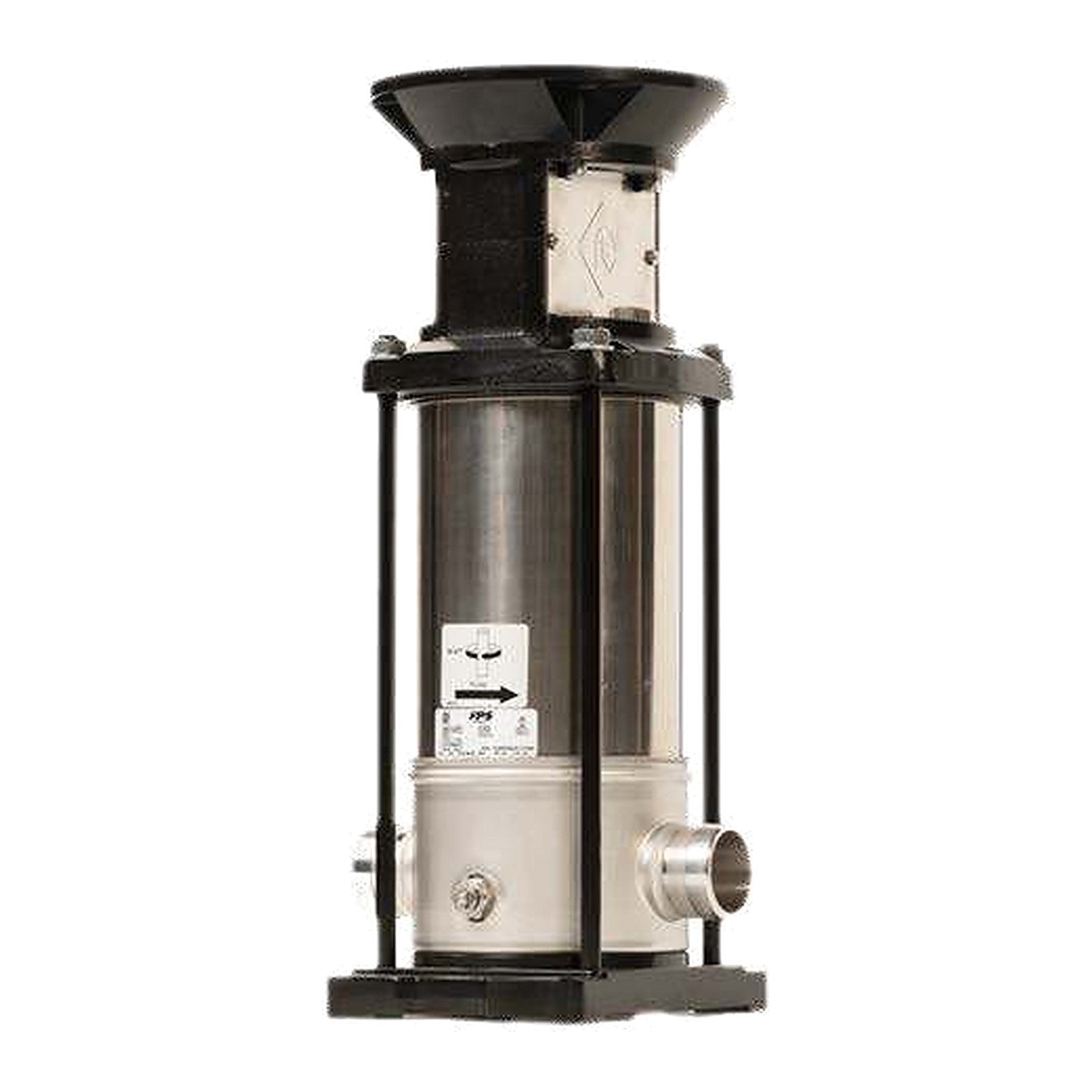

Franklin Electric 45VR pump end without motor
Franklin Electric 45VR vertical multistage pump performance curve, 3,600 RPM
Franklin Electric 45VRL vertical multistage pump performance curve, 1,800 RPM
Franklin Electric 45VR pump end without motor
Franklin Electric 45VR vertical multistage pump performance curve, 3,600 RPM
Franklin Electric 45VRL vertical multistage pump performance curve, 1,800 RPM

Franklin Electric 45VR and 45VRL Pump End - No Motor

HP - Motor Frame: 7-1/2 HP - 182-4TC
Speed: 3,600 RPM (VR)
Model - Max: 45VR011AGF1A - 39 PSI Max, 342 GPM Max

Product variant with selected options does not exist!
$4,572.32
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 45VR011AGF1A-PE18
Weight : 169.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Pump End
45VR and 45VRL Pump End — No Motor
VR Series pump end without motor for a standard NEMA C-face motor: 45VR (3,600 RPM) and 45VRL (1,800 RPM), shut-off pressures 10-353 PSI.
23-817 ft (10-353 PSI) Max Head · 176-342 GPM Max
No Motor · NEMA C-Face Mount
For 3/4-60 HP Motors
56C to 364-5TSC Frames
3,600 or 1,800 RPM
3 in Round Flange, In-Line
Cast Iron Casing · 316 SS Hydraulics
Type 1 Cartridge Seal
230-460 PSI Max Working Pressure
+14 to +248 °F Liquid
NSF/ANSI 61 and 372
132-698 lb Weight
Overview

A complete 45VR or 45VRL pump end — casing, stack, seal and motor mount — without the motor. The pump end carries the thrust load on its own oversized bearing, so it runs on stock NEMA motors in a wide range of ratings and enclosures; special high-thrust motors are not required.

This size is the G version: cast iron casing and upper flange with 316 stainless steel hydraulics. 30, 45, 65 and 95VR pumps carry two rotatable steel flanges with oval-shaped bolt holes that fit both DIN and ANSI flanges.

What Ships and What It Needs to Run

Included: the pump end only: casing, hydraulic stack, cartridge seal and motor mount, without motor.

Motor, companion flanges and starter or drive: ordered separately. The selector shows the motor horsepower and NEMA C-face frame each pump end needs.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
1-Year Franklin Electric Warranty

Covered by Franklin Electric’s limited warranty for 1 year from the date of original purchase by the consumer (VR Series manual 106821101).

Specifications
Supplied as Pump end without motor (casing, stack, seal and motor mount)
Speeds 45VR: 3,600 RPM (2-pole motor); 45VRL: 1,800 RPM (4-pole motor)
Motor frames 56C, 182-4TC, 213-5TC, 254-6TC, 284-6TSC, 324-6TSC, 364-5TSC NEMA C-face
Motor horsepower 3/4 to 60 HP by model
Connections In-line, round flange, 3.00 in inlet and outlet
Flange rating PN16 on lower stage counts, PN25 or PN32 on higher stage counts; see the flange table in the VR catalog
Casing and hydraulics Cast iron casing and upper flange, 316 stainless steel hydraulics (G version)
Mechanical seal Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel
Liquid temperature +14 °F to +248 °F (-10 °C to +120 °C)
Rotation Clockwise, looking at the pump from the top down
Certification NSF/ANSI 61 and 372
Performance — Will It Do What You Need?

Pick the speed that matches your motor (45VR at 3,600 RPM on a 2-pole motor, 45VRL at 1,800 RPM on a 4-pole motor), then the stage count that gives the pressure you need at your flow. The motor horsepower shown is the size the pump end needs.

45VR (3,600 RPM) standard impellers — pressure at flow (7 models)

45VR standard impellers — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 70 GPM 170 GPM 260 GPM 342 GPM (Max)
45VR0100GF1A 7-1/2 HP 50 49 45 38 28
45VR0200GF1A 15 HP 100 98 91 78 57
45VR0300GF1A 25 HP 150 148 136 116 85
45VR0400GF1A 40 HP 202 199 184 159 118
45VR0500GF1A 40 HP 252 249 230 198 147
45VR0600GF1A 50 HP 303 299 275 237 176
45VR0700GF1A 60 HP 353 349 322 277 206
45VR (3,600 RPM) trimmed impellers — pressure at flow (13 models)

45VR trimmed impellers (1A = one stage trimmed, 2A = two) — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 70 GPM 170 GPM 260 GPM 342 GPM (Max)
45VR011AGF1A 7-1/2 HP 39 39 36 28 16
45VR022AGF1A 15 HP 79 78 73 58 35
45VR021AGF1A 15 HP 89 88 82 68 46
45VR032AGF1A 20 HP 129 127 118 97 64
45VR031AGF1A 20 HP 139 138 127 107 74
45VR042AGF1A 30 HP 179 176 162 134 90
45VR041AGF1A 30 HP 191 189 175 149 107
45VR052AGF1A 40 HP 231 228 212 178 125
45VR051AGF1A 40 HP 242 239 221 188 136
45VR062AGF1A 40 HP 282 278 258 217 154
45VR061AGF1A 50 HP 292 288 266 227 165
45VR072AGF1A 50 HP 332 328 304 258 184
45VR071AGF1A 50 HP 343 339 313 267 195
45VRL (1,800 RPM) standard impellers — pressure at flow (13 models)

45VRL standard impellers — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 40 GPM 90 GPM 130 GPM 176 GPM (Max)
45VRL0100GF1A 1 HP 12 12 11 9 6
45VRL0200GF1A 2 HP 25 24 22 19 12
45VRL0300GF1A 3 HP 37 36 33 28 19
45VRL0400GF1A 5 HP 50 48 44 37 25
45VRL0500GF1A 5 HP 62 60 54 46 31
45VRL0600GF1A 7-1/2 HP 75 73 67 58 40
45VRL0700GF1A 7-1/2 HP 87 85 78 67 46
45VRL0800GF1A 7-1/2 HP 100 97 89 76 52
45VRL0900GF1A 10 HP 113 110 101 86 59
45VRL1000GF1A 10 HP 125 122 111 95 66
45VRL1100GF1A 15 HP 138 134 123 105 73
45VRL1200GF1A 15 HP 150 146 134 115 79
45VRL1300GF1A 15 HP 162 159 144 124 85
45VRL (1,800 RPM) trimmed impellers — pressure at flow (13 models)

45VRL trimmed impellers (1A = one stage trimmed, 2A = two) — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 40 GPM 90 GPM 130 GPM 176 GPM (Max)
45VRL011AGF1A 3/4 HP 10 9 8 7 3
45VRL022AGF1A 1-1/2 HP 19 19 17 14 7
45VRL032AGF1A 3 HP 32 32 29 24 14
45VRL042AGF1A 5 HP 44 44 40 33 20
45VRL052AGF1A 5 HP 57 55 50 42 26
45VRL062AGF1A 7-1/2 HP 70 68 63 53 35
45VRL072AGF1A 7-1/2 HP 82 81 74 62 41
45VRL082AGF1A 7-1/2 HP 95 92 84 71 47
45VRL092AGF1A 10 HP 108 105 96 82 54
45VRL102AGF1A 10 HP 120 117 107 91 60
45VRL112AGF1A 10 HP 132 129 118 100 67
45VRL122AGF1A 15 HP 145 142 129 110 74
45VRL132AGF1A 15 HP 157 153 140 119 80

Digitized from the published curves in the Franklin Electric VR Series Catalog Mi9041 (45VR p. 44; 45VRL p. 92; vector data) and rounded down; feet of head = PSI × 2.31. Each curve was read on the feet scale and checked against the metric scale of the same chart (within 3%). Franklin prints no head or flow table for the VR Series. 45VR curves end at 342 GPM, 45VRL curves at 176 GPM. The 0 GPM column is the shut-off pressure, the most the pump adds to its inlet pressure. Motor HP is the motor Franklin pairs with that pump end. Bold = the last point on that model’s curve. — = beyond the end of that model’s published curve. Franklin does not publish curves for 45VRL021AGF1A, 45VRL031AGF1A, 45VRL041AGF1A, 45VRL051AGF1A, 45VRL061AGF1A, 45VRL071AGF1A, 45VRL081AGF1A, 45VRL091AGF1A, 45VRL101AGF1A, 45VRL111AGF1A, 45VRL121AGF1A, 45VRL131AGF1A; ask us for their performance.

Before You Buy — The Limits That Decide the Fit
Pressure Inlet pressure plus the shut-off pressure (0 GPM column) must stay within the 230 PSI (PN16) or 460 PSI (PN25/40) flange rating of your build
Suction Available NPSH must exceed the pump’s NPSH required at your maximum flow (curve pages in the catalog)
Liquid Ratings are for clean water, +14 to +248 °F; ask us before ordering for another liquid, viscosity or specific gravity
Flanges Companion flanges are required to adapt to threaded pipe and are ordered separately
Rotation Clockwise looking down from the top; check three-phase rotation before running
Motor A NEMA C-face motor of the frame, horsepower and speed in the selector; 2-pole for 45VR, 4-pole for 45VRL
Materials of Construction
Pump casing and upper flange (G version) Cast iron, ASTM A48 Class 35
Outer case Stainless steel, AISI 316
Pump shaft Stainless steel, AISI 329
Impellers, stage housings and diffusers Stainless steel, AISI 316
Journal sleeve Stainless steel, tungsten carbide
Floating neck ring PTFE
Mechanical seal Silicon carbide, graphite, EPDM, stainless steel
O-rings EPDM
Accessories and Service Parts
Item Listing Use
Complete pump with motor 45VR Vertical Multistage Pump and 45VRL Pump end and Baldor motor, assembled
Motor VR Series Replacement Motor Baldor NEMA C-face motors for VR and VRL
Companion flanges VR Series Companion Flange Kit Adapt the round flanges to threaded pipe
Mechanical seal VR Series Mechanical Seal Kit Cartridge seal replacement
Replacement stack 45VR Replacement Stack Rebuild the hydraulics on an existing pump
Repair kits VR Series Repair Kit Motor flanges, brackets, couplings, casings, plugs
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
VR Series Catalog (Mi9041) VR Series Manual (106821101) VR Series Written Specifications (M1739) VR Series Line Drawings (M1758) VR Series Brochure (Mi2057)
