Dresser Style 175 Cut-In Curb Valve - Steel or PE Gas Service

Nominal Size: 1-1/4 in
Ends - Part No.: Compression x Compression, 90 Open-Left - 0175-0021-510

Product variant with selected options does not exist!

Price
$557.96
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 0175-0021-510
Weight : 8.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Meter Valve

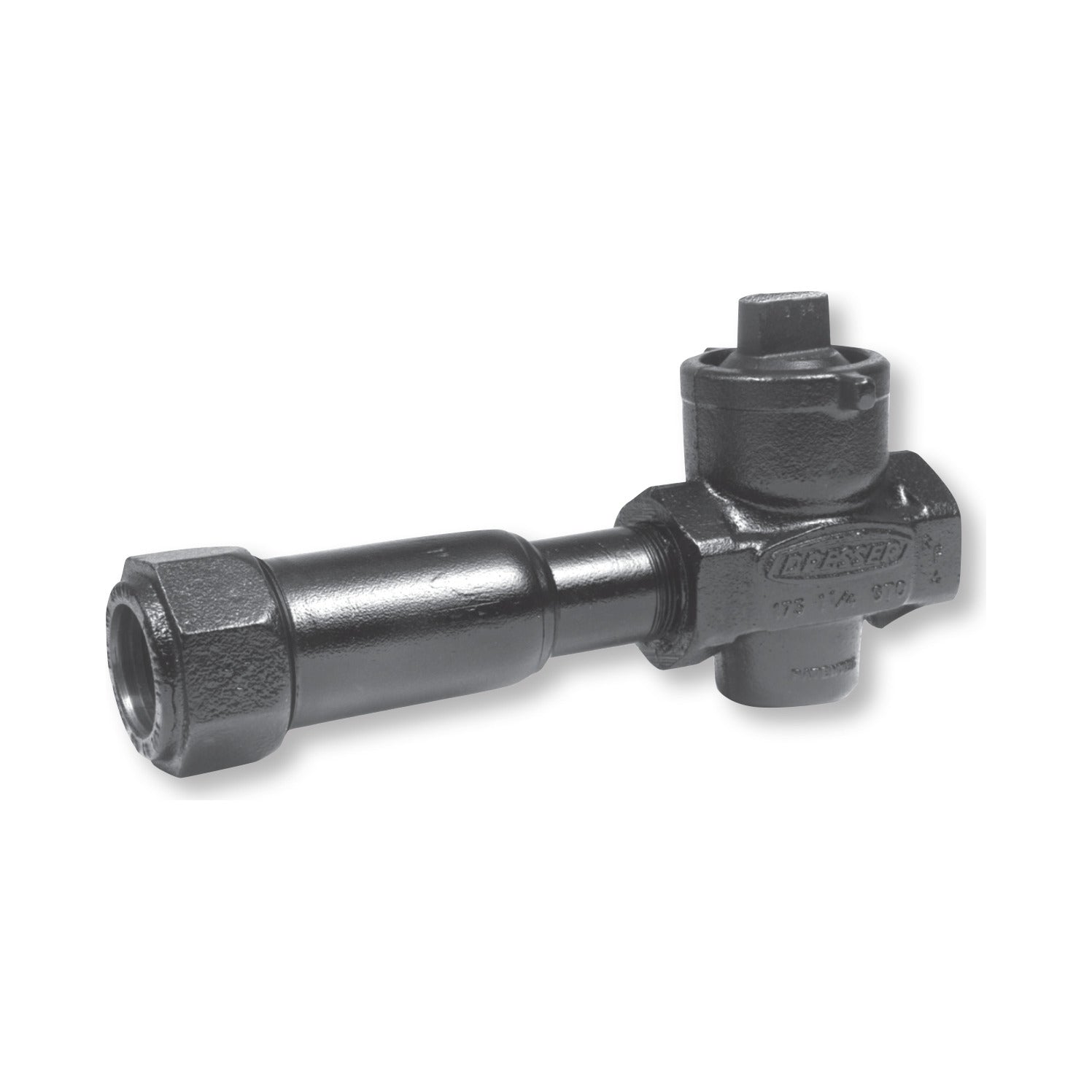

Style 175 Cut-In Curb Valve
Plug-type meter and curb valve with positive shutoff, rated 150 PSI with compression ends.
150 PSI Max Working Pressure
Low Operating Torque
Natural Gas Service
3/4 in to 2 in
8-13 lb Weight
Overview

The Dresser Style 175 combines a spring-loaded seal with permanently lubricated port seals for positive shutoff at all rated pressures. A TFE coated retaining ring keeps operating torque low and uniform, so the plug does not freeze to the body.

Application: Gas meter sets, curb valves and service line shutoff.

  • Oil-tempered steel spring holds the seal
  • 360 turn or 90 degree open-left operation
  • Compression, GTO threaded and cut-in versions
What Ships and What It Needs to Run

Included: valve, assembled.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Dresser rates the Style 175 cut-in curb valve to 150 PSI. The threaded GTO version is rated 175 PSI.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015). The rating on the product label is the actual rating of each part.

Materials Specifications
Body and bonnet Cast gray iron, ASTM A126 Class B (semi-steel)
Plugs Aluminum alloy to 1-1/2 in; 2 in cast gray iron, ASTM A126 Class B
Elastomer seal Molded, permanently lubricated
Retainer ring TFE-coated Type 304 stainless steel
Bonnet seal O-ring Buna-S, for gas service
Spring Oil-tempered steel, ASTM A229

Source: Dresser Gas Service Valves Brochure (DPS.004, 2021).

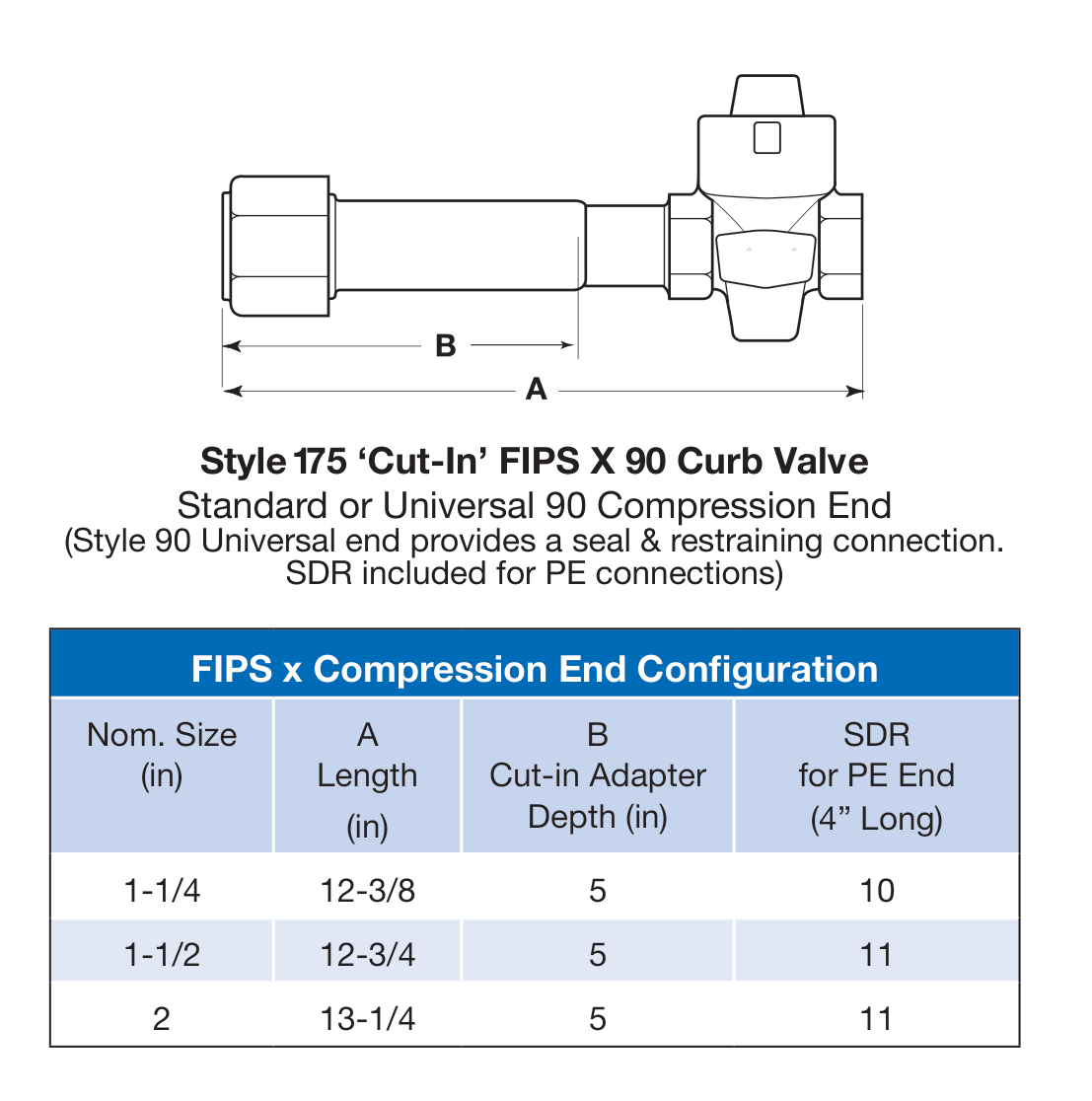

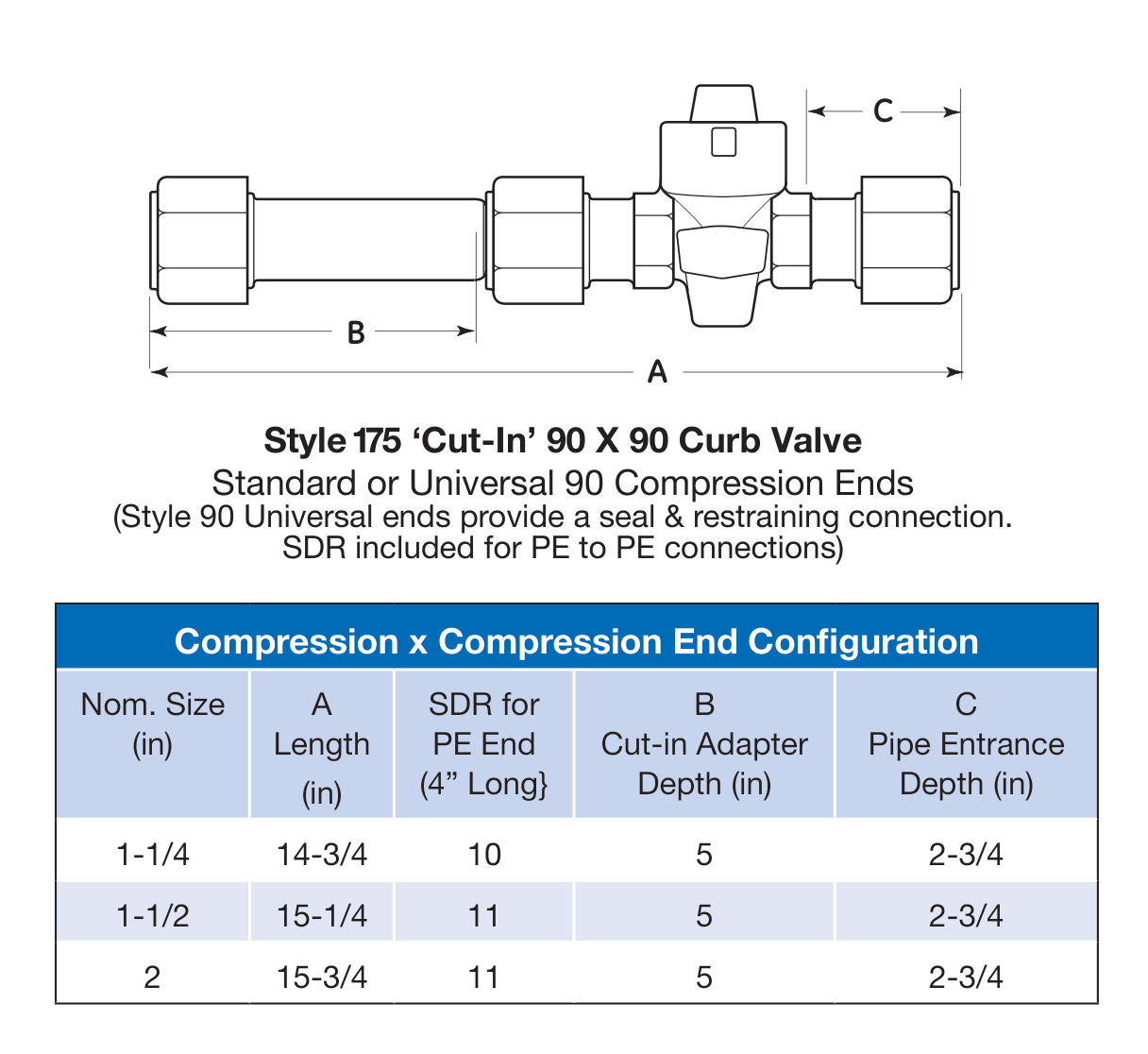

Sizes
Nominal Size Ends
1-1/4 in Compression x Compression, 90 Open-Left, FIPS x Compression
1-1/2 in Compression x Compression, 90 Open-Left
2 in Compression x Compression, 90 Open-Left, FIPS x Compression

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Mark the pipe and stab it into the fitting to the full stab depth.
  • On PE pipe, install the correct-SDR Dresser insert stiffener (or one qualified to DOT 192.283(b)) in every PE pipe end.
  • Anchor the pipe joint wherever pull-out can occur.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Confirm end type, pipe material and SDR, and operation direction. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
