DAB · Submersible Motor Control Box
Tesla 4CBUS / 6CBUS
Metal-cased control boxes for DAB Tesla 4GG and 6GF single-phase three-wire motors, 0.5 to 15 HP; the Plus version adds a matched magnetic line contactor.
0.5 to 15 HP
115V or 230V 1Ph
Metal Casing
Basic or Plus
USA Version
Overview

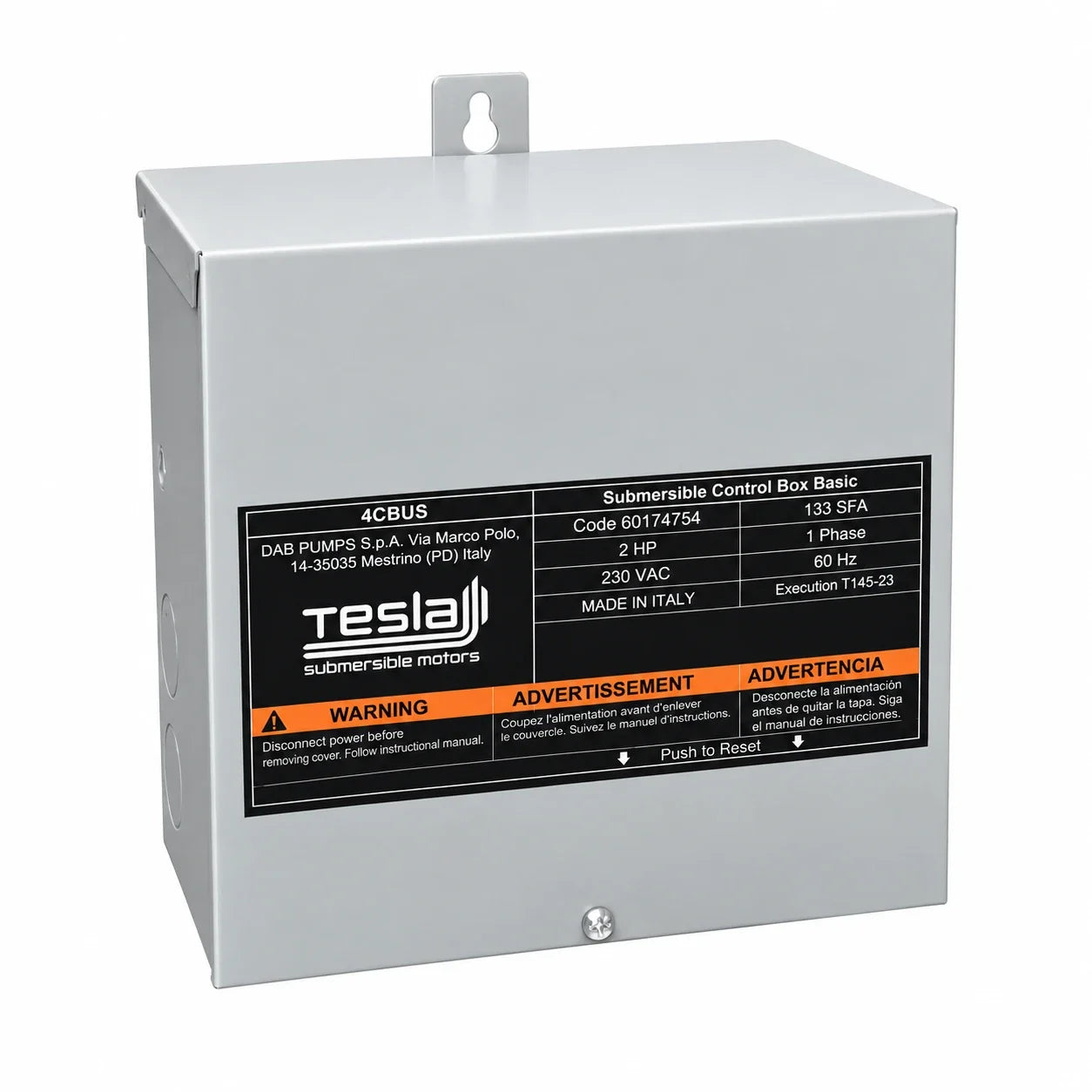

The DAB Tesla control box, USA version, is supplied with a metal casing. The Plus version contains a magnetic line contactor carefully matched to the motor, eliminating the need for an external line contactor.
The 4CBUS boxes serve the 4GG single-phase three-wire motors from 0.5 to 5 HP; the 6CBUS boxes serve the 6GF single-phase motors from 7.5 to 15 HP. In the 1.5 to 5 HP range the capacitor and the manually resettable overload protection live in the control box. The 0.5 to 1 HP 4GG motors carry thermal protection internally but still require the control box for the run capacitor.
Genuine DAB equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Models & Capacitors
| Model |
HP |
Voltage |
Version |
Run Cap uF |
Start Cap uF |
Part No. |
| 4CBUS - 0.5 HP |
0.5 |
115V 1Ph |
Basic |
- |
250-300 |
60174729 |
| 4CBUS - 0.5 HP |
0.5 |
230V 1Ph |
Basic |
- |
59-71 |
60174730 |
| 4CBUS - 0.75 HP |
0.75 |
230V 1Ph |
Basic |
- |
86-103 |
60174731 |
| 4CBUS - 1 HP |
1 |
230V 1Ph |
Basic |
- |
105-126 |
60174732 |
| 4CBUS - 1.5 HP |
1.5 |
230V 1Ph |
Basic |
10 |
105-126 |
60174733 |
| 4CBUS - 2 HP |
2 |
230V 1Ph |
Basic |
20 |
105-126 |
60174734 |
| 4CBUS - 3 HP |
3 |
230V 1Ph |
Basic |
45 |
208-250 |
60174735 |
| 4CBUS - 5 HP |
5 |
230V 1Ph |
Basic |
2x40 |
270-324 |
60174736 |
| 4CBUS - 1.5 HP |
1.5 |
230V 1Ph |
Plus |
10 |
105-126 |
60174737 |
| 4CBUS - 2 HP |
2 |
230V 1Ph |
Plus |
20 |
105-126 |
60174738 |
| 4CBUS - 3 HP |
3 |
230V 1Ph |
Plus |
45 |
208-250 |
60174739 |
| 4CBUS - 5 HP |
5 |
230V 1Ph |
Plus |
2x40 |
270-324 |
60184859 |
| 6CBUS - 7.5 HP |
7.5 |
230V 1Ph |
Plus |
45 |
270-324 |
60184860 |
| 6CBUS - 10 HP |
10 |
230V 1Ph |
Plus |
35 |
270-324 |
60184861 |
| 6CBUS - 15 HP |
15 |
230V 1Ph |
Plus |
45 |
270-324 |
60184862 |
Capacitor values are the primary set DAB publishes; 6CBUS boxes carry multiple capacitor sets.
Key Features
-
Matched to the motor — one box per horsepower and voltage.
-
Plus version — integral magnetic line contactor; no external contactor required.
-
Metal casing — USA version.
-
Overload protection — manually resettable, 1.5 HP and up.
Specifications
| Specification |
Value |
| Fits |
DAB Tesla 4GG (0.5 to 5 HP) and 6GF (7.5 to 15 HP) single-phase motors |
| Voltage |
115 V (0.5 HP) or 230 V, 60 Hz |
| Casing |
Metal |
| Versions |
Basic; Plus with line contactor |
Applications
- Three-wire submersible motor installations
- Replacement of a failed control box
Before You OrderSelect the box that matches the motor horsepower and voltage exactly. A control box is required for every single-phase 4GG and 6GF motor; it is not used with 4TW two-wire motors.
