DAB · Tesla Submersible Motor
4TW 2-Wire
A 4 in NEMA two-wire asynchronous submersible motor in AISI 304 stainless steel with the capacitor built into the motor — no control box needed.
NEMA 4 in Flange
2-Wire, No Control Box
0.5 to 1.5 HP
984 ft Max Depth
NSF/ANSI 61 + 372, UL, CSA
Overview
The DAB Tesla 4TW is a 2-wire submersible asynchronous two-pole motor. It is made with durable AISI 304 stainless steel, ensuring that the parts in contact with water are protected.

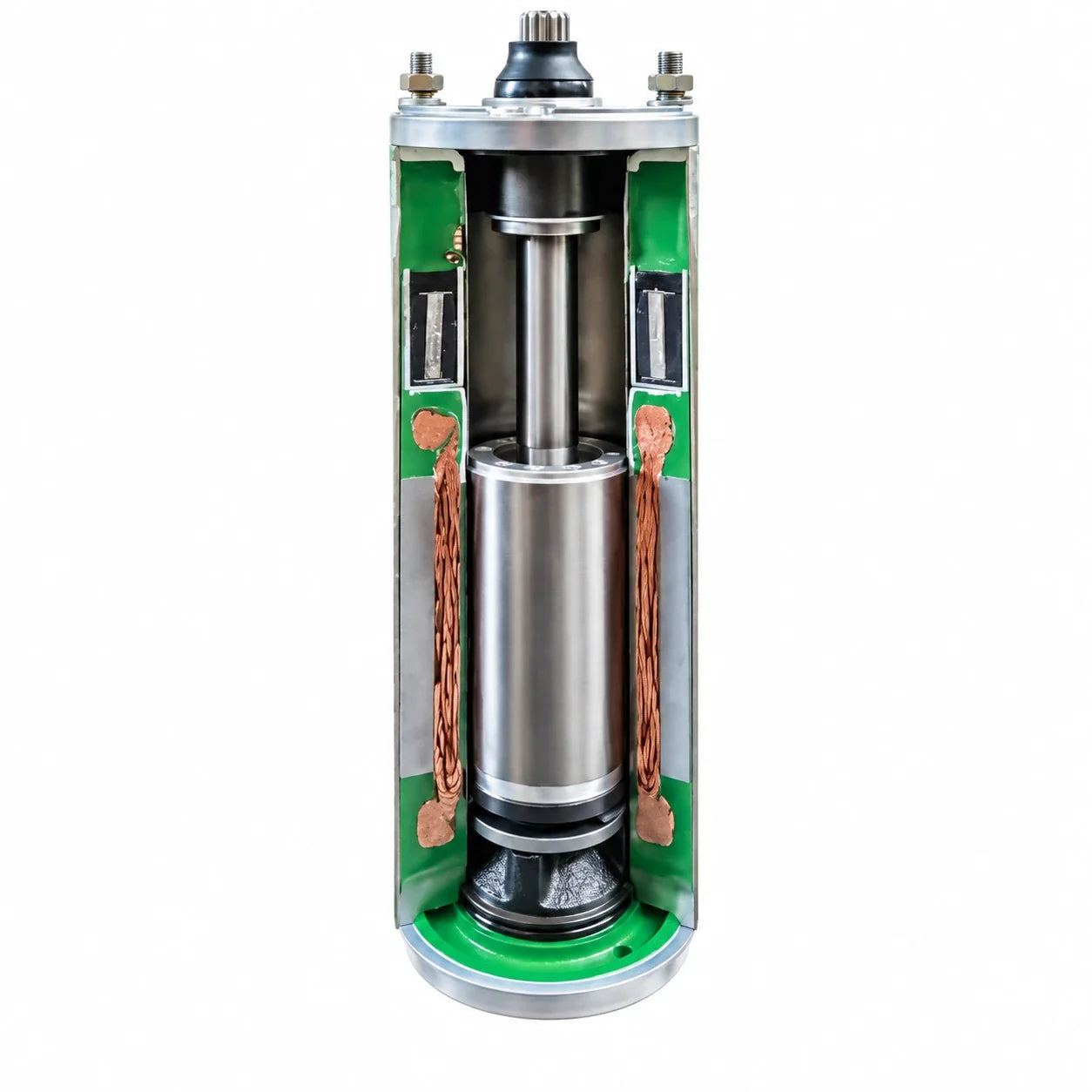

To keep the motor cool and lubricated, a mixture of water and glycol is used for the thrust bearing assembly and carbon bushes. The squirrel-cage rotor is securely mounted on a Kingsbury self-centering thrust bearing. The stator is housed in a sealed stainless steel casing, with both the flanges and shell made from AISI 304L stainless steel.
For easy maintenance there is a removable cable connector; the cable itself is certified by CSA to UL and NSF standards. The motor is compatible with a variable frequency drive, allowing flexible use with frequencies from 30 Hz to 60 Hz. The capacitor is protected inside the motor casing where it is directly connected to the motor windings, eliminating the need for an external control box. Thermal protection is included in the motor.
Genuine DAB equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Models, Voltage & Phase
| Model |
HP |
Voltage & Phase |
Rated Amps |
Service Factor |
Part No. |
| 4TW - 0.5 HP |
0.5 |
115V 1Ph |
8.6 |
1.6 |
60174194 |
| 4TW - 0.5 HP |
0.5 |
230V 1Ph |
3.9 |
1.6 |
60174195 |
| 4TW - 0.75 HP |
0.75 |
230V 1Ph |
6.3 |
1.5 |
60174196 |
| 4TW - 1 HP |
1 |
230V 1Ph |
7.7 |
1.4 |
60174197 |
| 4TW - 1.5 HP |
1.5 |
230V 1Ph |
11.8 |
1.3 |
60174198 |
Where two voltages are shown, the first is the factory wiring setting. Voltage is changed on the motor terminal board, never at the pressure switch. All models are single phase unless the table states 3Ph.
Key Features
-
Built-in capacitor and thermal protection — two-wire installation with no external control box.
-
AISI 304 stainless — flanges and shell in AISI 304L; canned stator.
-
Kingsbury thrust bearing — water and glycol cooled and lubricated.
-
VFD ready — 30 Hz to 60 Hz.
-
Removable CSA cable connector — 3x14 AWG, 5-1/2 ft lead.
Specifications
| Specification |
Value |
| Flange |
NEMA 4 in |
| Motor sizes |
0.5 HP to 1.5 HP |
| Motor maximum diameter |
3.9 in |
| Insulation class |
F |
| Protection class |
IP68 |
| Cooling flow speed |
1.0 ft/sec at 95 F |
| Power supply tolerance |
+6% / -10% |
| Maximum starts |
20 per hour |
| Maximum operating depth |
984 ft |
| Speed |
3450 rpm |
| Certification |
NSF61, 372, UL and CSA |
Applications
- Replacement motor for 4 in submersible pump ends
- Pairing with DAB S4 pump ends
- Two-wire well installations
Before You OrderMatch horsepower to the pump end and voltage to your service. 115 V is offered on 0.5 HP only. A cable connector kit is listed separately.
