Style 914 - Reducing Flanged Coupling Adapter

All Smith-Blair products are Made to Order and Non-Returnable

Items typically shipped in 5 - 10 business days

Price on Application - Contact us for pricing

Product Features:

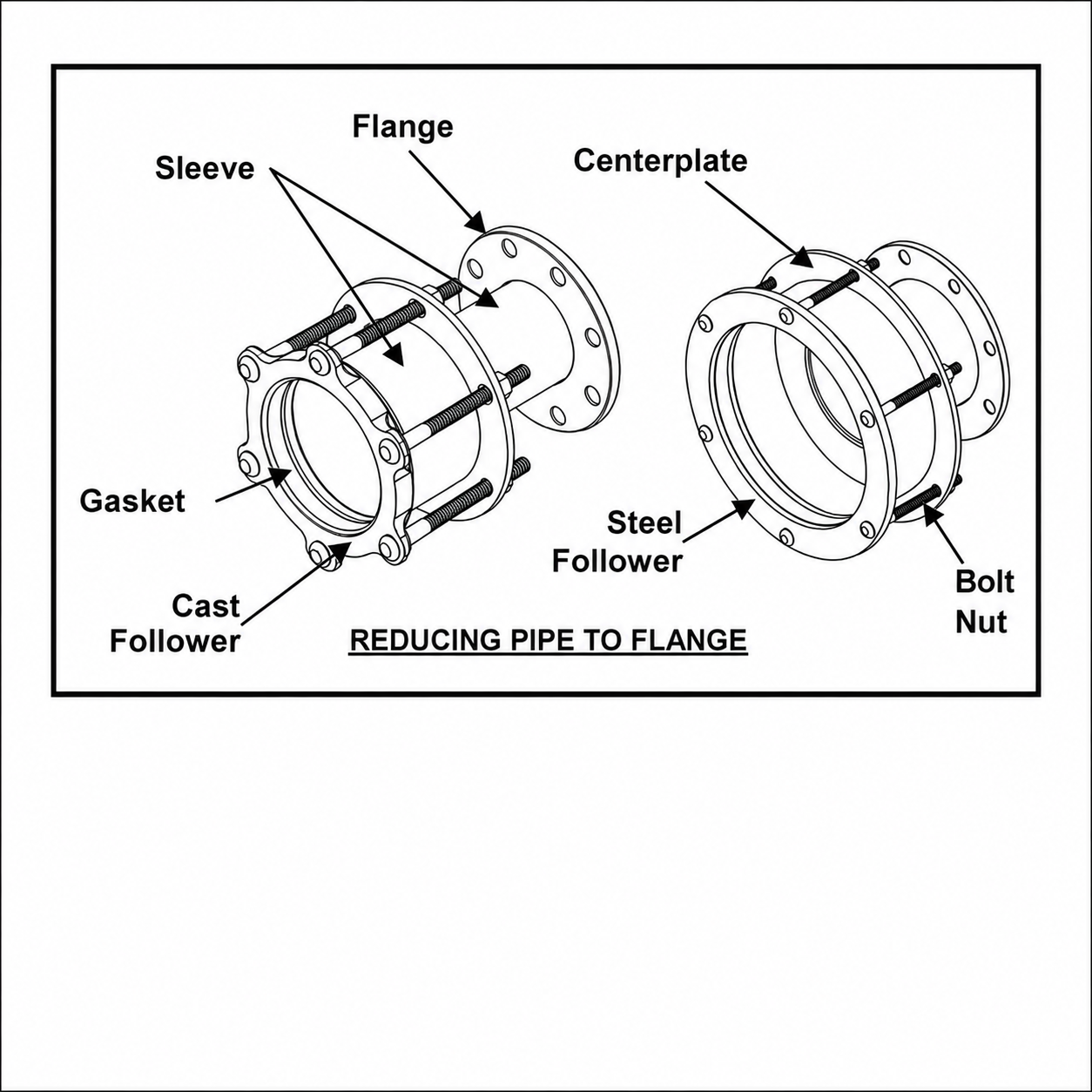

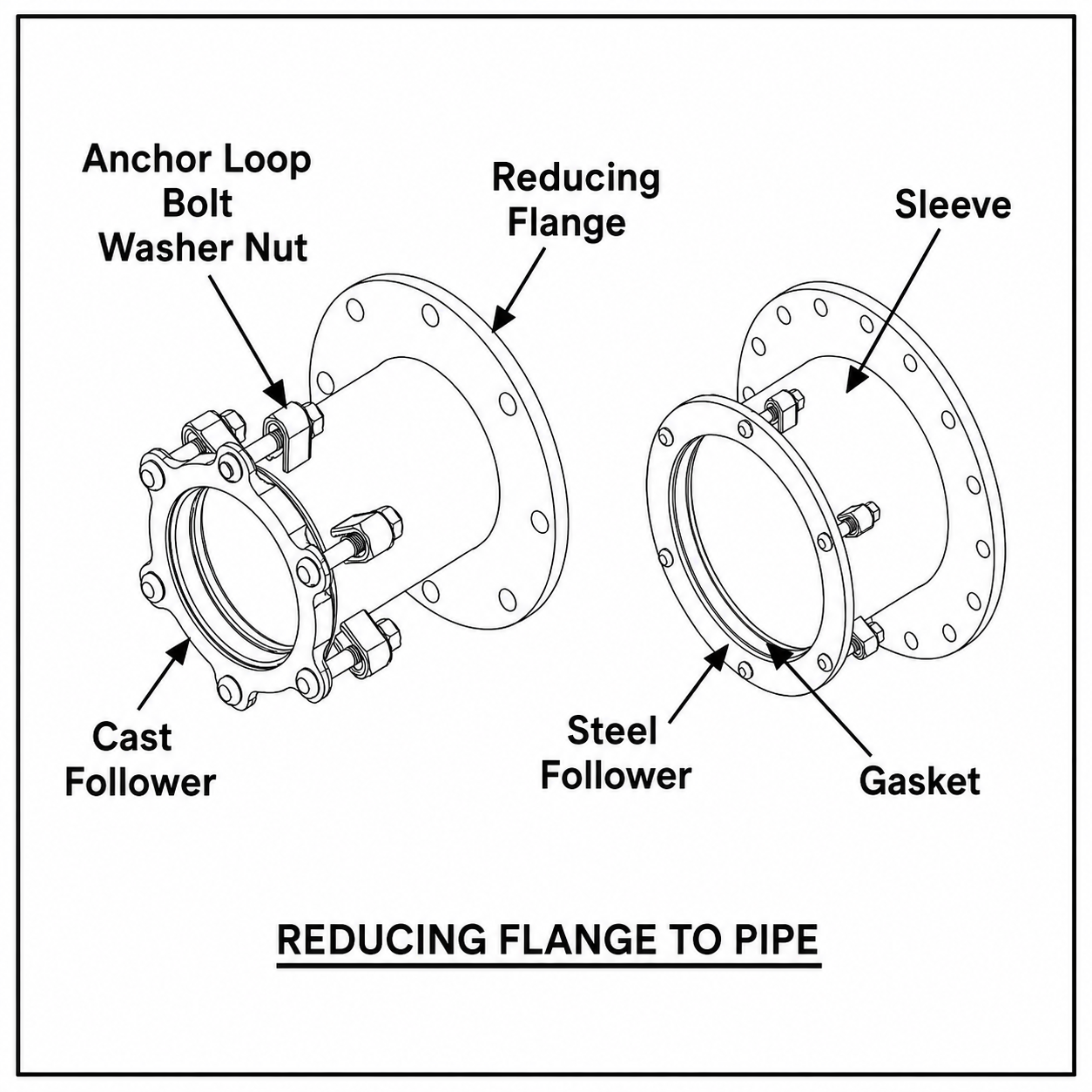

• Reducing flanged coupling adapter - connects pipe to flanged fittings of different sizes
• Steel body with Flexi-Coat Epoxy Coating
• Custom configured from coupling end OD range and flange end size
• Coupling end OD range: 3.44" to 32.09"
• Flange end sizes: 3" to 24"
• Larger sizes to 96" OD available upon request

Materials:

• BODY Steel with Flexi-Coat Epoxy Coating
• GASKET NSF Buna-N
• BOLTS AND NUTS Alloy Steel

Specifications:

• Coupling End OD Ranges: 3.44" to 32.09"
• Flange End Sizes: 3" through 24"
• Standard finish: Flexi-Coat Epoxy Coating

How to Order:

• Determine the coupling end code number from the pipe OD range
• Determine the flange end code number from the flange size
• Combine the two codes and add -003 (e.g. 914-127508-003 = 12.63-12.84 OD to 8" flange)
• Shipping weight = coupling end weight + flange end weight
