Smith-Blair Style 397 Ductile Iron Service Saddle - Double Wide 304 SS Strap, PVC, 2-12 in

Nominal Size - OD Range: 2 in - 2.38 in OD
Tap Size: 3/4 in NPT
Part No.: 397-00023806-000

Product variant with selected options does not exist!
$202.81
SKU: 397-00023806-000
Weight : 5.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Service Saddle
Style 397 Service Saddle
Ductile Iron Body with Wide 304 Stainless Strap, for Steel and DI OD PVC — 2-12 in
200 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) TaperSeal Gasket
Epoxy-Coated Ductile Iron Body
Wide 304 Stainless Strap and Studs
3/4 to 2 in CC and NPT Taps
NSF/ANSI 61 and 372
AWWA C800
2.38-13.20 in Pipe OD
5-11 lb Weight
Description

The Smith-Blair Style 397 is a ductile iron service saddle built for PVC pipe. One wide Type 304 stainless steel strap (3 in on 2 in pipe, 3.5 in on 4-12 in) seals uniformly and supports the pipe nearly 360° around the tapped area without a crushing action. The body is cast to the PVC pipe's steel (IPS) or cast/ductile iron (C900) OD and carries a TaperSeal Nitrile gasket bonded in its cavity.

At recommended torque the saddle exceeds the working pressure of most standard pipe, and a closed lug on one side acts as a hinge with the strap for easier installation. Use it for service taps, air/vacuum and drain valves and other service equipment.

Application: service taps of 3/4 to 2 in on 2-12 in PVC pipe with steel or ductile iron OD.

Key Features

  • Working pressure up to 200 PSI, depending on size and application
  • Wide strap spreads the load to protect the pipe when tightening
  • Nearly 360° support of the pipe for better performance at the tap
  • TaperSeal hydro-mechanical lip holds higher pressure with minimal nut torque
  • Meets applicable AWWA C800; certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the epoxy-coated ductile iron body with the TaperSeal gasket in place, the one-piece wide 304 stainless strap with welded studs, fluoropolymer-coated stainless nuts and stainless washers.

Spring washers on HDPE, ordered separately: Smith-Blair spring washers p/n 150115-002 are required where TI-035 allows HDPE (4-12 in, DR17 or thicker); ask us to quote them with the saddle.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 200 PSI. depending on size and application. Smith-Blair notes the allowable pressure depends on the type of pipe, pipe diameter, service conditions and installation workmanship.

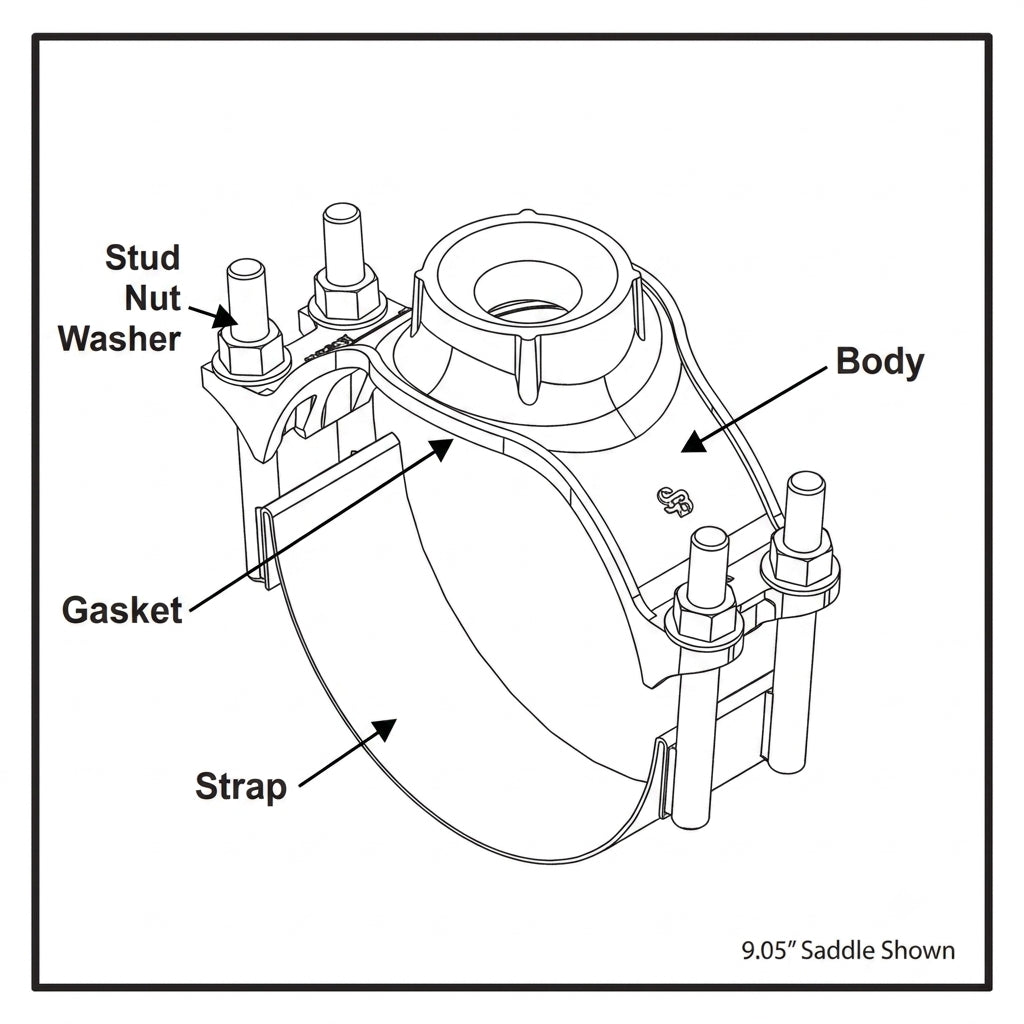

Materials Specifications
Body Ductile iron 65-45-12 per ASTM A536; wraparound design, wide skirt and heavy tapping boss
Finish Flexi-Coat fusion-bonded epoxy (AWWA C213 application methods)
Gasket Nitrile (Buna-N) per ASTM D2000, TaperSeal lip, cemented in the cavity; NSF/ANSI 61-G and 372; resists water, oil, natural gas, acids, alkalies and most aliphatic hydrocarbons; -20°F to +180°F
Strap Type 304 stainless steel per ASTM A240, one piece: 14 GA x 3.00 in on 2 in, 14 GA x 3.50 in on 4-12 in
Studs Type 304 stainless steel per ASTM A276, rolled threads, welded to the strap: 1/2-13 UNC x 3.50 in on 2 in, 5/8-11 UNC x 6.00 in on 4-12 in
Nuts Type 304 stainless steel GR 8 per ASTM A194, heavy hex, fluoropolymer coated to prevent galling
Washers Type 304 stainless steel per ASTM A240, Type A plain
Welds GMAW by qualified welders, passivated to keep corrosion resistance

Materials subject to change by the manufacturer.

Pipe Applications

PVC with steel (IPS) OD, DR26 or thicker, or cast/ductile iron OD C900, Class 150 (DR18) or better; the spec also lists ductile iron. TI-035 adds HDPE 4-12 in, DR17 or thicker, with Smith-Blair spring washers.

Sizes
Nominal size - pipe OD NPT taps CC taps
2 in - 2.38 in 3/4, 1 in 3/4, 1 in
4 in - 4.50 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
4 in - 4.80 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
6 in - 6.63 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
6 in - 6.90 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
8 in - 8.63 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
8 in - 9.05 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
10 in - 10.75 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
10 in - 11.10 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
12 in - 12.75 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in
12 in - 13.20 in 3/4, 1, 1-1/4, 1-1/2, 2 in 3/4, 1, 1-1/4, 1-1/2, 2 in

Choose the size and pipe OD in the first option and the tap in the second; the part number shows in the last option.

Installation Notes
  • Confirm the saddle type, tap size and pipe OD match the job, then clean the pipe where the gasket will seat; check the gasket position (its adhesive only eases installation and may not hold all around).
  • Lubricate the pipe and gasket with a soap-and-water solution (anti-freeze may be required) that meets the water and pipe supplier's requirements, and mount the body as close to the final tap position as possible without moving or rolling it on the pipe.
  • Tighten the nuts progressively and evenly to the torque in the instructions, keeping the stud lengths on both sides equal. Over-torquing does not improve the seal and can damage the pipe or saddle. The saddle is not designed to give structural rigidity to connections or equipment.
  • Make the connection with a pipe-thread compound that both lubricates and seals (no tape products), and pressure-test for leaks before making the tap.
  • Plastic pipe limits: steel-OD PVC 4.50-12.75 in of DR26 or less; cast/ductile iron OD C900 PVC 4.80-13.20 in, Class 150 (DR18) or better. Not for fiberglass-reinforced pipe, plastic irrigation pipe or other plastic pipe.
  • On HDPE (4-12 in, DR17 or thicker), fit Smith-Blair spring washers p/n 150115-002; other spring washers may cause failure.

From Smith-Blair Installation Instructions TI-035 (Rev 08/27/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Two separate straps in place of the one-piece wide strap (finish code -001), 316 stainless strap and nuts, Viton, EPDM or other gaskets, BSP threads and anode connectors are built to order — email sales@watermainsupply.com with the pipe OD, pipe material and tap size.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
