Style 357 Service Saddle
Ductile Iron Body, Double 304 Stainless Straps — Large 3 and 4 in NPT Outlet, for PVC or Steel Pipe
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
Epoxy-Coated Ductile Iron Body
Double 304 Stainless Straps, Welded 304 Studs
3 to 4 in NPT Taps
NSF/ANSI 61 and 372
AWWA C800
6.63-13.20 in Pipe OD
13-14 lb Weight
Description

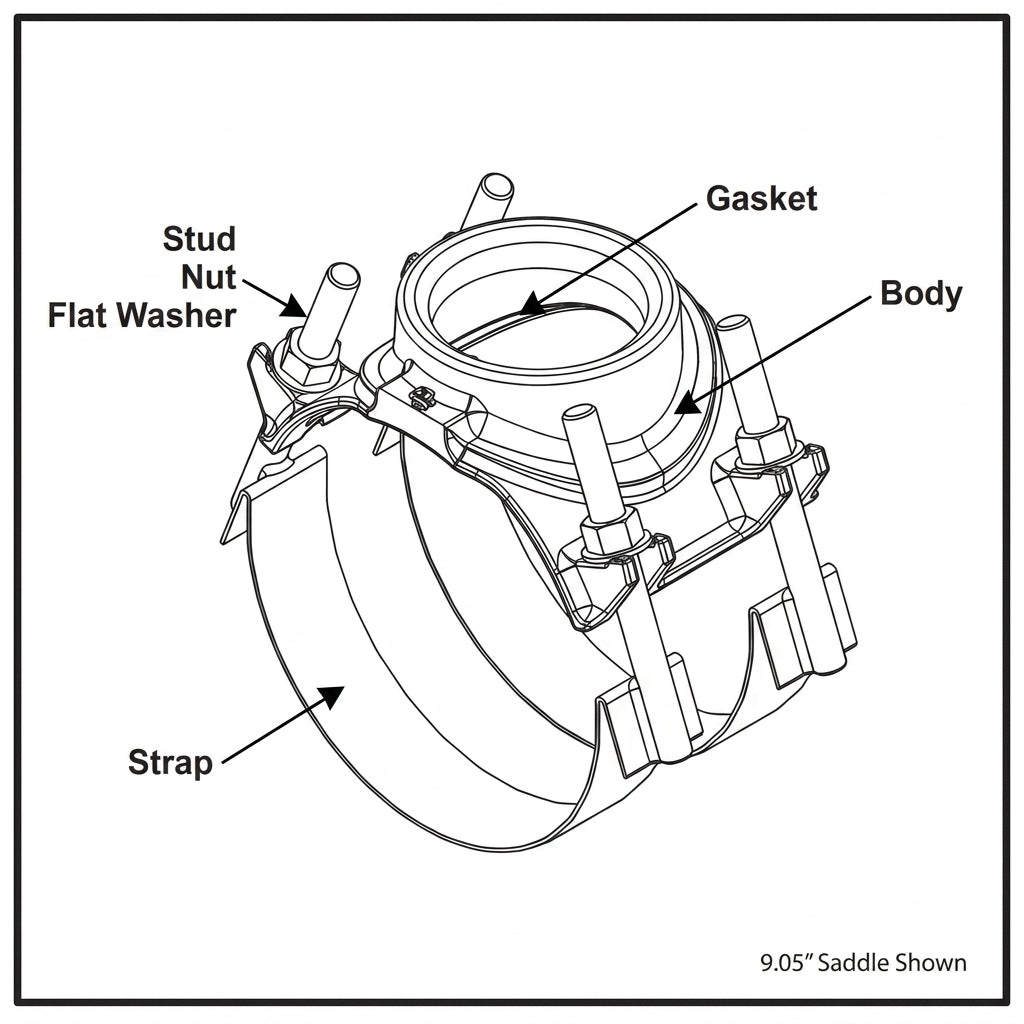

The Smith-Blair Style 357 is a double-strap service saddle with a large tapped outlet, built for 3 in and 4 in NPT branch connections on PVC and steel water mains. A wide ductile iron body and heavy tapping boss sit steady on the pipe, and two 2 in wide 304 stainless straps spread the clamping load over a large area so non-rigid pipe such as PVC is not damaged as the straps are tightened.
The Nitrile gasket is a pressure-energized concave wedge, fully cemented into the body cavity so it stays in place and seals without rolling. A closed lug on one side works with the straps as a hinge, and the open ears on the other side let the straps slip on without removing the nuts. It is made for 6 to 12 in pipe and is not for use on ductile iron pipe.
Application: large branch taps, air/vacuum valves, drains and other service connections on new or existing PVC or steel distribution mains, 6 to 12 in.
Key Features
- Working pressure up to 150 PSI, depending on size and application
- 3 in and 4 in NPT outlets on a heavy tapping boss
- Wide 304 stainless straps spread the load to protect PVC pipe
- Gasket fully cemented in the body cavity; closed lug hinges for easier installation
- Meets applicable AWWA C800; certified to NSF/ANSI 61-G and NSF/ANSI 372
What Ships and What It Needs to Run
Included: the epoxy-coated ductile iron body with its bonded Nitrile gasket, two 304 stainless straps with welded studs, and 304 stainless nuts and flat washers.
Pipe type: for PVC, carbon steel and stainless steel pipe; Smith-Blair states the 357 is not for use on ductile iron pipe.
Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty
Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.
Working Pressure
Up to 150 PSI. depending on size and application. Smith-Blair notes the allowable pressure depends on type of pipe, pipe diameter, service conditions and installation workmanship.
Materials Specifications
| Body |
Ductile iron 65-45-12 per ASTM A536, wraparound design with wide skirt and heavy tapping boss |
| Straps |
Type 304 stainless steel per ASTM A240, 14 ga x 2.00 in strip, welds passivated |
| Studs |
Type 304 stainless steel per ASTM A276, 5/8-11 UNC x 7.00 in, stud-welded to the strap, rolled threads |
| Nuts |
Type 304 stainless steel Gr. 8 per ASTM A194, fluoropolymer coated to prevent galling, heavy hex |
| Washers |
Type 304 stainless steel per ASTM A240, 5/8 in Type A plain |
| Gasket |
Nitrile (Buna-N) per ASTM D2000, NSF/ANSI 61-G and 372, concave wedge cemented in cavity; -20°F to +180°F |
| Finish |
Flexi-Coat fusion-bonded epoxy (meets AWWA C213 application methods) |
Materials subject to change by the manufacturer.
Pipe Applications
PVC, carbon steel and stainless steel pipe, 6 to 12 in nominal. Certain sizes meet the Uni-Bell Handbook of PVC Pipe and AWWA M23 when the body is sized to the PVC pipe. Not for ductile iron pipe.
Sizes
| Nominal size - pipe OD |
NPT taps |
CC taps |
| 6 in - 6.63-6.90 in |
3, 4 in |
— |
| 8 in - 8.63-9.05 in |
3, 4 in |
— |
| 10 in - 10.75-11.10 in |
3, 4 in |
— |
| 12 in - 12.75-13.20 in |
3, 4 in |
— |
Choose the size and pipe OD in the first option and the tap in the second; the part number shows in the last option.
Installation Notes
- Confirm the saddle size range and tap match the pipe before starting; the 357 is not for ductile iron pipe.
- Clean the pipe where the gasket will seat and remove any scale, dirt or debris that could affect the seal.
- Seat the body on the pipe at the tap location, wrap the straps around the pipe and slip the studs into the open ears; the closed lug on the other side acts as a hinge.
- Tighten the nuts evenly so the straps draw down uniformly; the wide straps spread the load to protect PVC pipe.
- Make up the branch connection with a thread compound that meets the water supplier's requirements, without cross-threading or rocking the body.
From the Smith-Blair Style 357 datasheet and specification sheet (Rev 11/2/20), in the Data Sheet tab; follow the instructions packed with the saddle for torque.
Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
316 stainless straps with coated 316 nuts, other gaskets (EPDM, Viton) and an anode connector are built to order — email sales@watermainsupply.com with the pipe OD, pipe material and tap size.
