A.Y. McDonald · Dewatering Pump
HandyMAC 303022SP Portable Dewatering Pump
A 1/3 HP submersible that runs from any 12 volt truck or car battery, for utility vaults, trenches and pits.
41.6 GPM at 5 ft · 25 ft Max Head
1/3 HP
12V DC Battery Powered
30 A Draw
1-1/2 in NPT Discharge
30 ft Cable with Remote Controller
34 lb Weight
What Ships and What It Needs to Run
Included: the HandyMAC pump with a 30 ft cable, remote waterproof controller and color-coded battery leads.
12 volt battery required. Any 12 volt truck or automobile battery; about an hour of operation without restarting the engine (times vary).
Sized at install: 1-1/2 in discharge hose or pipe.
Overview
The powerful and portable HandyMAC runs on any 12 volt truck or automobile battery, for dewatering by utility companies, contractors, municipalities and industrial users.
-
1/3 HP motor delivers up to 43 GPM.
-
Remote waterproof controller in the pump cable.
-
Low 30 A draw — about an hour without restarting the engine.
-
Watertight O-ring seals; self-lubricating shaft seals.
Turn the pump off before connecting the battery clamps, keep the vehicle and pump apart during connection, and do not run it dry for long periods. Not for fluids with a flash point below 100°F.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
1-Year A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Specifications
| Model |
303022SP |
| Part No. |
6195-000 |
| HP |
1/3 |
| Power |
12V DC, 30 A |
| Discharge |
1-1/2 in NPT |
| Cable |
30 ft |
| Weight |
34 lb |

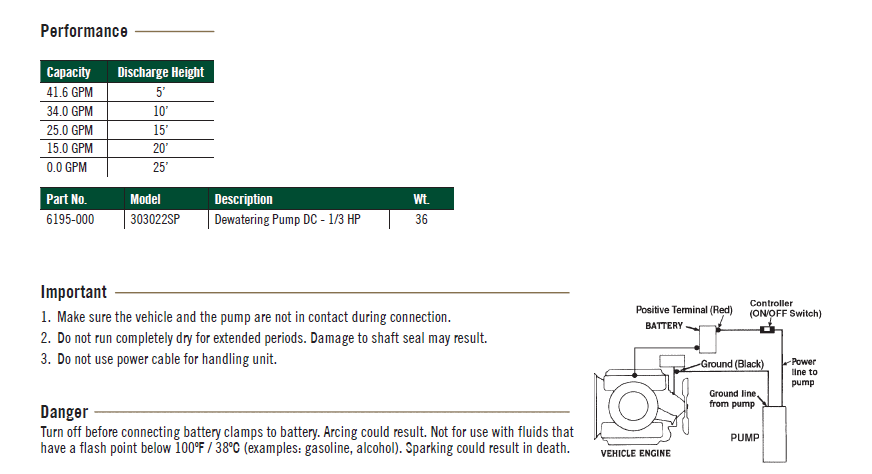

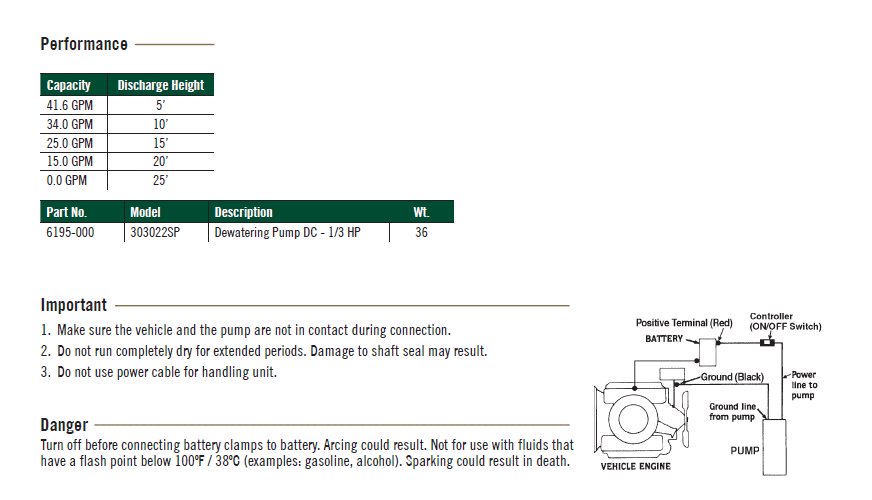

Performance — Will It Do What You Need?
| Discharge height |
5 ft |
10 ft |
15 ft |
20 ft |
25 ft |
| Capacity, GPM |
41.6 |
34.0 |
25.0 |
15.0 |
0.0 |
As printed by A.Y. McDonald. Source: Pumps by Baker catalog, rev 3/26, p. 341.
Before You Buy — The Limits That Decide the Fit
| Power |
12 volt vehicle battery; run the engine for long jobs. |
| Liquids |
Water. Not for fluids with a flash point below 100°F. |
| Dry running |
Avoid long dry running; it damages the shaft seal. |
Accessories
| Accessory |
Code |
Description |
| HandyMAC handle update kit |
303022HK |
Listed with HandyMAC repair parts |
