GRUNDFOS · VARIABLE-SPEED VERTICAL MULTISTAGE PUMP
CRNE 20 — 2 in ANSI, 4000 rpm

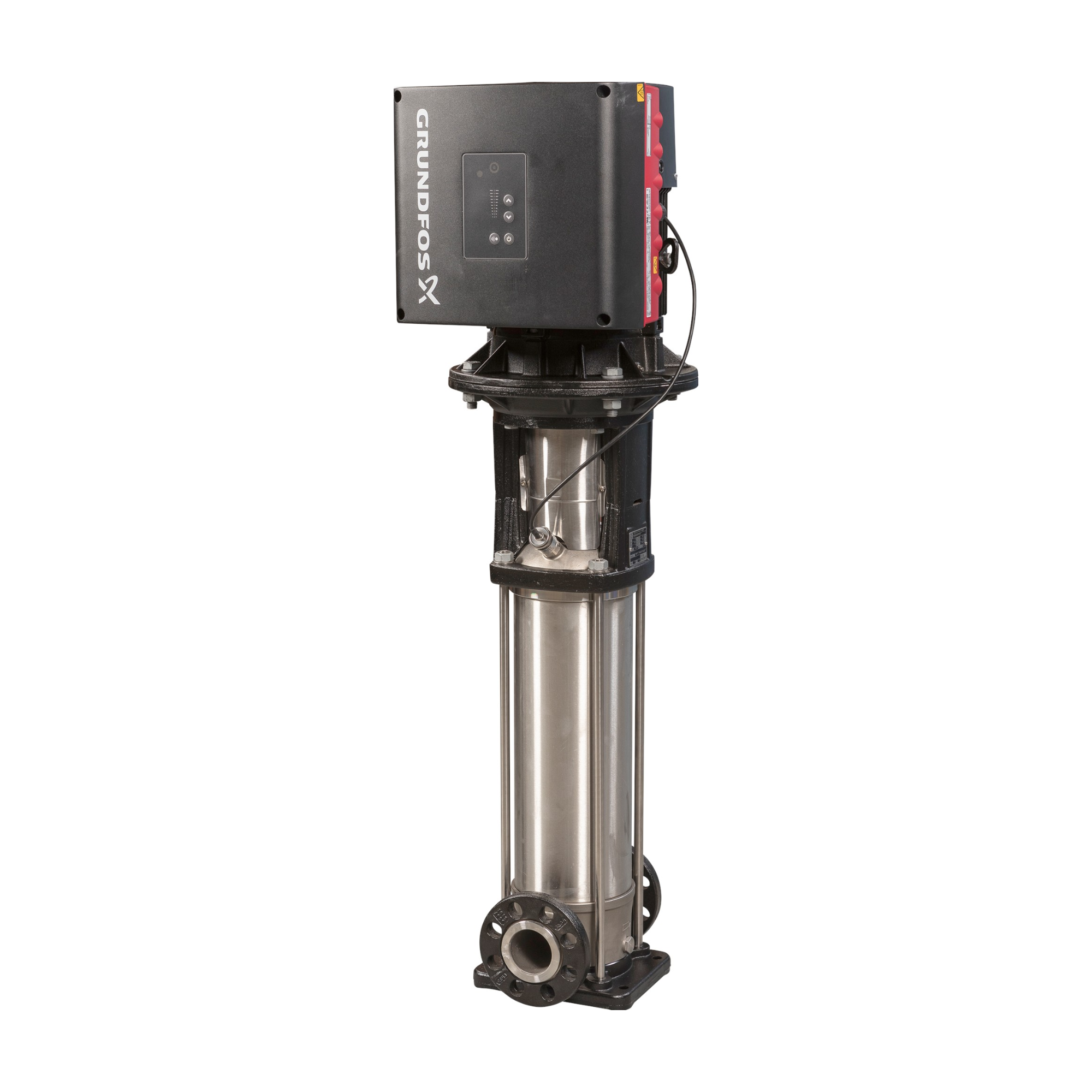

Variable-speed vertical multistage centrifugal pump in 316 stainless steel with a Grundfos MLE motor and built-in frequency converter. 8 models from CRNE 20-1 to CRNE 20-9, 3 to 25 HP, 2 in ANSI ports, 4000 rpm version, with or without a factory pressure sensor.
86-789 ft (37-341 PSI) Max Head · 158-175 GPM Max
3-25 HP
200-240V 3Ph · 440-480V 3Ph
2 in ANSI Ports
In-Line Suction and Discharge
Grundfos MLE Motor, Built-In Drive
Up to 4000 rpm
363 PSI Max Operating Pressure
NSF/ANSI 61
117-322 lb Weight
Overview
The CRNE 20 is the CRN 20 pump end on a Grundfos MLE motor with the frequency converter built in, so the pump varies its own speed to hold a setpoint instead of running flat out against a throttled valve. Every part in contact with the liquid is high-grade stainless steel (EN 1.4401, AISI 316). This listing is the 4000 rpm version with 2 in ANSI connections; Grundfos sells the 4000 rpm and 3600 rpm versions as separate part numbers with different curves, so each is listed on its own. The Grundfos nominal duty is 101 to 126 GPM by model at full speed; size it from the performance table below.
- 8 models, CRNE 20-1 to CRNE 20-9, 3 to 25 HP; some models are offered on two motor sizes, and the larger motor holds the full-speed curve further out
- Supply: 200-240V 3Ph, 440-480V 3Ph
- Every model with or without a pressure sensor; sensor range 0-145 psi, 0-232 psi, 0-362 psi, 0-580 psi by model
- 2 in ANSI flanges
- MLE motor: IE5 efficiency class, IP55, speed range 360 rpm to rated speed, graphical control panel; HQQE (EPDM) cartridge shaft seal
What Ships and What It Needs to Run
Included: the CRNE 20 pump end and its Grundfos MLE motor with built-in frequency converter, factory-assembled as one complete pump. With-sensor versions come with a pressure sensor in the range shown for the model.
ANSI companion flanges required, ordered separately. Grundfos supplies the companion connection as a separate flange set: two flanges, two gaskets, nuts and bolts, sized 2 in.
Without-sensor versions: for constant-pressure control, add a sensor or an external control signal.
Suction and discharge piping, valves, power supply and disconnect: sized to your system and ordered separately.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 24 months from date of installation, but not more than 30 months from date of manufacture (Grundfos limited warranty). Grundfos repairs or replaces its own product; costs of removal, installation and transportation are not covered, and products sold but not manufactured by Grundfos carry their own manufacturer’s warranty.
Specifications
| Specification |
Value |
| Nominal flow at full speed |
101 to 126 GPM by model (Grundfos nominal duty) |
| Shut-off head range at full speed |
86 to 789 ft (37 to 341 PSI) |
| Motor power range |
3 to 25 HP |
| Supply |
200-240V 3Ph; 440-480V 3Ph |
| Motor |
Grundfos MLE, permanent-magnet, built-in frequency converter, IE5, IP55 |
| Speed |
360 rpm to 4000 rpm (4000 rpm version) |
| NEMA frames |
182TC, 213TC, 254TC, 284TC |
| Frequency |
60 Hz supply |
| Pressure sensor |
With-sensor versions: 0-145 psi, 0-232 psi, 0-362 psi, 0-580 psi by model; without-sensor versions have none |
| Suction and discharge ports |
2 in ANSI, in-line |
| Connections |
2 in ANSI flanges, 300 lb |
| Maximum operating pressure |
363 PSI |
| Shaft seal |
HQQE (EPDM), the Grundfos standard on these pumps |
| Liquid temperature |
−4 °F to 248 °F |
| Maximum ambient temperature |
122 °F |
| Pump orientation |
Vertical |
| Approvals |
NSF/ANSI 61 drinking water (Grundfos product data) |
Models & Performance — Will It Do What You Need?
Find the pressure you need at your flow and pick the first model that reaches it at full speed; the drive then slows the pump to hold your setpoint. Pressure at flow in PSI, one row per model and motor.
CRNE 20-1 to CRNE 20-9 · 12 curves
| Model (HP) |
0 GPM (Shut-off) |
29 GPM |
73 GPM |
109 GPM |
145 GPM |
| CRNE 20-1 (3 HP) |
37 |
37 |
34 |
29 |
17 |
| CRNE 20-2 (5 HP) |
74 |
73 |
71 |
56 |
36 |
| CRNE 20-2 (7 1/2 HP) |
74 |
73 |
71 |
64 |
51 |
| CRNE 20-3 (7 1/2 HP) |
112 |
111 |
107 |
85 |
55 |
| CRNE 20-3 (10 HP) |
112 |
111 |
107 |
97 |
78 |
| CRNE 20-4 (10 HP) |
150 |
148 |
144 |
112 |
75 |
| CRNE 20-5 (15 HP) |
187 |
185 |
180 |
164 |
121 |
| CRNE 20-6 (15 HP) |
227 |
224 |
218 |
181 |
123 |
| CRNE 20-6 (20 HP) |
227 |
224 |
218 |
199 |
162 |
| CRNE 20-8 (20 HP) |
304 |
301 |
292 |
237 |
163 |
| CRNE 20-8 (25 HP) |
304 |
301 |
292 |
268 |
213 |
| CRNE 20-9 (25 HP) |
341 |
339 |
330 |
291 |
207 |

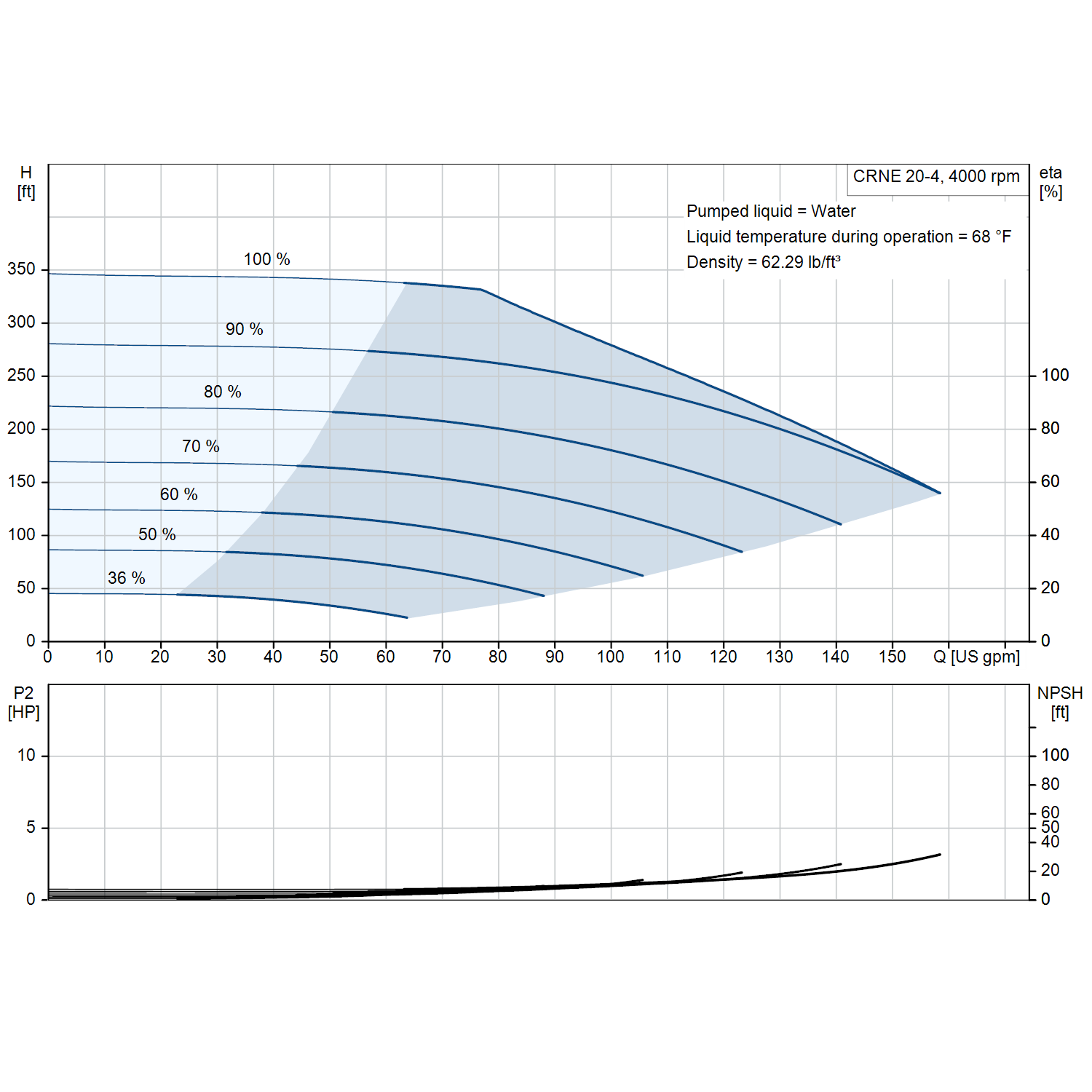

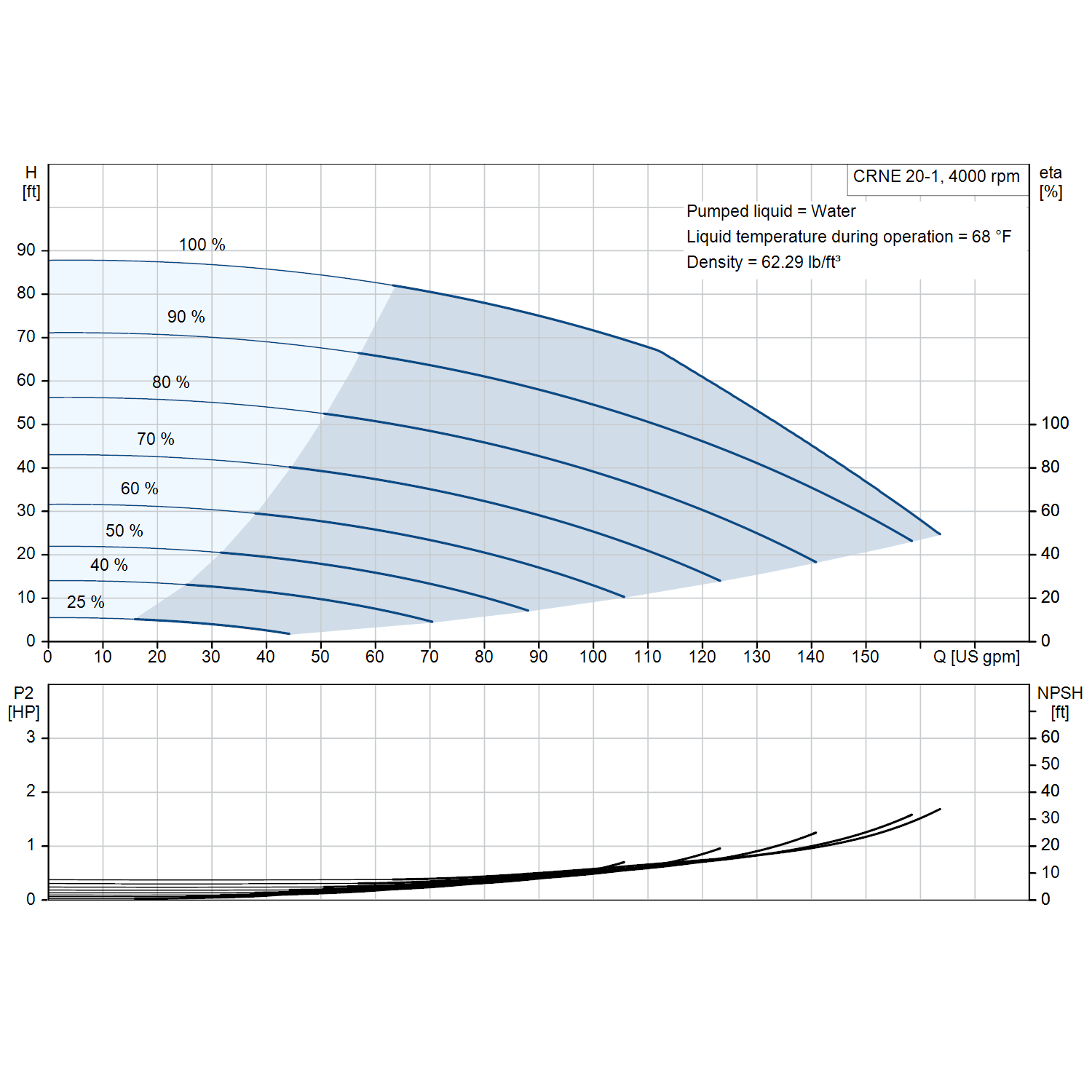

Pressure the pump develops at full speed (4000 rpm version) at each flow, in PSI, rounded down (feet = PSI × 2.31). Shut-off is Grundfos’s published maximum head. Flow columns are read from the 100% speed curve on the Grundfos 60 Hz chart for each model and motor (water at 68 °F), digitized and rounded down, at 20%, 50% and 75% of 145 GPM, the last regular flow every curve in this listing reaches; the curves end at 158 to 175 GPM. Where a model is offered on two motor sizes, the smaller motor reaches its power limit sooner and its curve falls away at high flow. At reduced speed the pump runs on a lower curve; full Grundfos charts with the reduced-speed curves are in the product images. Grundfos’s published duty point sits above its own curve by more than 3% of shut-off on CRNE 20-8 (20 HP), CRNE 20-6 (15 HP), CRNE 20-4 (10 HP), CRNE 20-3 (7 1/2 HP), CRNE 20-2 (5 HP) (by up to 57 ft at the rated flow), where the motor’s power limit cuts the curve; the table follows the curve. On CRNE 20-1 (3 HP) the curve reads above the published shut-off at low flow (by up to 1 ft); the published shut-off is kept and the flow columns follow the curve.
Before You Buy — The Limits That Decide the Fit
| Check |
What decides the fit |
| Duty point |
The model’s full-speed pressure at your flow must cover the system’s total head; shut-off is the most it can make, at zero flow. |
| Working pressure |
Inlet pressure plus the pressure the pump adds must stay within the maximum operating pressure: 363 PSI. |
| Sensor |
For constant-pressure control order the with-sensor version, and pick a sensor range above your setpoint; without-sensor versions need a sensor or external control signal for that. |
| Power |
Supply at the voltage and phase shown in the selected option; the drive is inside the motor, so no separate VFD is needed. |
| Connections |
ANSI companion flanges (2 in) ordered separately. |
| Liquid temperature |
−4 °F to 248 °F, HQQE (EPDM) shaft seal. |
Applications
Constant-pressure water supply and boosting, HVAC heating and cooling circulation, industrial water supply and transfer, process liquids, wash and clean, water treatment and irrigation (Grundfos CR range applications).
Materials of Construction
| Component |
Material |
| All wetted parts |
Stainless steel EN 1.4401 (AISI 316) |
| Flange rings and base plate (ANSI versions) |
Cast iron, not in contact with the pumped liquid |
| Impellers |
Stainless steel |
| Bearings |
Silicon carbide |
| Shaft seal |
HQQE cartridge seal, silicon carbide faces, EPDM rubber |
