GRUNDFOS · VERTICAL MULTISTAGE CENTRIFUGAL PUMP
CRN 1
Vertical multistage centrifugal pump in 316 stainless steel. 19 models from CRN 1-2 to CRN 1-27, 1/3 to 3 HP, 1 1/4 in ANSI flanged or 1 1/4 in Victaulic-type ports, HQQE or HQQV cartridge shaft seal.
59-787 ft (25-340 PSI) Max Head · 12.4-12.9 GPM Max
1/3-3 HP
1Ph or 3Ph · 115/208-230V or 115/230V 1Ph · 208-230/460V 3Ph
1 1/4 in ANSI or 1 1/4 in Victaulic Ports
In-Line Suction and Discharge
NEMA 56C or 182TC TEFC Motor
363 PSI Max Operating Pressure
cURus
40-138 lb Weight
Overview
Vertical, multistage centrifugal pump with suction and discharge ports on the same level, so it drops into a straight pipe run. Every part in contact with the liquid is high-grade stainless steel (EN 1.4401, AISI 316). The CRN 1 is rated at 9.7 GPM (Grundfos’s nominal duty) for low-flow, high-pressure duty; size it from the performance table below rather than from the model number.
- 19 models, CRN 1-2 to CRN 1-27, on NEMA 56C and 182TC TEFC motors, 1/3 to 3 HP
- Single-phase 1/3 to 3 HP (115/208-230V, 115/230V) or three-phase 208-230/460V on every model
- 1 1/4 in ANSI flanges (300 lb, cast iron flange rings) or 1 1/4 in Victaulic-type grooved couplings
- HQQE (EPDM) or HQQV (FKM) cartridge shaft seal with silicon-carbide faces
- Maximum operating pressure: 363 PSI
What Ships and What It Needs to Run
Included: the CRN 1 pump end and its NEMA C-face TEFC motor, factory-assembled as one complete pump.
ANSI companion flanges or Victaulic couplings required, ordered separately. On the ANSI and Victaulic versions Grundfos supplies the companion connection as a separate set (flange sets: two flanges, two gaskets, nuts and bolts; Victaulic-type coupling sets: two grooved-end pipe couplings with NPT threaded nipples), sized 1 1/4 in.
Suction and discharge piping, valves and controls: sized to your system and ordered separately.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty: 24 months from date of installation, but not more than 30 months from date of manufacture (Grundfos limited warranty). Grundfos repairs or replaces its own product; costs of removal, installation and transportation are not covered, and products sold but not manufactured by Grundfos carry their own manufacturer’s warranty.
Specifications
| Specification |
Value |
| Rated flow at 60 Hz |
9.7 GPM (Grundfos nominal duty) |
| Shut-off head range |
59 to 787 ft (25 to 340 PSI) |
| Motor power range |
1/3 to 3 HP |
| Supply |
1Ph 115/208-230V, 115/230V; 3Ph 208-230/460V |
| Motors |
NEMA C-face, TEFC, 2-pole |
| NEMA frames |
56C, 182TC (3 HP) |
| Frequency |
60 Hz |
| Suction and discharge ports |
In-line; 1 1/4 in |
| Connections |
1 1/4 in ANSI flanges, 300 lb, cast iron flange rings and base plate; 1 1/4 in Victaulic-type grooved (PJE) couplings |
| Maximum operating pressure |
363 PSI |
| Liquid temperature |
−4 °F to 248 °F with HQQE; −4 °F to 194 °F with HQQV |
| Maximum ambient temperature |
104 °F |
| Pump orientation |
Vertical |
| Approvals |
cURus |
Models & Performance — Will It Do What You Need?
Find the pressure you need at your flow and pick the first model that reaches it. Pressure at flow in PSI, one row per model.
CRN 1-2 to CRN 1-13 · 12 models · 1/3 to 1 1/2 HP
| Model (HP) |
0 GPM (Shut-off) |
2.4 GPM |
6 GPM |
9 GPM |
12 GPM |
| CRN 1-2 (1/3 HP) |
25 |
25 |
23 |
20 |
15 |
| CRN 1-3 (1/3 HP) |
38 |
37 |
34 |
29 |
21 |
| CRN 1-4 (1/2 HP) |
50 |
49 |
46 |
39 |
28 |
| CRN 1-5 (1/2 HP) |
62 |
61 |
56 |
48 |
33 |
| CRN 1-6 (3/4 HP) |
76 |
75 |
69 |
59 |
42 |
| CRN 1-7 (3/4 HP) |
88 |
86 |
80 |
67 |
47 |
| CRN 1-8 (1 HP) |
100 |
100 |
92 |
79 |
55 |
| CRN 1-9 (1 HP) |
112 |
111 |
103 |
87 |
61 |
| CRN 1-10 (1 1/2 HP) |
124 |
128 |
120 |
104 |
75 |
| CRN 1-11 (1 1/2 HP) |
140 |
141 |
132 |
114 |
82 |
| CRN 1-12 (1 1/2 HP) |
152 |
153 |
144 |
124 |
89 |
| CRN 1-13 (1 1/2 HP) |
164 |
165 |
155 |
133 |
96 |
CRN 1-15 to CRN 1-27 · 7 models · 2 to 3 HP
| Model (HP) |
0 GPM (Shut-off) |
2.4 GPM |
6 GPM |
9 GPM |
12 GPM |
| CRN 1-15 (2 HP) |
187 |
192 |
180 |
155 |
112 |
| CRN 1-17 (2 HP) |
213 |
217 |
203 |
175 |
126 |
| CRN 1-19 (3 HP) |
237 |
244 |
230 |
198 |
143 |
| CRN 1-21 (3 HP) |
267 |
269 |
253 |
218 |
157 |
| CRN 1-23 (3 HP) |
291 |
294 |
275 |
237 |
170 |
| CRN 1-25 (3 HP) |
316 |
319 |
299 |
256 |
184 |
| CRN 1-27 (3 HP) |
340 |
344 |
321 |
275 |
197 |

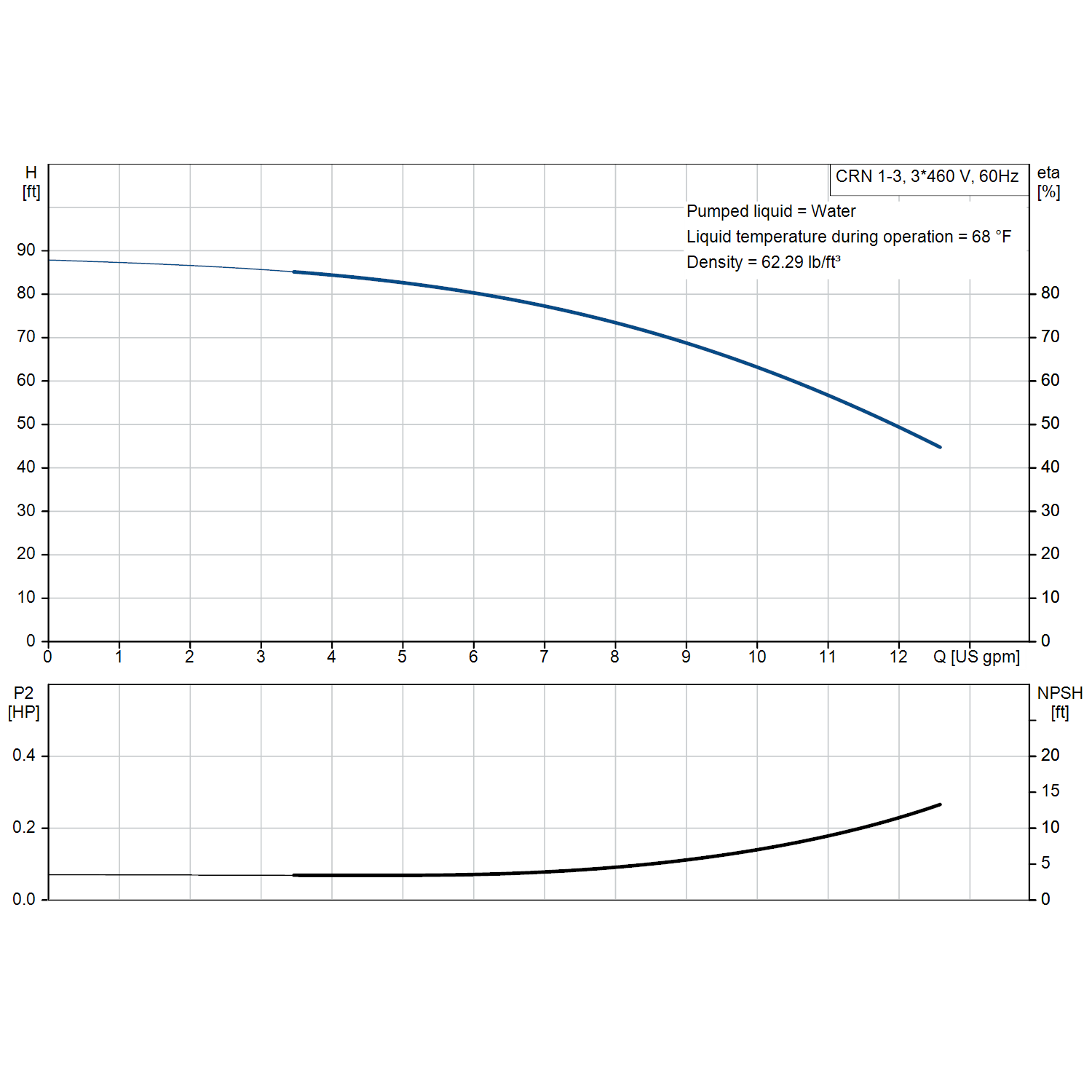

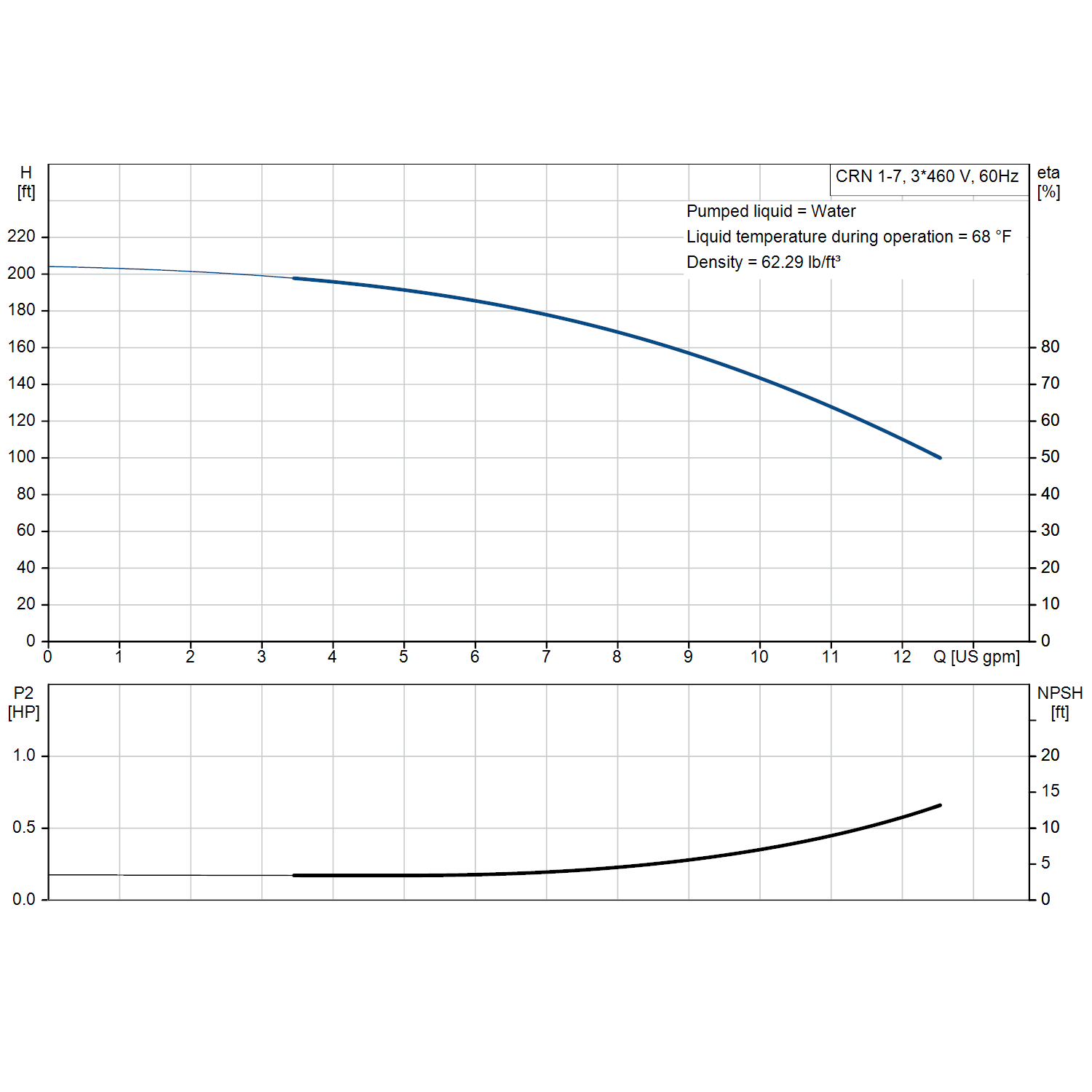

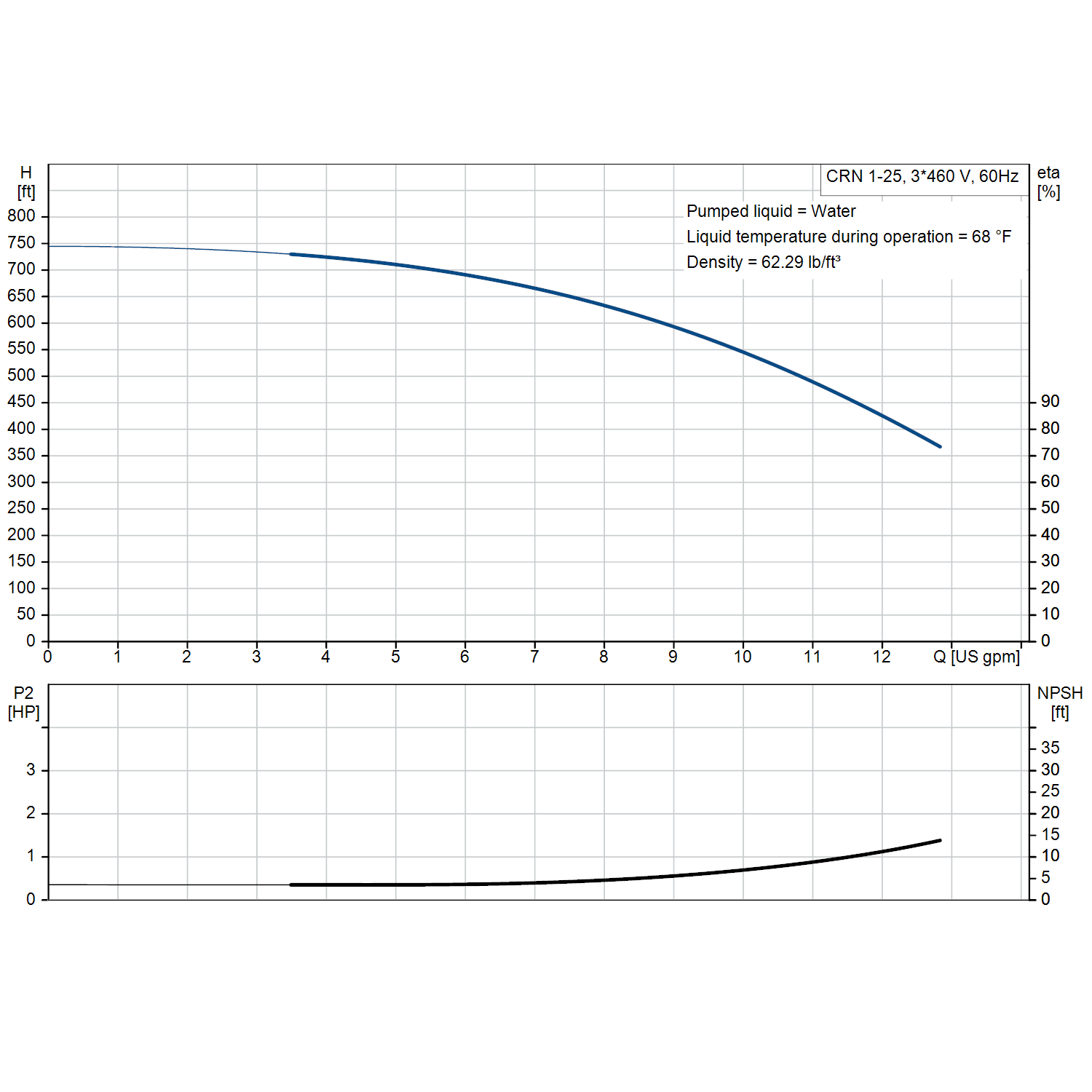

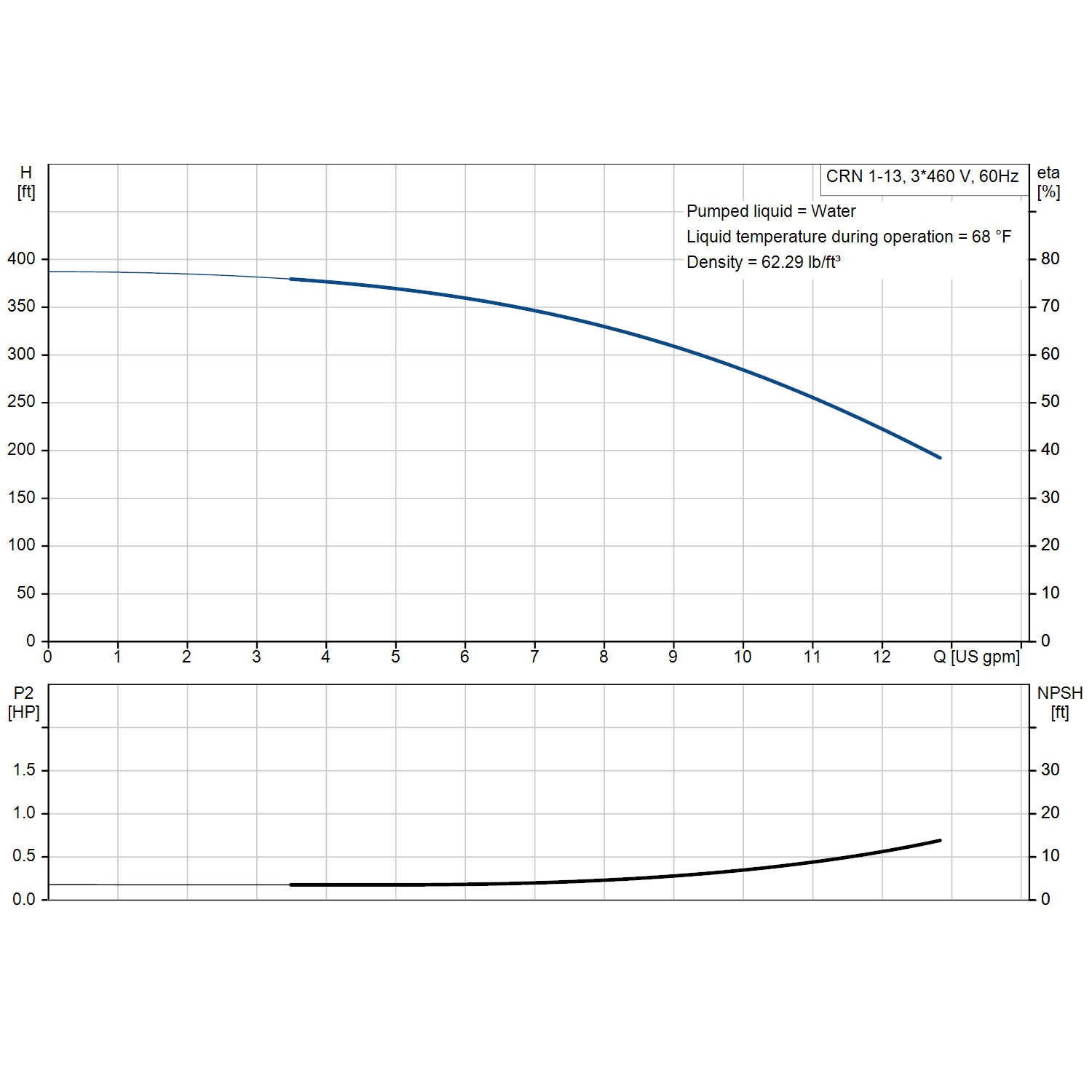

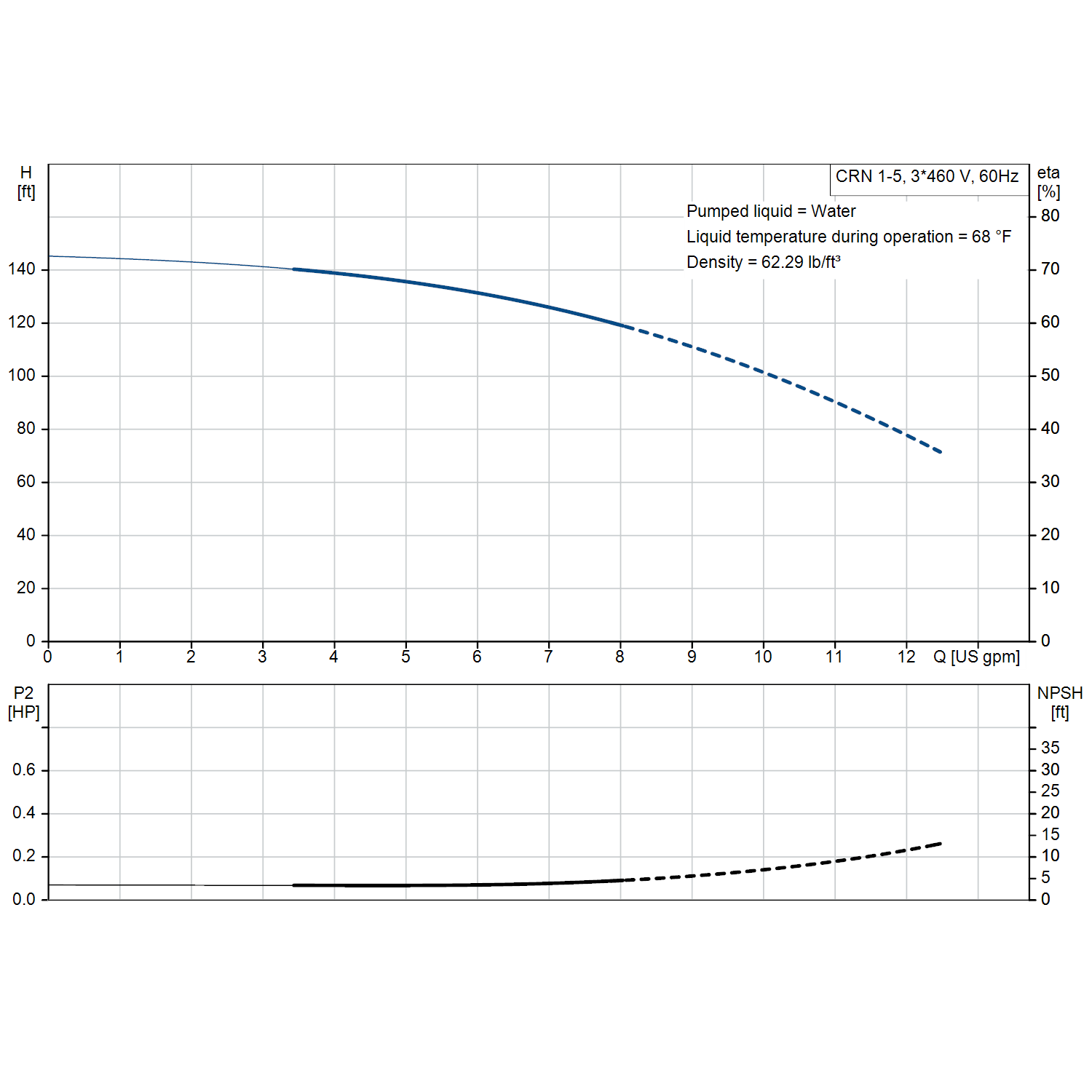

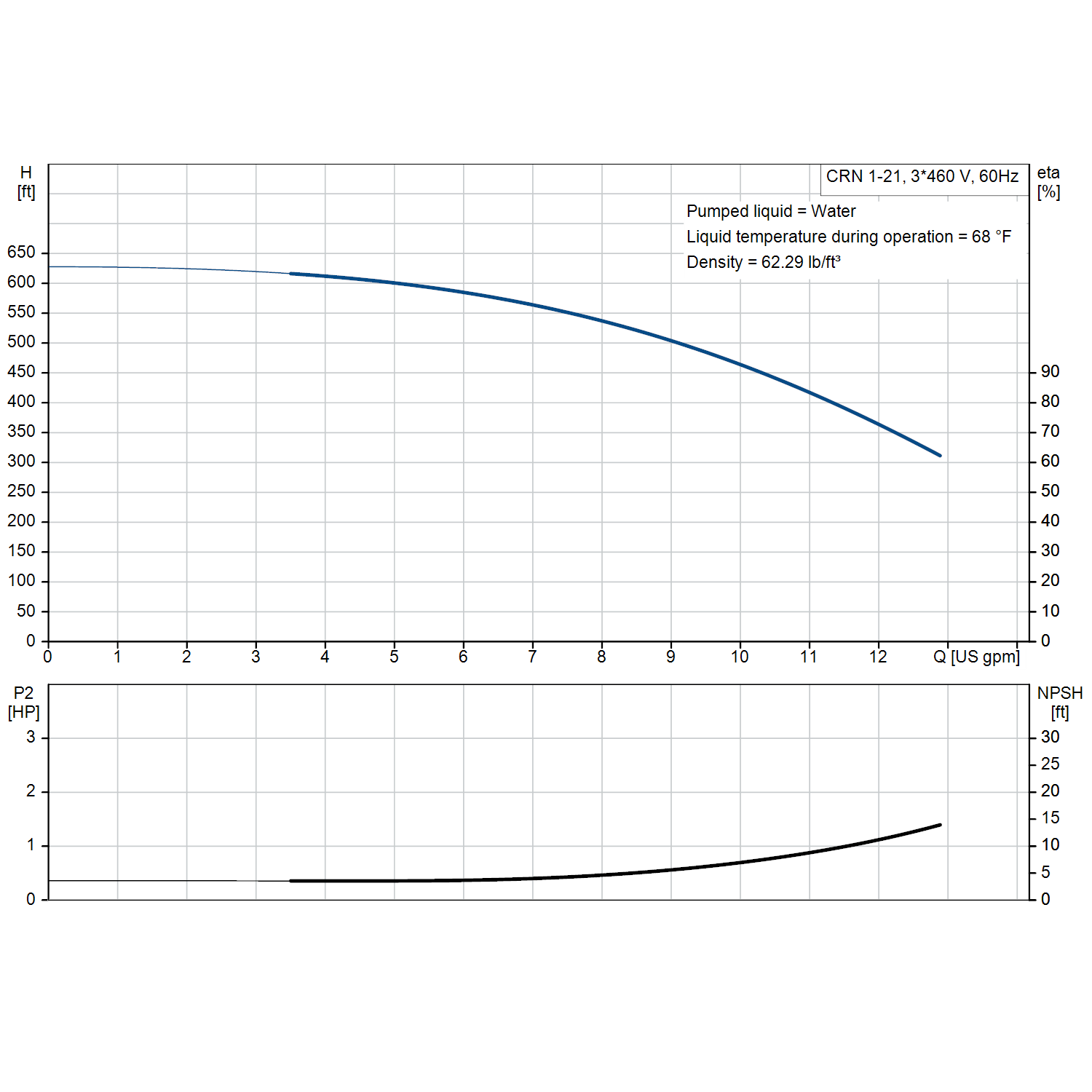

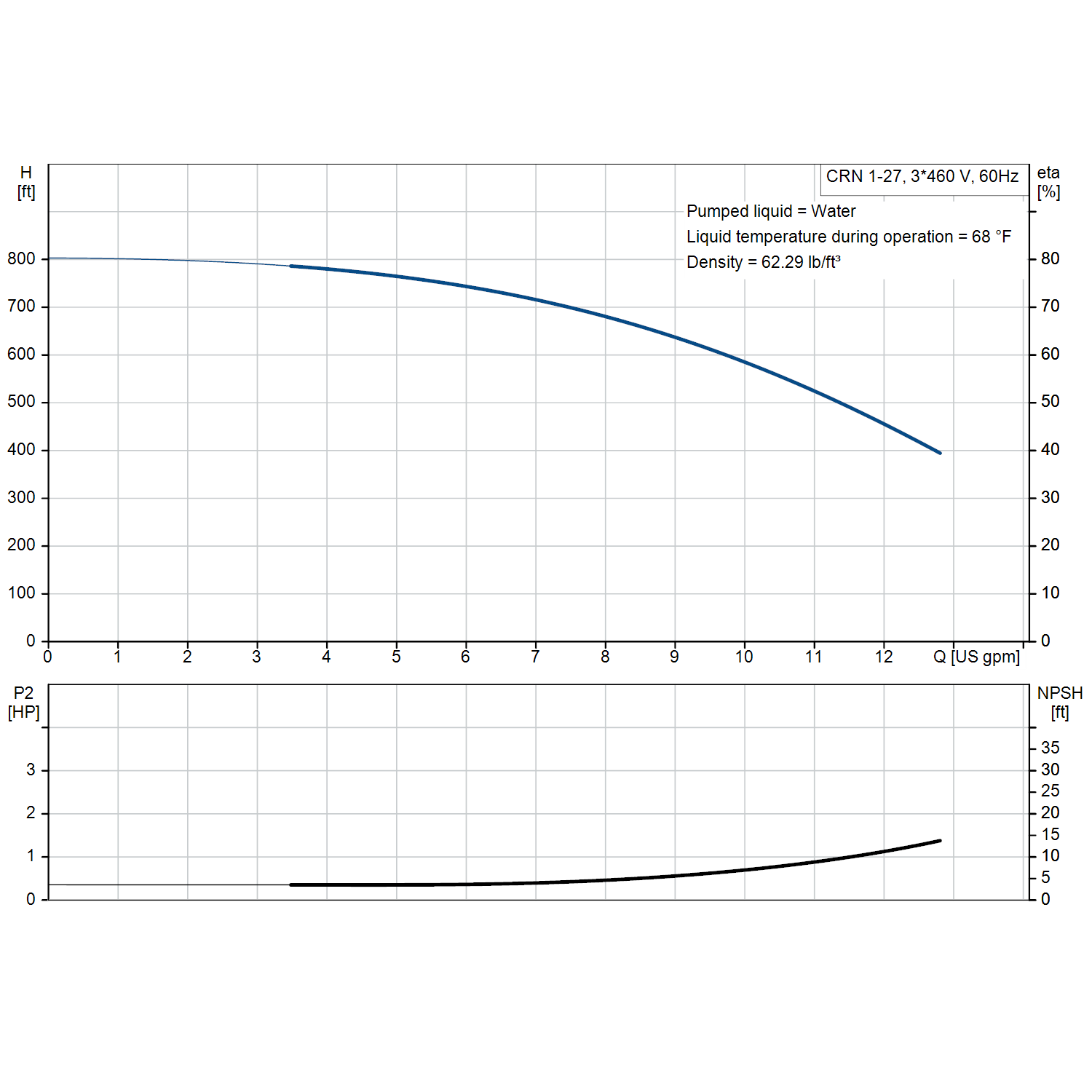

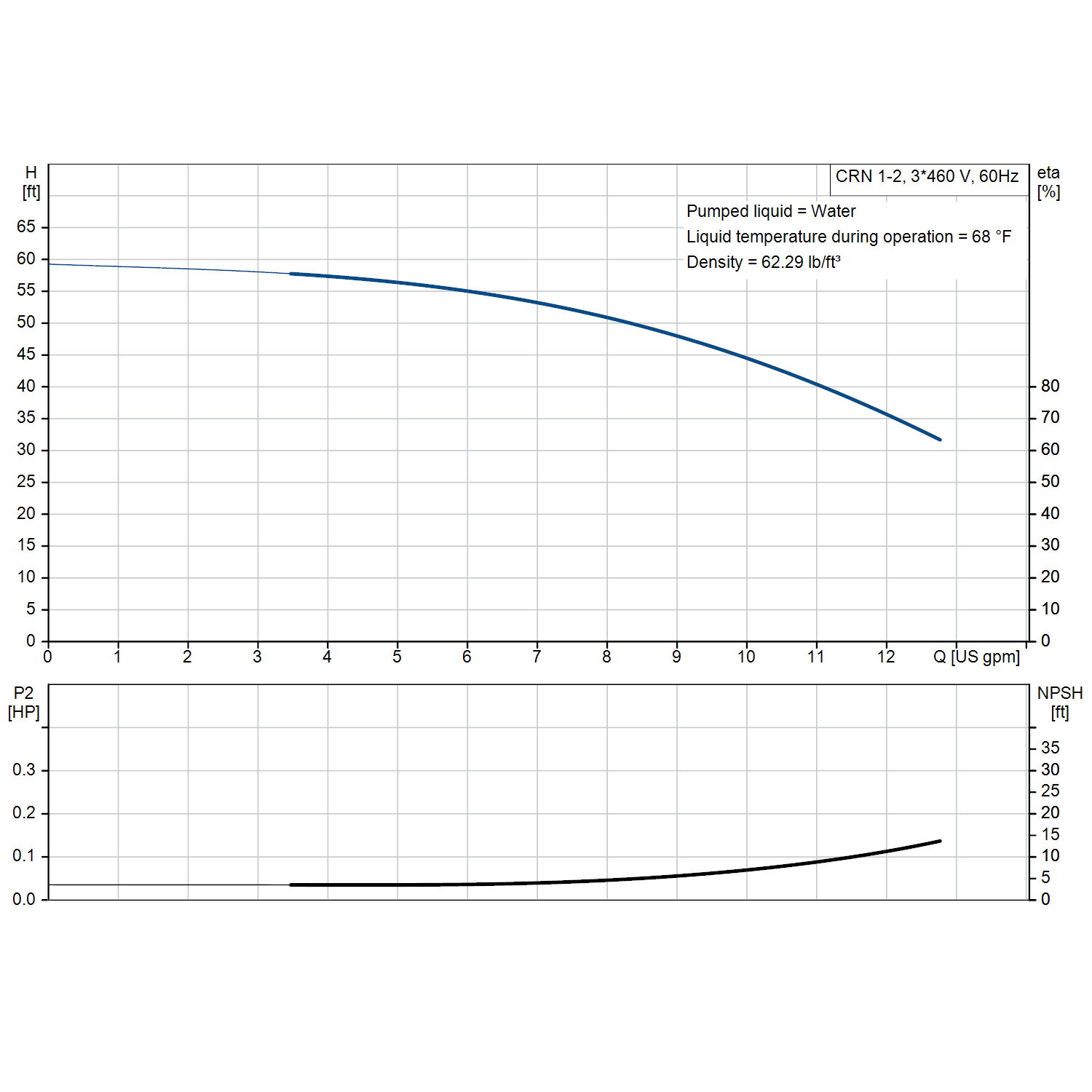

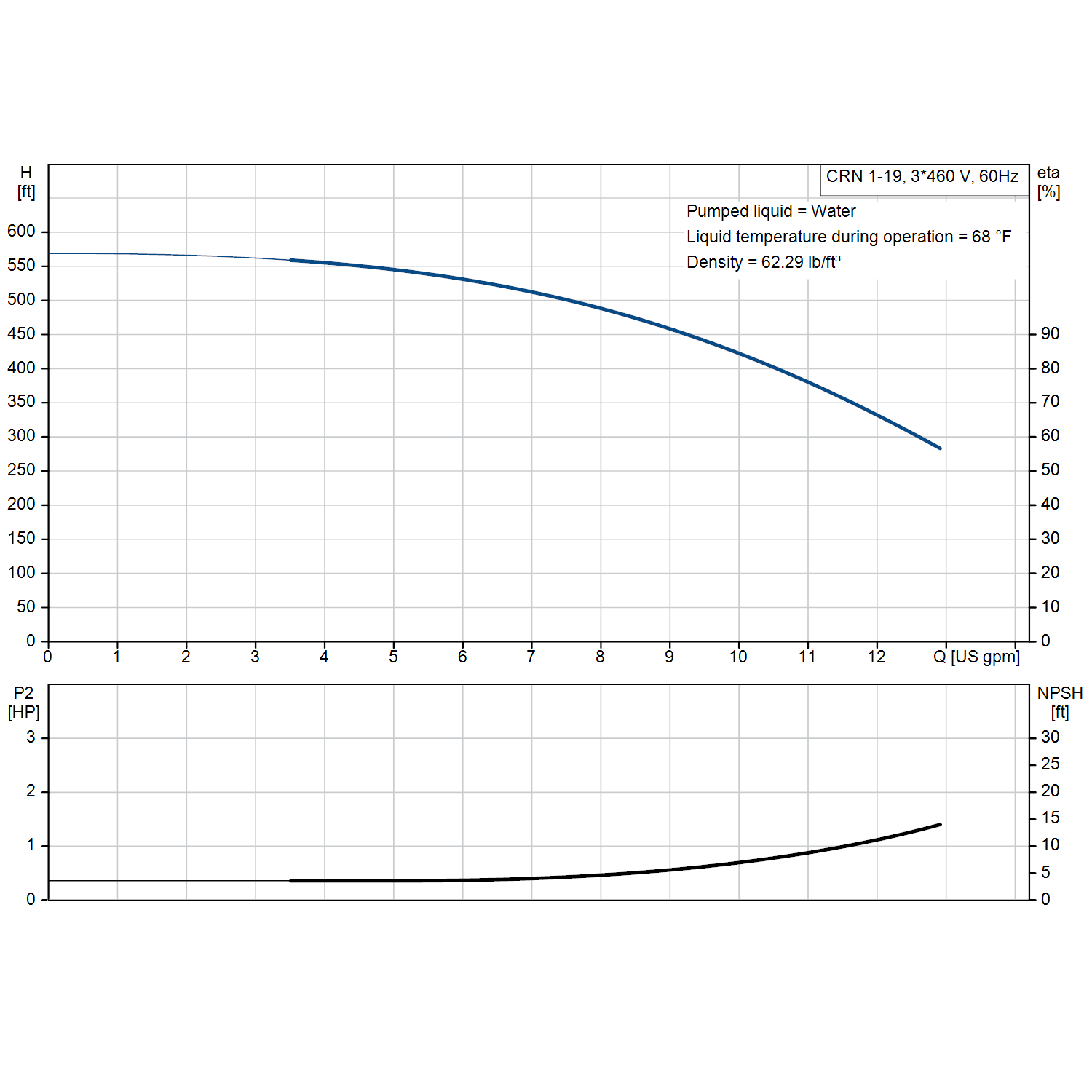

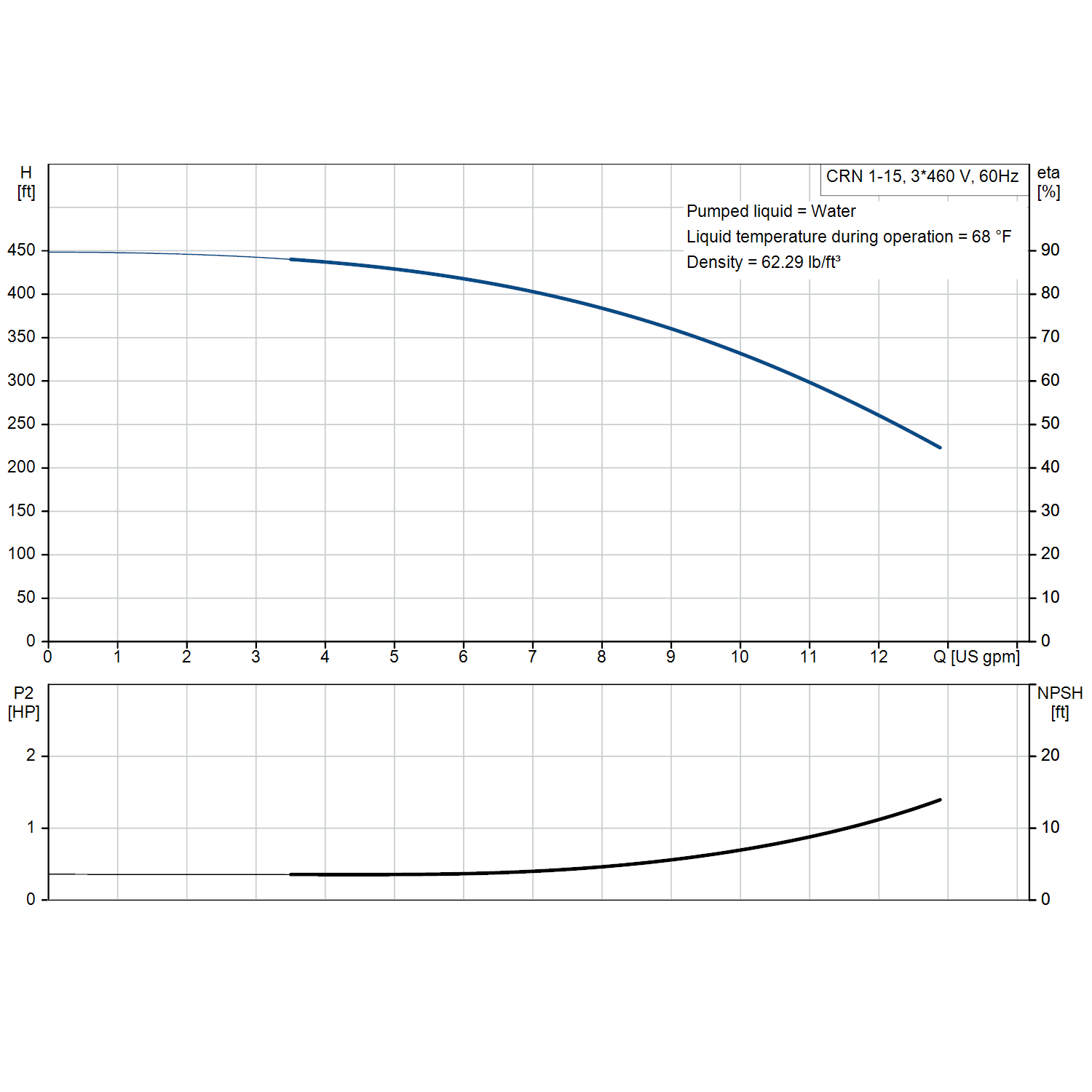

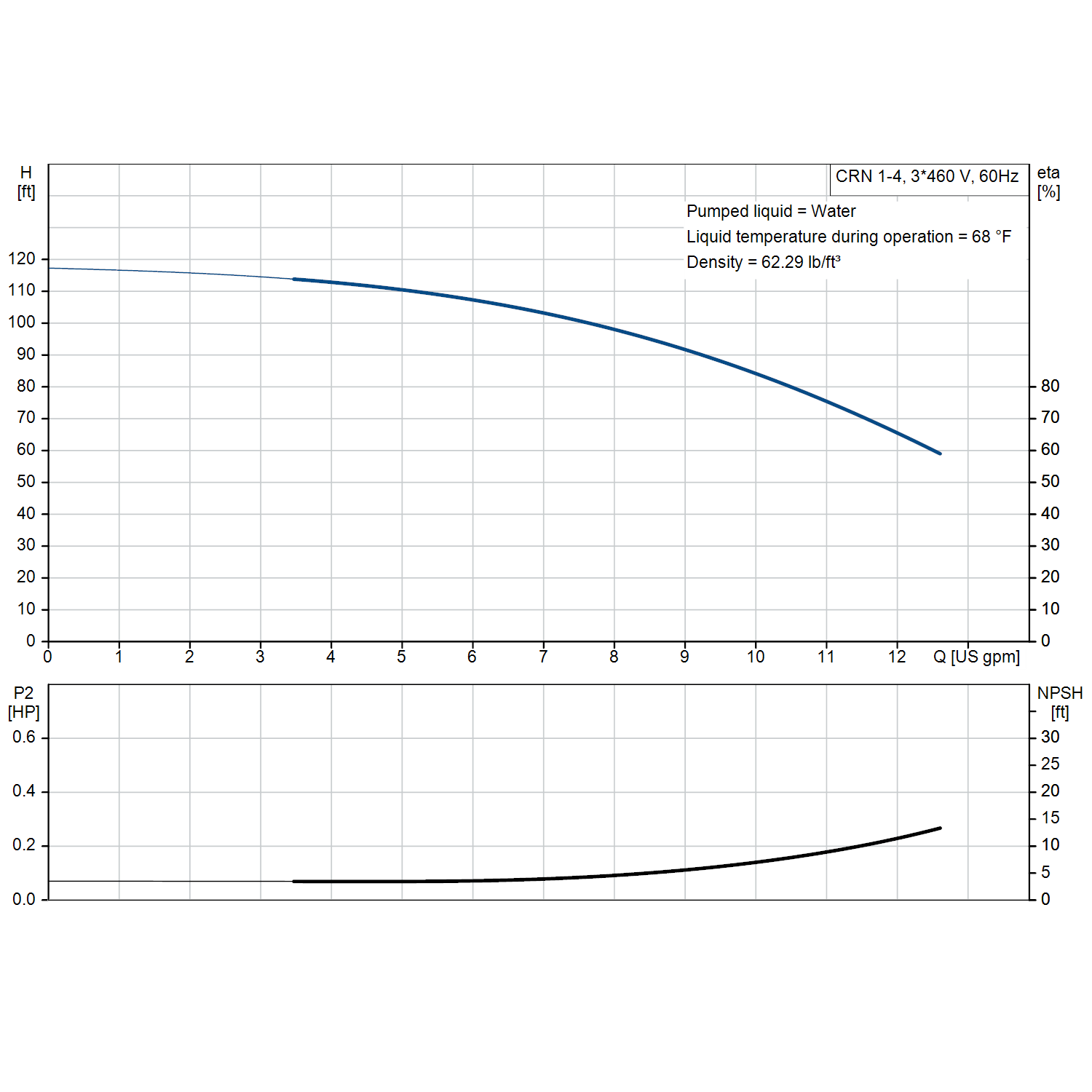

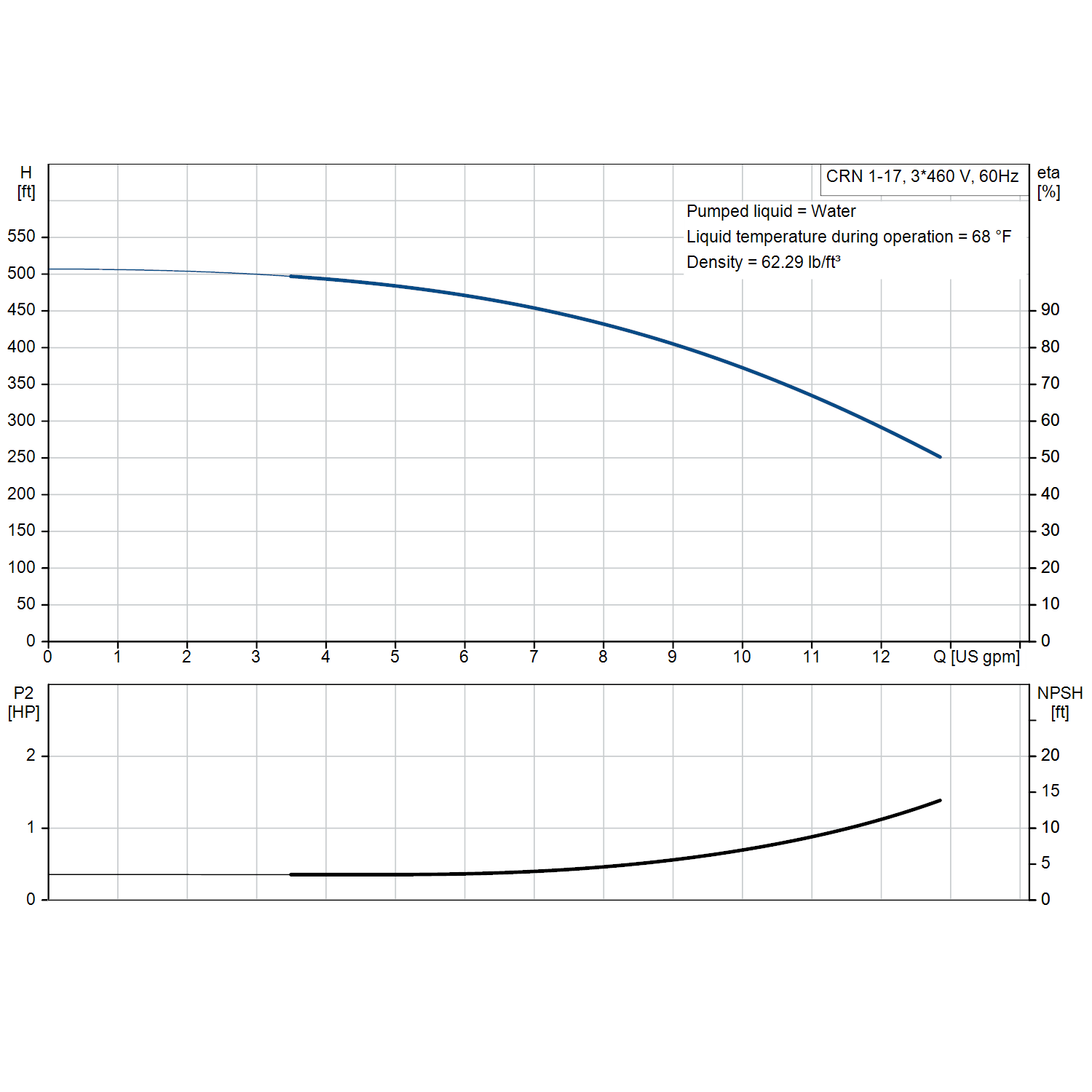

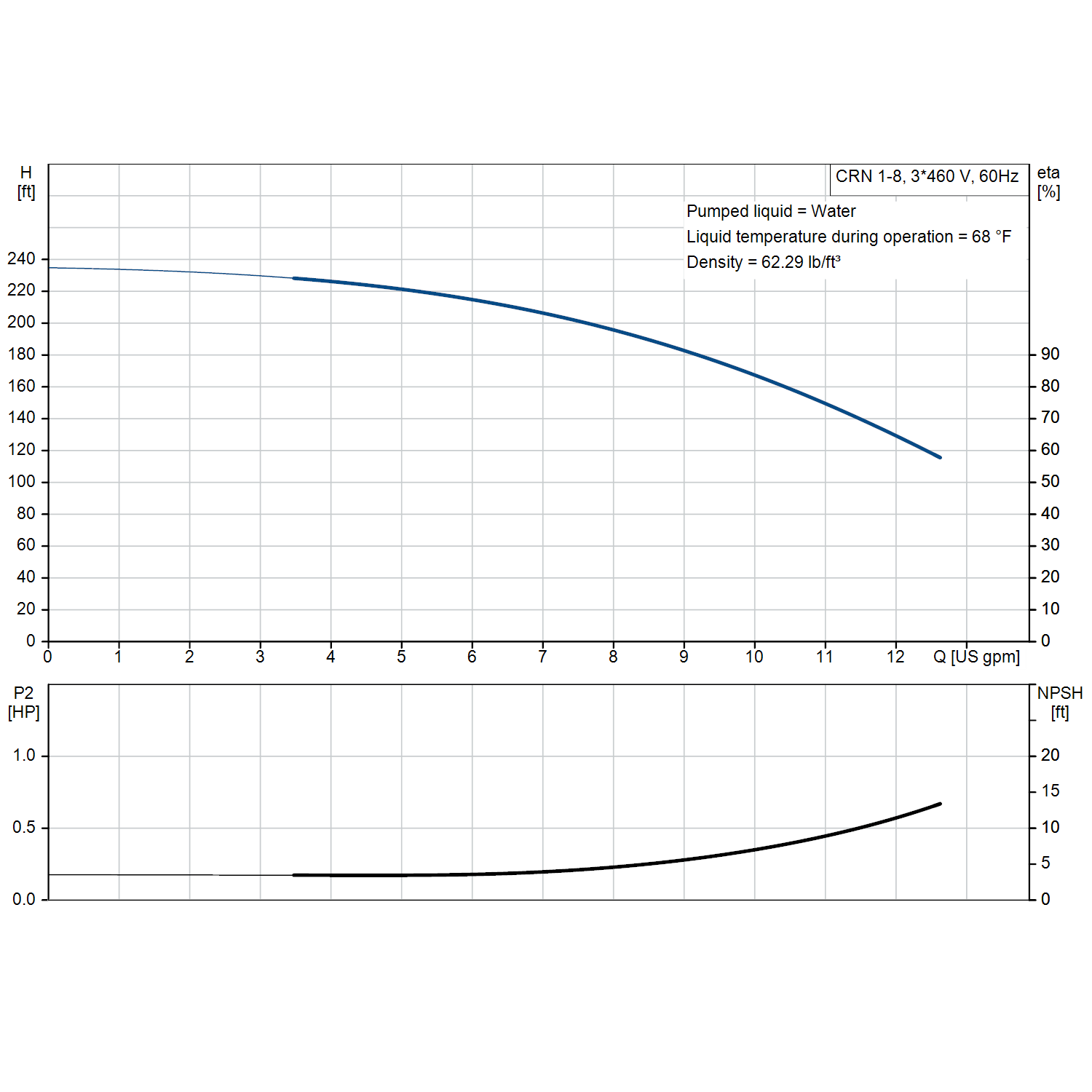

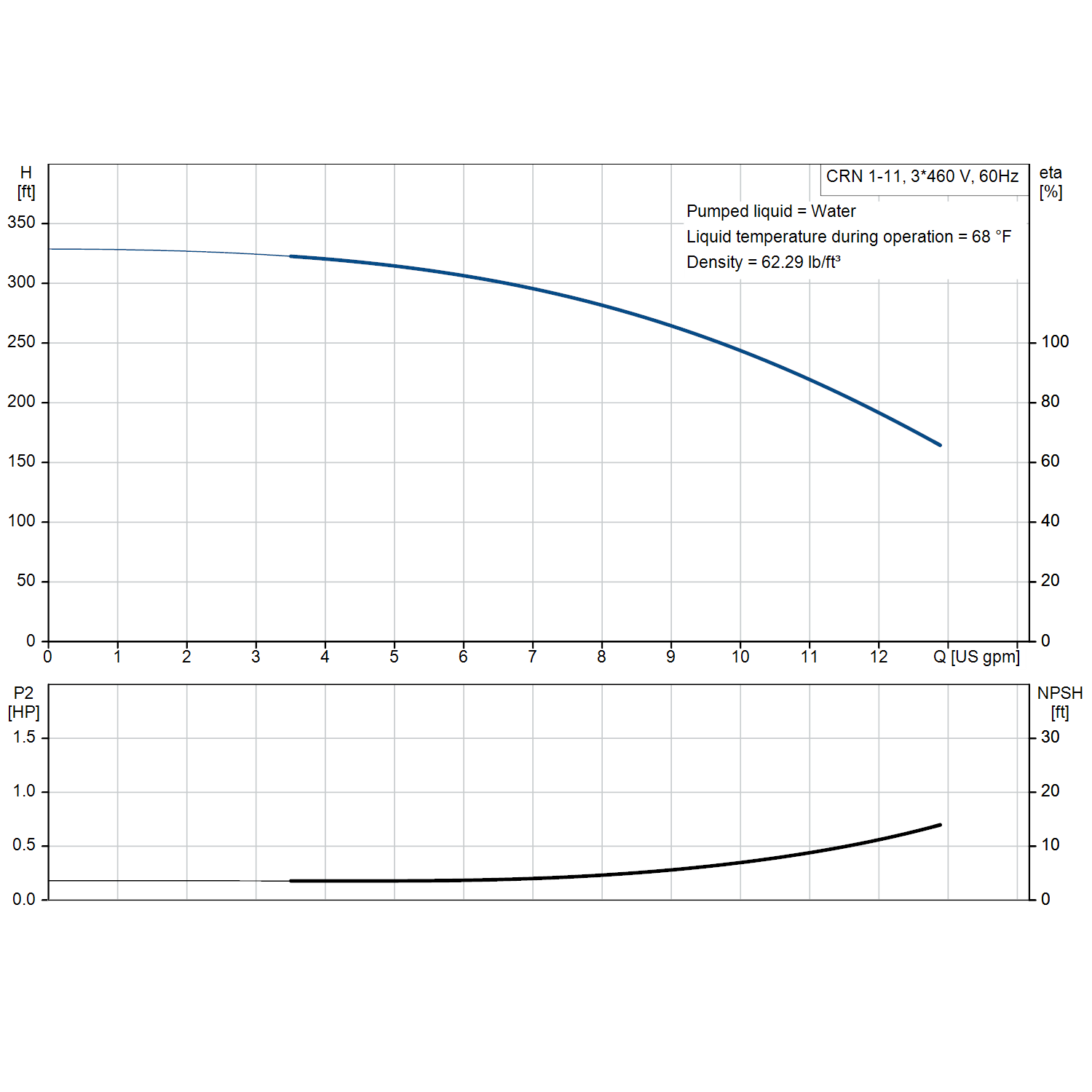

Pressure the pump develops at each flow, in PSI, rounded down (feet = PSI × 2.31). Shut-off is Grundfos’s published maximum head for each model. Flow columns are read from the Grundfos 60 Hz curve for each model (water at 68 °F), digitized and rounded down, at about 20%, 50% and 75% of 12 GPM, the last regular flow every curve in this listing reaches; the curves end at 12.4 to 12.9 GPM. Full curves are in the product images. On CRN 1-10, CRN 1-11, CRN 1-12, CRN 1-13, CRN 1-15, CRN 1-17, CRN 1-19, CRN 1-21, CRN 1-23, CRN 1-25, CRN 1-27 the curve reads above the published shut-off at low flow (by up to 17 ft); the published shut-off is kept and the flow columns follow the curve. Grundfos’s published duty point sits below its own curve by more than 3% of shut-off on CRN 1-10, CRN 1-15, CRN 1-17, CRN 1-19 (by up to 35 ft at the rated flow); the table follows the curve. Grundfos’s published duty point sits above its own curve by more than 3% of shut-off on CRN 1-3 (by up to 3 ft at the rated flow); the table follows the curve.
Before You Buy — The Limits That Decide the Fit
| Check |
What decides the fit |
| Duty point |
The model’s pressure at your flow must cover the system’s total head; shut-off is the most it can make, at zero flow. |
| Working pressure |
Inlet pressure plus the pressure the pump adds must stay within the maximum operating pressure: 363 PSI. |
| Liquid temperature |
−4 °F to 248 °F with HQQE; −4 °F to 194 °F with HQQV. |
| Power |
Single-phase or three-phase supply at the voltage shown in the selected option. |
| Connections |
ANSI companion flanges or Victaulic couplings (1 1/4 in) ordered separately. |
| Shaft seal |
HQQE has EPDM rubber parts and HQQV has FKM; choose the rubber that suits the pumped liquid. |
Applications
HVAC heating and air conditioning, district heating and cooling, plumbing pressure boosting, industrial water supply and transfer, process liquids, wash and clean, water treatment, irrigation and ground water transfer (Grundfos CR range applications).
Materials of Construction
| Component |
Material |
| All wetted parts |
Stainless steel EN 1.4401 (AISI 316) |
| Flange rings and base plate (ANSI versions) |
Cast iron, not in contact with the pumped liquid |
| Bearings |
Silicon carbide |
| Shaft seal faces |
Silicon carbide / silicon carbide (HQQ cartridge seal) |
| Seal and gasket rubber |
EPDM (HQQE) or FKM (HQQV) |
