Grundfos CIM 500 and CIU900 Communication Interface Modules

Item: CIM 500 - Ethernet Module

Product variant with selected options does not exist!
$1,319.76
SKU: 98301408
Weight : 1.0 lb
Loading locations...
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Grundfos · Communication Module
CIM 500 and CIU900 / CIU901
Ethernet communication for Grundfos pumps and booster systems: BMS protocols and Grundfos Remote Management over one RJ45 connection.
Ethernet RJ45
Modbus TCP · BACnet IP
PROFINET IO · EtherNet/IP
Grundfos Remote Management
Hydro Multi-E · Multi-B
Overview

CIM 500 is the Grundfos communication interface module for a direct Ethernet connection. It puts the pump or booster system on a building management or SCADA network over PROFINET IO, Modbus TCP, EtherNet/IP or BACnet IP, and it is the Grundfos Remote Management (GRM) and GiC module for a direct internet connection. The module fits inside the pump terminal box and must be fitted by authorized persons.

Grundfos lists it for: Dedicated Controls (CU 362), BoosterpaQ (CU 352), MAGNA3, Hydro Multi-E (Model H, I, J, 2), Hydro Multi-B, E-pump MGE (Model H, I, J, 11 to 22 kW), CIU900 and CIU901.

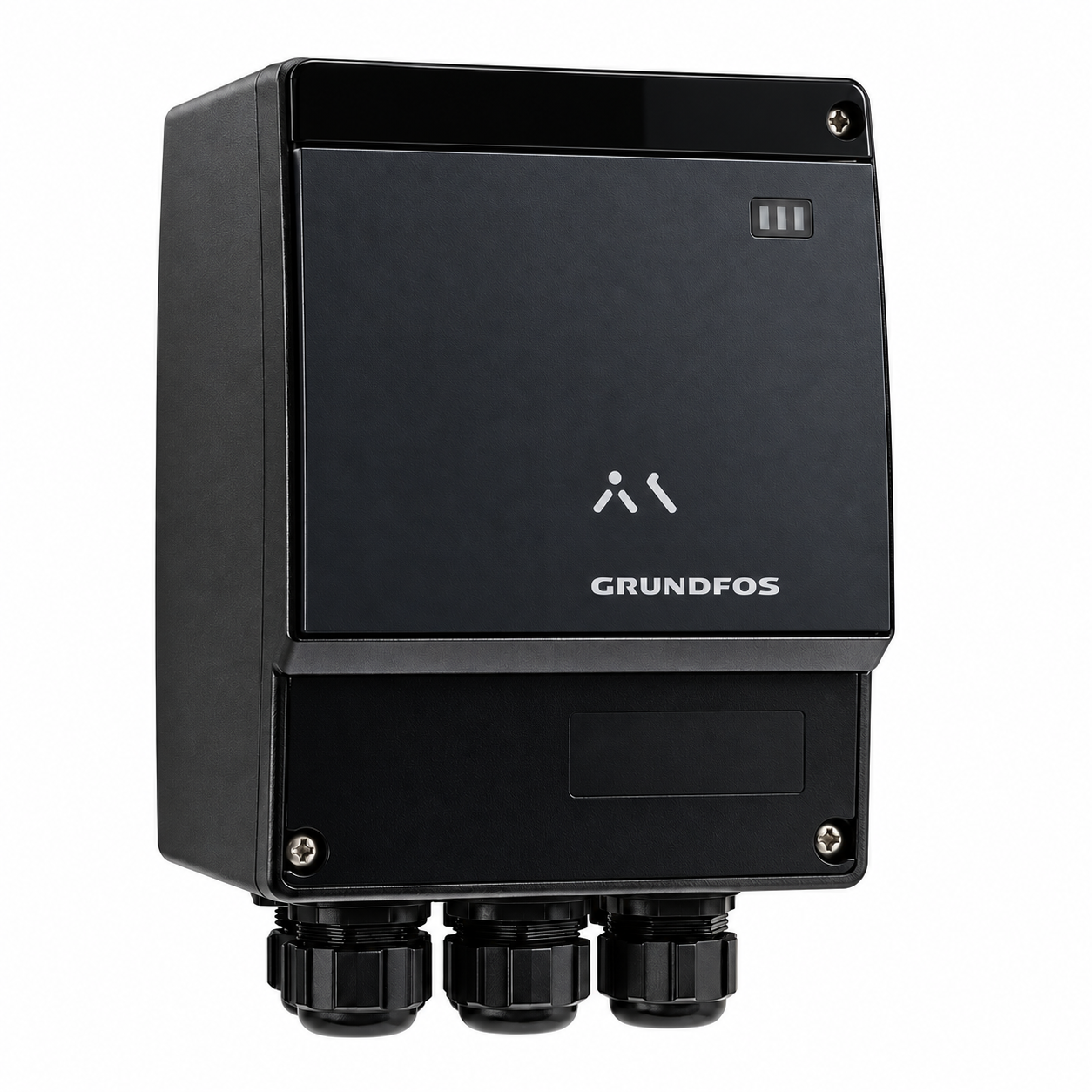

CIU900 and CIU901 are Grundfos communication interface unit boxes, supplied without a CIM module installed. CIU900 does not contain an I/O board; CIU901 does.

GRM access needs a Grundfos data plan: the one-year direct-internet service for use with CIM 500 is quoted by Grundfos, and we can arrange it with the order.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Grundfos Limited Warranty

Grundfos warrants consumer purchases in the United States against defects in design, material and workmanship for up to 30 months from the date of manufacture shown on the nameplate. Commercial purchases are covered under clause 10 of Grundfos US Terms and Conditions of Sale. Source: Grundfos Installation and Operating Instructions 98419766, appendix B.1.

Models and Ratings
Item Part No. Description
CIM 500 98301408 US GRM/GiC module for direct internet connection, Ethernet RJ45; PROFINET IO, Modbus TCP, EtherNet/IP, BACnet IP
CIU900 99448387 CIU box only, no CIM module installed, no I/O board
CIU901 99448389 CIU box only, no CIM module installed, with I/O board

Descriptions from the Grundfos price list effective January 1, 2026 (GRM/GiC page) and Hydro Multi-E Data Booklet 99347082, printed page 53. For the cellular version, see the CIM 280 MK II and antennas.

Before You OrderCheck that your pump or controller is on the list above and which protocol your BMS uses. A CIU box ships empty, so order the CIM module with it. GRM needs a Grundfos data plan in addition to the module.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Hydro Multi-E Data Booklet, US 60 Hz (99347082, 10.2025)Installation and Operating Instructions, Hydro Multi-E North America (98419766)
