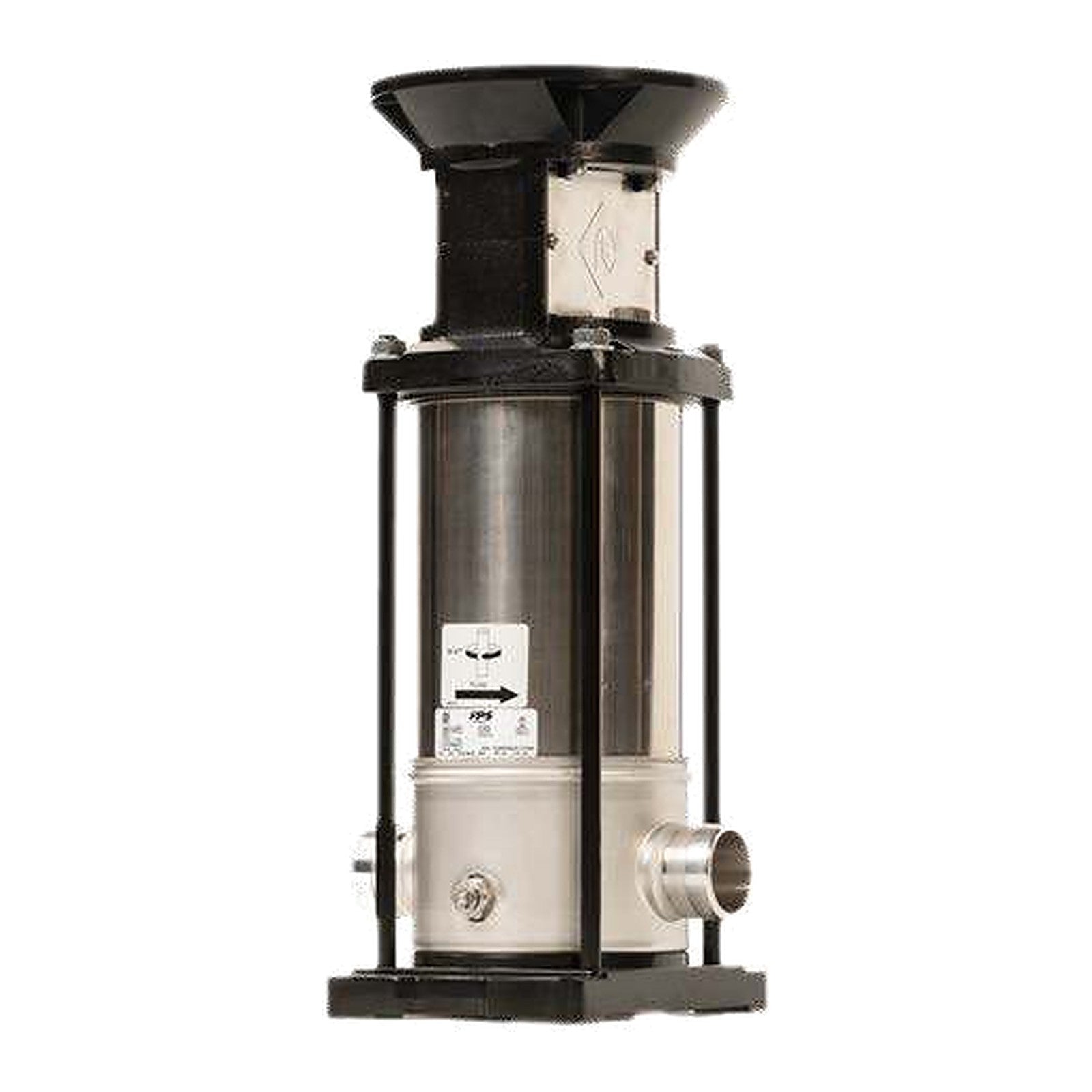

95VR and 95VRL Pump End — No Motor
VR Series pump end without motor for a standard NEMA C-face motor: 95VR (3,600 RPM) and 95VRL (1,800 RPM), shut-off pressures 11-221 PSI.
26-510 ft (11-221 PSI) Max Head · 308-617 GPM Max
No Motor · NEMA C-Face Mount
For 1-1/2-60 HP Motors
56C to 364-5TSC Frames
3,600 or 1,800 RPM
4 in Round Flange, In-Line
Cast Iron Casing · 316 SS Hydraulics
Type 1 Cartridge Seal
230-360 PSI Max Working Pressure
+14 to +248 °F Liquid
NSF/ANSI 61 and 372
145-272 lb Weight
Overview
A complete 95VR or 95VRL pump end — casing, stack, seal and motor mount — without the motor. The pump end carries the thrust load on its own oversized bearing, so it runs on stock NEMA motors in a wide range of ratings and enclosures; special high-thrust motors are not required.
This size is the G version: cast iron casing and upper flange with 316 stainless steel hydraulics. 30, 45, 65 and 95VR pumps carry two rotatable steel flanges with oval-shaped bolt holes that fit both DIN and ANSI flanges.
What Ships and What It Needs to Run
Included: the pump end only: casing, hydraulic stack, cartridge seal and motor mount, without motor.
Motor, companion flanges and starter or drive: ordered separately. The selector shows the motor horsepower and NEMA C-face frame each pump end needs.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
1-Year Franklin Electric Warranty
Covered by Franklin Electric’s limited warranty for 1 year from the date of original purchase by the consumer (VR Series manual 106821101).
Specifications
| Supplied as |
Pump end without motor (casing, stack, seal and motor mount) |
| Speeds |
95VR: 3,600 RPM (2-pole motor); 95VRL: 1,800 RPM (4-pole motor) |
| Motor frames |
56C, 182-4TC, 213-5TC, 254-6TC, 284-6TSC, 324-6TSC, 364-5TSC NEMA C-face |
| Motor horsepower |
1-1/2 to 60 HP by model |
| Connections |
In-line, round flange, 4.00 in inlet and outlet |
| Flange rating |
PN16 on lower stage counts, PN25 or PN32 on higher stage counts; see the flange table in the VR catalog |
| Casing and hydraulics |
Cast iron casing and upper flange, 316 stainless steel hydraulics (G version) |
| Mechanical seal |
Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel |
| Liquid temperature |
+14 °F to +248 °F (-10 °C to +120 °C) |
| Rotation |
Clockwise, looking at the pump from the top down |
| Certification |
NSF/ANSI 61 and 372 |
Performance — Will It Do What You Need?
Pick the speed that matches your motor (95VR at 3,600 RPM on a 2-pole motor, 95VRL at 1,800 RPM on a 4-pole motor), then the stage count that gives the pressure you need at your flow. The motor horsepower shown is the size the pump end needs.
95VR (3,600 RPM) standard impellers — pressure at flow (3 models)
95VR standard impellers — pressure in PSI at flow
| Model |
Motor HP |
0 GPM (Shut-off) |
125 GPM |
300 GPM |
475 GPM |
617 GPM (Max) |
| 95VR0100GF1A |
20 HP |
63 |
60 |
54 |
44 |
30 |
| 95VR0200GF1A |
30 HP |
128 |
122 |
110 |
91 |
64 |
| 95VR0300GF1A |
50 HP |
192 |
184 |
165 |
137 |
96 |
95VR (3,600 RPM) trimmed impellers — pressure at flow (6 models)
95VR trimmed impellers (1A = one stage trimmed, 2A = two) — pressure in PSI at flow
| Model |
Motor HP |
0 GPM (Shut-off) |
125 GPM |
300 GPM |
475 GPM |
617 GPM (Max) |
| 95VR011AGF1A |
15 HP |
45 |
45 |
42 |
33 |
16 |
| 95VR022AGF1A |
25 HP |
91 |
90 |
84 |
65 |
32 |
| 95VR021AGF1A |
30 HP |
109 |
105 |
96 |
76 |
46 |
| 95VR032AGF1A |
40 HP |
156 |
152 |
141 |
112 |
66 |
| 95VR031AGF1A |
50 HP |
174 |
167 |
153 |
124 |
80 |
| 95VR042AGF1A |
60 HP |
221 |
213 |
196 |
158 |
98 |
95VRL (1,800 RPM) standard impellers — pressure at flow (7 models)
95VRL standard impellers — pressure in PSI at flow
| Model |
Motor HP |
0 GPM (Shut-off) |
60 GPM |
150 GPM |
230 GPM |
308 GPM (Max) |
| 95VRL0100GF1A |
2 HP |
15 |
15 |
13 |
11 |
7 |
| 95VRL0200GF1A |
5 HP |
31 |
30 |
26 |
22 |
14 |
| 95VRL0300GF1A |
7-1/2 HP |
48 |
45 |
40 |
34 |
23 |
| 95VRL0400GF1A |
10 HP |
64 |
60 |
54 |
45 |
31 |
| 95VRL0500GF1A |
10 HP |
80 |
75 |
67 |
56 |
38 |
| 95VRL0600GF1A |
15 HP |
96 |
90 |
81 |
67 |
46 |
| 95VRL0700GF1A |
15 HP |
111 |
105 |
94 |
78 |
53 |
95VRL (1,800 RPM) trimmed impellers — pressure at flow (7 models)
95VRL trimmed impellers (1A = one stage trimmed, 2A = two) — pressure in PSI at flow
| Model |
Motor HP |
0 GPM (Shut-off) |
60 GPM |
150 GPM |
230 GPM |
308 GPM (Max) |
| 95VRL011AGF1A |
1-1/2 HP |
11 |
11 |
10 |
8 |
3 |
| 95VRL022AGF1A |
3 HP |
22 |
22 |
20 |
16 |
7 |
| 95VRL032AGF1A |
5 HP |
38 |
37 |
33 |
26 |
14 |
| 95VRL042AGF1A |
7-1/2 HP |
55 |
53 |
48 |
39 |
23 |
| 95VRL052AGF1A |
10 HP |
71 |
68 |
61 |
50 |
31 |
| 95VRL062AGF1A |
15 HP |
87 |
83 |
75 |
61 |
39 |
| 95VRL072AGF1A |
15 HP |
103 |
98 |
88 |
72 |
46 |
Digitized from the published curves in the Franklin Electric VR Series Catalog Mi9041 (95VR p. 52; 95VRL p. 100; vector data) and rounded down; feet of head = PSI × 2.31. Each curve was read on the feet scale and checked against the metric scale of the same chart (within 3%). Franklin prints no head or flow table for the VR Series. 95VR curves end at 617 GPM, 95VRL curves at 308 GPM. The 0 GPM column is the shut-off pressure, the most the pump adds to its inlet pressure. Motor HP is the motor Franklin pairs with that pump end. Bold = the last point on that model’s curve. — = beyond the end of that model’s published curve. Franklin does not publish curves for 95VRL021AGF1A, 95VRL031AGF1A, 95VRL041AGF1A, 95VRL051AGF1A, 95VRL061AGF1A, 95VRL071AGF1A; ask us for their performance.
