Franklin Electric 3VR and 3VRL Pump End - No Motor

HP - Motor Frame: 1/2 HP - 56C

1/2 HP - 56C

3/4 HP - 56C

1 HP - 56C

1-1/2 HP - 56C

2 HP - 56C

3 HP - 56C

5 HP - 182-4TC

1/3 HP - 56C

Speed: 3,600 RPM (VR)

3,600 RPM (VR)

1,800 RPM (VRL)

Model - Max: 3VR0200NF1A - 29 PSI Max, 24 GPM Max

3VR0200NF1A - 29 PSI Max, 24 GPM Max

3VR0300NF1A - 45 PSI Max, 24 GPM Max

3VR0400NF1A - 59 PSI Max, 24 GPM Max

3VR0500NF1A - 76 PSI Max, 24 GPM Max

3VR0600NF1A - 93 PSI Max, 24 GPM Max

3VR0700NF1A - 108 PSI Max, 24 GPM Max

3VR0800NF1A - 124 PSI Max, 24 GPM Max

3VR0900NF1A - 139 PSI Max, 24 GPM Max

3VR1000NF1A - 154 PSI Max, 24 GPM Max

3VR1100NF1A - 171 PSI Max, 24 GPM Max

3VR1200NF1A - 187 PSI Max, 24 GPM Max

3VR1300NF1A - 202 PSI Max, 24 GPM Max

3VR1400NF1A - 217 PSI Max, 24 GPM Max

3VR1500NF1A - 235 PSI Max, 24 GPM Max

3VR1600NF1A - 251 PSI Max, 24 GPM Max

3VR1700NF1A - 266 PSI Max, 24 GPM Max

3VR1800NF1A - 281 PSI Max, 24 GPM Max

3VR1900NF1A - 296 PSI Max, 24 GPM Max

3VR2100NF1A - 329 PSI Max, 24 GPM Max

3VR2300NF1A - 360 PSI Max, 24 GPM Max

3VRL0200NF1A - 7 PSI Max, 10 GPM Max

3VRL0300NF1A - 11 PSI Max, 10 GPM Max

3VRL0400NF1A - 15 PSI Max, 10 GPM Max

3VRL0500NF1A - 19 PSI Max, 10 GPM Max

3VRL0600NF1A - 23 PSI Max, 10 GPM Max

3VRL0700NF1A - 27 PSI Max, 10 GPM Max

3VRL0800NF1A - 31 PSI Max, 10 GPM Max

3VRL0900NF1A - 35 PSI Max, 10 GPM Max

3VRL1000NF1A - 38 PSI Max, 10 GPM Max

3VRL1100NF1A - 42 PSI Max, 10 GPM Max

3VRL1200NF1A - 46 PSI Max, 10 GPM Max

3VRL1300NF1A - 50 PSI Max, 10 GPM Max

3VRL1400NF1A - 53 PSI Max, 10 GPM Max

3VRL1500NF1A - 57 PSI Max, 10 GPM Max

3VRL1600NF1A - 61 PSI Max, 10 GPM Max

3VRL1700NF1A - 65 PSI Max, 10 GPM Max

3VRL1800NF1A - 69 PSI Max, 10 GPM Max

3VRL1900NF1A - 72 PSI Max, 10 GPM Max

3VRL2100NF1A - 80 PSI Max, 10 GPM Max

3VRL2300NF1A - 87 PSI Max, 10 GPM Max

3VRL2500NF1A - 97 PSI Max, 10 GPM Max

3VRL2700NF1A - 105 PSI Max, 10 GPM Max

3VRL2900NF1A - 112 PSI Max, 10 GPM Max

3VRL3100NF1A - 120 PSI Max, 10 GPM Max

3VRL3300NF1A - 127 PSI Max, 10 GPM Max

Product variant with selected options does not exist!

Quantity

Price: $1,905.22

Coupon 5% off applied automatically in your cart. No code needed.

SKU: 3VR0200NF1A-PE56

Weight : 33.0 lb

Vendor : Franklin Electric

Loading locations...

Free Shipping $499 or more

Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available

Description

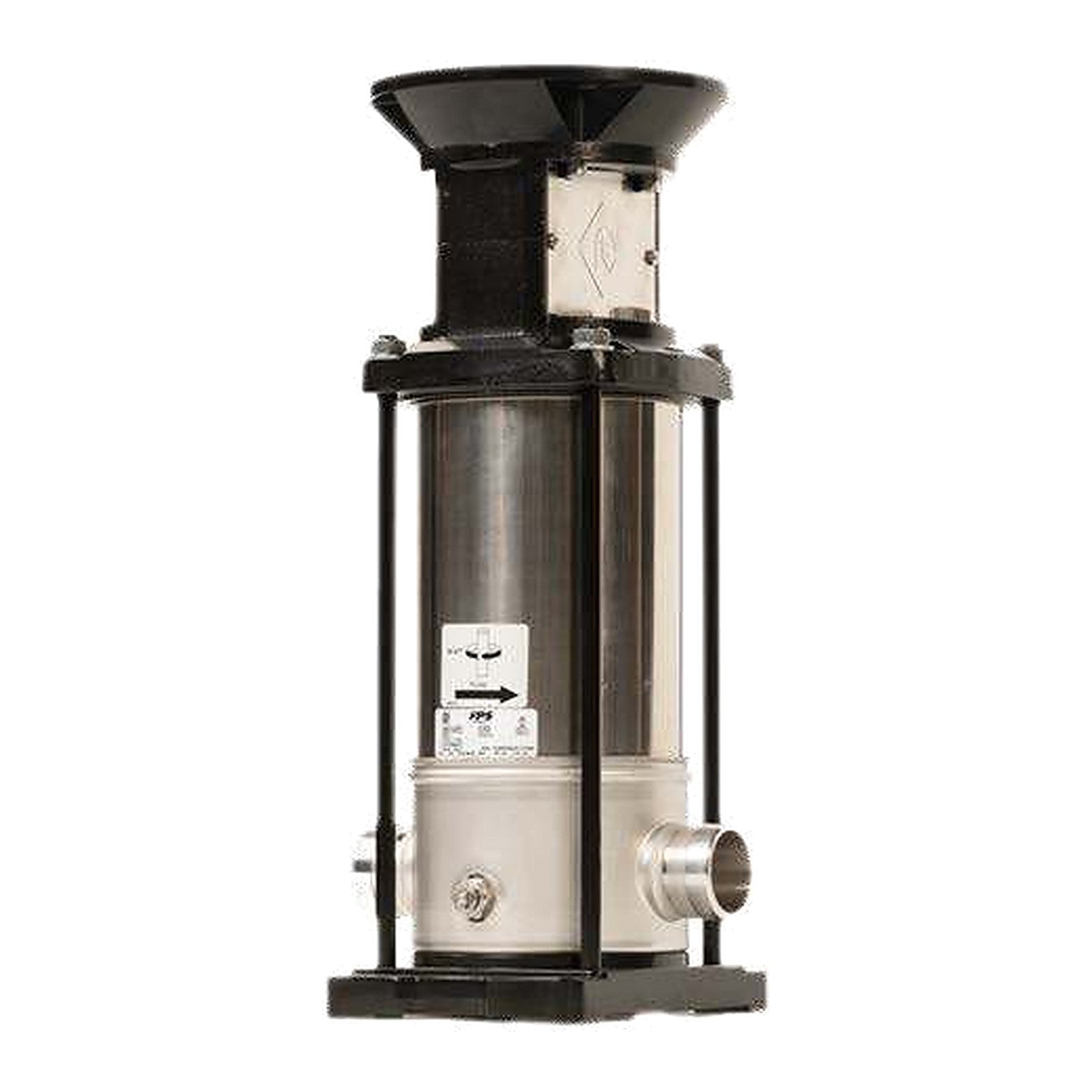

Franklin Electric · Pump End

3VR and 3VRL Pump End — No Motor

VR Series pump end without motor for a standard NEMA C-face motor: 3VR (3,600 RPM) and 3VRL (1,800 RPM), shut-off pressures 7-360 PSI.

18-832 ft (7-360 PSI) Max Head · 10-24 GPM Max

No Motor · NEMA C-Face Mount

For 1/3-5 HP Motors

56C to 182-4TC Frames

3,600 or 1,800 RPM

1-1/4 in Round Flange, In-Line

316 SS Wetted Parts

Type 1 Cartridge Seal

375 PSI Max Working Pressure

+14 to +248 °F Liquid

NSF/ANSI 61 and 372

33-66 lb Weight

Overview

A complete 3VR or 3VRL pump end — casing, stack, seal and motor mount — without the motor. The pump end carries the thrust load on its own oversized bearing, so it runs on stock NEMA motors in a wide range of ratings and enclosures; special high-thrust motors are not required.

All wetted components are 316 stainless steel (N version).

What Ships and What It Needs to Run

Included: the pump end only: casing, hydraulic stack, cartridge seal and motor mount, without motor.

Motor, companion flanges and starter or drive: ordered separately. The selector shows the motor horsepower and NEMA C-face frame each pump end needs.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

1-Year Franklin Electric Warranty

Covered by Franklin Electric’s limited warranty for 1 year from the date of original purchase by the consumer (VR Series manual 106821101).

Specifications

Supplied as	Pump end without motor (casing, stack, seal and motor mount)
Speeds	3VR: 3,600 RPM (2-pole motor); 3VRL: 1,800 RPM (4-pole motor)
Motor frames	56C, 182-4TC NEMA C-face
Motor horsepower	1/3 to 5 HP by model
Connections	In-line, round flange, 1.25 in inlet and outlet
Flange rating	Round flange on a PN25 body (F version)
Casing and hydraulics	316 stainless steel (N version)
Mechanical seal	Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel
Liquid temperature	+14 °F to +248 °F (-10 °C to +120 °C)
Rotation	Clockwise, looking at the pump from the top down
Certification	NSF/ANSI 61 and 372

Performance — Will It Do What You Need?

Pick the speed that matches your motor (3VR at 3,600 RPM on a 2-pole motor, 3VRL at 1,800 RPM on a 4-pole motor), then the stage count that gives the pressure you need at your flow. The motor horsepower shown is the size the pump end needs.

3VR (3,600 RPM) standard impellers — pressure at flow (20 models)

3VR standard impellers — pressure in PSI at flow

Model	Motor HP	0 GPM (Shut-off)	4 GPM	12 GPM	18 GPM	24 GPM (Max)
3VR0200NF1A	1/2 HP	29	29	25	19	10
3VR0300NF1A	3/4 HP	45	44	38	29	16
3VR0400NF1A	3/4 HP	59	57	49	37	19
3VR0500NF1A	1 HP	76	75	66	52	29
3VR0600NF1A	1-1/2 HP	93	91	80	64	37
3VR0700NF1A	1-1/2 HP	108	106	93	74	42
3VR0800NF1A	1-1/2 HP	124	122	108	86	51
3VR0900NF1A	2 HP	139	137	121	96	56
3VR1000NF1A	2 HP	154	152	133	106	61
3VR1100NF1A	2 HP	171	169	150	120	71
3VR1200NF1A	3 HP	187	184	163	130	77
3VR1300NF1A	3 HP	202	199	176	141	83
3VR1400NF1A	3 HP	217	213	189	151	88
3VR1500NF1A	3 HP	235	232	207	167	101
3VR1600NF1A	3 HP	251	247	220	178	107
3VR1700NF1A	3 HP	266	262	233	188	113
3VR1800NF1A	5 HP	281	277	246	198	118
3VR1900NF1A	5 HP	296	292	259	208	124
3VR2100NF1A	5 HP	329	325	291	236	143
3VR2300NF1A	5 HP	360	355	318	257	155

3VRL (1,800 RPM) standard impellers — pressure at flow (25 models)

3VRL standard impellers — pressure in PSI at flow

Model	Motor HP	0 GPM (Shut-off)	2 GPM	5 GPM	8 GPM	10 GPM (Max)
3VRL0200NF1A	1/3 HP	7	7	7	6	4
3VRL0300NF1A	1/3 HP	11	11	11	9	7
3VRL0400NF1A	1/3 HP	15	15	14	12	9
3VRL0500NF1A	1/3 HP	19	19	18	15	12
3VRL0600NF1A	1/3 HP	23	23	21	18	14
3VRL0700NF1A	1/3 HP	27	27	25	20	16
3VRL0800NF1A	1/3 HP	31	31	28	23	18
3VRL0900NF1A	1/3 HP	35	34	32	26	20
3VRL1000NF1A	1/3 HP	38	38	35	29	23
3VRL1100NF1A	1/3 HP	42	42	38	31	25
3VRL1200NF1A	1/3 HP	46	45	42	34	27
3VRL1300NF1A	1/3 HP	50	49	45	37	29
3VRL1400NF1A	1/3 HP	53	53	48	39	31
3VRL1500NF1A	1/3 HP	57	56	52	42	33
3VRL1600NF1A	1/3 HP	61	60	55	44	34
3VRL1700NF1A	1/2 HP	65	64	59	48	37
3VRL1800NF1A	1/2 HP	69	68	62	50	39
3VRL1900NF1A	1/2 HP	72	71	65	53	41
3VRL2100NF1A	1/2 HP	80	78	72	58	45
3VRL2300NF1A	1/2 HP	87	86	78	63	48
3VRL2500NF1A	3/4 HP	97	96	88	73	57
3VRL2700NF1A	3/4 HP	105	103	95	78	62
3VRL2900NF1A	3/4 HP	112	111	102	84	66
3VRL3100NF1A	3/4 HP	120	118	108	89	70
3VRL3300NF1A	3/4 HP	127	125	115	94	73

Digitized from the published curves in the Franklin Electric VR Series Catalog Mi9041 (3VR p. 14 and p. 16; 3VRL p. 62 and p. 64; vector data) and rounded down; feet of head = PSI × 2.31. Each curve was read on the feet scale and checked against the metric scale of the same chart (within 3%). Franklin prints no head or flow table for the VR Series. 3VR curves end at 24 GPM, 3VRL curves at 10 GPM. The 0 GPM column is the shut-off pressure, the most the pump adds to its inlet pressure. Motor HP is the motor Franklin pairs with that pump end. Bold = the last point on that model’s curve. — = beyond the end of that model’s published curve.

Well & Irrigation Calculator Tank Calculator

Before You Buy — The Limits That Decide the Fit

Pressure	Inlet pressure plus the shut-off pressure (0 GPM column) must stay within the 375 PSI rating of the round flange (F version)
Suction	Available NPSH must exceed the pump’s NPSH required at your maximum flow (curve pages in the catalog)
Liquid	Ratings are for clean water, +14 to +248 °F; ask us before ordering for another liquid, viscosity or specific gravity
Flanges	Companion flanges are required to adapt to threaded pipe and are ordered separately
Rotation	Clockwise looking down from the top; check three-phase rotation before running
Motor	A NEMA C-face motor of the frame, horsepower and speed in the selector; 2-pole for 3VR, 4-pole for 3VRL

Materials of Construction

Pump casing	Stainless steel, CF8M / AISI 316
Outer case	Stainless steel, AISI 316
Pump shaft	Stainless steel, AISI 316
Impellers, stage housings and diffusers	Stainless steel, AISI 316
Intermediary sleeve	Tungsten carbide
Floating neck ring	PPS
Mechanical seal	Silicon carbide, graphite, EPDM, stainless steel
O-rings	EPDM

Accessories and Service Parts

Item	Listing	Use
Complete pump with motor	3VR Vertical Multistage Pump and 3VRL	Pump end and Baldor motor, assembled
Motor	VR Series Replacement Motor	Baldor NEMA C-face motors for VR and VRL
Companion flanges	VR Series Companion Flange Kit	Adapt the round flanges to threaded pipe
Mechanical seal	VR Series Mechanical Seal Kit	Cartridge seal replacement
Replacement stack	3VR Replacement Stack	Rebuild the hydraulics on an existing pump
Repair kits	VR Series Repair Kit	Motor flanges, brackets, couplings, casings, plugs
