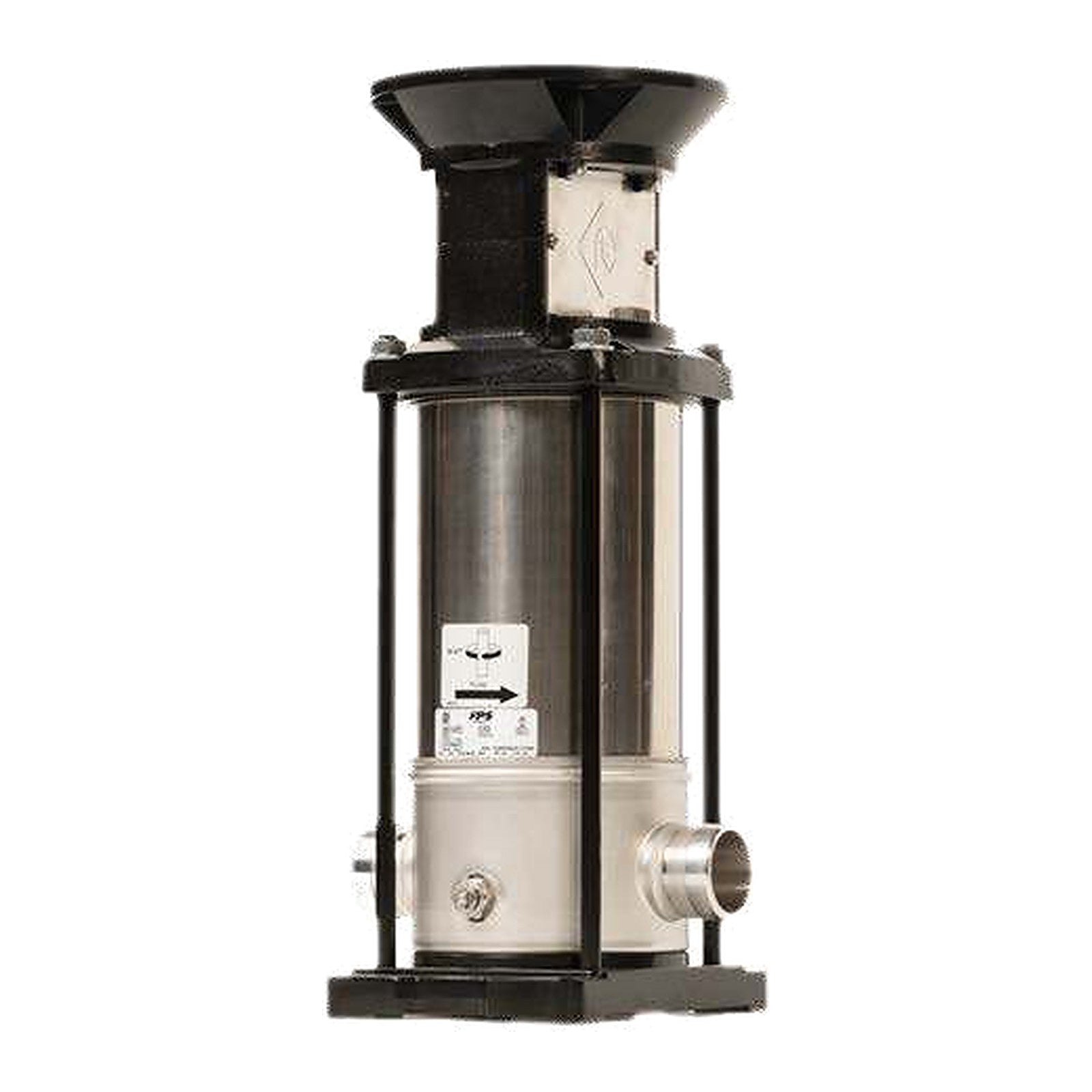

Franklin Electric 30VR pump end without motor
Franklin Electric 30VR vertical multistage pump performance curve, 3,600 RPM
Franklin Electric 30VRL vertical multistage pump performance curve, 1,800 RPM (part 1)
Franklin Electric 30VRL vertical multistage pump performance curve, 1,800 RPM (part 2)
Franklin Electric 30VR pump end without motor
Franklin Electric 30VR vertical multistage pump performance curve, 3,600 RPM
Franklin Electric 30VRL vertical multistage pump performance curve, 1,800 RPM (part 1)
Franklin Electric 30VRL vertical multistage pump performance curve, 1,800 RPM (part 2)

Franklin Electric 30VR and 30VRL Pump End - No Motor

HP - Motor Frame: 5 HP - 182-4TC
Speed: 3,600 RPM (VR)
Model - Max: 30VR011AGF1A - 36 PSI Max, 219 GPM Max

Product variant with selected options does not exist!
$3,676.76
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 30VR011AGF1A-PE18
Weight : 117.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Pump End
30VR and 30VRL Pump End — No Motor
VR Series pump end without motor for a standard NEMA C-face motor: 30VR (3,600 RPM) and 30VRL (1,800 RPM), shut-off pressures 12-403 PSI.
28-932 ft (12-403 PSI) Max Head · 123-219 GPM Max
No Motor · NEMA C-Face Mount
For 1/2-40 HP Motors
56C to 324-6TSC Frames
3,600 or 1,800 RPM
2-1/2 in Round Flange, In-Line
Cast Iron Casing · 316 SS Hydraulics
Type 1 Cartridge Seal
230-460 PSI Max Working Pressure
+14 to +248 °F Liquid
NSF/ANSI 61 and 372
117-236 lb Weight
Overview

A complete 30VR or 30VRL pump end — casing, stack, seal and motor mount — without the motor. The pump end carries the thrust load on its own oversized bearing, so it runs on stock NEMA motors in a wide range of ratings and enclosures; special high-thrust motors are not required.

This size is the G version: cast iron casing and upper flange with 316 stainless steel hydraulics. 30, 45, 65 and 95VR pumps carry two rotatable steel flanges with oval-shaped bolt holes that fit both DIN and ANSI flanges.

What Ships and What It Needs to Run

Included: the pump end only: casing, hydraulic stack, cartridge seal and motor mount, without motor.

Motor, companion flanges and starter or drive: ordered separately. The selector shows the motor horsepower and NEMA C-face frame each pump end needs.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
1-Year Franklin Electric Warranty

Covered by Franklin Electric’s limited warranty for 1 year from the date of original purchase by the consumer (VR Series manual 106821101).

Specifications
Supplied as Pump end without motor (casing, stack, seal and motor mount)
Speeds 30VR: 3,600 RPM (2-pole motor); 30VRL: 1,800 RPM (4-pole motor)
Motor frames 56C, 182-4TC, 213-5TC, 254-6TC, 284-6TSC, 324-6TSC NEMA C-face
Motor horsepower 1/2 to 40 HP by model
Connections In-line, round flange, 2.50 in inlet and outlet
Flange rating PN16 on lower stage counts, PN25 or PN32 on higher stage counts; see the flange table in the VR catalog
Casing and hydraulics Cast iron casing and upper flange, 316 stainless steel hydraulics (G version)
Mechanical seal Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel
Liquid temperature +14 °F to +248 °F (-10 °C to +120 °C)
Rotation Clockwise, looking at the pump from the top down
Certification NSF/ANSI 61 and 372
Performance — Will It Do What You Need?

Pick the speed that matches your motor (30VR at 3,600 RPM on a 2-pole motor, 30VRL at 1,800 RPM on a 4-pole motor), then the stage count that gives the pressure you need at your flow. The motor horsepower shown is the size the pump end needs.

30VR (3,600 RPM) standard impellers — pressure at flow (8 models)

30VR standard impellers — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 40 GPM 110 GPM 160 GPM 219 GPM (Max)
30VR0100GF1A 5 HP 49 46 42 37 28
30VR0200GF1A 10 HP 100 94 86 77 59
30VR0300GF1A 15 HP 150 141 128 115 87
30VR0400GF1A 20 HP 200 188 172 153 116
30VR0500GF1A 25 HP 250 234 213 190 144
30VR0600GF1A 30 HP 302 284 261 234 179
30VR0700GF1A 40 HP 352 330 304 272 209
30VR0800GF1A 40 HP 403 378 347 311 238
30VR (3,600 RPM) trimmed impellers — pressure at flow (15 models)

30VR trimmed impellers (1A = one stage trimmed, 2A = two) — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 40 GPM 110 GPM 160 GPM 219 GPM (Max)
30VR011AGF1A 5 HP 36 36 32 27 17
30VR022AGF1A 7-1/2 HP 73 72 65 55 34
30VR021AGF1A 7-1/2 HP 86 83 75 65 46
30VR032AGF1A 15 HP 124 119 109 95 65
30VR031AGF1A 15 HP 137 130 119 104 76
30VR042AGF1A 20 HP 174 166 151 132 93
30VR041AGF1A 20 HP 186 176 161 142 104
30VR052AGF1A 20 HP 224 213 194 170 122
30VR051AGF1A 25 HP 237 223 204 180 133
30VR062AGF1A 25 HP 274 258 236 207 150
30VR061AGF1A 30 HP 286 269 245 217 160
30VR072AGF1A 30 HP 327 309 285 252 187
30VR071AGF1A 40 HP 340 320 294 262 197
30VR082AGF1A 40 HP 377 356 327 290 215
30VR081AGF1A 40 HP 390 367 338 301 227
30VRL (1,800 RPM) standard impellers — pressure at flow (12 models)

30VRL standard impellers — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 25 GPM 60 GPM 90 GPM 123 GPM (Max)
30VRL0100GF1A 3/4 HP 12 11 10 8 5
30VRL0200GF1A 1-1/2 HP 24 23 20 17 11
30VRL0300GF1A 2 HP 37 34 30 25 16
30VRL0500GF1A 3 HP 62 58 51 43 28
30VRL0600GF1A 5 HP 74 69 62 52 34
30VRL0700GF1A 5 HP 86 80 71 60 39
30VRL0800GF1A 5 HP 98 91 81 68 43
30VRL0900GF1A 7-1/2 HP 112 105 94 80 53
30VRL1000GF1A 7-1/2 HP 125 116 105 88 58
30VRL1100GF1A 7-1/2 HP 137 127 115 96 63
30VRL1200GF1A 7-1/2 HP 150 138 125 105 69
30VRL1300GF1A 10 HP 163 151 137 115 76
30VRL (1,800 RPM) trimmed impellers — pressure at flow (24 models)

30VRL trimmed impellers (1A = one stage trimmed, 2A = two) — pressure in PSI at flow

Model Motor HP 0 GPM (Shut-off) 25 GPM 60 GPM 90 GPM 123 GPM (Max)
30VRL022AGF1A 1 HP 18 18 16 12 —
30VRL021AGF1A 1 HP 21 20 18 14 —
30VRL032AGF1A 1-1/2 HP 30 29 26 21 —
30VRL031AGF1A 2 HP 34 32 28 23 —
30VRL042AGF1A 2 HP 43 40 36 29 —
30VRL041AGF1A 3 HP 46 43 39 32 —
30VRL052AGF1A 3 HP 55 52 47 38 —
30VRL051AGF1A 3 HP 58 55 49 41 —
30VRL062AGF1A 5 HP 68 64 57 47 —
30VRL061AGF1A 5 HP 71 66 59 49 —
30VRL072AGF1A 5 HP 80 75 67 55 —
30VRL071AGF1A 5 HP 83 77 69 58 —
30VRL082AGF1A 5 HP 92 86 77 63 —
30VRL081AGF1A 5 HP 95 89 79 65 —
30VRL092AGF1A 5 HP 104 97 87 71 —
30VRL091AGF1A 7-1/2 HP 109 102 92 77 —
30VRL102AGF1A 7-1/2 HP 118 111 100 83 —
30VRL101AGF1A 7-1/2 HP 122 113 103 86 —
30VRL112AGF1A 7-1/2 HP 131 122 110 92 —
30VRL111AGF1A 7-1/2 HP 134 124 113 94 —
30VRL122AGF1A 7-1/2 HP 143 133 121 100 —
30VRL121AGF1A 7-1/2 HP 146 136 123 102 —
30VRL132AGF1A 7-1/2 HP 155 145 131 108 —
30VRL131AGF1A 7-1/2 HP 159 147 133 111 —

Digitized from the published curves in the Franklin Electric VR Series Catalog Mi9041 (30VR p. 40; 30VRL p. 86 and p. 88; vector data) and rounded down; feet of head = PSI × 2.31. Each curve was read on the feet scale and checked against the metric scale of the same chart (within 3%). Franklin prints no head or flow table for the VR Series. 30VR curves end at 219 GPM, 30VRL curves at 123 GPM. The 0 GPM column is the shut-off pressure, the most the pump adds to its inlet pressure. Motor HP is the motor Franklin pairs with that pump end. Bold = the last point on that model’s curve. — = beyond the end of that model’s published curve. Franklin does not publish curves for 30VRL011AGF1A; ask us for their performance.

Before You Buy — The Limits That Decide the Fit
Pressure Inlet pressure plus the shut-off pressure (0 GPM column) must stay within the 230 PSI (PN16) or 460 PSI (PN25/40) flange rating of your build
Suction Available NPSH must exceed the pump’s NPSH required at your maximum flow (curve pages in the catalog)
Liquid Ratings are for clean water, +14 to +248 °F; ask us before ordering for another liquid, viscosity or specific gravity
Flanges Companion flanges are required to adapt to threaded pipe and are ordered separately
Rotation Clockwise looking down from the top; check three-phase rotation before running
Motor A NEMA C-face motor of the frame, horsepower and speed in the selector; 2-pole for 30VR, 4-pole for 30VRL
Materials of Construction
Pump casing and upper flange (G version) Cast iron, ASTM A48 Class 35
Outer case Stainless steel, AISI 316
Pump shaft Stainless steel, AISI 329
Impellers, stage housings and diffusers Stainless steel, AISI 316
Journal sleeve Stainless steel, tungsten carbide
Floating neck ring PTFE
Mechanical seal Silicon carbide, graphite, EPDM, stainless steel
O-rings EPDM
Accessories and Service Parts
Item Listing Use
Complete pump with motor 30VR Vertical Multistage Pump and 30VRL Pump end and Baldor motor, assembled
Motor VR Series Replacement Motor Baldor NEMA C-face motors for VR and VRL
Companion flanges VR Series Companion Flange Kit Adapt the round flanges to threaded pipe
Mechanical seal VR Series Mechanical Seal Kit Cartridge seal replacement
Replacement stack 30VR Replacement Stack Rebuild the hydraulics on an existing pump
Repair kits VR Series Repair Kit Motor flanges, brackets, couplings, casings, plugs
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
