Franklin Electric · Pump End

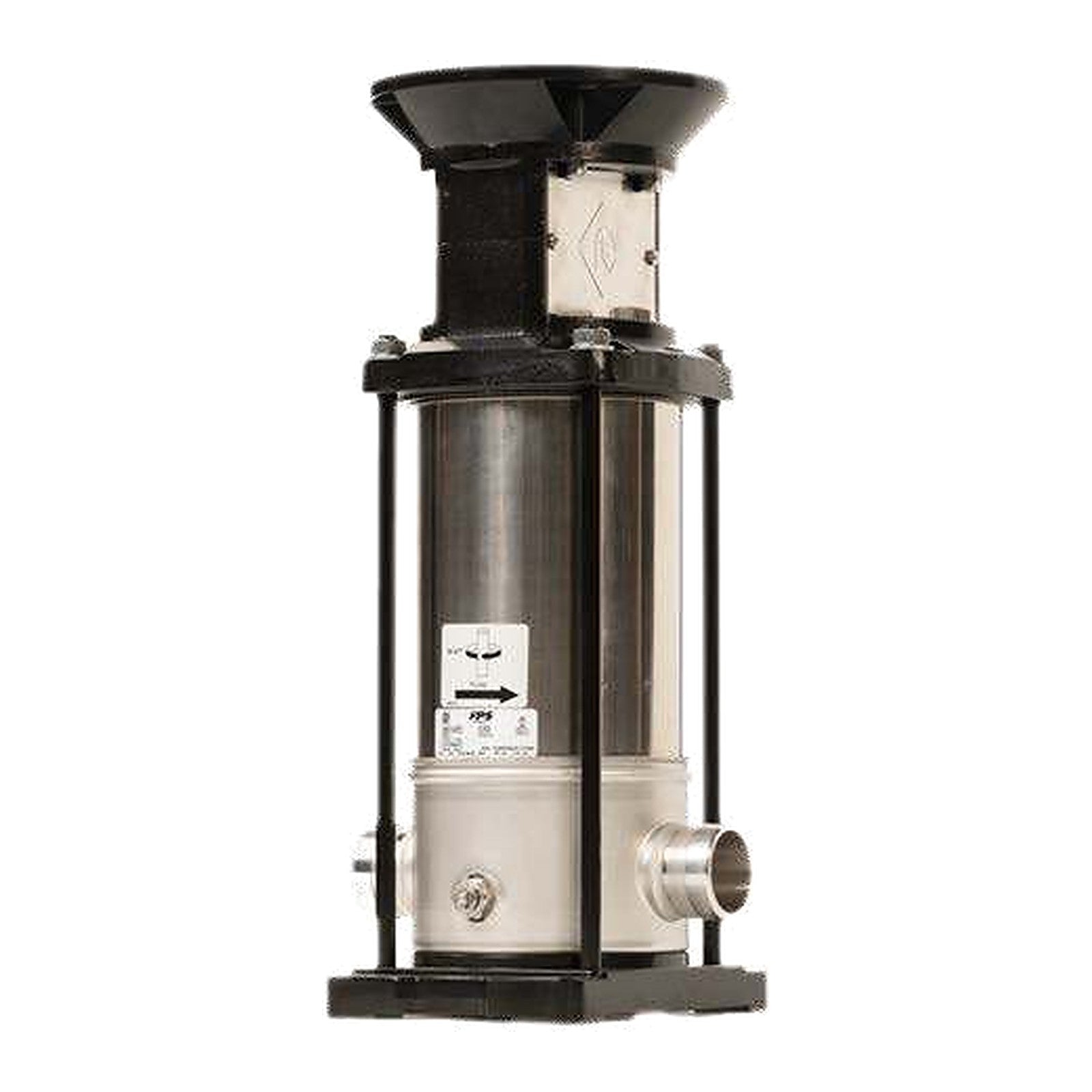

10VR and 10VRL Pump End — No Motor
VR Series pump end without motor for a standard NEMA C-face motor: 10VR (3,600 RPM) and 10VRL (1,800 RPM), shut-off pressures 10-354 PSI.
24-818 ft (10-354 PSI) Max Head · 39-79 GPM Max
No Motor · NEMA C-Face Mount
For 1/3-15 HP Motors
56C to 213-5TC Frames
3,600 or 1,800 RPM
2 in Round Flange, In-Line
316 SS Wetted Parts
Type 1 Cartridge Seal
375 PSI Max Working Pressure
+14 to +248 °F Liquid
NSF/ANSI 61 and 372
39-111 lb Weight
Overview
A complete 10VR or 10VRL pump end — casing, stack, seal and motor mount — without the motor. The pump end carries the thrust load on its own oversized bearing, so it runs on stock NEMA motors in a wide range of ratings and enclosures; special high-thrust motors are not required.
All wetted components are 316 stainless steel (N version).
What Ships and What It Needs to Run
Included: the pump end only: casing, hydraulic stack, cartridge seal and motor mount, without motor.
Motor, companion flanges and starter or drive: ordered separately. The selector shows the motor horsepower and NEMA C-face frame each pump end needs.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
1-Year Franklin Electric Warranty
Covered by Franklin Electric’s limited warranty for 1 year from the date of original purchase by the consumer (VR Series manual 106821101).
Specifications
| Supplied as |
Pump end without motor (casing, stack, seal and motor mount) |
| Speeds |
10VR: 3,600 RPM (2-pole motor); 10VRL: 1,800 RPM (4-pole motor) |
| Motor frames |
56C, 182-4TC, 213-5TC NEMA C-face |
| Motor horsepower |
1/3 to 15 HP by model |
| Connections |
In-line, round flange, 2.00 in inlet and outlet |
| Flange rating |
Round flange on a PN25 body (F version) |
| Casing and hydraulics |
316 stainless steel (N version) |
| Mechanical seal |
Type 1 cartridge seal: graphite / silicon carbide faces, EPDM, stainless steel |
| Liquid temperature |
+14 °F to +248 °F (-10 °C to +120 °C) |
| Rotation |
Clockwise, looking at the pump from the top down |
| Certification |
NSF/ANSI 61 and 372 |
Performance — Will It Do What You Need?
Pick the speed that matches your motor (10VR at 3,600 RPM on a 2-pole motor, 10VRL at 1,800 RPM on a 4-pole motor), then the stage count that gives the pressure you need at your flow. The motor horsepower shown is the size the pump end needs.
10VR (3,600 RPM) standard impellers — pressure at flow (14 models)
10VR standard impellers — pressure in PSI at flow
| Model |
Motor HP |
0 GPM (Shut-off) |
15 GPM |
40 GPM |
60 GPM |
79 GPM (Max) |
| 10VR0200NF1A |
1-1/2 HP |
41 |
40 |
36 |
27 |
16 |
| 10VR0300NF1A |
2 HP |
62 |
61 |
55 |
43 |
25 |
| 10VR0400NF1A |
3 HP |
82 |
81 |
72 |
56 |
32 |
| 10VR0500NF1A |
5 HP |
103 |
103 |
92 |
72 |
43 |
| 10VR0600NF1A |
5 HP |
124 |
124 |
112 |
89 |
53 |
| 10VR0700NF1A |
5 HP |
144 |
144 |
130 |
102 |
61 |
| 10VR0800NF1A |
7-1/2 HP |
165 |
165 |
150 |
118 |
70 |
| 10VR0900NF1A |
7-1/2 HP |
186 |
186 |
167 |
132 |
78 |
| 10VR1000NF1A |
7-1/2 HP |
208 |
208 |
188 |
149 |
89 |
| 10VR1100NF1A |
7-1/2 HP |
228 |
228 |
207 |
163 |
97 |
| 10VR1200NF1A |
10 HP |
249 |
248 |
225 |
177 |
105 |
| 10VR1300NF1A |
10 HP |
269 |
269 |
242 |
191 |
113 |
| 10VR1500NF1A |
10 HP |
312 |
313 |
286 |
227 |
137 |
| 10VR1700NF1A |
15 HP |
354 |
355 |
323 |
255 |
154 |
10VRL (1,800 RPM) standard impellers — pressure at flow (14 models)
10VRL standard impellers — pressure in PSI at flow
| Model |
Motor HP |
0 GPM (Shut-off) |
8 GPM |
20 GPM |
30 GPM |
39 GPM (Max) |
| 10VRL0200NF1A |
1/3 HP |
10 |
10 |
9 |
7 |
4 |
| 10VRL0300NF1A |
1/3 HP |
15 |
15 |
13 |
10 |
6 |
| 10VRL0400NF1A |
1/2 HP |
20 |
20 |
18 |
13 |
8 |
| 10VRL0500NF1A |
1/2 HP |
25 |
25 |
22 |
17 |
10 |
| 10VRL0600NF1A |
3/4 HP |
30 |
30 |
26 |
20 |
11 |
| 10VRL0700NF1A |
3/4 HP |
36 |
36 |
32 |
25 |
15 |
| 10VRL0800NF1A |
1 HP |
41 |
41 |
36 |
28 |
17 |
| 10VRL0900NF1A |
1 HP |
47 |
47 |
42 |
33 |
20 |
| 10VRL1000NF1A |
1 HP |
52 |
52 |
47 |
36 |
22 |
| 10VRL1100NF1A |
1-1/2 HP |
57 |
58 |
52 |
40 |
25 |
| 10VRL1200NF1A |
1-1/2 HP |
62 |
63 |
57 |
44 |
27 |
| 10VRL1300NF1A |
1-1/2 HP |
68 |
68 |
61 |
47 |
29 |
| 10VRL1500NF1A |
1-1/2 HP |
78 |
78 |
70 |
54 |
32 |
| 10VRL1700NF1A |
2 or 3 HP |
89 |
89 |
80 |
62 |
37 |
Digitized from the published curves in the Franklin Electric VR Series Catalog Mi9041 (10VR p. 26 and p. 28; 10VRL p. 74; vector data) and rounded down; feet of head = PSI × 2.31. Each curve was read on the feet scale and checked against the metric scale of the same chart (within 3%). Franklin prints no head or flow table for the VR Series. 10VR curves end at 79 GPM, 10VRL curves at 39 GPM. The 0 GPM column is the shut-off pressure, the most the pump adds to its inlet pressure. Motor HP is the motor Franklin pairs with that pump end. Bold = the last point on that model’s curve. — = beyond the end of that model’s published curve.
Before You Buy — The Limits That Decide the Fit
| Pressure |
Inlet pressure plus the shut-off pressure (0 GPM column) must stay within the 375 PSI rating of the round flange (F version) |
| Suction |
Available NPSH must exceed the pump’s NPSH required at your maximum flow (curve pages in the catalog) |
| Liquid |
Ratings are for clean water, +14 to +248 °F; ask us before ordering for another liquid, viscosity or specific gravity |
| Flanges |
Companion flanges are required to adapt to threaded pipe and are ordered separately |
| Rotation |
Clockwise looking down from the top; check three-phase rotation before running |
| Motor |
A NEMA C-face motor of the frame, horsepower and speed in the selector; 2-pole for 10VR, 4-pole for 10VRL |
Materials of Construction
| Pump casing |
Stainless steel, CF8M / AISI 316 |
| Outer case |
Stainless steel, AISI 316 |
| Pump shaft |
Stainless steel, AISI 316 |
| Impellers, stage housings and diffusers |
Stainless steel, AISI 316 |
| Intermediary sleeve |
Tungsten carbide |
| Floating neck ring |
PPS |
| Mechanical seal |
Silicon carbide, graphite, EPDM, stainless steel |
| O-rings |
EPDM |
