Dresser Style 721 Transition Fitting - Steel to PE, 3-12 in
Dresser Style 721 Transition Fitting - Steel to PE, 3-12 in

Dresser Style 721 Transition Fitting - Steel to PE, 3-12 in

Pipe Size: 3"
PE Density: High Density

Product variant with selected options does not exist!
$746.57
SKU: 072103PE110H
Weight : 12.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
DRESSER · GAS TRANSITION FITTING

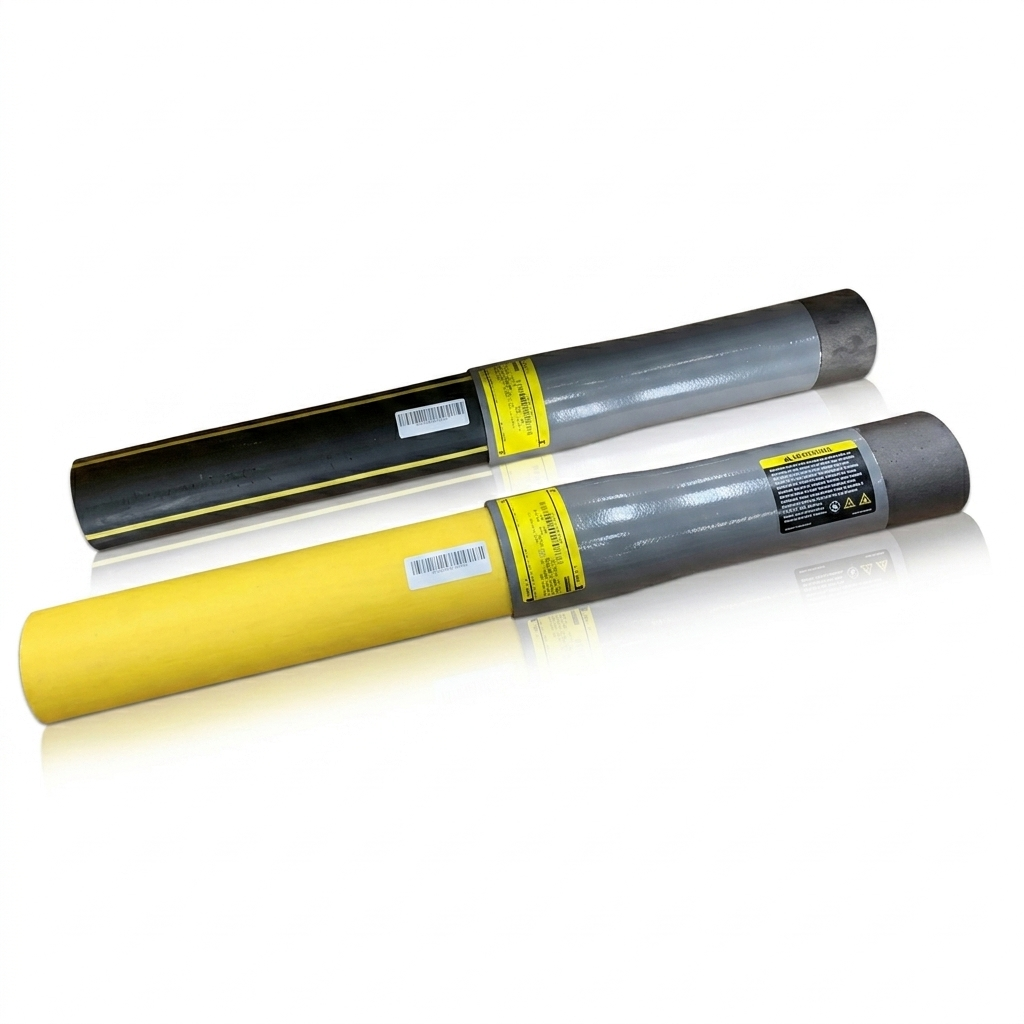

Style 721
Factory-qualified steel-to-PE transition fittings for gas distribution mains and services, 3 in to 12 in, in SDR11 PE4710 (HD) and PE2708 (MD).
3 in – 12 in
SDR11
PE4710 & PE2708
ASTM F1973 Cat 1
ASTM F2897 Traceable
Overview

The Dresser Style 721 makes a fast, trouble-free transition from steel to polyethylene (PE) gas pipe, fully qualified to ASTM F1973 Category 1. The steel body is coated with Dresser ALCLAD fusion-bonded epoxy and carries a 2 in layback for field welding, and the weld end ships factory-beveled to the 30–37.5° industry standard.

A monolithic body design simplifies traceability — the heat code is stamped in the tailpiece and ASTM F2897 traceability information is listed on each fitting. Fittings are offered in High Density PE4710 and Medium Density PE2708, standard in SDR11, with other dimension ratios available on request.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Sizes, Material Grade & Part Numbers
Nominal Size Pipe OD PE Density Pipe SDR Part No.
3 in 3.500 in PE4710 (HD) SDR11 072103PE110H
3 in 3.500 in PE2708 (MD) SDR11 072103PE110M
4 in 4.500 in PE4710 (HD) SDR11 072104PE110H
4 in 4.500 in PE2708 (MD) SDR11 072104PE110M
6 in 6.625 in PE4710 (HD) SDR11 072106PE110H
6 in 6.625 in PE2708 (MD) SDR11 072106PE110M
8 in 8.625 in PE4710 (HD) SDR11 072108PE110H
8 in 8.625 in PE2708 (MD) SDR11 072108PE110M
12 in 12.750 in PE4710 (HD) SDR11 072112PE110H
12 in 12.750 in PE2708 (MD) SDR11 072112PE110M

Select the nominal pipe size and PE density (HD PE4710 or MD PE2708) from the dropdowns. Standard fittings are SDR11; other dimension ratios are available on request. Each fitting is heat-code stamped for ASTM F2897 traceability.

Key Features
  • ASTM F1973 Category 1 — fully qualified steel-to-PE transition for gas distribution.
  • Dresser ALCLAD epoxy — fusion-bonded coating on the steel body, with a 2 in layback for field welding.
  • Factory-beveled weld end — 30–37.5° industry-standard bevel, ready to weld out of the box.
  • Monolithic body — single-piece construction with the heat code stamped in the tailpiece.
  • ASTM F2897 traceability — traceability information listed on every fitting.
  • HD and MD options — PE4710 and PE2708, standard SDR11, other DRs on request.
Specifications
Specification Value
Qualification ASTM F1973 Category 1
Traceability ASTM F2897; heat code stamped in tailpiece
PE grades PE4710 (High Density), PE2708 (Medium Density)
Pipe SDR SDR11 standard; other dimension ratios on request
Steel-end coating Dresser ALCLAD fusion-bonded epoxy, 2 in layback
Weld-end bevel 30–37.5° (factory-beveled)
Nominal sizes 3, 4, 6, 8 and 12 in
Service Natural gas / PE distribution mains and services
Applications

Steel-to-PE transitions on natural gas distribution mains and services where a qualified, traceable, weld-ready fitting is required.

Before You OrderConfirm nominal size, PE density (HD PE4710 vs MD PE2708) and pipe SDR against your system. Standard build is SDR11; specify if another dimension ratio is required.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Style 721 Transition Fitting Spec Sheet
Videos

Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
