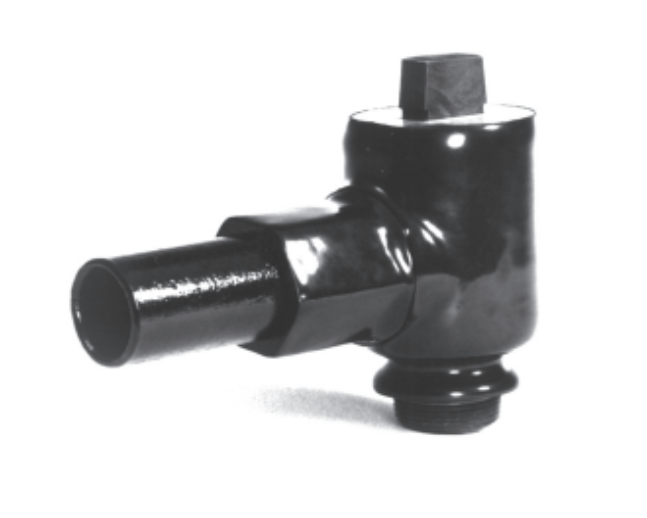

Dresser Style 575 Angle Ball Valve - 1-1/4 in MIPT x 1-1/8 in OD PE Service Tee, Gas - 0575-0001-001

$720.61
SKU: 0575-0001-001
Weight : 3.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Angle Valve
Style 575 Angle Ball Valve
Angle ball valve, 1-1/4 in MIPT x 1-1/8 in OD PE, for gas service tees.
125 PSI Max Working Pressure
Ductile Iron Body
90 Degree Operation
Natural Gas Service
3 lb Weight
Overview

The Dresser Style 575 pairs a ductile iron body with a high-strength engineered plastic plug for low torque, quarter-turn operation and positive shutoff.

Application: Gas service tees and service line shutoff.

  • Quarter-turn operation
  • Dresser part number 0575-0001-001
What Ships and What It Needs to Run

Included: valve, assembled.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Rated to 125 PSI on natural gas.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015). The rating on the product label is the actual rating of each part.

Installation Notes
  • Mark the pipe and stab it into the fitting to the full stab depth.
  • On PE pipe, install the correct-SDR Dresser insert stiffener (or one qualified to DOT 192.283(b)) in every PE pipe end.
  • Anchor the pipe joint wherever pull-out can occur.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Anchor the joint wherever pullout could occur from forces other than line pressure. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
