Dresser Style 50 Split Repair Sleeve - Cast Iron Gas Main

Build: Repair Sleeve, Less Vent
Nominal Size - OD: 6 in - 6.90 in OD
Branch - Part No.: 0050-0029-003

Product variant with selected options does not exist!
$17,660.72
SKU: 0050-0029-003
Weight : 120.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Gas Repair Sleeve
Style 50 Split Repair Sleeve
Split repair sleeve for cast iron gas mains, 4 in to 24 in, 100 PSI.
100 PSI MAOP
Cast Iron Gas Mains
Natural Gas Service
4 in to 24 in
117-715 lb Weight
Overview

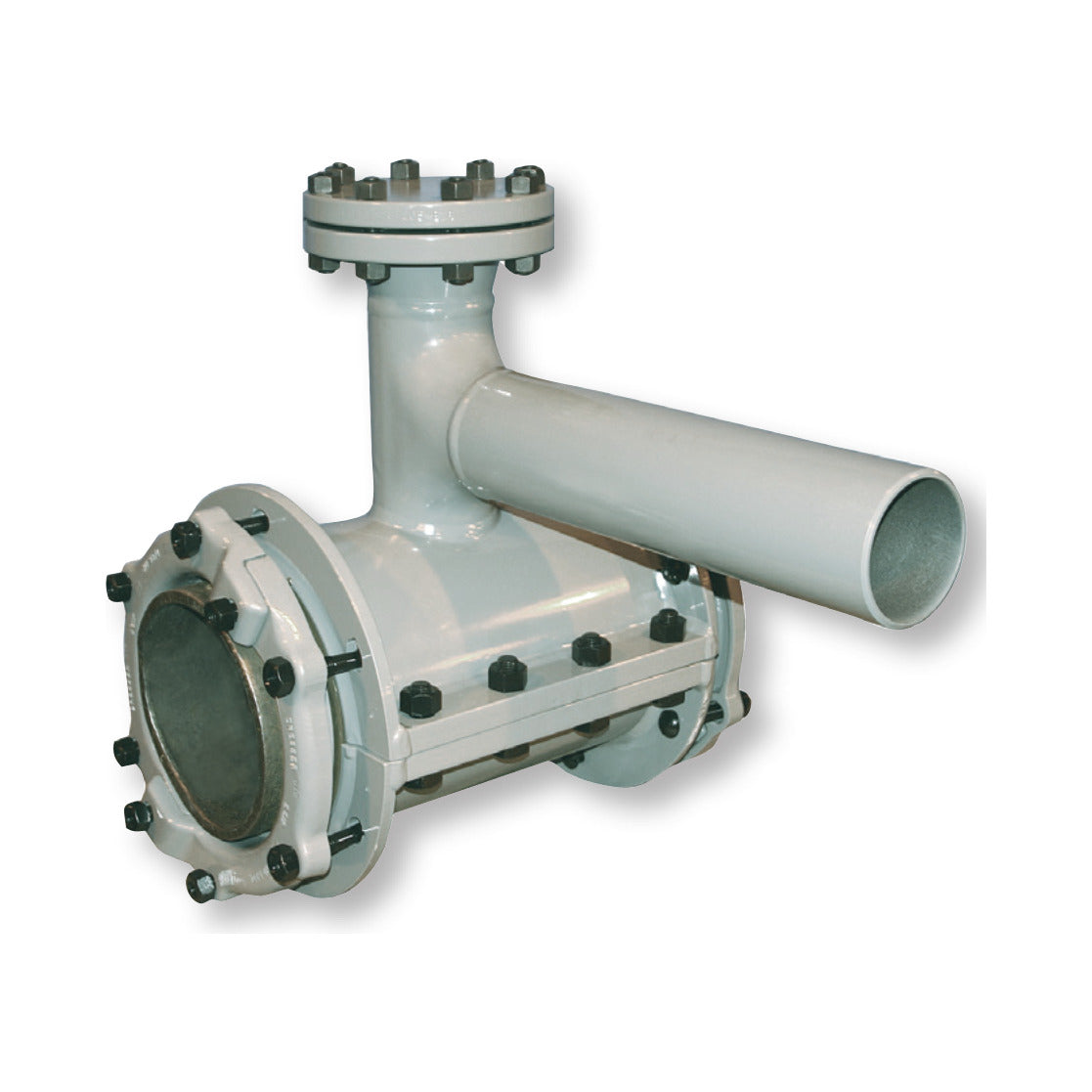

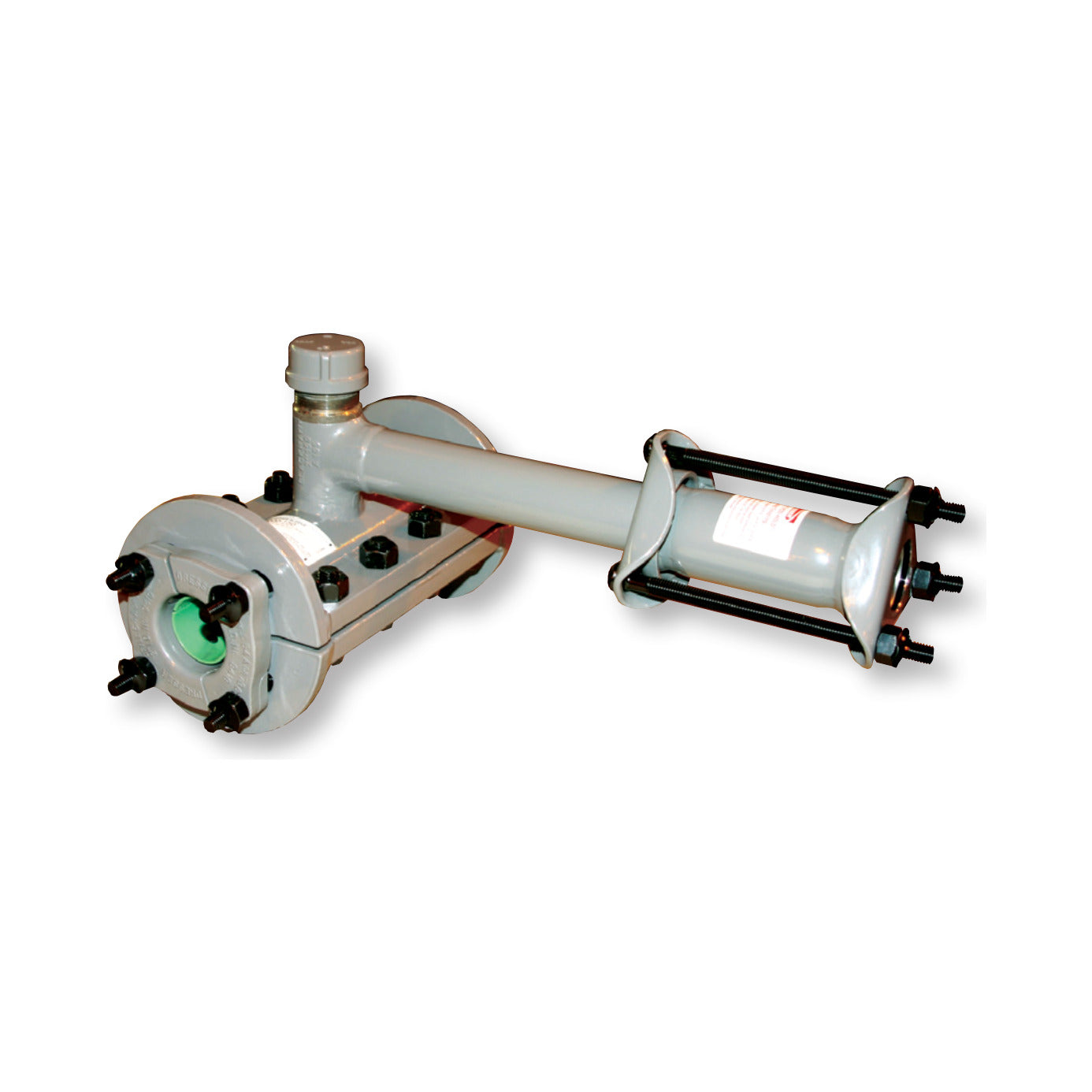

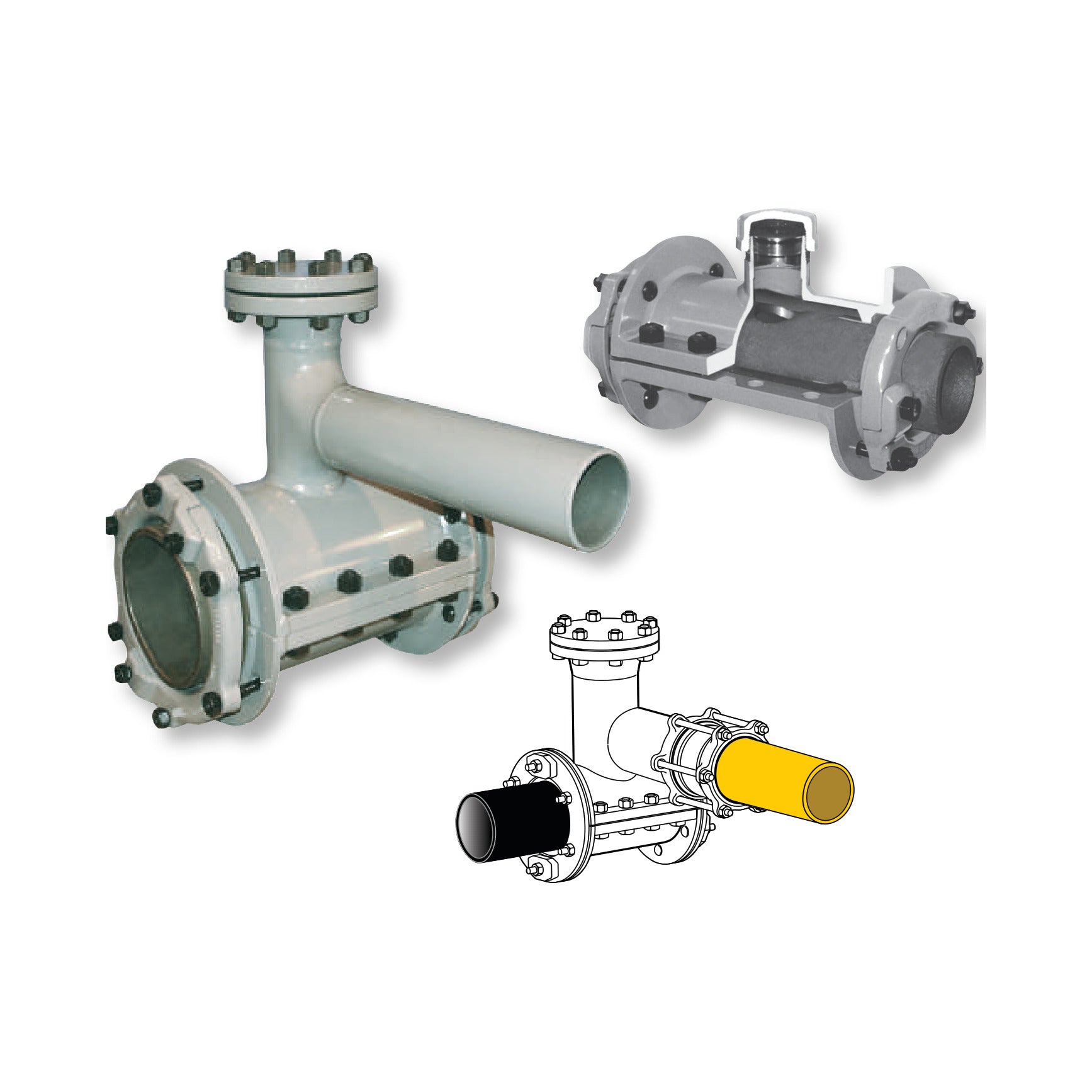

The Dresser Style 50 split sleeve encloses a leaking cast iron joint or pipe section. It comes as a plain repair sleeve or with a branch outlet, LS-2 fitting or Blackhawk fitting for a tap through the sleeve.

Application: Cast iron gas main repair and tapping.

  • Insulated builds available
  • Branch builds for taps through the sleeve
What Ships and What It Needs to Run

Included: sleeve halves, gaskets, bolts and nuts.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

100 PSI maximum allowable operating pressure, all sizes.

Source: Dresser Gas Repair Products Catalog. The rating on the product label is the actual rating of each part.

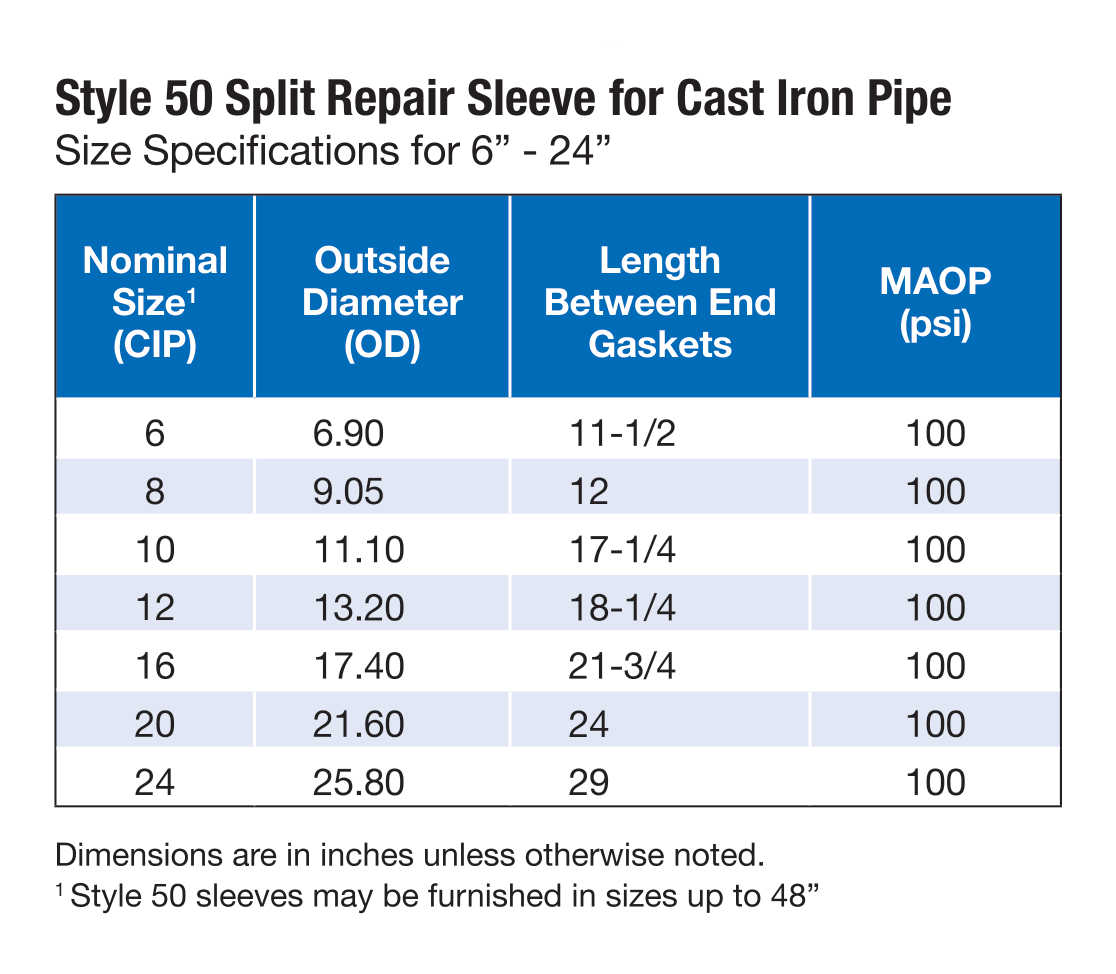

Sizes
Nominal (CIP) Pipe OD Length between end gaskets MAOP
6 in 6.90 in 11-1/2 in 100 PSI
8 in 9.05 in 12 in 100 PSI
10 in 11.10 in 17-1/4 in 100 PSI
12 in 13.20 in 18-1/4 in 100 PSI
16 in 17.40 in 21-3/4 in 100 PSI
20 in 21.60 in 24 in 100 PSI
24 in 25.80 in 29 in 100 PSI

Source: Dresser Gas Repair Products brochure (NGS DPS.003). Style 50 sleeves are made to 48 in on request.

Installation Notes
  • Mark the pipe and stab it into the fitting to the full stab depth.
  • Anchor the pipe joint wherever pull-out can occur.
  • Read the Dresser installation instructions and warnings before installing.

Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.

Before You Order. Confirm the cast iron OD and the branch build. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
