Dresser Quick-Cam Repair Clamp All Stainless with Outlet
Dresser Quick-Cam Repair Clamp All Stainless with Outlet

Dresser Quick-Cam Repair Clamp Ductile Lug with Outlet

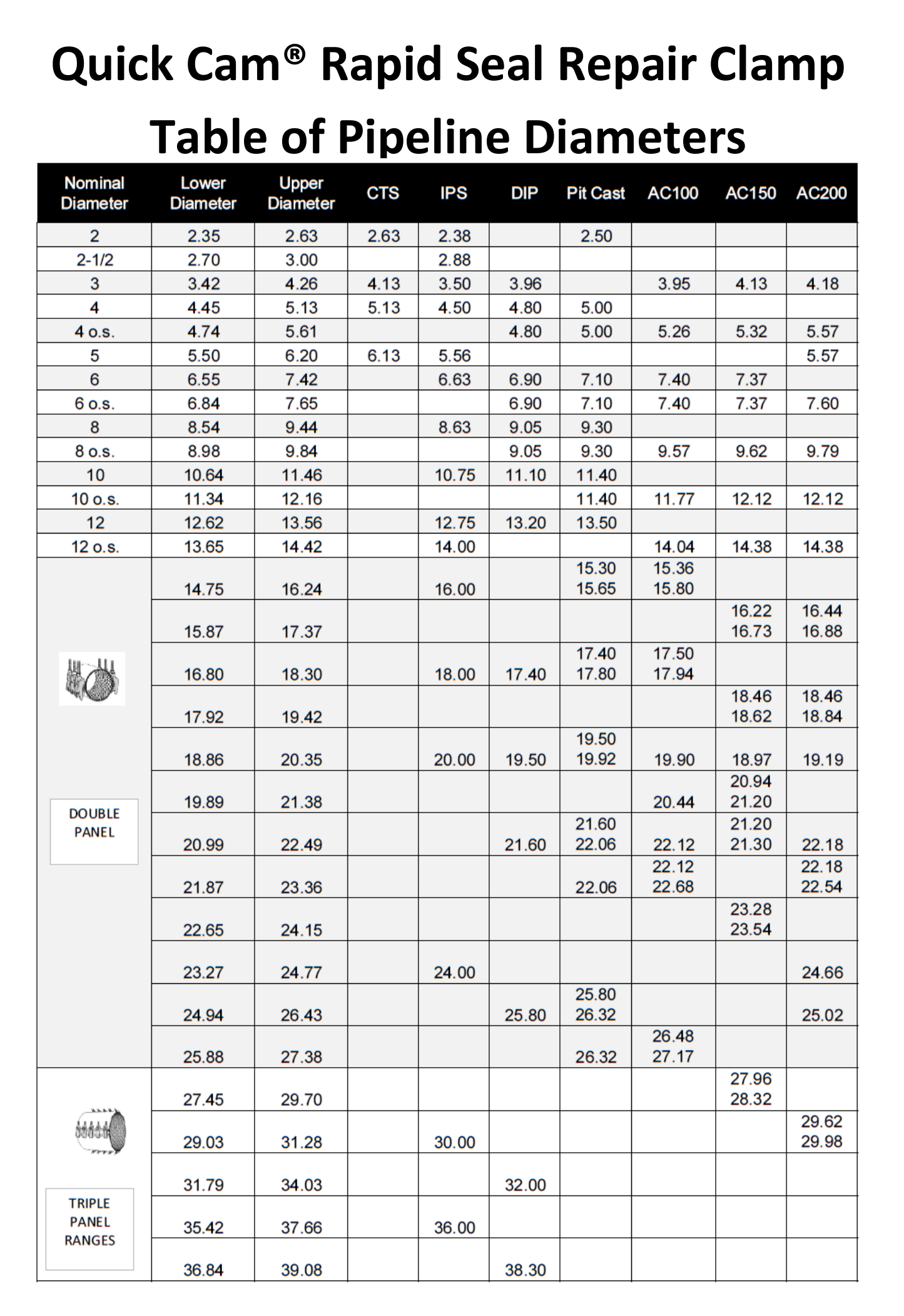

Pipe Size & OD Range: 4" (4.45-4.84" OD)
Clamp Width: 7-1/2"
Outlet Size & Type: 1-1/2" NPT

Product variant with selected options does not exist!
$852.34
SKU: QCRD-07-0484-501EX-N
Weight : 15.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description

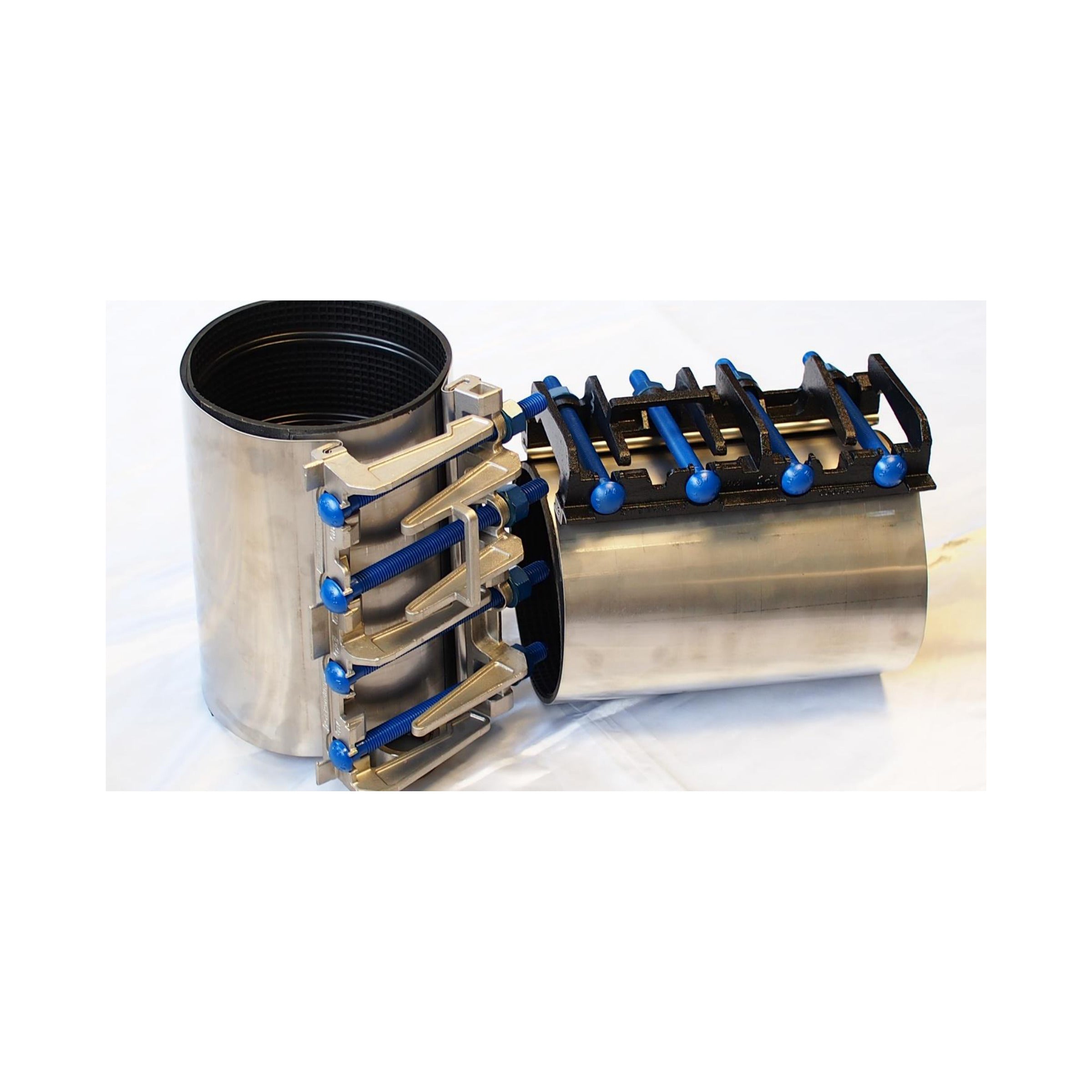

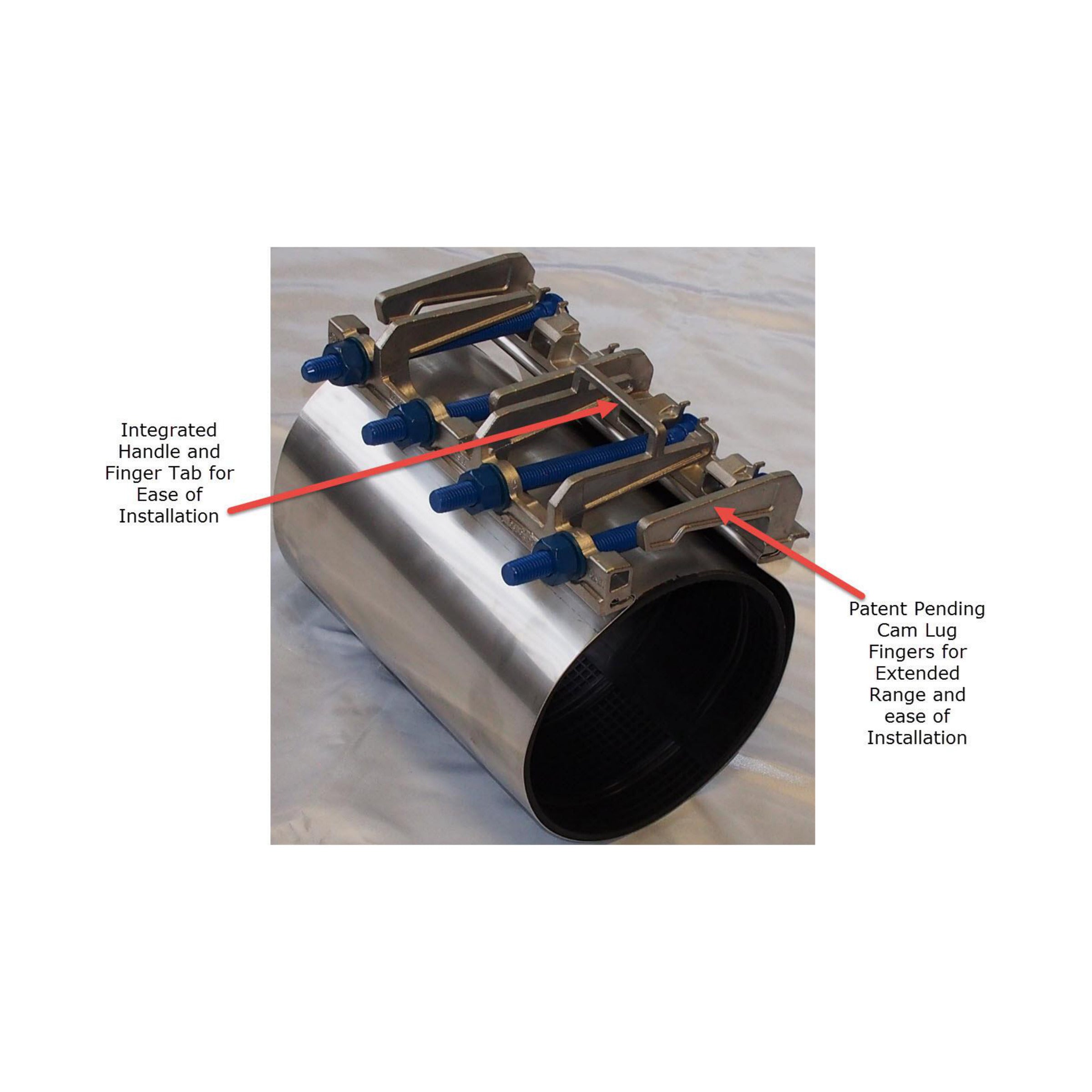

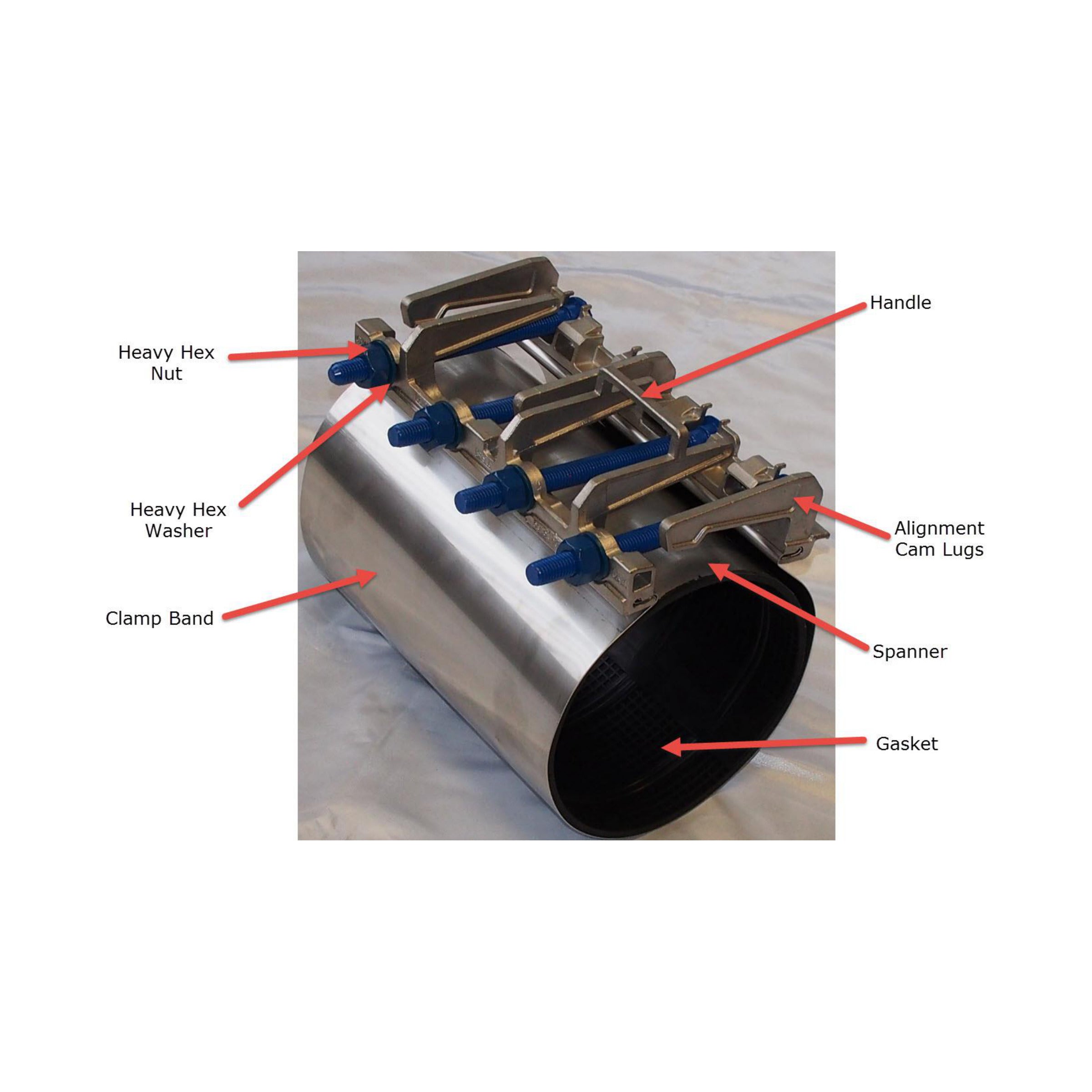

Dresser Quick-Cam Repair Clamp - Ductile Lug with Outlet by Dresser Utility Solutions.

  • Repair clamp with built-in tapping outlet — combines repair and service tap functions
  • Ductile iron lugs / Carbon Steel Coated bolts
  • Pipe sizes 4" through 12"
  • Outlet sizes: 1/2", 3/4", 1", 1-1/2", 2"
  • Outlet types: CC (Corp Stop) or NPT (National Pipe Thread)
  • Clamp widths: 7-1/2", 10", 12", 15", 20", 24", 30"
  • Select Pipe Size, Clamp Width, and Outlet Size & Type from dropdowns
  • Available in BOTH Wide Range and Regular Range tolerance versions
Brochure

Quick-Cam Repair Clamp Brochure

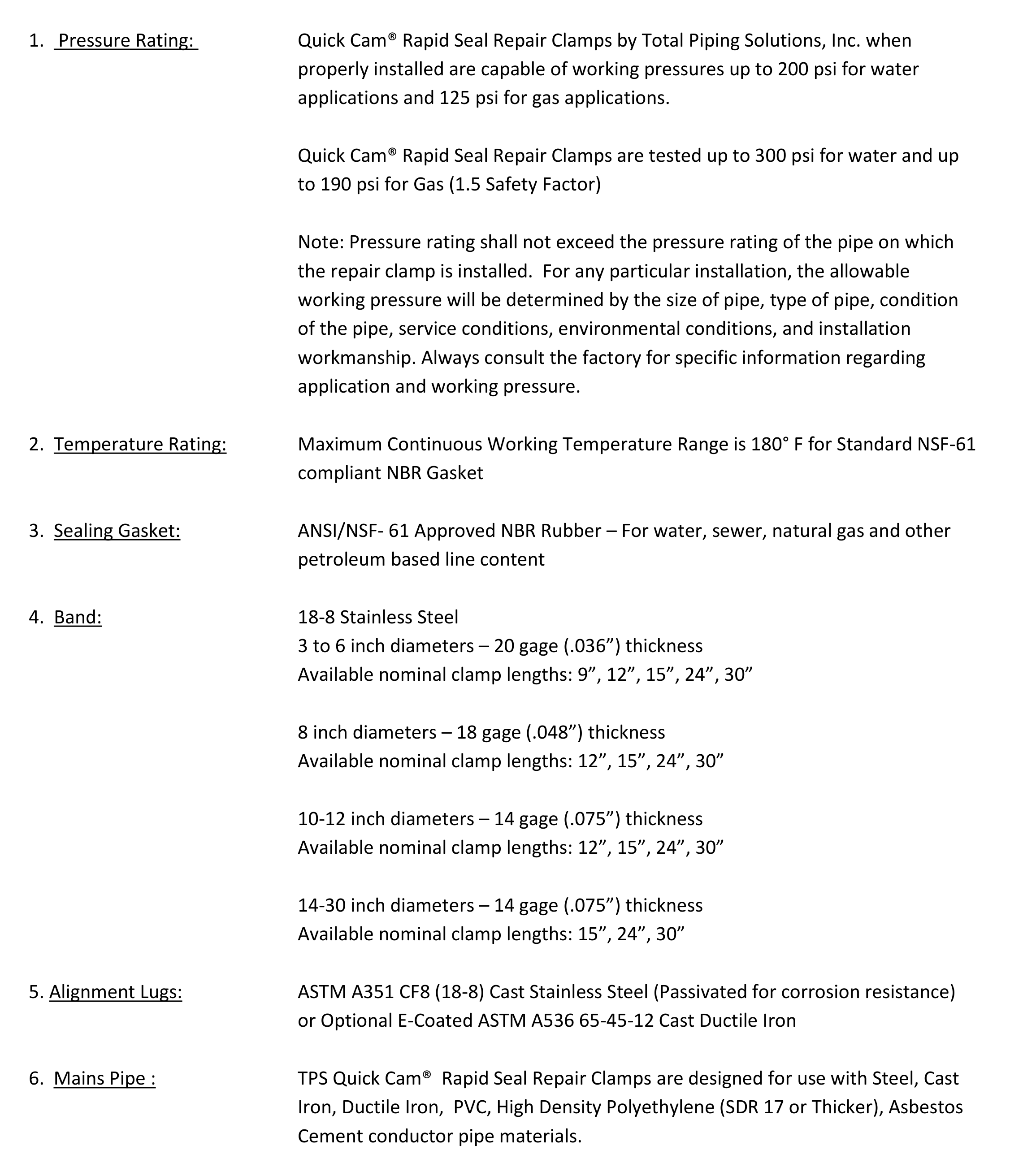

Technical Specifications

Quick-Cam Wide Range Repair Clamp Technical Specifications

Installation Instructions

Quick-Cam Repair Clamp Installation Instructions
