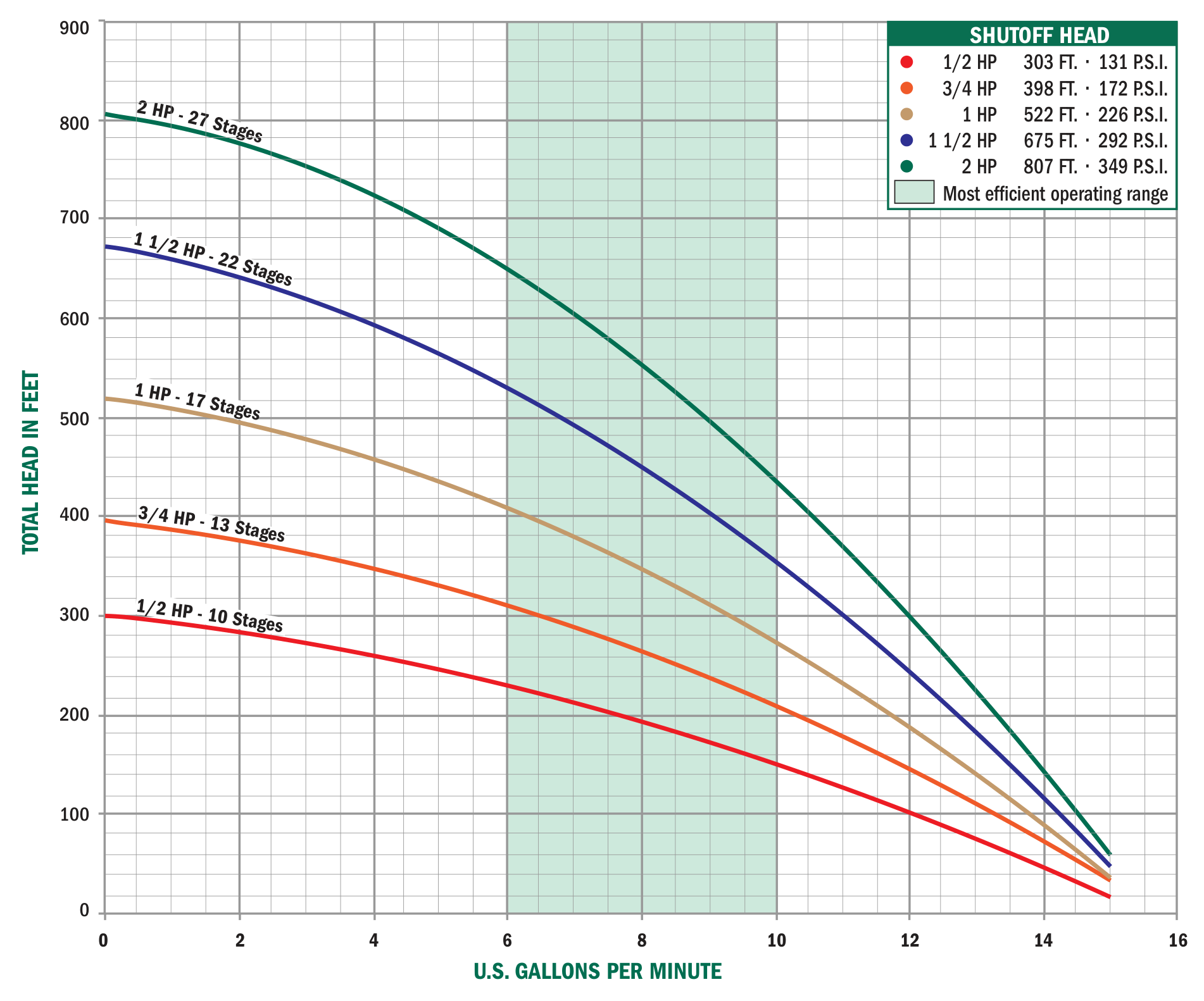

Baker offers a full line of stainless steel submersible pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. These submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 gallons per minute (GPM). Other features include discharge head with a built-in check valve, and stainless steel shaft and coupling.
All Stainless Steel Pumps come with a 1 1/4" discharge and sizes range from 1/2 to 2 horsepower (HP). Two wire models up to 1 1/2 horsepower (HP) or three wire models up to 2 horsepower (HP).
| Two Wire Single Phase | |||||
|---|---|---|---|---|---|
| Part No. | Model No. | HP | Stages | Volt | Wt. |
| 6630-255 | 24050V2A | 1/2 | 10 | 115 | 25 |
| 6630-254 | 24050V2 | 1/2 | 10 | 230 | 25 |
| 6630-261 | 24075V2 | 3/4 | 13 | 230 | 33 |
| 6630-265 | 24100V2 | 1 | 17 | 230 | 40 |
| 6630-269 | 24150V2 | 1 1/2 | 22 | 230 | 44 |
| Three Wire Single Phase | |||||
|---|---|---|---|---|---|
| Part No. | Model No. | HP | Stages | Volt | Wt. |
| 6630-257 | 24050V3A | 1/2 | 10 | 115 | 29 |
| 6630-256 | 24050V3 | 1/2 | 10 | 230 | 29 |
| 6630-262 | 24075V3 | 3/4 | 13 | 230 | 32 |
| 6630-266 | 24100V3 | 1 | 17 | 230 | 37 |
| 6630-270 | 24150V3 | 1 1/2 | 22 | 230 | 43 |
| 6630-273 | 24200V3 | 2 | 27 | 230 | 51 |
| Three Wire Three Phase | |||||
|---|---|---|---|---|---|
| Part No. | Model No. | HP | Stages | Volt | Wt. |
| 6630-409 | 24150V3Z | 1 1/2 | 22 | 230 | 41 |
| 6630-410 | 24200V3Z | 2 | 27 | 230 | 49 |
