A.Y. McDonald · Submersible Well Pump
24000 Series L - 15 GPM
Stainless Steel 4 in submersible pump on a Baker motor, 1/2 to 5 HP, 17 builds.
93-700 ft at 15 GPM
1/2-5 HP
115V or 230V 1Ph · 230V 3Ph
1084 ft Max Head (Shut-off)
1 1/4 in NPT Discharge
Built-In Check Valve
Baker 4 in Stainless Steel Motor
Drinking Water ANSI/NSF 61
3 3/4 in Dia x 19.8-58.5 in L
23.5-88 lb Weight
What Ships and What It Needs to Run

Included: the pump end and Baker 4 in motor with leads, assembled as one complete pump, with the internal check valve and a grounded lead on the motor.

Two-wire builds: the controls are in the motor, so no control box is needed.

Three-wire single-phase builds: the control box is included.

Three-phase builds: the starter kit is included.

Drop cable and splice kit: sized to your setting depth and ordered separately.

Overview

The 24000 Series is Baker’s stainless steel 4 in submersible pump, built in six flow classes from 5 to 25 GPM and powered by Baker stainless steel motors. The discharge casting, check valve, bowls, shell, shaft, cable guard and NEMA motor bracket are stainless steel; the impellers are Noryl.

Each pump carries a code with its model, date of manufacture, motor HP and GPM, so a replacement can be matched in the field.

This listing is the L - 15 GPM class: 1/2 to 5 HP, 17 builds, two-wire up to 1 1/2 HP and three-wire up to 5 HP, all with a 1 1/4 in NPT discharge.

Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
5-Year A.Y. McDonald Warranty in Potable Water

Covered for 5 years from the date of manufacture in potable water applications, and 3 years from the date of manufacture in other applications, under A.Y. McDonald’s published terms for Baker submersible motors and assembled submersible pumps (pump ends up to 25 GPM for the 5-year term, up to 80 GPM for the 3-year term).

Room to Grow

One pump per well. Need more head later? Step up in horsepower within the L - 15 GPM class. Need more flow? Move to a higher flow class of the 24000 Series, which runs to 25 GPM; every class uses the same 1 1/4 in NPT discharge, so the drop pipe connection stays the same.

Shared Specifications
Included Pump end, motor and leads; control box on three-wire single-phase builds; starter kit on three-phase builds
Discharge 1 1/4 in NPT (female)
Pump diameter 3 3/4 in with cable guard
Well size 4 in and larger
Check valve Built in
Motor Baker 4 in stainless steel submersible motor, NEMA 4 in flange, IP68, insulation class F
Motor temperature rating 95°F
Cooling flow past the motor 1.0 ft/sec at 95°F
Maximum starts 20 per hour
Maximum operating depth (motor) 984 ft
Voltage tolerance +6% / -10%
Certification Drinking Water ANSI/NSF 61
Frequency 60 Hz
App connection None; the pump runs from its own controls

Motor data: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 121-128.

Models & Performance — Will It Do What You Need?

Find your horsepower in the row, then read across. Total head is the lift from the pumping water level to the discharge, plus the pressure you want at the tank (2.31 ft for every PSI), plus friction in the drop pipe.

Total head in feet · curves end at 24.5 GPM

HP 0 GPM (Shut-off) 5 GPM 12.5 GPM 17.5 GPM 22.5 GPM
1/2 HP 152 ft 142 ft 110 ft 73 ft 23 ft
3/4 HP 211 ft 200 ft 156 ft 104 ft 34 ft
1 HP 299 ft 286 ft 223 ft 150 ft 51 ft
1 1/2 HP 367 ft 351 ft 274 ft 183 ft 62 ft
2 HP 519 ft 499 ft 389 ft 261 ft 89 ft
3 HP 645 ft 615 ft 482 ft 326 ft 110 ft
5 HP 1084 ft 1026 ft 814 ft 559 ft 188 ft

Read from the published curve in the Pumps by Baker catalog (Sept 2025, rev 3/26), p. 74, digitized and rounded down, at the flows nearest 20%, 50% and 75% of the curve’s 24.5 GPM end. 0 GPM is the printed shut-off. For the 1/2 HP curve, the published curve and A.Y. McDonald’s printed output tables disagree by about 16 ft on average; the head figures are read from the curve, and the output tables below are the printed figures. The last column is the last flow every curve reaches; the curve ends are named in the table title.

Output in GPM at 30 PSI (switch cut-in), by depth to water · 1/2–3/4 HP

HP 25 ft 50 ft 75 ft 100 ft 125 ft
1/2 HP 15.4 11.7 — 9.1 6.1
3/4 HP 18.6 16.5 14.2 11.3 7.3

Output in GPM at 50 PSI (switch cut-out), by depth to water · 1/2–3/4 HP

HP 25 ft 50 ft 75 ft 100 ft 125 ft
1/2 HP — — 6.6 — —
3/4 HP 14.6 11.8 8.1 — —

Output in GPM at 30 PSI (switch cut-in), by depth to water · 1–5 HP

HP 25 ft 50 ft 100 ft 150 ft 200 ft 250 ft 300 ft
1 HP 20.6 19.4 — 13.1 8.2 — —
1 1/2 HP 21.4 20.4 18.3 15.8 12.9 9.1 —
2 HP — 21.8 20.4 18.9 17.3 15.5 13.5
3 HP — 22.4 21.3 20.2 19.0 17.7 16.3
5 HP — 23.3 22.7 22.2 21.6 20.9 20.3

Output in GPM at 50 PSI (switch cut-out), by depth to water · 1–5 HP

HP 25 ft 50 ft 100 ft 150 ft 200 ft 250 ft 300 ft
1 HP 18.2 16.8 13.4 8.7 — — —
1 1/2 HP 19.5 18.4 16.0 13.2 9.5 — —
2 HP — 20.5 19.0 17.4 15.7 13.7 11.3
3 HP — 21.4 20.3 19.1 17.8 16.4 14.9
5 HP — 22.8 22.2 21.6 21.0 20.3 19.7

Output tables as printed in the Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 73-74, at the 30 and 50 PSI rows. Riser-pipe friction is not included (manufacturer note): add it for long or small drop pipe. — marks a point A.Y. McDonald does not print for that horsepower. Left blank as apparent misprints (printed out of sequence; confirm with the factory): 1/2 HP, 30 PSI, 75 ft: printed 5.8; 1/2 HP, 50 PSI, 25 ft: printed 7.0; 1/2 HP, 50 PSI, 50 ft: printed 9.5; 1 HP, 30 PSI, 100 ft: printed 6.6.

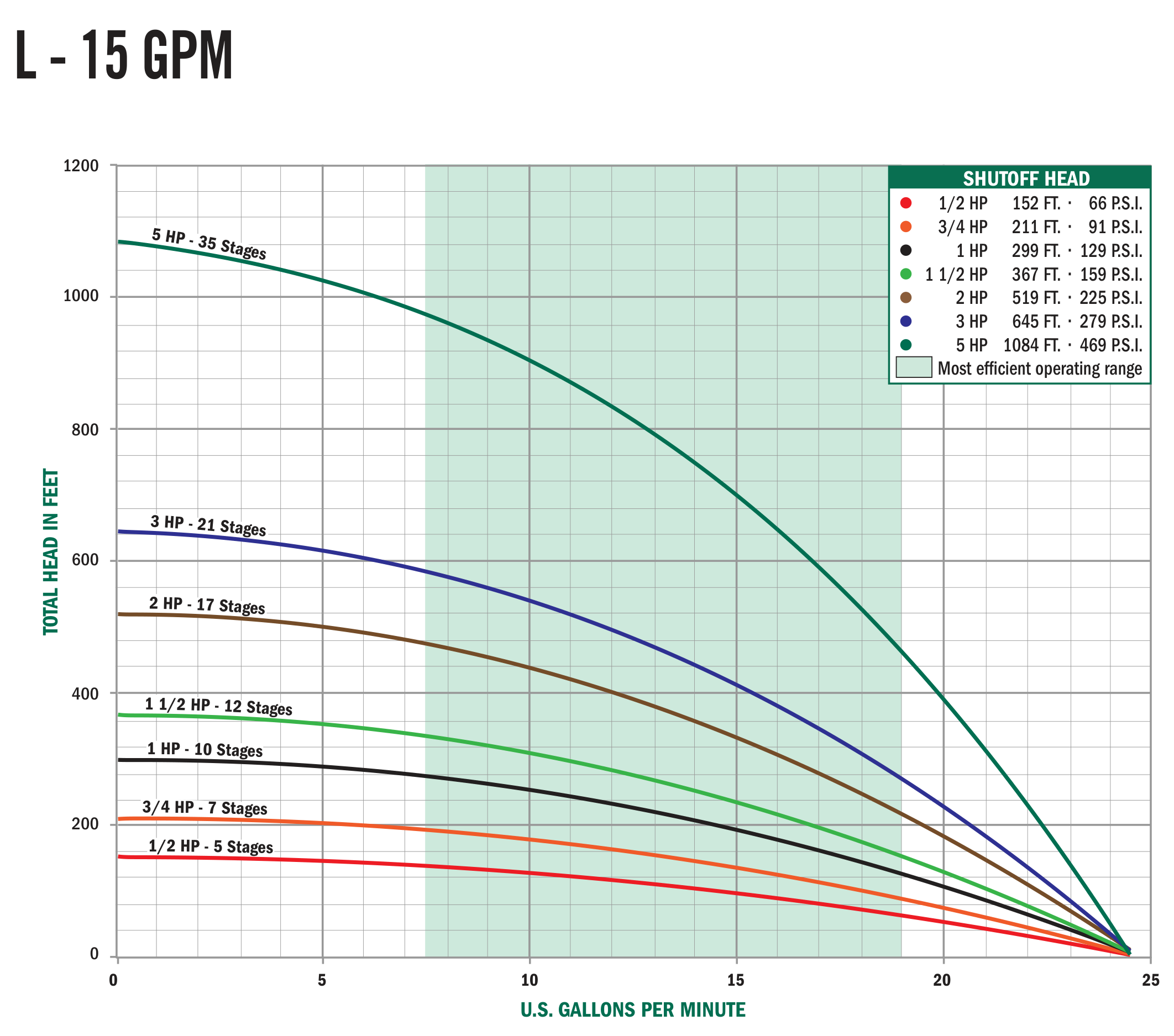

Best operating range: the published curve shades the most efficient operating range for each model; the catalog prints no figures for it. The curve is in the image gallery.

Before You Buy — The Limits That Decide the Fit
Well size 4 in casing and larger; the pump is 3 3/4 in diameter with the cable guard
Power Two-wire builds need no control box (the controls are in the motor); three-wire single-phase builds include their control box; three-phase builds include their starter kit. Match voltage and phase to your service; single-phase and three-phase builds are not interchangeable
Water temperature Motor rated to 95°F
Motor cooling 1.0 ft/sec of water flow past the motor at 95°F
Starts Up to 20 starts per hour
Setting depth Motor rated to 984 ft operating depth
Riser friction Not included in the output tables; add it before choosing
Application Water wells; the manufacturer excludes use in swimming areas
Pairing One pump per well
Materials of Construction
Discharge head Stainless steel 304, 1 1/4 in NPT discharge
Motor adapter Stainless steel 304, NEMA standard
Check valve Stainless steel 304
External shell Stainless steel 304, polished
Impellers Noryl
Diffusers Polycarbonate
Bearing Polyacetal
Shaft coupling Stainless steel 304, NEMA standard
Strainer Thermoplastic
Shaft Stainless steel 304
Cable guard Stainless steel 304

Materials as printed by the manufacturer. Source: Pumps by Baker catalog (Sept 2025, rev 3/26), pp. 65-66.
