Style 377 Wide Range All Stainless Service Saddle
All 304 Stainless Steel, Double Stud, 7-1/2 in Wide Band — Wide Range, Designed for PVC, Fits Other Pipe Types
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
304 Stainless Band, 7-1/2 in Wide
304 Stainless Double Studs, Coated Nuts
1/2 to 2 in CC and NPT Taps
NSF/ANSI 61 and 372
AWWA C230
4.45-14.39 in Pipe OD
7-11 lb Weight
Description

The Smith-Blair Style 377 is a wide range, all 304 stainless steel service saddle with two studs. Each size covers a broad OD range within its nominal size, so one saddle fits several pipe types and cuts inventory. Designed for PVC and suited to steel, ductile iron, cast iron, asbestos cement and other pipe, its 7-1/2 in band gives even sealing and pipe support without crushing action.

The outlet gasket is bonded into the band, with a hydro-mechanical lip that seals tighter as line pressure rises, and a keeper bar helps pull the band around the pipe and close it during installation. Sizes run 4 to 12 in with CC outlets from 1/2 to 2 in and NPT outlets from 3/4 to 2 in; for larger diameters Smith-Blair points to the Style 372.

Application: new service taps and restoring damaged or torn-out service connections on mixed pipe inventories, 4 to 12 in.

Key Features

  • Working pressure up to 150 PSI, depending on size, application and pipe condition
  • Wide range: one saddle covers multiple pipe types within a nominal size
  • All 304 stainless construction for corrosion resistance; even sealing without crushing action
  • Outlet gasket bonded into the band, with a hydro-mechanical lip that seals tighter under pressure
  • Meets applicable portions of AWWA C230; certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

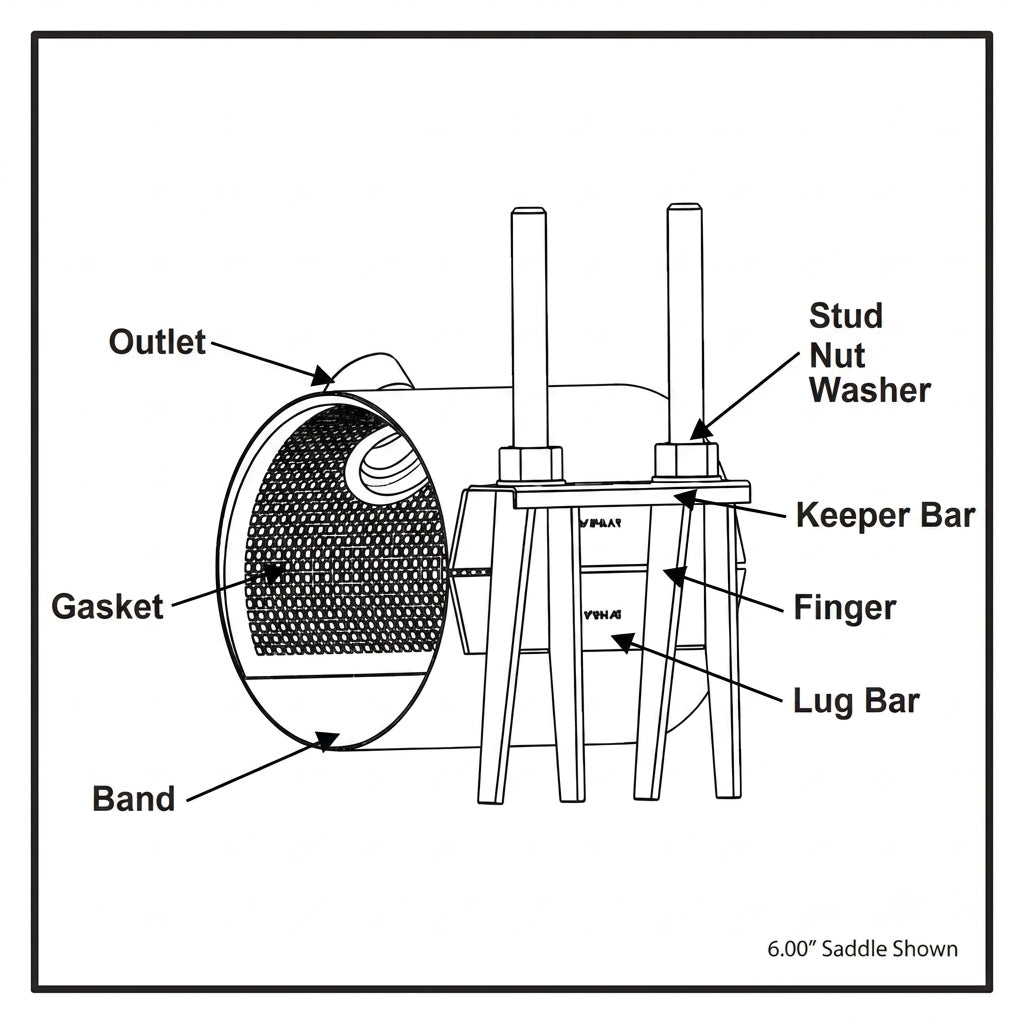

Included: the 304 stainless band with its bonded Nitrile outlet gasket, lug bar, fingers and keeper bar, two welded 304 stainless studs, fluoropolymer-coated nuts and washers.

On HDPE pipe: spring washers are required on HDPE DR17 or thicker; they are a separate option, not included.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 150 PSI. depending on size, application and pipe condition. Smith-Blair notes the allowable pressure also depends on pipe type, service conditions and installation workmanship.

Materials Specifications
Band Type 304 stainless steel per ASTM A240, 19 ga, 7.50 in wide
Fingers Type 304 stainless steel per ASTM A240, 7 ga
Lug bar Type 304 stainless steel per ASTM A240, 10 ga
Keeper bar Type 304 stainless steel per ASTM A240, 14 ga, solution annealed
Outlet Type 304 stainless steel per ASTM A276
Studs (2) Type 304 stainless steel per ASTM A276, epoxy-coated threads, 5/8-11 UNC x 8.50 in, welded to the lug bar
Nuts Type 304 stainless steel Gr. 8 per ASTM A194, fluoropolymer coated, heavy hex
Washers Type 304 stainless steel per ASTM A240, 5/8 in Type A plain
Gasket Nitrile (Buna-N) per ASTM D2000, bonded into a recess in the band; -20°F to +180°F

Materials subject to change by the manufacturer.

Pipe Applications

Carbon steel, stainless steel, ductile iron, cast iron, asbestos cement, PVC, copper and aluminum, plus HDPE DR17 or thicker with spring washers. For other pipe types Smith-Blair asks that its engineering group be consulted.

Sizes
Nominal size - pipe OD NPT taps CC taps
4 in - 4.45-5.14 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
4 in - 4.75-5.45 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
6 in - 6.56-7.36 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
6 in - 6.83-7.63 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
8 in - 8.54-9.34 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
8 in - 8.99-9.79 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
10 in - 10.64-11.54 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
10 in - 11.34-12.24 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
12 in - 12.62-13.57 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
12 in - 13.44-14.39 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in

Choose the size and pipe OD in the first option and the tap in the second; the part number shows in the last option.

Installation Notes
  • Confirm the saddle OD range and tap match the pipe before starting; on HDPE (DR17 or thicker) fit the spring washers.
  • Clean the pipe where the outlet gasket will seat, removing scale, dirt or debris.
  • Wrap the band around the pipe with the outlet at the tap location; the keeper bar helps pull the band around the pipe and close it.
  • Tighten the two nuts evenly so the band draws down uniformly; follow the instructions packed with the saddle for torque.
  • Make up the service connection with a thread compound that meets the water supplier's requirements.

From the Smith-Blair Style 377 datasheet and specification sheet (Rev 10/27/23), in the Data Sheet tab; follow the instructions packed with the saddle for torque.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
5/8 in CC and BSP outlets, a 316 stainless band or hardware, spring washers for HDPE and other gaskets are built to order — email sales@watermainsupply.com with the pipe OD, pipe material and tap size.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
