JCM Industries · Steel Coupling
JCM 201 Steel Coupling - Cast Iron Pipe Sizes
Cast iron and ductile iron ODs · 14 to 42 in
-40°F to +212°F Gasket
SBR Gasket
ASTM A36 Steel Middle Ring
ASTM A36 Steel Followers
Low-Alloy Steel Bolts
AWWA C219
15.30-44.50 in Pipe OD
85-338 lb Weight
Description

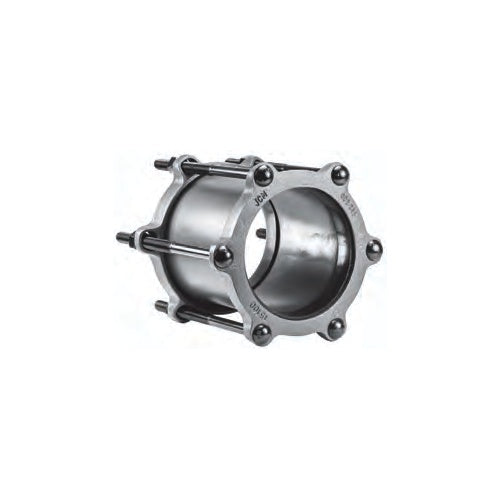

The JCM 201 steel coupling for cast iron pipe sizes joins plain-end pipe at cast iron and ductile iron ODs from 14 through 42 in. A steel middle ring and followers compress the gaskets onto both pipe ends.
It meets or exceeds ANSI/AWWA C219 for bolted sleeve-type couplings. For ductile iron 2 through 12 in, JCM points to its 210 ductile iron coupling.
Typical application: Connection or repair, temporary or permanent: joins plain-end pipe and installs a repair section of pipe.
Key Features
- No beveling, threading or exact pipe alignment needed; installs with a wrench
- Gaskets absorb vibration and pipe movement and let curves be laid with straight pipe
- Simple, rugged and serviceable
- Meets or exceeds ANSI/AWWA C219
- SBR gaskets standard; Buna-N and EPDM available
What Ships and What It Needs to Run
Included: the middle ring, two followers, two gaskets, and the track bolts and nuts.
Pipe anchorage, provided at install. The coupling joins but does not restrain the pipe; anchor it wherever the pipe could pull out.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. JCM builds this coupling to ANSI/AWWA C219; for the pressure rating at your pipe and service, send us the pipe OD, pipe type and working and test pressures and we will obtain JCM's rating.
Materials Specifications
| Middle ring |
Steel, ASTM A36 |
| Followers |
Steel, ASTM A36 |
| Bolts |
Corrosion-resistant high-strength low-alloy per AWWA C111, ANSI A21.11; 304 or 316 stainless optional |
| Gaskets |
SBR per ASTM D2000, molded virgin rubber; Buna-N and EPDM optional |
| Temperature |
-40°F to +212°F |
| Finish |
Heavy shop-coat primer; fusion epoxy (AWWA C213) optional |
From the JCM 201 material specifications.
Pipe Applications
Cast iron and ductile iron pipe at cast iron ODs.
Sizes
15 sizes. Open the table for every size.
All 15 sizes
| Nominal |
Pipe OD |
Sleeve thickness x length |
Bolts |
| 14 in |
15.30 in |
0.38 x 7 in |
8 |
| 14 in |
15.65 in |
0.38 x 7 in |
8 |
| 14 in |
16.75 in |
0.38 x 7 in |
10 |
| 16 in |
17.40 in |
0.38 x 7 in |
10 |
| 16 in |
17.80 in |
0.38 x 7 in |
10 |
| 16 in |
18.88 in |
0.38 x 7 in |
10 |
| 18 in |
19.50 in |
0.38 x 7 in |
12 |
| 18 in |
19.92 in |
0.38 x 7 in |
12 |
| 20 in |
21.60 in |
0.38 x 7 in |
12 |
| 20 in |
22.06 in |
0.38 x 7 in |
14 |
| 24 in |
25.80 in |
0.38 x 7 in |
15 |
| 24 in |
26.32 in |
0.38 x 7 in |
15 |
| 30 in |
32.00 in |
0.50 x 10 in |
16 |
| 36 in |
38.30 in |
0.50 x 10 in |
18 |
| 42 in |
44.50 in |
0.50 x 10 in |
20 |
From the JCM size tables. Other sizes available on request.
Before You OrderConfirm the pipe OD at both ends before ordering.
Anchor the pipe: the coupling joins the pipe but does not restrain it, so JCM calls for proper anchorage wherever the pipe could move out of the coupling.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
