JCM Industries · Gas Service Clamp

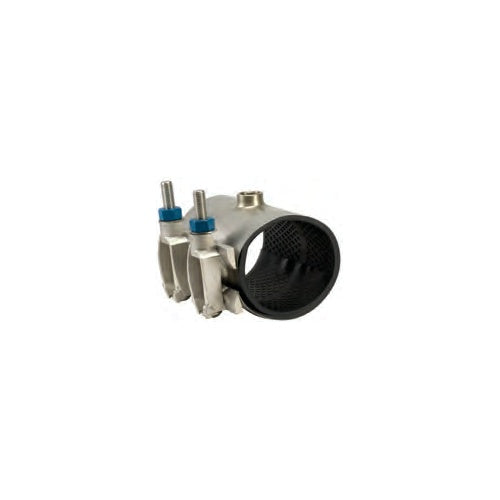

JCM 153 All Stainless Steel Gas Service Clamp
USDOT 192 · All stainless steel · 2.35-13.50 in pipe OD
100 PSI Gas to 8 in, 60 PSI 10-12 in
Meets USDOT Code 192
Full-Circle Gridded Gasket
304 Stainless Band
CF8 Cast Stainless Lugs
Stainless Steel Bolts
TIG-Welded, Passivated
3/4 to 2 in NPT and CC Taps
2.35-13.50 in Pipe OD
5-66 lb Weight
Description

The JCM 153 all stainless steel gas service clamp meets USDOT Code 192 and gives an immediate repair, temporary or permanent, of breaks, cracks, splits, corroded areas, pin holes and similar damage on gas lines. The full-circumference gasket seals the whole pipe, and the stainless band conforms to flat and uneven pipe exteriors.

A threaded service outlet in the band makes a gas service connection in the same fitting, 3/4 to 2 in, IP (NPT) or CC thread.

Cast stainless steel lugs (CF8, equal to 304) and a band TIG-welded to the lugs for its full length, then passivated, suit acidic, hot or aggressive environments.

Typical application: Repair, temporary or permanent: breaks, cracks, splits, holes, corroded areas and pin holes; connection of plain-end pipe.

Key Features

  • Meets USDOT Code 192
  • 1/4 in thick gridded gasket on 3 in and larger fills pits and voids
  • Molded-in stainless bridge plate prevents pinched gasket
  • Drop-in, swing-away bolts with no loose parts; bolts replace individually
  • Suitable for reshaping and marking squeeze-off locations
What Ships and What It Needs to Run

Included: the tapped clamp with its full-circumference gasket and molded-in stainless bridge plate, cast stainless lugs and drop-in track bolts with nuts and washers.

Service fitting, ordered separately. The service valve or fitting threads into the outlet: IP is NPT thread, CC is the AWWA corporation thread.

Pipe anchorage, provided at install. The clamp seals but does not restrain the pipe.

Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty

Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.

Working Pressure

100 PSI gas on 2-8 in; 60 PSI gas on 10-12 in. JCM's installation instructions rate the clamp for gas service at 100 PSI on cast iron and steel pipe through 8 in and 60 PSI on 10 and 12 in. Higher capability depends on the application; send us the pipe, damage and pressure for JCM's rating.

Materials Specifications
Band 18-8 Type 304 stainless steel, heavy gauge
Lugs CF8 cast stainless steel (equal to 304); CF8M (316) available
Bolts Stainless steel oval-neck track bolts, nut and washer attached
Gasket Full circumference, gridded, 1/4 in thick on 3 in and larger; Buna-N, EPDM, Hypalon and others
Bridge plate Type 304 stainless steel, molded into the gasket
Band-to-lug attachment GTAW (TIG) weld, full length, passivated
Outlet Type 304 stainless steel, threaded IP (NPT) or CC, 3/4 to 2 in

From the JCM gas repair and service clamp specifications and industrial manual.

Pipe Applications

Cast iron and steel pipe in gas service (not polyethylene gas pipe). Line contents JCM lists: natural gas, methane, air and vacuum, chemical and acid, cooling water, potable water and wastewater, slurry and process lines.

Sizes and Outlet Taps

14 OD ranges from 2.35 to 13.50 in. Open the table for every range, width and tap.

All 14 OD ranges
Nominal Pipe OD range Widths Outlet taps
2 in 2.35-2.63 in 6, 7.5, 12, 15 in 3/4, 1 in NPT; 3/4, 1 in CC
2-1/4 to 2-1/2 in 2.70-3.13 in 6, 7.5, 12, 15 in 3/4, 1 in NPT; 3/4, 1 in CC
3 in 3.46-3.70 in 6, 7.5, 12, 15 in 3/4, 1 in NPT; 3/4, 1 in CC
3 to 4 in 3.73-4.13 in 6, 7.5, 12, 15 in 3/4, 1 in NPT; 3/4, 1 in CC
4 in 4.45-4.75 in 6, 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
4 in 4.74-5.14 in 6, 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
6 in 6.56-6.96 in 6, 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
6 in 6.85-7.25 in 6, 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
8 in 8.54-8.94 in 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
8 in 8.99-9.39 in 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 10.60-11.00 in 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 11.04-11.44 in 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 12.60-13.02 in 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 13.10-13.50 in 7.5, 12, 15, 18, 24, 30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC

Select the nominal size and OD range, the outlet tap and the width; the part number shows with the width.

Bolt Numbers
Clamp width 6 in 7.5 in 12 in 15 in 18 in 24 in 30 in
Bolts 2 2 4 4 6 8 10

Bolt size: 5/8 in through 8 in nominal; 3/4 in on 10 in nominal and larger, except the 7.5 and 15 in widths, which use 5/8 in bolts. From the JCM size tables.

Before You OrderTapped clamps are non-returnable (JCM). Confirm size, outlet and thread before ordering.
For cast iron and steel gas mains; JCM does not use the 120 and 150 gas clamp series on polyethylene gas pipe.
Anchor the pipe: the clamp seals the full circumference but does not hold the pipe against lateral movement, so JCM calls for proper anchorage wherever the pipe could move out of the clamp.
For a submittal, email sales@watermainsupply.com with the pipe OD, pipe type, gas pressure and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
