Grundfos · Residential Circulator
COMFORT
4 hot water recirculation models: COMFORT 10-16 (T, TDT, TA) and the UP15-10 Comfort System kit.
Hot Water Recirculation, up to 2,000 sq ft
6 W Permanent-Magnet Motor (COMFORT 10-16)
115-230V 1Ph
Brass Housing, Lead-Free
Temperature, Timer or AUTOADAPT Control
1-1/4 in NPSM Union
Liquid up to 180°F
Plug-In Line Cord
Overview

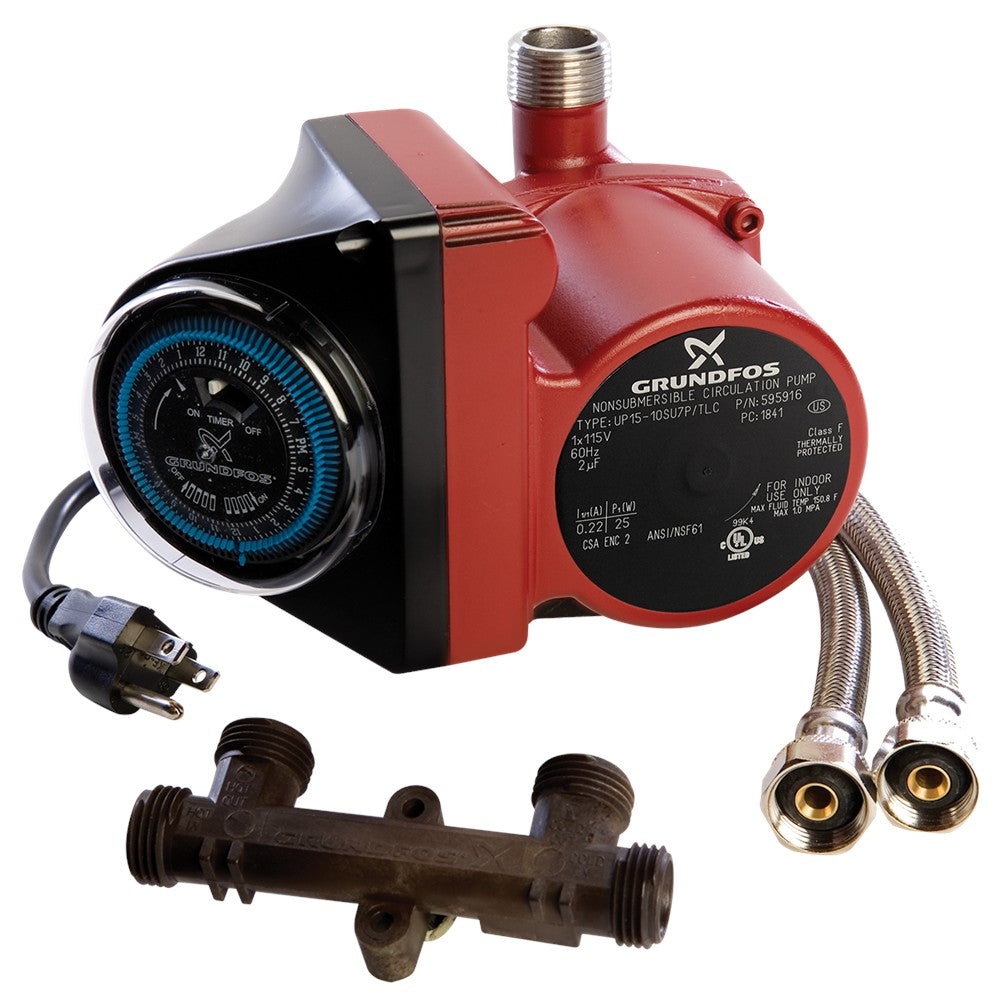

COMFORT 10-16 pumps keep hot water at the tap without running all day. The T model controls by temperature, TDT adds a timer, and TA (AUTOADAPT) learns the household’s usage pattern and runs only when hot water is likely to be needed. The UP15-10 SU7P/TLC is the Comfort System kit: pump, timer, line cord and one under-sink comfort valve, for homes with no dedicated return line.
What Ships and What It Needs to Run
Included: the COMFORT circulator with the parts named in the model (timer, line cord, valve, unions).
Ships: about 3.07-5.07 lb by model; ships by parcel.
Needed to run: matching flanges or unions where not included, isolation valves, and a 115-230V 1Ph or 115V 1Ph supply.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
24-Month Grundfos Warranty
Covered for 24 months from the date of purchase, but not more than 30 months from the date of manufacture, under Grundfos’s published limited consumer warranty.
Specifications
| Pump type |
Wet-rotor circulator |
| Power supply |
115-230V 1Ph, 115V 1Ph, 60 Hz |
| Pump housing |
Brass (COMFORT 10-16), stainless steel (UP15-10 kit) |
| Connections |
See the Connection option on each build |
Models & Performance — Will It Do What You Need?
| Model |
Max head (ft) |
Max flow (GPM) |
At 20% flow |
At 50% flow |
At 75% flow |
| COMFORT 10-16 TA BU/LC |
3.4 |
2.2 |
0.4 GPM: 2.7 ft |
1.1 GPM: 2.1 ft |
1.7 GPM: 1.6 ft |
| COMFORT 10-16 TDT BU/LC |
3.4 |
2.2 |
0.4 GPM: 2.7 ft |
1.1 GPM: 2.1 ft |
1.7 GPM: 1.6 ft |
| COMFORT 10-16 T BU/LC |
3.4 |
2.2 |
0.4 GPM: 2.7 ft |
1.1 GPM: 2.1 ft |
1.7 GPM: 1.6 ft |
| UP 15-10 SU7P/TLC |
5.0 |
6.3 |
1.3 GPM: 4.1 ft |
3.1 GPM: 2.7 ft |
4.7 GPM: 1.4 ft |

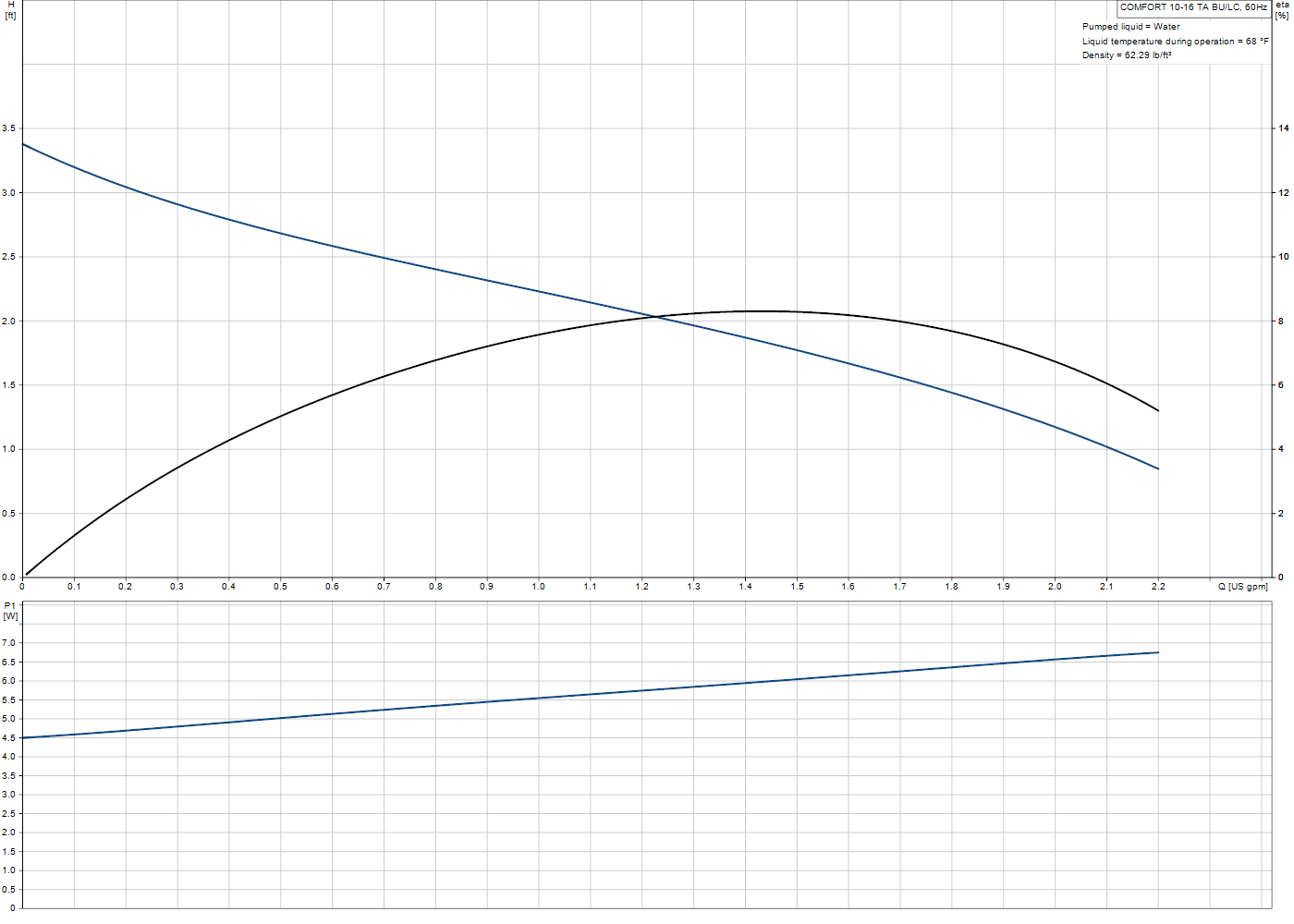

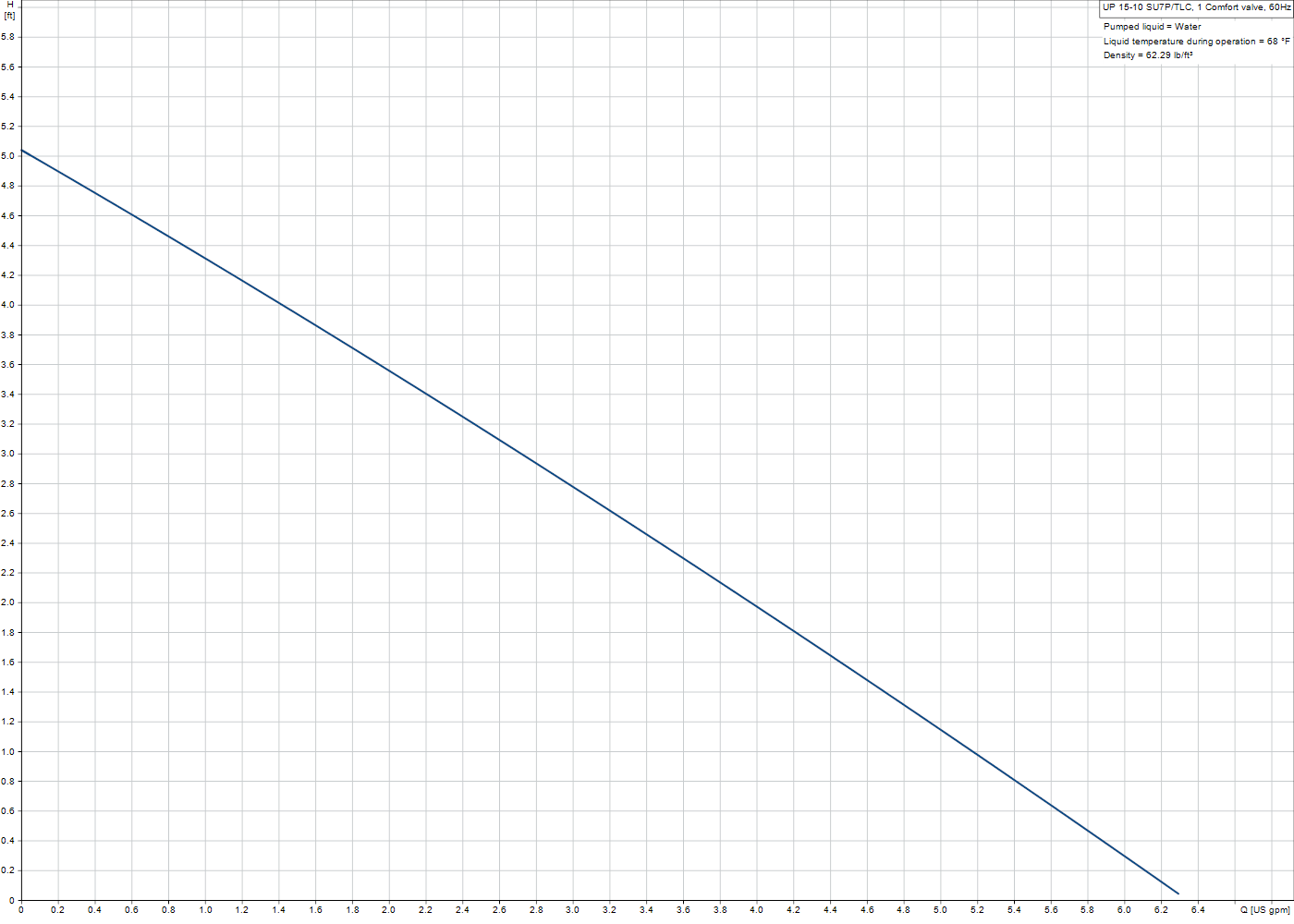

Top-speed (or maximum) curve read from the Grundfos Product Center 60 Hz curve for each model, at 20%, 50% and 75% of that curve’s maximum flow; head in feet of water. The full curve set is the variant image. PSI = feet ÷ 2.31.
Before You Buy — The Limits That Decide the Fit
| Liquid |
Clean water or water-glycol; potable water only in stainless steel, bronze or brass housings |
| Installation |
Horizontal motor shaft |
| Power |
115-230V 1Ph, 115V 1Ph |
Applications
Single-family domestic hot water recirculation with or without a dedicated return line.
Materials of Construction
| Pump housing |
Brass (COMFORT 10-16), stainless steel (UP15-10 kit) |
| Rotor can |
Composite |
