Grundfos · Residential Circulator
UP and UPS
45 builds: UP single-speed and UPS 3-speed wet-rotor circulators, UPSe ECM, in stainless steel, bronze or cast iron.
Up to 45 ft Head, 123 GPM
UP 1-Speed, UPS 3-Speed, UPSe ECM
115V, 208V or 230V 1Ph
Stainless Steel, Bronze or Cast Iron
Flanged, Union or Sweat
Liquid up to 230°F
145 psi Working Pressure
No Mechanical Seal
Overview
Grundfos UP and UPS (VersaFlo) circulators are the wet-rotor workhorses of residential and light commercial heating and hot water. UP models run at one speed, UPS models at three; UPSe models use an ECM motor. Cast iron housings serve closed heating loops; stainless steel (S) and bronze (B) housings serve domestic hot water. TLC models come with a timer and line cord for recirculation.
What Ships and What It Needs to Run
Included: the UP and UPS circulator with the parts named in the model (timer, line cord, valve, unions).
Ships: about 4.71-18.9 lb by model; ships by parcel.
Needed to run: matching flanges or unions where not included, isolation valves, and a 115V 1Ph or 208V 1Ph or 230V 1Ph supply.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
30-Month Grundfos Warranty
Covered for up to 30 months from the date of manufacture under Grundfos’s published VersaFlo warranty.
Specifications
| Pump type |
Wet-rotor circulator |
| Power supply |
115V 1Ph, 208V 1Ph, 230V 1Ph, 60 Hz |
| Pump housing |
Stainless steel (S), bronze (B) or cast iron |
| Connections |
See the Connection option on each build |
Models & Performance — Will It Do What You Need?
| Model |
Max head (ft) |
Max flow (GPM) |
At 20% flow |
At 50% flow |
At 75% flow |
| UPS 15-55 SFC |
18 |
23 |
4.5 GPM: 13 ft |
11 GPM: 7.9 ft |
17 GPM: 4.0 ft |
| UPS 26-150 SF |
45 |
52 |
10 GPM: 39 ft |
26 GPM: 26 ft |
39 GPM: 14 ft |
| UPS 26-99 SFC |
29 |
31 |
6.3 GPM: 25 ft |
16 GPM: 18 ft |
24 GPM: 10 ft |
| UPS 43-100 SF |
31 |
65 |
13 GPM: 30 ft |
32 GPM: 22 ft |
49 GPM: 12 ft |
| UPS 50-60 SF |
21 |
123 |
25 GPM: 19 ft |
62 GPM: 13 ft |
92 GPM: 7.3 ft |
| UPS 15-55 SUC/TLC |
18 |
23 |
4.5 GPM: 13 ft |
11 GPM: 7.9 ft |
17 GPM: 4.0 ft |
| UPS 15-55 SUC |
18 |
23 |
4.5 GPM: 13 ft |
11 GPM: 7.9 ft |
17 GPM: 4.0 ft |
| UP 15-29 SF |
9.7 |
21 |
4.1 GPM: 8.2 ft |
10 GPM: 5.3 ft |
16 GPM: 2.7 ft |
| UP 15-29 SUC/TLC |
9.7 |
21 |
4.1 GPM: 8.2 ft |
10 GPM: 5.3 ft |
16 GPM: 2.7 ft |
| UP 15-29 SU |
9.7 |
21 |
4.1 GPM: 8.2 ft |
10 GPM: 5.3 ft |
16 GPM: 2.7 ft |
| UP 15-55 SUC |
17 |
21 |
4.2 GPM: 13 ft |
10 GPM: 8.8 ft |
16 GPM: 5.3 ft |
| UPS 43-44 BFC |
14 |
53 |
11 GPM: 12 ft |
26 GPM: 8.4 ft |
39 GPM: 4.6 ft |

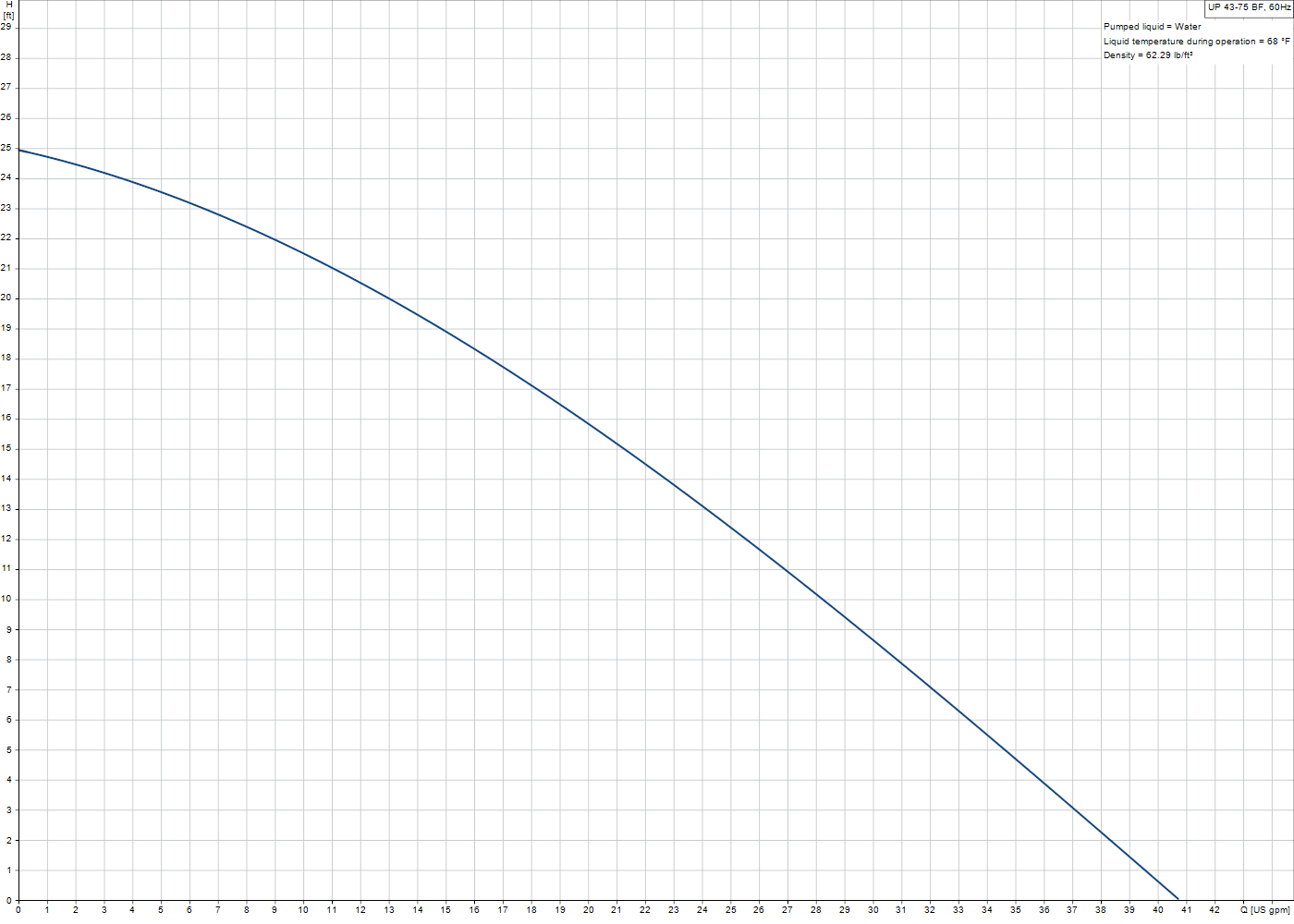

| UP 43-75 BF |
25 |
41 |
8.1 GPM: 22 ft |
20 GPM: 16 ft |
31 GPM: 8.2 ft |
| UP 15-10 B5/TLC |
6.2 |
8.4 |
— |
— |
— |
| UP 15-10 BUC5/TLC |
6.2 |
8.4 |
— |
— |
— |
| UP 15-10 B7/TLC |
6.2 |
8.3 |
1.7 GPM: 4.9 ft |
4.2 GPM: 3.0 ft |
6.2 GPM: 1.5 ft |
| UP 15-10 BUC7/TLC |
6.2 |
8.3 |
1.7 GPM: 4.9 ft |
4.2 GPM: 3.0 ft |
6.2 GPM: 1.5 ft |

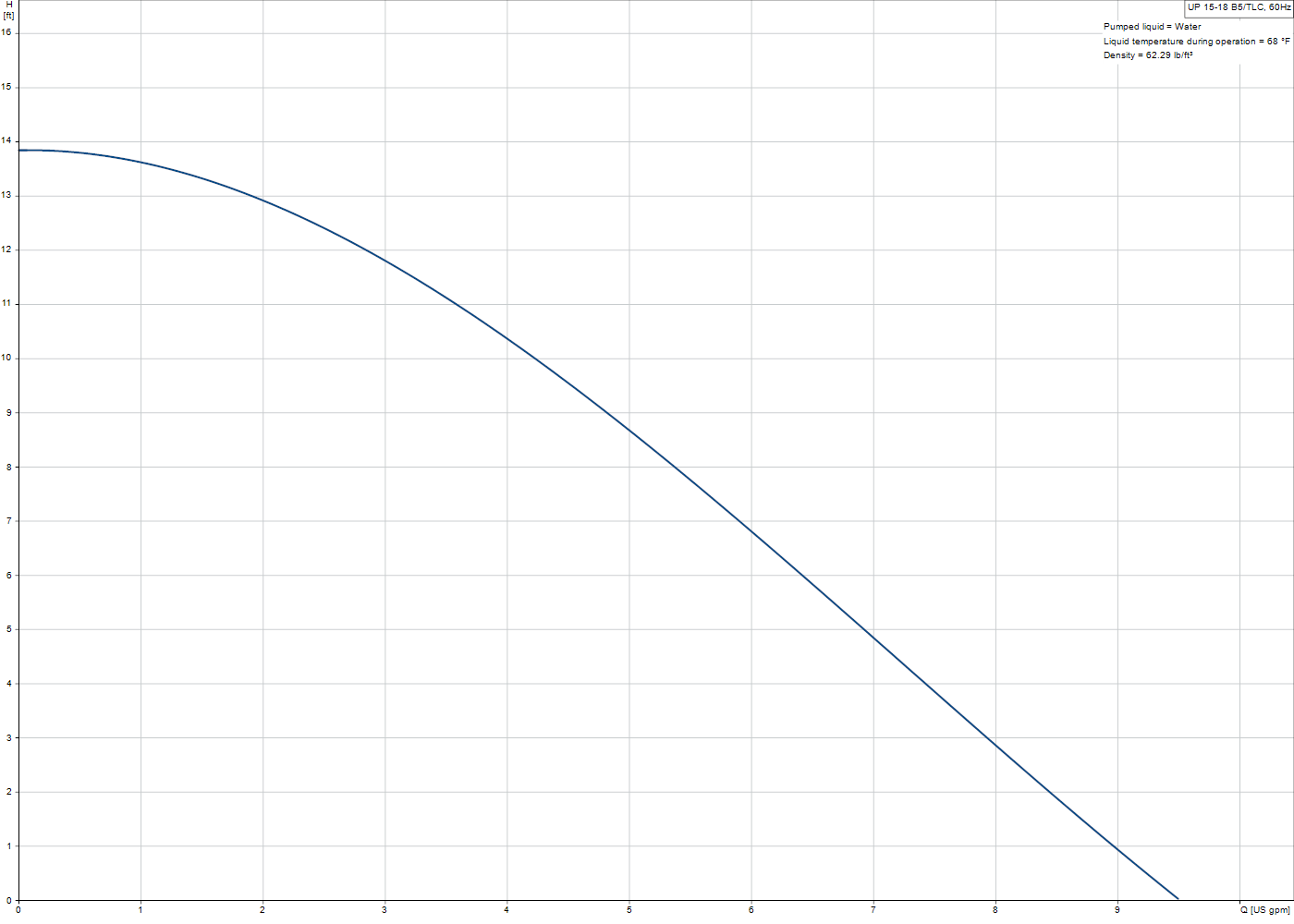

| UP 15-18 B5/TLC |
14 |
9.5 |
1.9 GPM: 13 ft |
4.8 GPM: 9.1 ft |
7.1 GPM: 4.6 ft |
| UP 15-18 B7/TLC |
14 |
15 |
2.9 GPM: 12 ft |
7.3 GPM: 8.4 ft |
11 GPM: 4.4 ft |
| UP 15-10 B5 |
6.2 |
8.4 |
— |
— |
— |

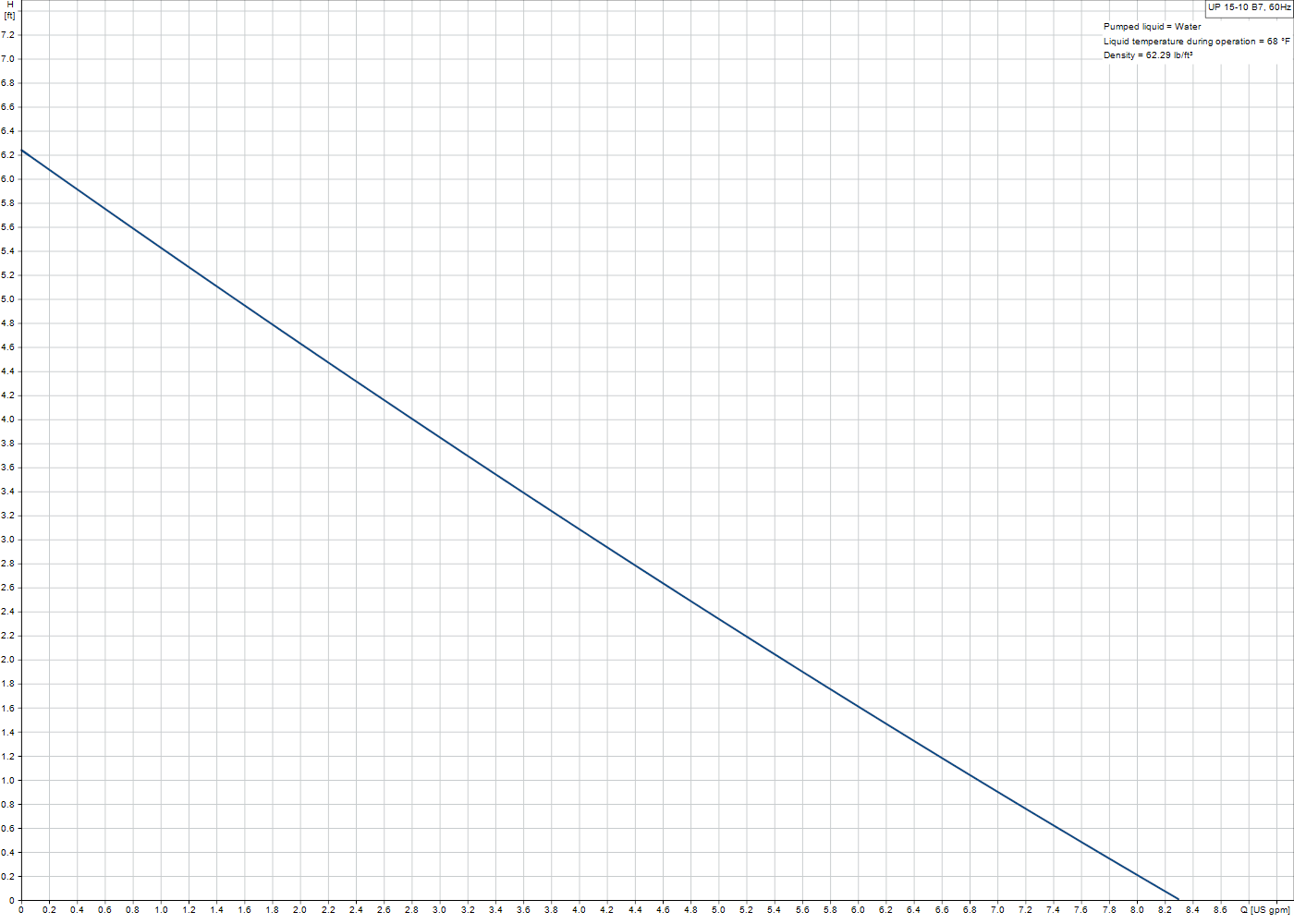

| UP 15-10 B7 |
6.2 |
8.3 |
1.7 GPM: 4.9 ft |
4.2 GPM: 3.0 ft |
6.2 GPM: 1.5 ft |
| UP 15-18 B5 |
14 |
9.5 |
1.9 GPM: 13 ft |
4.8 GPM: 9.1 ft |
7.1 GPM: 4.6 ft |
| UP 15-18 BUC5 |
14 |
9.5 |
1.9 GPM: 13 ft |
4.8 GPM: 9.3 ft |
7.1 GPM: 5.0 ft |

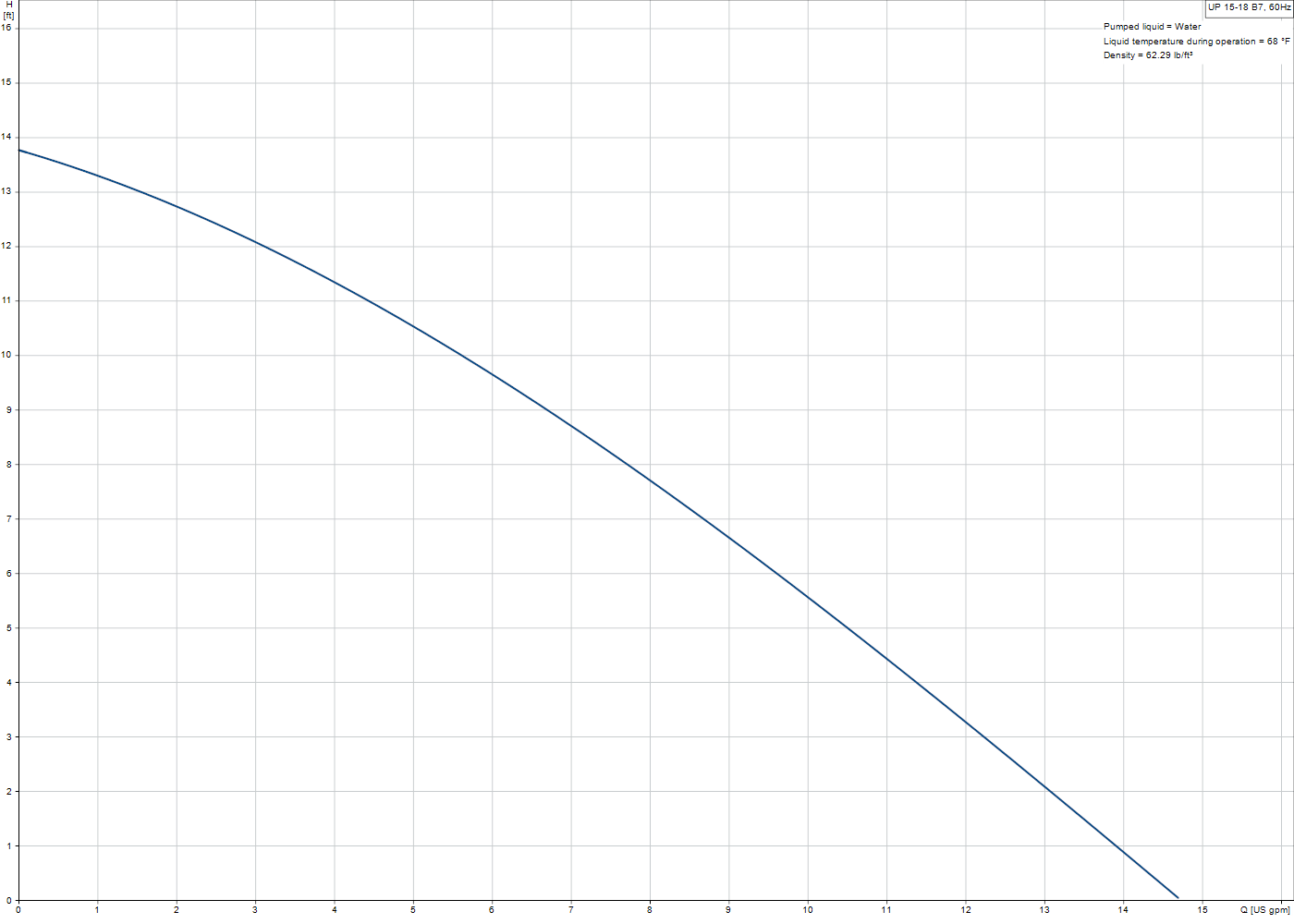

| UP 15-18 B7 |
14 |
15 |
2.9 GPM: 12 ft |
7.3 GPM: 8.4 ft |
11 GPM: 4.4 ft |
| UP 15-18 BUC7 |
14 |
15 |
3.1 GPM: 13 ft |
7.7 GPM: 8.6 ft |
12 GPM: 4.4 ft |
| UPSe 15-58 F |
20 |
14 |
2.7 GPM: 20 ft |
6.8 GPM: 14 ft |
10 GPM: 8.9 ft |
| UPSe 15-58 FR |
20 |
14 |
2.7 GPM: 20 ft |
6.8 GPM: 14 ft |
10 GPM: 8.9 ft |

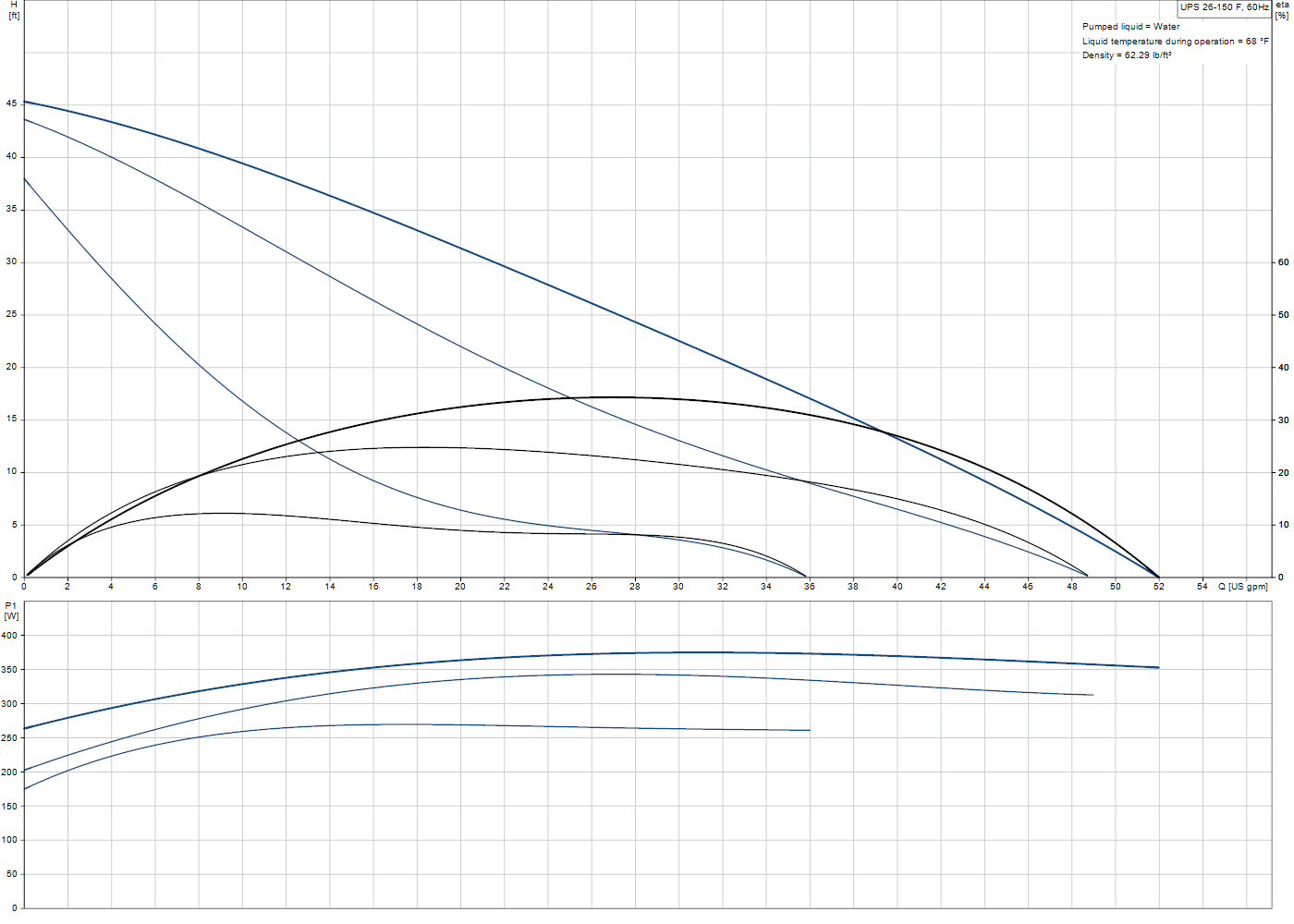

| UPS 26-150 F |
45 |
52 |
10 GPM: 39 ft |
26 GPM: 26 ft |
39 GPM: 14 ft |
| UPS 26-99 FC |
29 |
31 |
6.3 GPM: 25 ft |
16 GPM: 18 ft |
24 GPM: 10 ft |
| UPS 15-42 F |
15 |
18 |
3.5 GPM: 13 ft |
8.8 GPM: 9.0 ft |
13 GPM: 4.6 ft |
| UPS 15-58 FC |
19 |
17 |
3.3 GPM: 16 ft |
8.3 GPM: 11 ft |
13 GPM: 5.6 ft |
| UPS 15-58 FRC |
19 |
17 |
3.3 GPM: 16 ft |
8.3 GPM: 11 ft |
13 GPM: 5.6 ft |
| UPS 43-100 F |
31 |
65 |
13 GPM: 30 ft |
32 GPM: 22 ft |
49 GPM: 12 ft |
| UPS 43-44 FC |
14 |
53 |
11 GPM: 12 ft |
26 GPM: 8.4 ft |
39 GPM: 4.6 ft |
| UPS 50-44 F |
14 |
64 |
13 GPM: 13 ft |
32 GPM: 8.5 ft |
48 GPM: 4.3 ft |

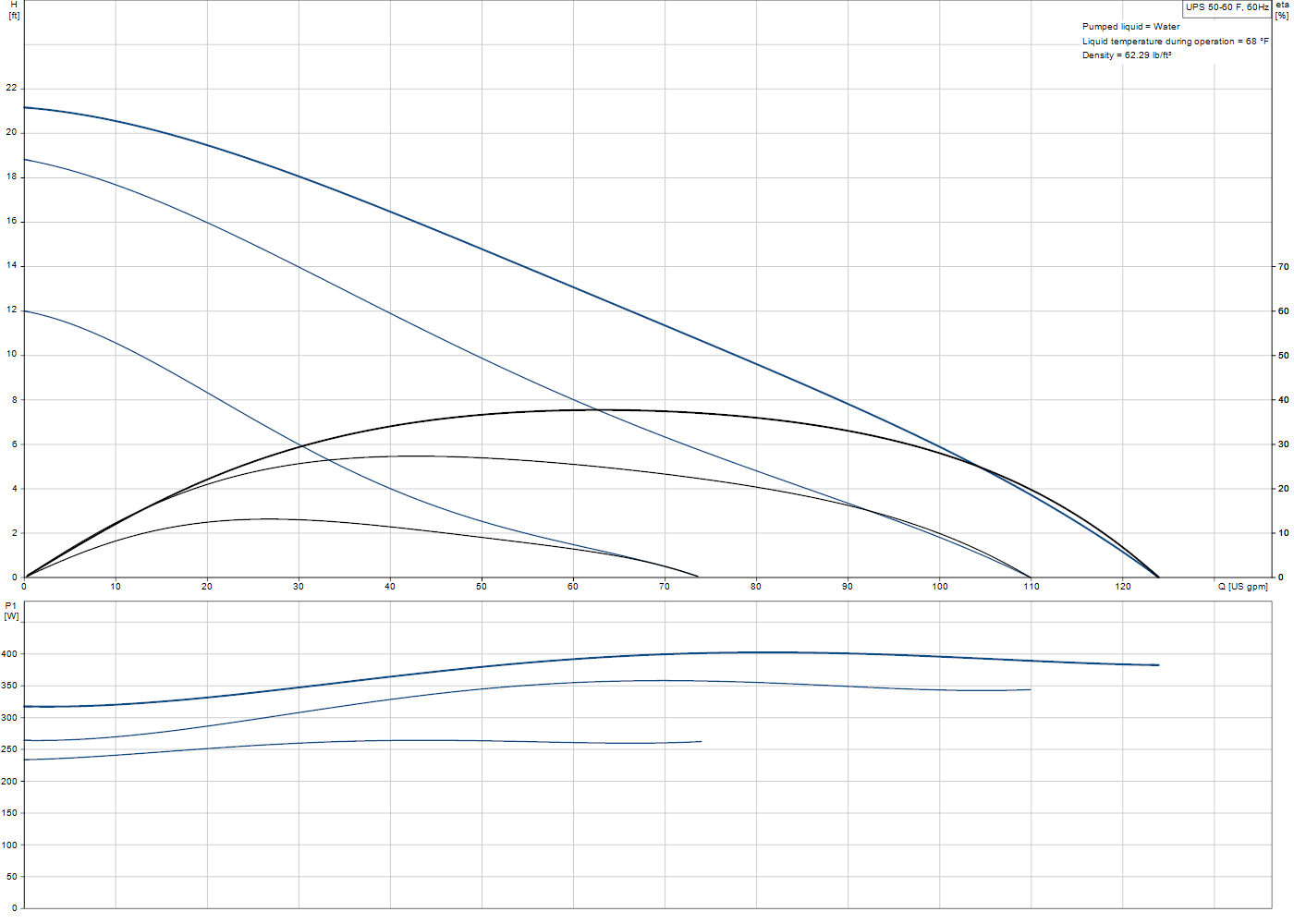

| UPS 50-60 F |
21 |
123 |
25 GPM: 19 ft |
62 GPM: 13 ft |
92 GPM: 7.3 ft |

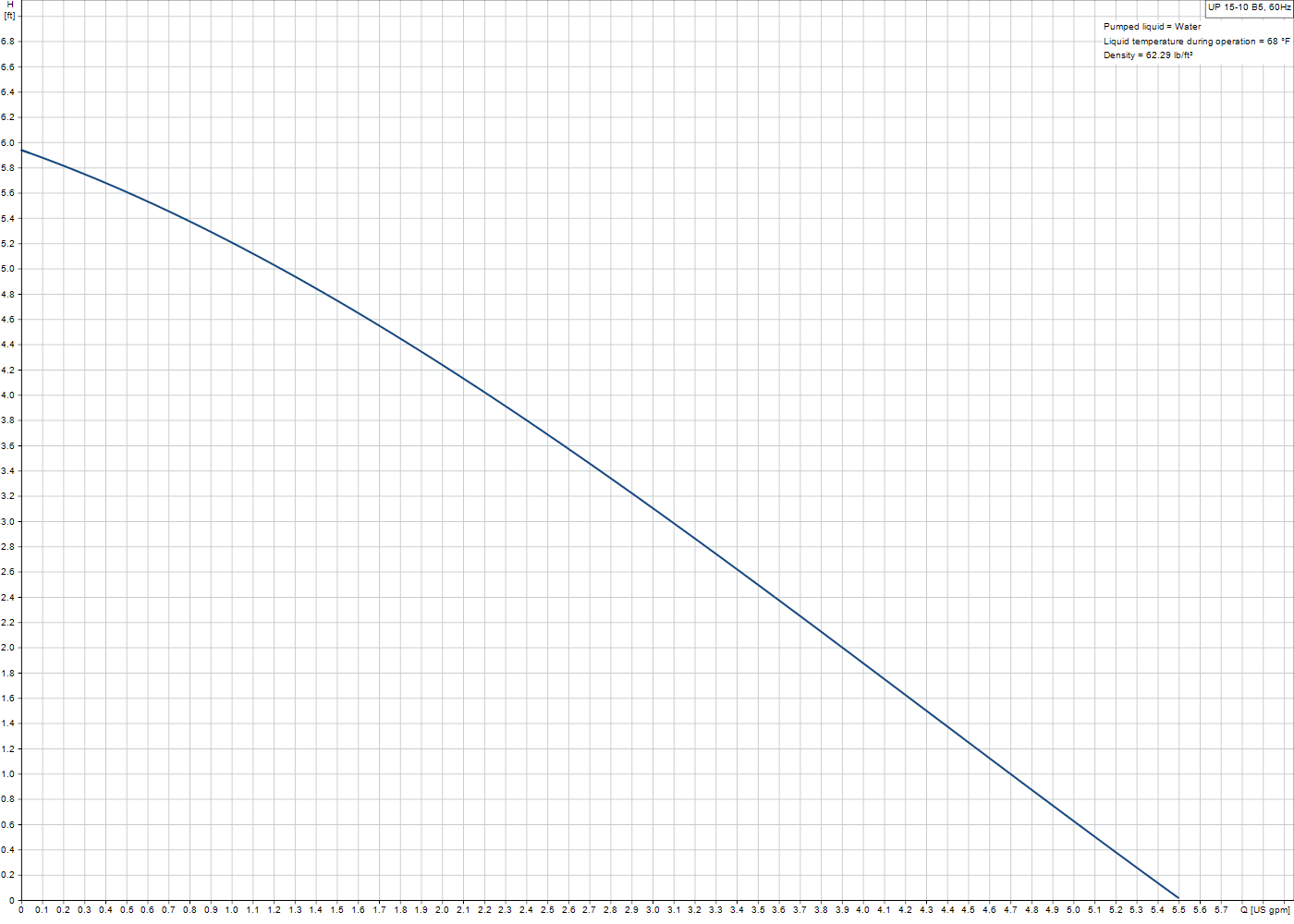

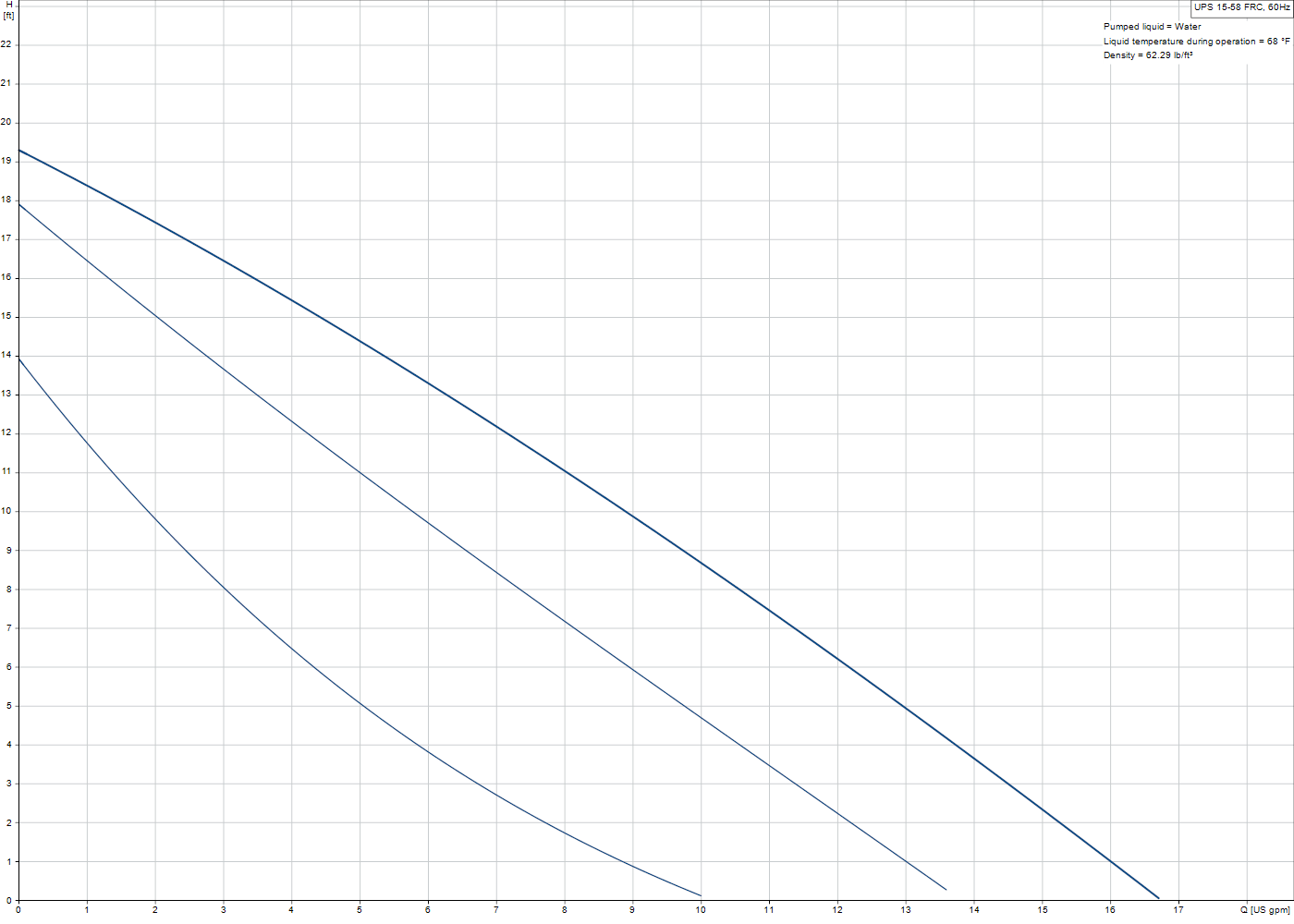

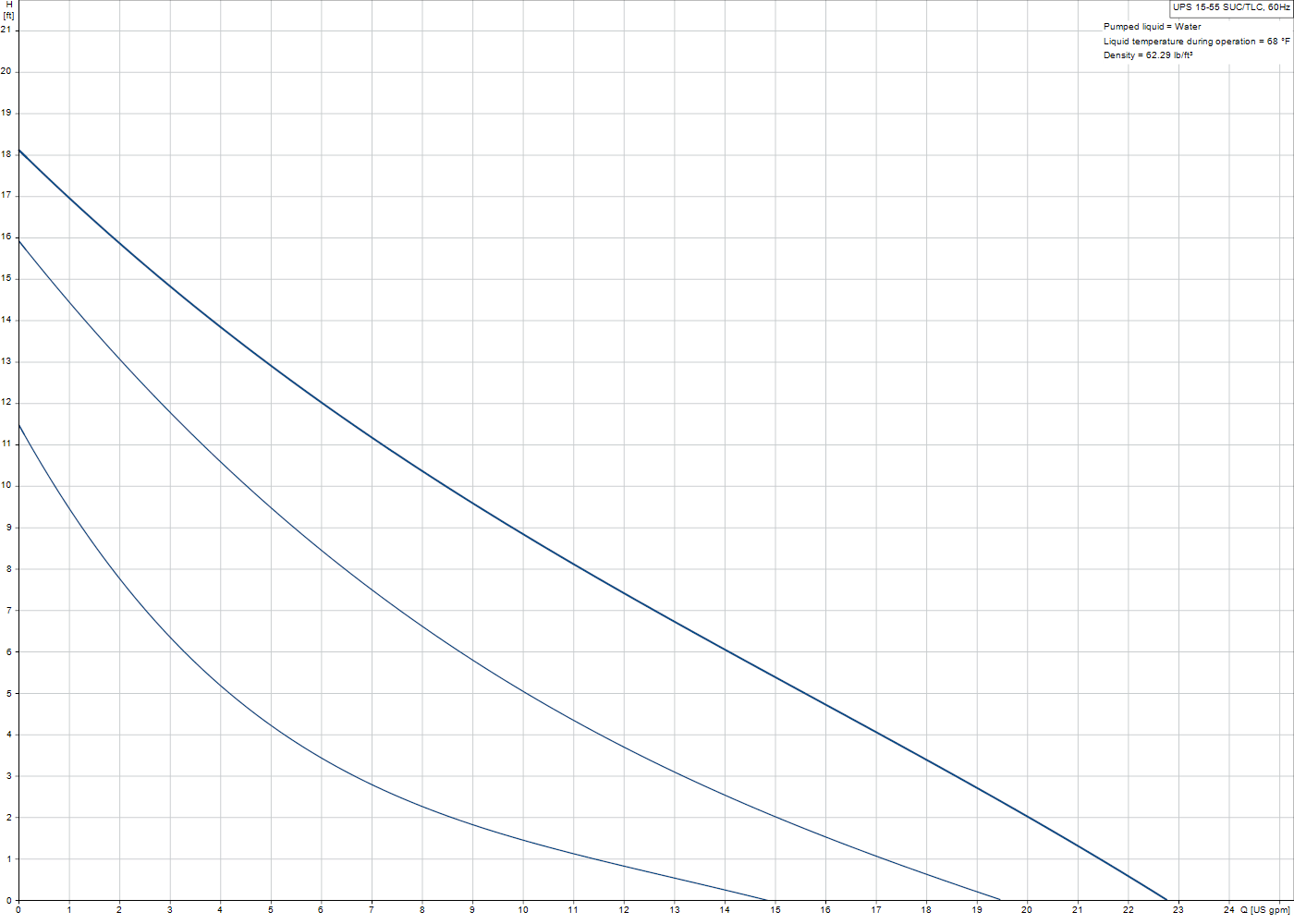

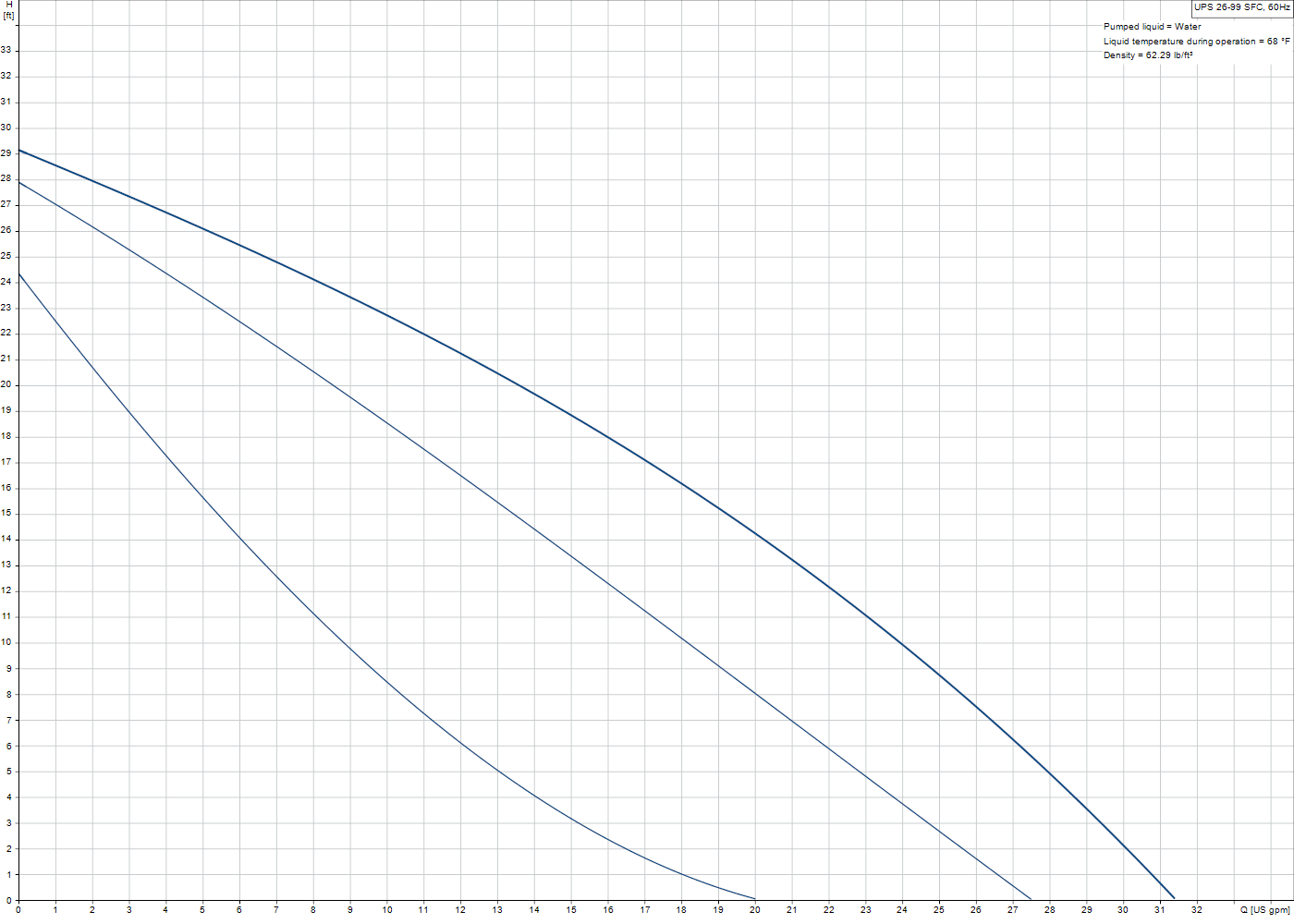

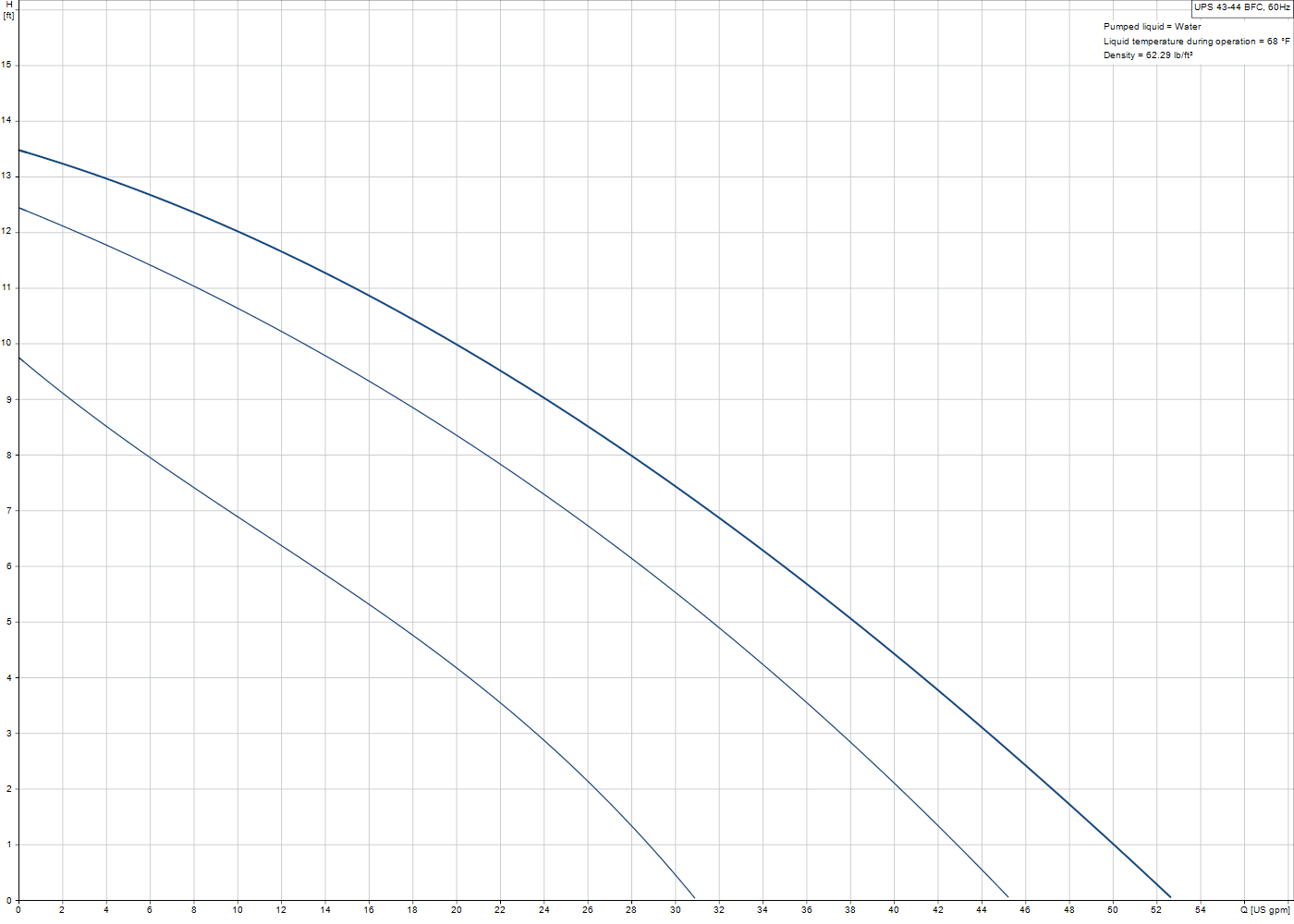

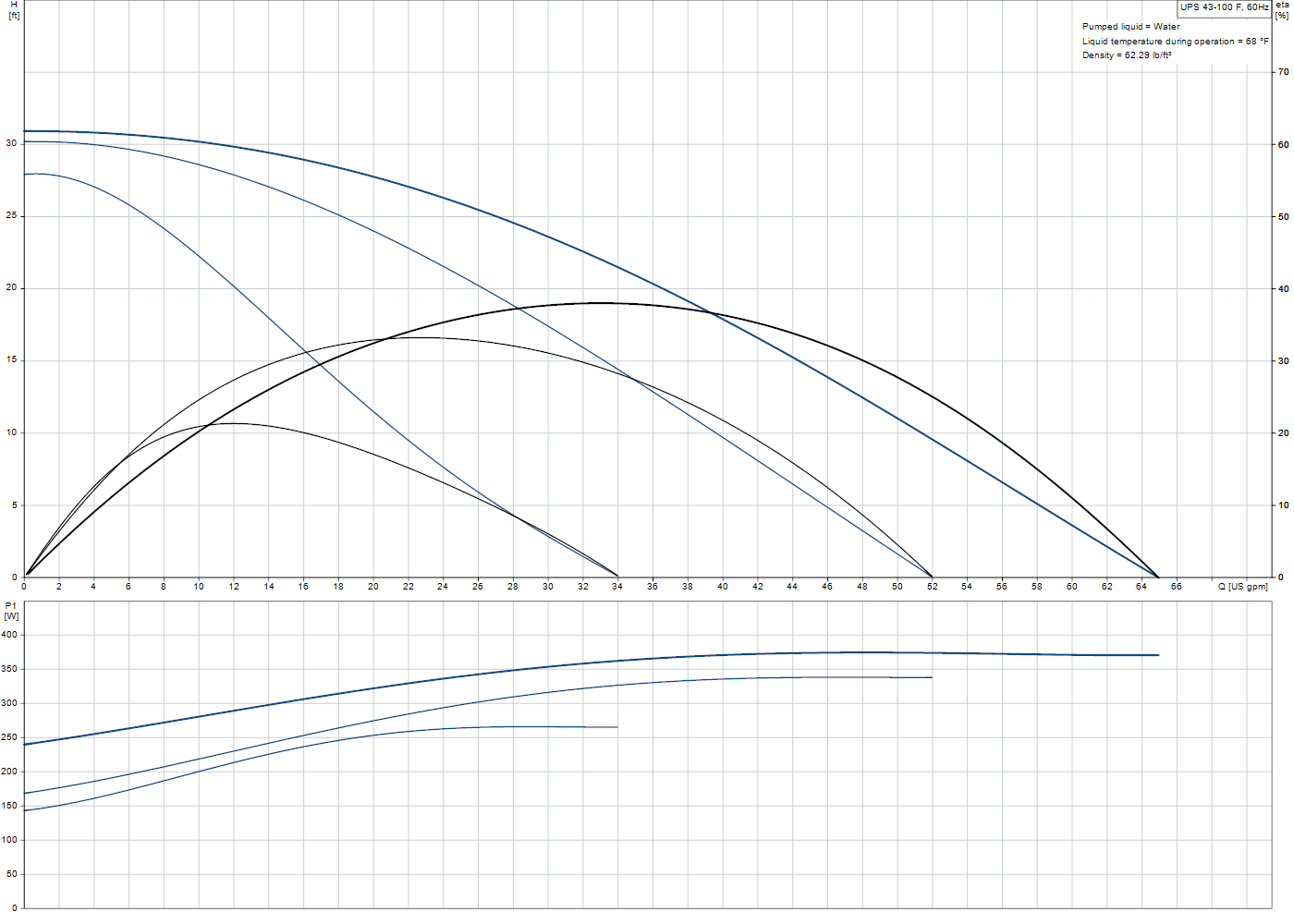

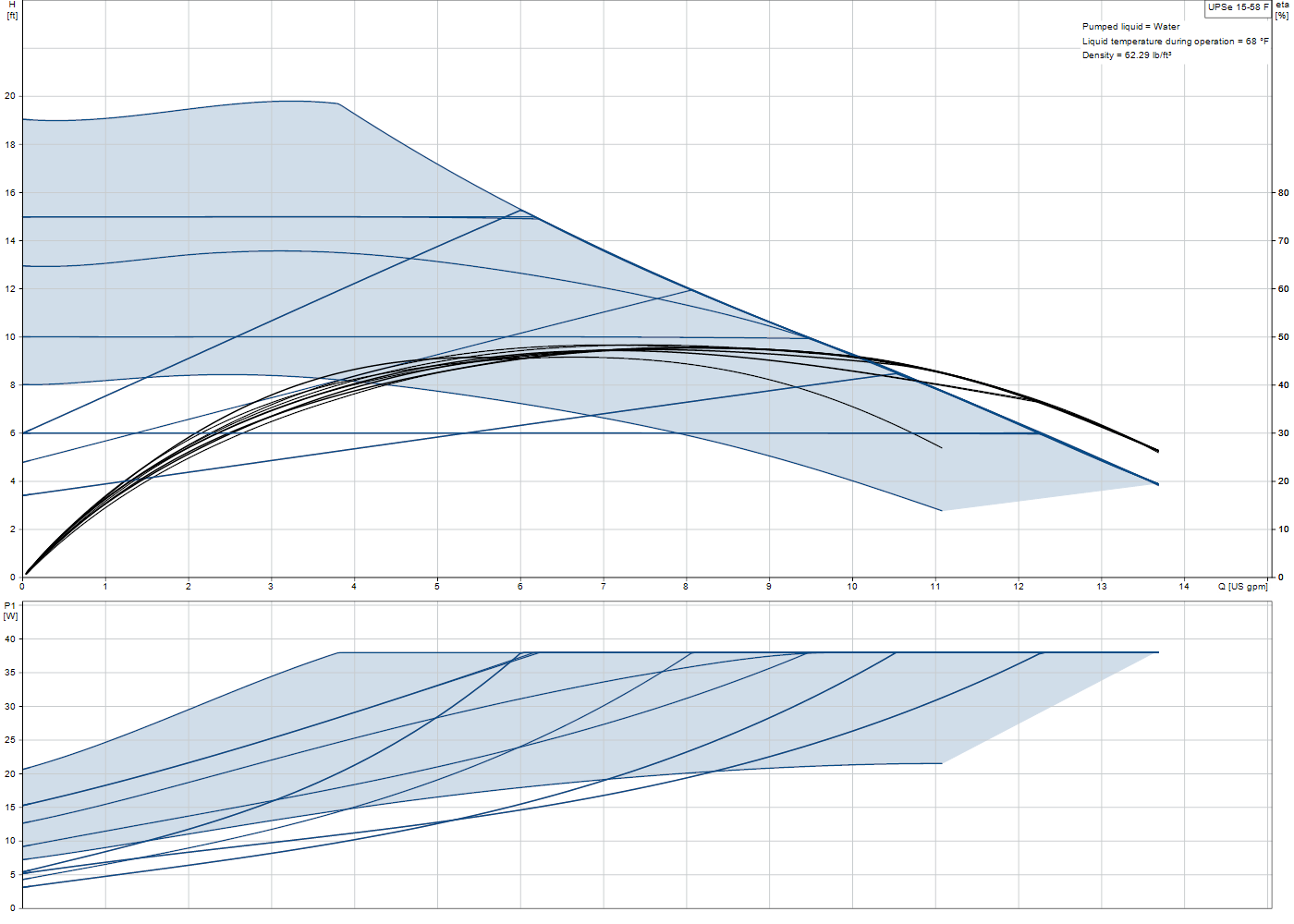

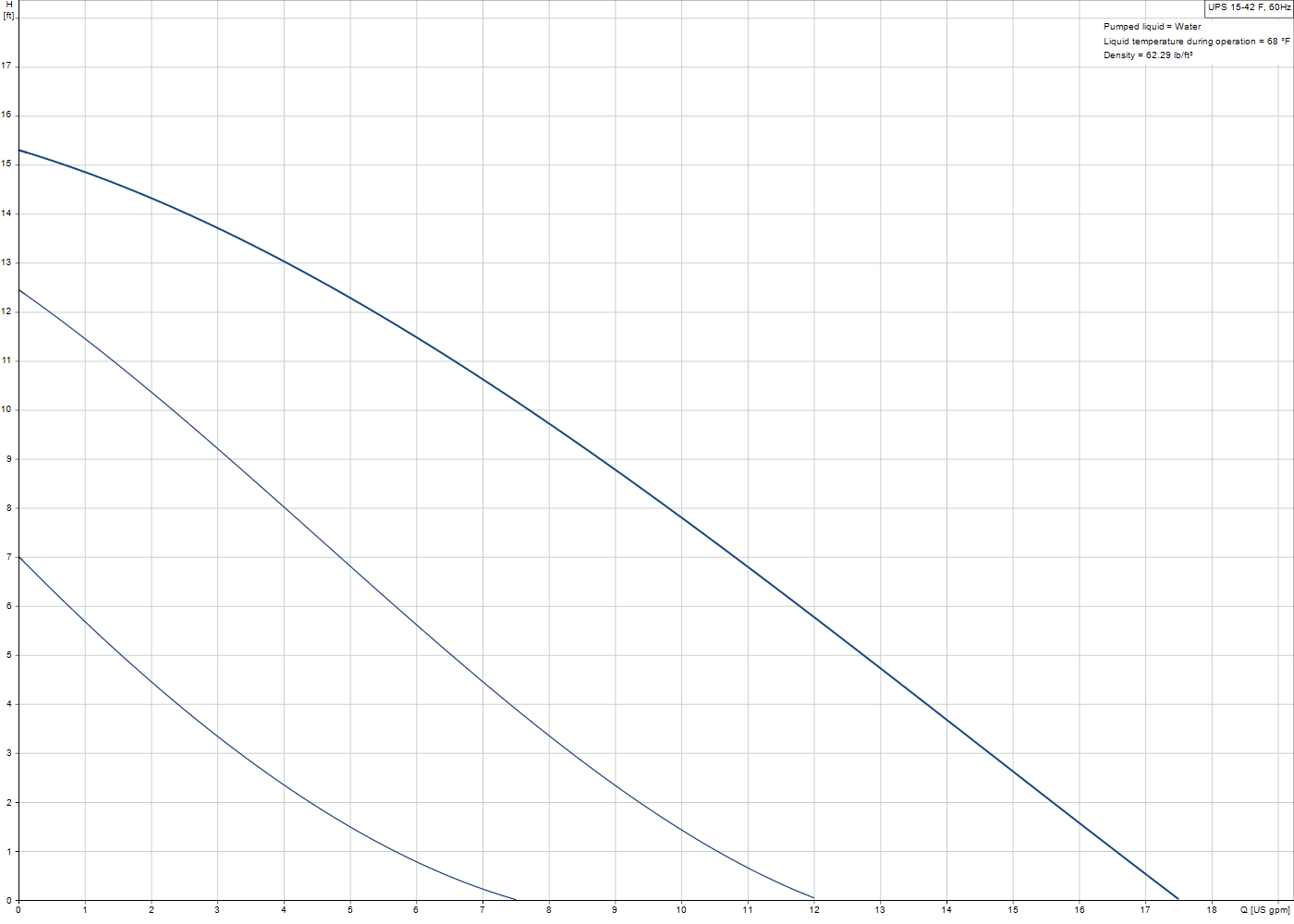

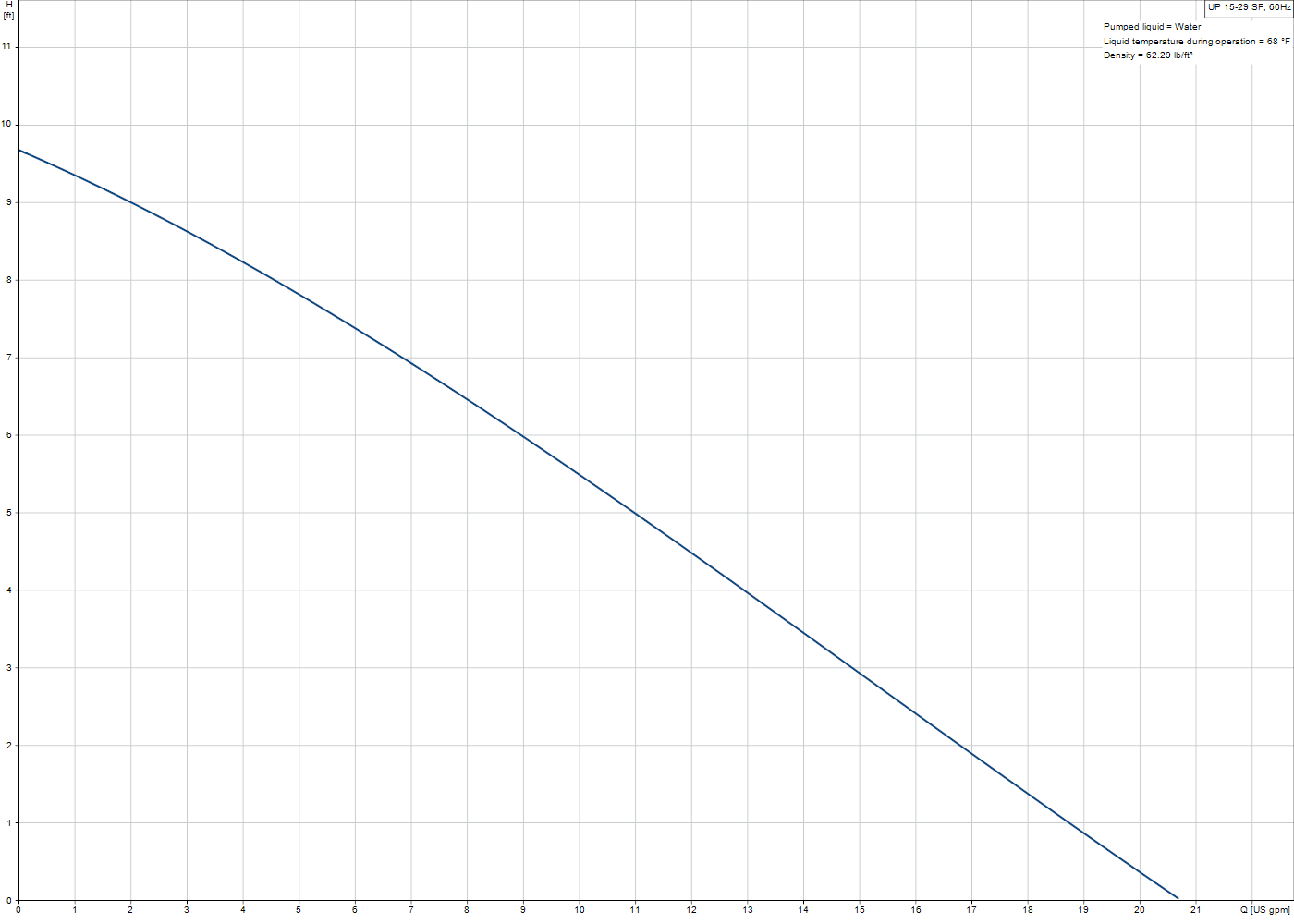

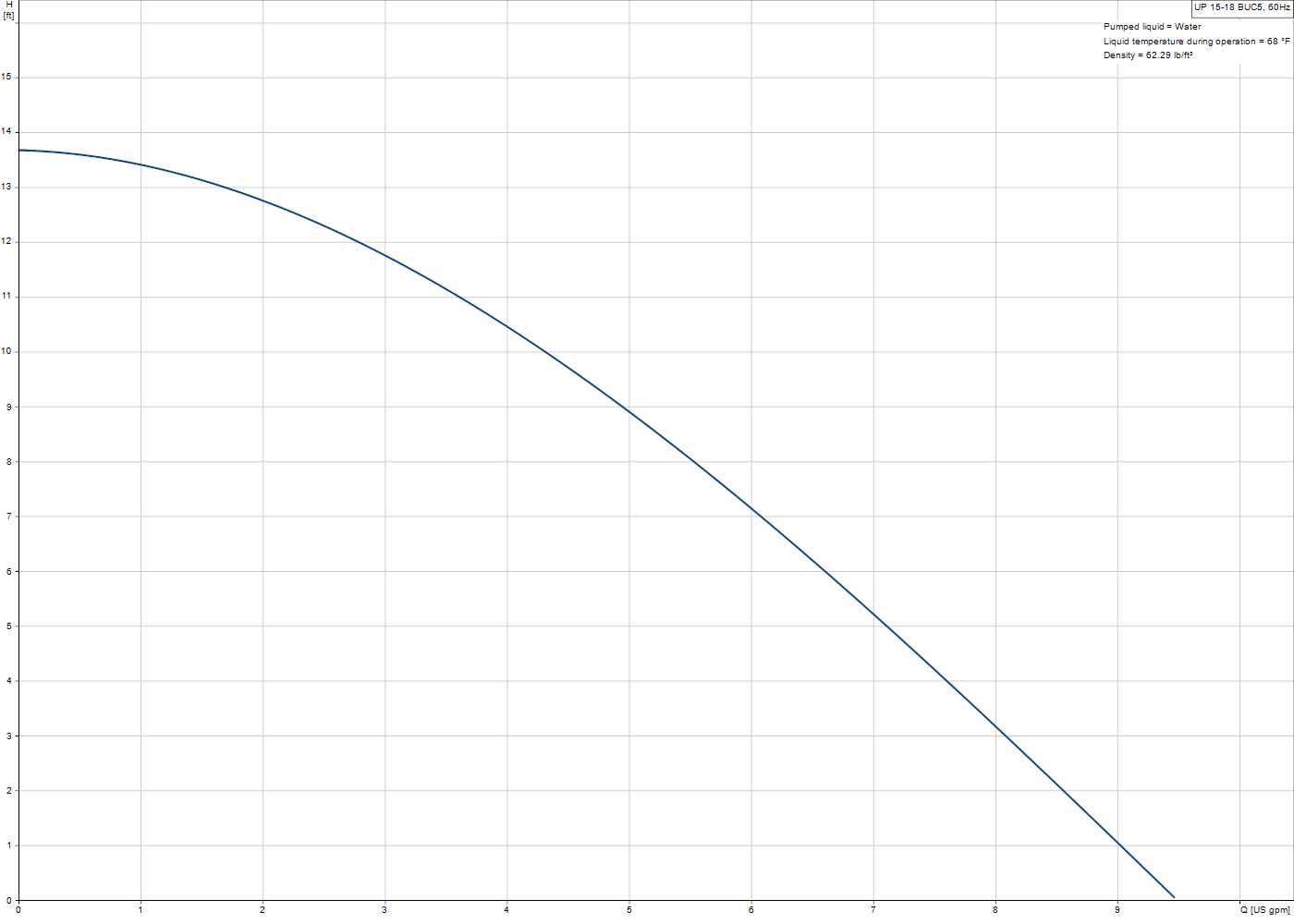

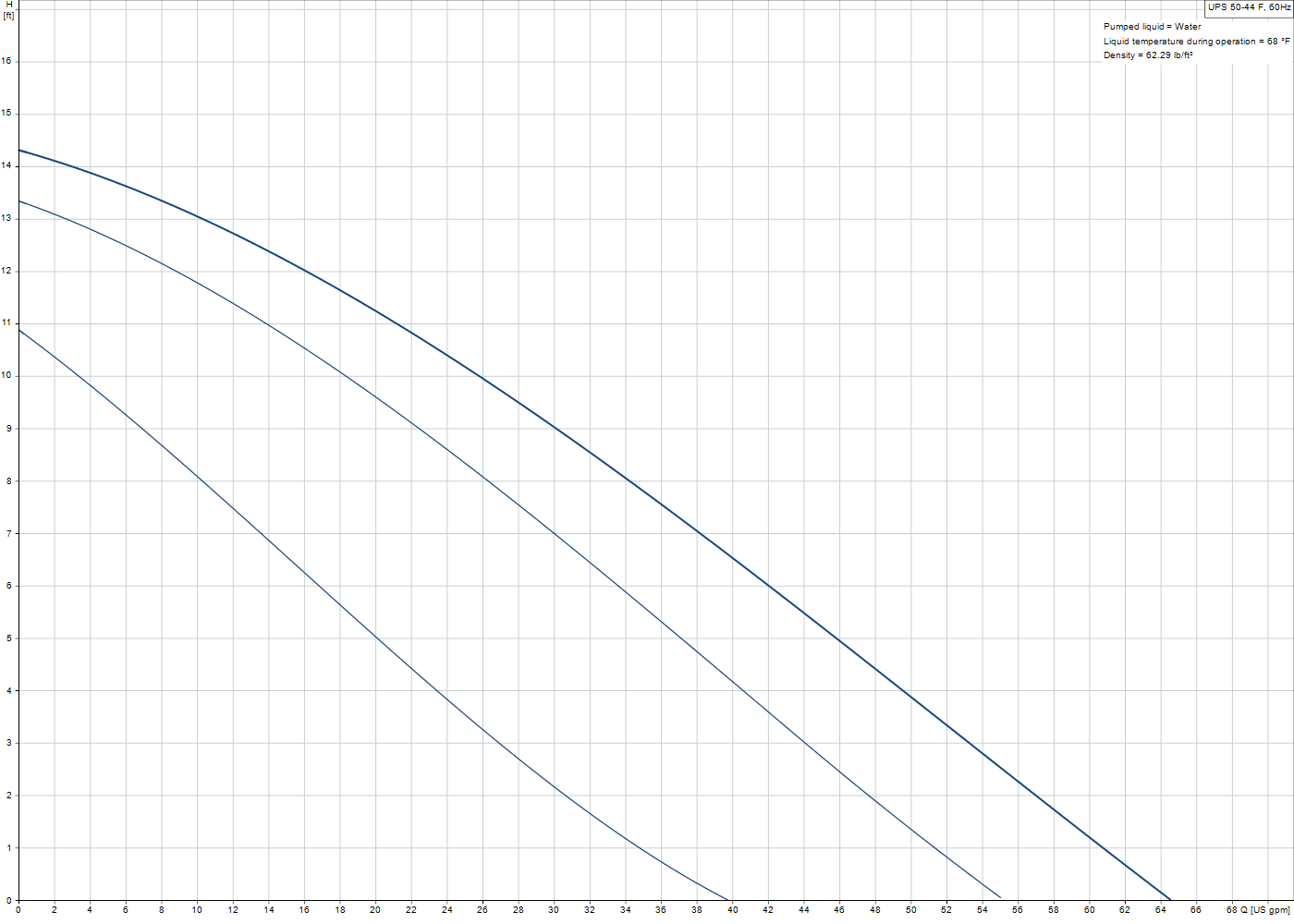

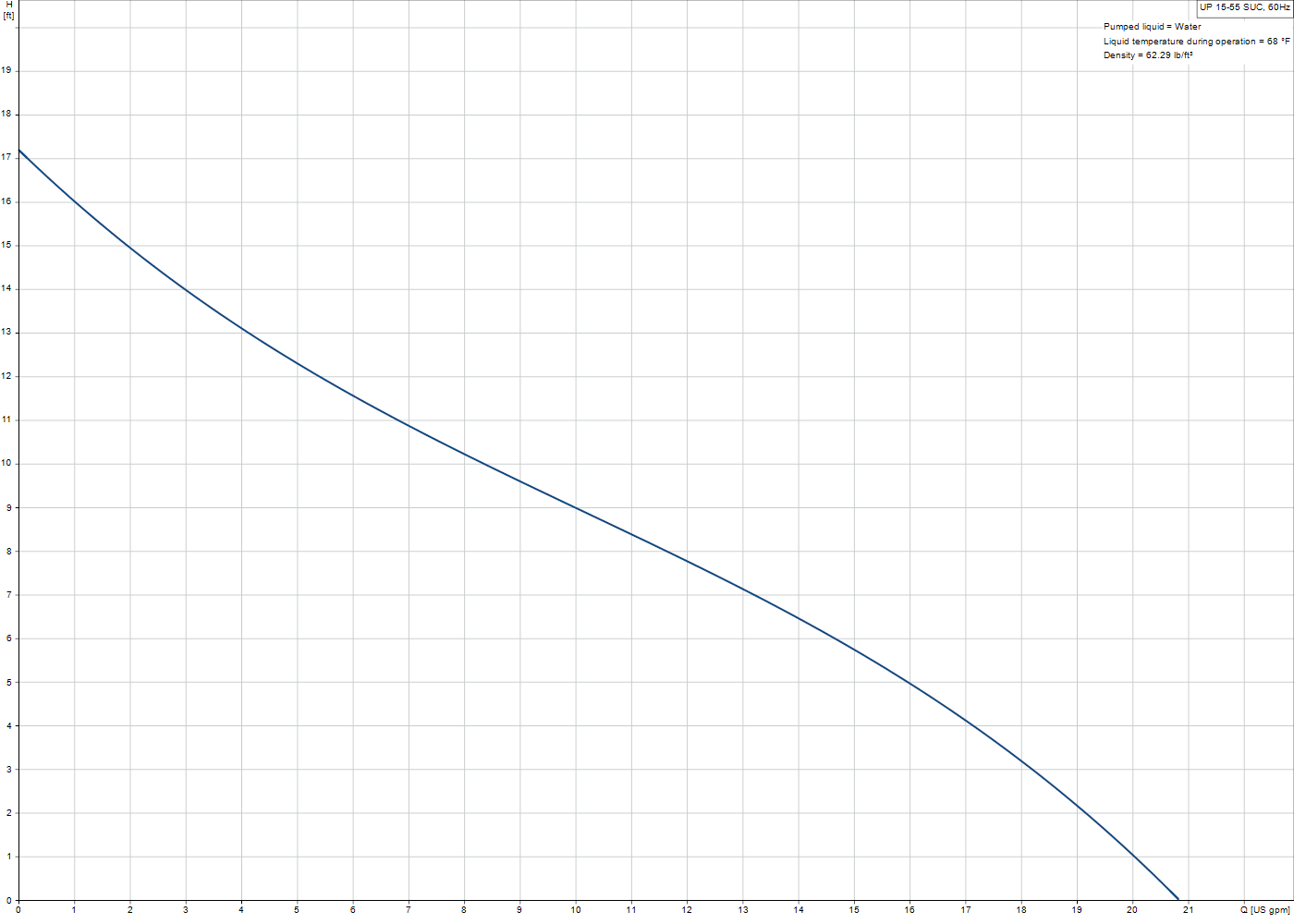

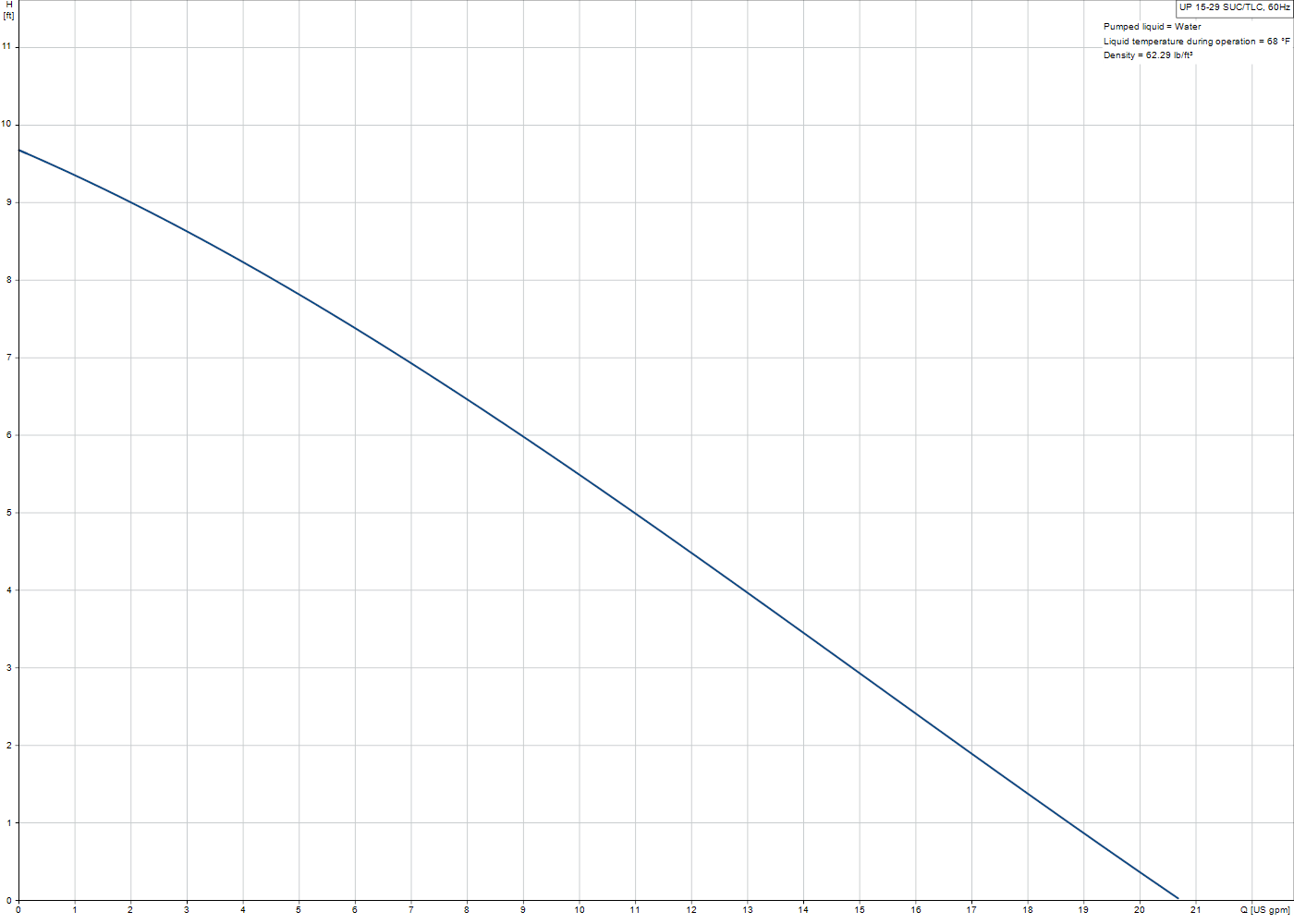

Top-speed (or maximum) curve read from the Grundfos Product Center 60 Hz curve for each model, at 20%, 50% and 75% of that curve’s maximum flow; head in feet of water. The full curve set is the variant image. PSI = feet ÷ 2.31.
Before You Buy — The Limits That Decide the Fit
| Liquid |
Clean water or water-glycol; potable water only in stainless steel, bronze or brass housings |
| Installation |
Horizontal motor shaft |
| Power |
115V 1Ph, 208V 1Ph, 230V 1Ph |
Applications
Hydronic heating, radiant floors, boiler and indirect water heater loops, and domestic hot water recirculation (stainless and bronze).
Materials of Construction
| Pump housing |
Stainless steel (S), bronze (B) or cast iron |
| Impeller |
Composite |
| Rotor can |
Stainless steel |
