Grundfos · Close-Coupled End Suction Pump, Variable Speed
NBE
83 US builds: 3 to 30 HP, 20 pump sizes from 012-070 to 060-095, 60 Hz.
3-30 HP Variable Speed
Built-In Drive, IP55
200-240V 3Ph or 440-480V 3Ph
2-8 in Suction x 1-1/4-6 in Discharge
ANSI Class 125 Flanges, 174 psi
DOE PEI VL 0.40-0.50
-13 to 248°F Liquid
Cast Iron Housing, Stainless Steel Impeller
Overview
The NBE is Grundfos’s single-stage, end suction volute pump in its US Range 6 build: NEMA motor, ANSI Class 125 flanges, assembled in Brookshire, Texas. It is close-coupled: no base plate, no grouting and no pump-to-motor alignment. Top centerline discharge self-vents, and the back pull-out design lets the motor, motor stool and impeller come out without disturbing the pump housing or the pipes. The motor has a built-in frequency converter and Grundfos control software, so the pump runs at the speed the system needs. Builds listed With Sensor ship with a pressure sensor fitted for constant-pressure or proportional-pressure control. Each part number is one pump size with one trimmed impeller and one motor; the table below gives the rated duty point Grundfos publishes for each.
- Stainless steel impeller, hydraulically balanced for low noise and long seal and bearing life
- Silicon carbide / silicon carbide / EPDM shaft seal (BQQE), standard on all N-series pumps
- Foot-mounted volute and back pull-out design for service without breaking the piping
- Control modes with a sensor: constant pressure, proportional pressure, temperature and constant flow
What Ships and What It Needs to Run
Included: the NBE pump with its built-in-drive motor, assembled.
Ships by freight: about 149-652 lb by build; plan for a forklift at delivery.
Sized at install: isolating valves, a pressure sensor where the build has none, and a level foundation.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Grundfos Warranty
Covered for 12 months from the date of purchase under Grundfos’s published warranty terms.
Specifications
| Pump type |
Single-stage, end suction, close-coupled volute pump, back pull-out, Grundfos Range 6 (NEMA) |
| Motor |
Grundfos MLE motor with built-in frequency converter, IP55 |
| Speed |
up to 4000 or 2200 RPM by build |
| Power supply |
200-240V 3Ph, 440-480V 3Ph, 60 Hz |
| Connections |
ANSI B16.5 Class 125 flanges |
| Maximum operating pressure |
174 psi |
| Liquid temperature |
-13 to 248°F with the BQQE seal |
| Pump energy index |
DOE PEI VL 0.40-0.50 by build |
Models & Performance — Will It Do What You Need?
Each line is one pump size at one speed: suction x discharge, motor HP, shut-off head and the largest maximum flow. Open the size that covers your duty point. Each row is one impeller and motor this listing sells, and every figure is the total head in feet the pump adds at that flow. The model number ends in the impeller diameter in inches (020-110/9.92 = 9.92 in).
NBE 012-070, 4000 RPM: 2 x 1-1/4 in, 10-15 HP, 243-258 ft, 209 GPM
| Impeller, motor |
0 GPM |
105 |
155 |
209 (Max) |
| /6.97, 10 HP |
258 |
231 |
187 |
— |
| /6.97, 15 HP |
257 |
251 |
232 |
172 |
| /6.65, 15 HP |
243 |
236 |
218 |
— |
NBE 015-070, 4000 RPM: 2-1/2 x 1-1/2 in, 10-15 HP, 256-269 ft, 333 GPM
| Impeller, motor |
0 GPM |
165 |
250 |
333 (Max) |
| /6.93, 15 HP |
269 |
237 |
176 |
116 |
| /6.73, 10 HP |
256 |
158 |
97 |
— |
NBE 015-095, 2200 RPM: 2-1/2 x 1-1/2 in, 5-10 HP, 135-169 ft, 279 GPM
| Impeller, motor |
0 GPM |
140 |
210 |
279 (Max) |
| /9.84, 10 HP |
169 |
161 |
130 |
92 |
| /9.84, 7 1/2 HP |
169 |
133 |
95 |
— |
| /8.82, 5 HP |
135 |
92 |
64 |
— |
NBE 020-095, 2200 RPM: 2-1/2 x 2 in, 5-10 HP, 157-157 ft, 328 GPM
| Impeller, motor |
0 GPM |
165 |
245 |
328 (Max) |
| /9.45, 7 1/2 HP |
157 |
122 |
88 |
— |
| /9.45, 5 HP |
157 |
81 |
47 |
— |
| /9.45, 10 HP |
157 |
149 |
119 |
85 |
NBE 020-110, 2200 RPM: 2-1/2 x 2 in, 5-20 HP, 137-182 ft, 451 GPM
| Impeller, motor |
0 GPM |
225 |
340 |
451 (Max) |
| /10.31, 20 HP |
182 |
173 |
155 |
126 |
| /10.31, 15 HP |
182 |
173 |
127 |
— |
| /9.92, 10 HP |
171 |
129 |
86 |
— |
| /9.92, 7 1/2 HP |
171 |
95 |
— |
— |
| /8.98, 5 HP |
137 |
56 |
— |
— |
NBE 020-135, 2200 RPM: 3 x 2 in, 7 1/2-15 HP, 169-269 ft, 341 GPM
| Impeller, motor |
0 GPM |
170 |
255 |
341 (Max) |
| /12.52, 15 HP |
269 |
203 |
150 |
92 |
| /11.42, 10 HP |
221 |
144 |
92 |
— |
| /10.16, 7 1/2 HP |
169 |
108 |
— |
— |
NBE 025-070, 4000 RPM: 3 x 2-1/2 in, 5-30 HP, 113-262 ft, 621 GPM
| Impeller, motor |
0 GPM |
310 |
470 |
621 (Max) |
| /6.77, 25 HP |
262 |
238 |
171 |
— |
| /6.77, 30 HP |
262 |
252 |
203 |
143 |
| /6.77, 20 HP |
262 |
197 |
124 |
— |
| /4.96, 10 HP |
133 |
94 |
— |
— |
| /4.57, 7 1/2 HP |
113 |
64 |
— |
— |
NBE 025-070, 2200 RPM: 3 x 2-1/2 in, 3-5 HP, 74-78 ft, 335 GPM
| Impeller, motor |
0 GPM |
170 |
250 |
335 (Max) |
| /6.77, 5 HP |
78 |
76 |
64 |
46 |
| /6.61, 3 HP |
74 |
53 |
38 |
— |
NBE 025-095, 4000 RPM: 3 x 2-1/2 in, 30 HP, 281-281 ft, 572 GPM
| Impeller, motor |
0 GPM |
285 |
430 |
572 (Max) |
| /7.17, 30 HP |
281 |
257 |
197 |
130 |
NBE 025-095, 2200 RPM: 3 x 2-1/2 in, 3-10 HP, 58-146 ft, 427 GPM
| Impeller, motor |
0 GPM |
215 |
320 |
427 (Max) |
| /9.53, 10 HP |
146 |
129 |
98 |
70 |
| /9.53, 7 1/2 HP |
146 |
99 |
66 |
— |
| /5.98, 3 HP |
58 |
38 |
— |
— |
NBE 025-110, 2200 RPM: 3 x 2-1/2 in, 7 1/2-20 HP, 153-211 ft, 522 GPM
| Impeller, motor |
0 GPM |
260 |
390 |
522 (Max) |
| /11.02, 20 HP |
211 |
199 |
153 |
106 |
| /9.45, 7 1/2 HP |
153 |
81 |
— |
— |
NBE 030-070, 4000 RPM: 4 x 3 in, 7 1/2-30 HP, 106-258 ft, 835 GPM
| Impeller, motor |
0 GPM |
420 |
630 |
835 (Max) |
| /6.85, 30 HP |
258 |
206 |
150 |
99 |
| /6.85, 25 HP |
258 |
172 |
113 |
— |
| /5.87, 15 HP |
186 |
94 |
55 |
— |
| /5.39, 10 HP |
140 |
59 |
— |
— |
| /5.04, 7 1/2 HP |
106 |
38 |
— |
— |
NBE 030-070, 2200 RPM: 4 x 3 in, 3-5 HP, 72-77 ft, 479 GPM
| Impeller, motor |
0 GPM |
240 |
360 |
479 (Max) |
| /6.85, 5 HP |
77 |
62 |
46 |
32 |
| /6.85, 3 HP |
72 |
36 |
22 |
— |
NBE 030-095, 2200 RPM: 4 x 3 in, 5-20 HP, 59-133 ft, 739 GPM
| Impeller, motor |
0 GPM |
370 |
550 |
739 (Max) |
| /8.86, 20 HP |
133 |
133 |
119 |
90 |
| /8.86, 15 HP |
133 |
115 |
89 |
— |
| /8.86, 10 HP |
133 |
82 |
50 |
— |
| /6.10, 5 HP |
59 |
39 |
21 |
— |
NBE 030-135, 2200 RPM: 4 x 3 in, 15-30 HP, 176-296 ft, 703 GPM
| Impeller, motor |
0 GPM |
350 |
530 |
703 (Max) |
| /12.91, 30 HP |
296 |
220 |
166 |
111 |
| /11.26, 20 HP |
229 |
156 |
104 |
— |
| /9.92, 15 HP |
176 |
116 |
71 |
— |
NBE 040-070, 2200 RPM: 5 x 4 in, 3-10 HP, 41-73 ft, 826 GPM
| Impeller, motor |
0 GPM |
410 |
620 |
826 (Max) |
| /6.85, 7 1/2 HP |
73 |
55 |
39 |
— |
| /6.85, 10 HP |
73 |
69 |
54 |
36 |
| /6.30, 5 HP |
61 |
38 |
25 |
— |
| /5.43, 3 HP |
41 |
21 |
— |
— |
NBE 040-095, 2200 RPM: 5 x 4 in, 10-20 HP, 107-142 ft, 1,109 GPM
| Impeller, motor |
0 GPM |
550 |
830 |
1,109 (Max) |
| /9.37, 20 HP |
142 |
111 |
82 |
56 |
| /8.35, 15 HP |
115 |
83 |
58 |
— |
| /8.35, 10 HP |
107 |
54 |
31 |
— |
NBE 040-110, 2200 RPM: 5 x 4 in, 15-30 HP, 133-174 ft, 1,047 GPM
| Impeller, motor |
0 GPM |
520 |
790 |
1,047 (Max) |
| /10.08, 25 HP |
174 |
140 |
105 |
— |
| /10.08, 30 HP |
173 |
162 |
124 |
90 |
| /10.08, 20 HP |
173 |
118 |
73 |
— |
| /8.74, 15 HP |
133 |
89 |
52 |
— |
NBE 040-135, 2200 RPM: 5 x 4 in, 15-20 HP, 145-178 ft, 796 GPM
| Impeller, motor |
0 GPM |
400 |
600 |
796 (Max) |
| /10.24, 20 HP |
178 |
136 |
103 |
68 |
| /9.29, 15 HP |
145 |
100 |
67 |
— |
NBE 050-070, 2200 RPM: 6 x 5 in, 7 1/2-10 HP, 67-74 ft, 1,071 GPM
| Impeller, motor |
0 GPM |
540 |
800 |
1,071 (Max) |
| /6.93, 10 HP |
74 |
55 |
42 |
27 |
| /6.93, 7 1/2 HP |
67 |
42 |
30 |
— |
NBE 050-095, 2200 RPM: 6 x 5 in, 15-30 HP, 93-131 ft, 1,579 GPM
| Impeller, motor |
0 GPM |
790 |
1,200 |
1,579 (Max) |
| /9.13, 30 HP |
131 |
106 |
84 |
62 |
| /9.13, 25 HP |
131 |
92 |
71 |
— |
| /8.19, 15 HP |
93 |
56 |
33 |
— |
NBE 050-110, 2200 RPM: 6 x 5 in, 15-30 HP, 101-147 ft, 1,486 GPM
| Impeller, motor |
0 GPM |
740 |
1,100 |
1,486 (Max) |
| /9.61, 30 HP |
147 |
116 |
90 |
62 |
| /8.35, 15 HP |
101 |
60 |
35 |
— |
NBE 060-095, 2200 RPM: 8 x 6 in, 15-30 HP, 47-97 ft, 2,491 GPM
| Impeller, motor |
0 GPM |
1,250 |
1,850 |
2,491 (Max) |
| /8.90, 30 HP |
97 |
69 |
54 |
34 |
| /8.43, 25 HP |
80 |
58 |
45 |
— |
| /7.95, 20 HP |
62 |
46 |
34 |
— |
| /7.32, 15 HP |
47 |
33 |
24 |
— |

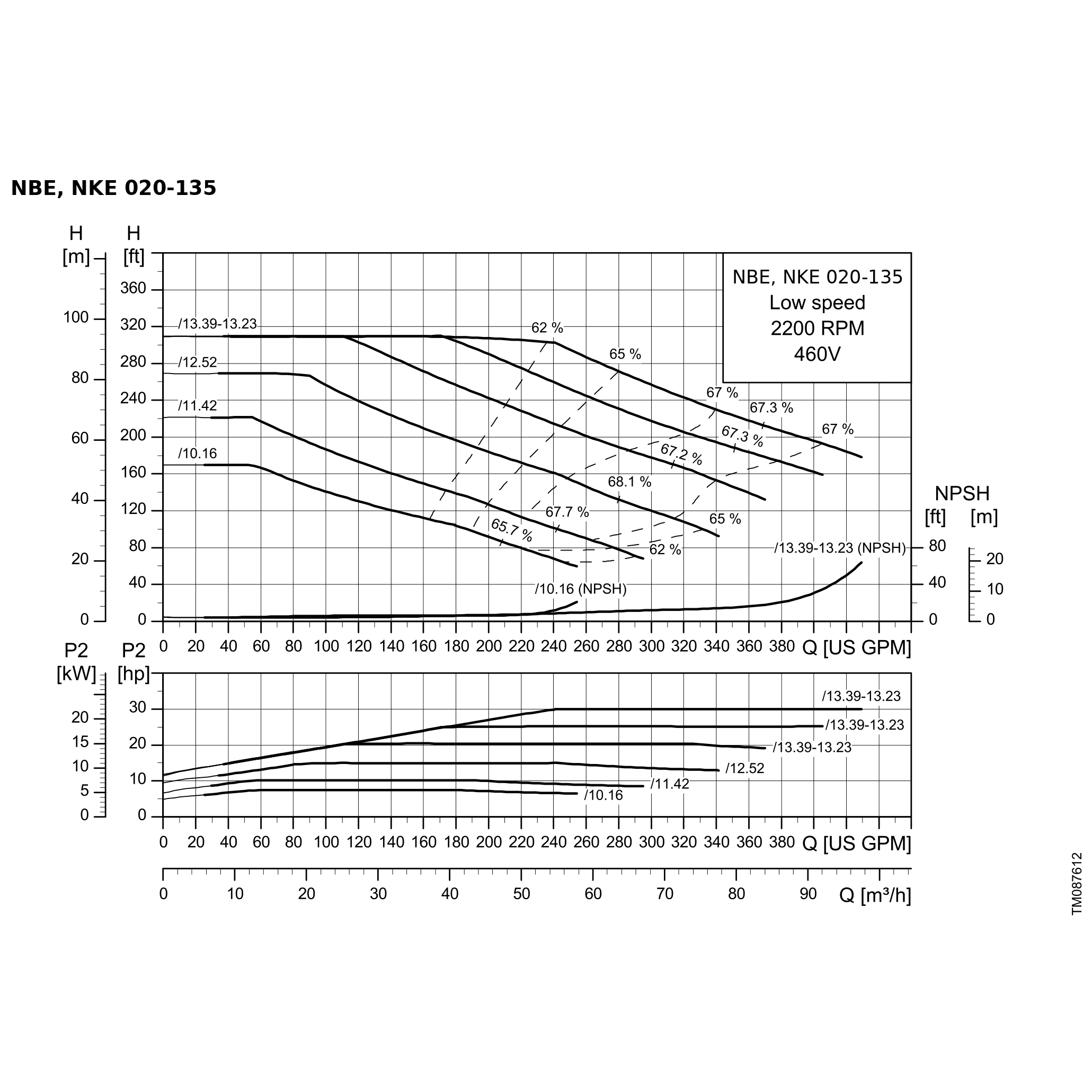

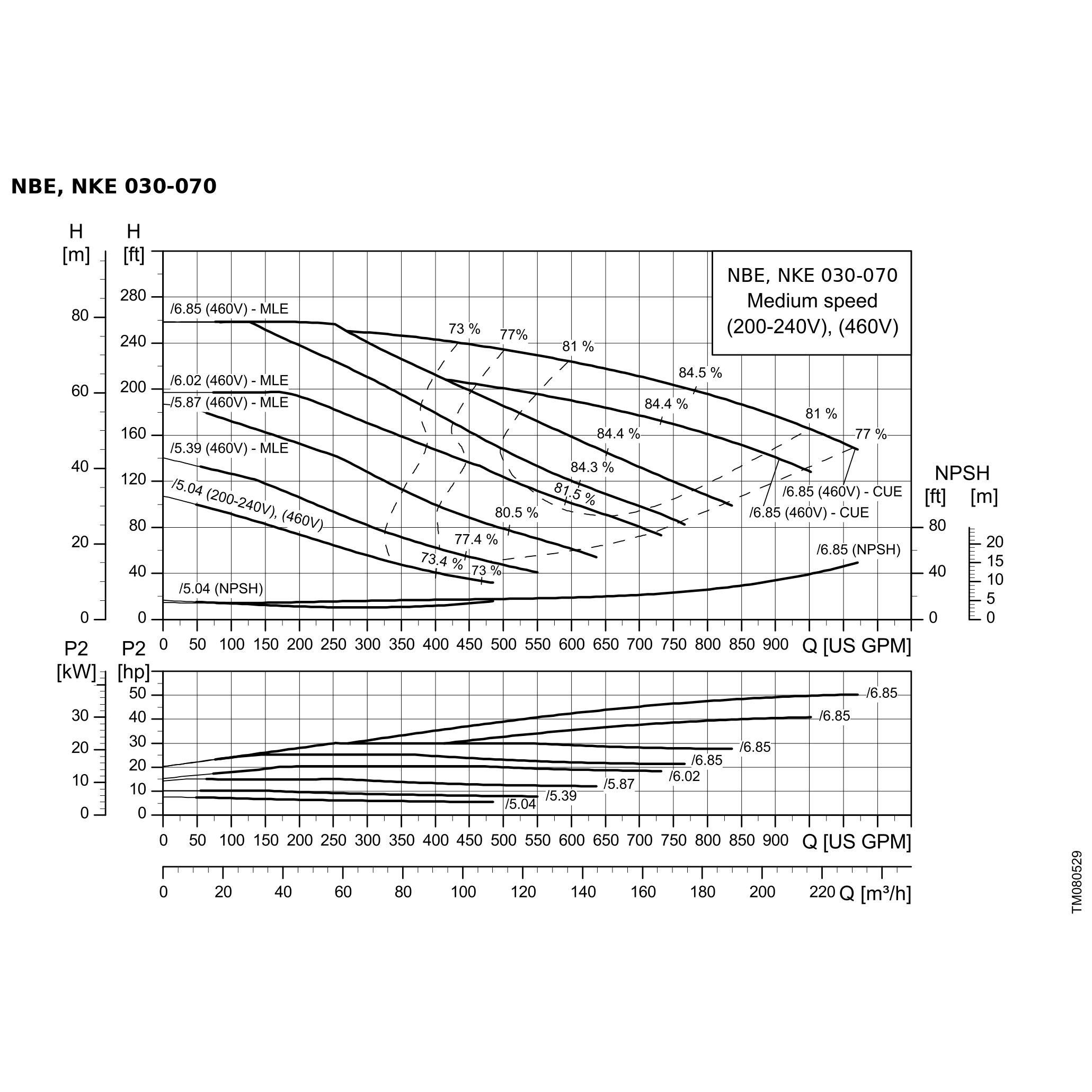

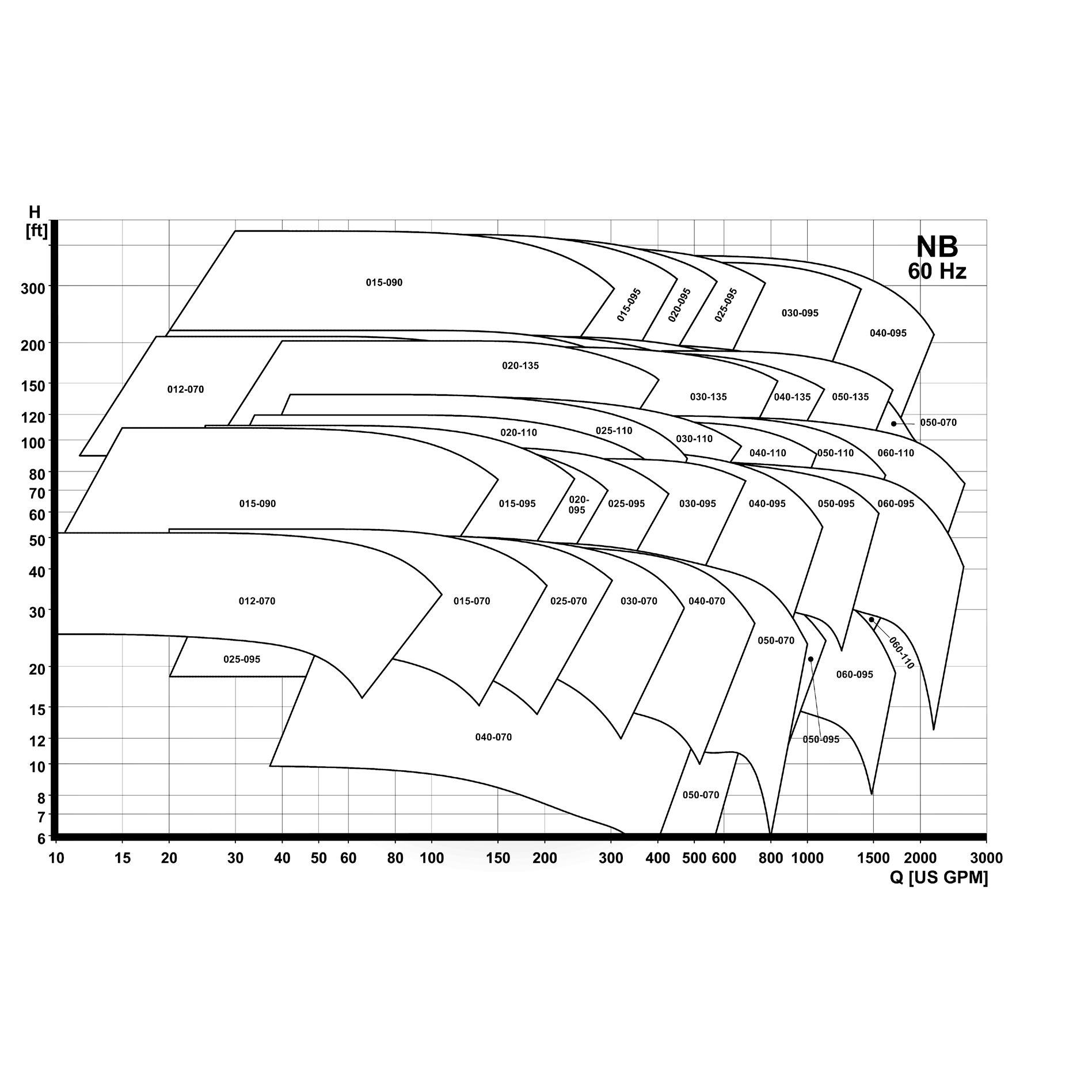

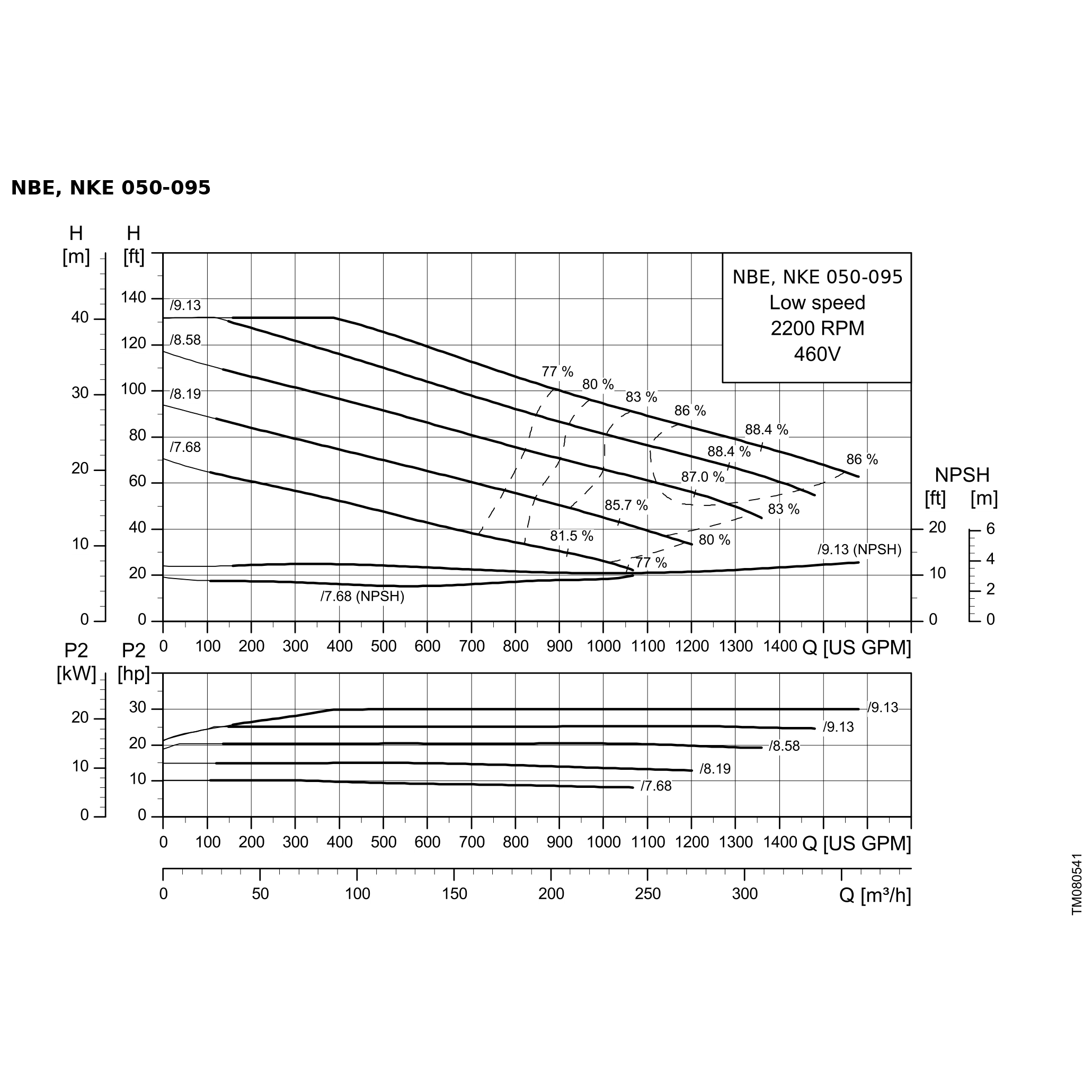

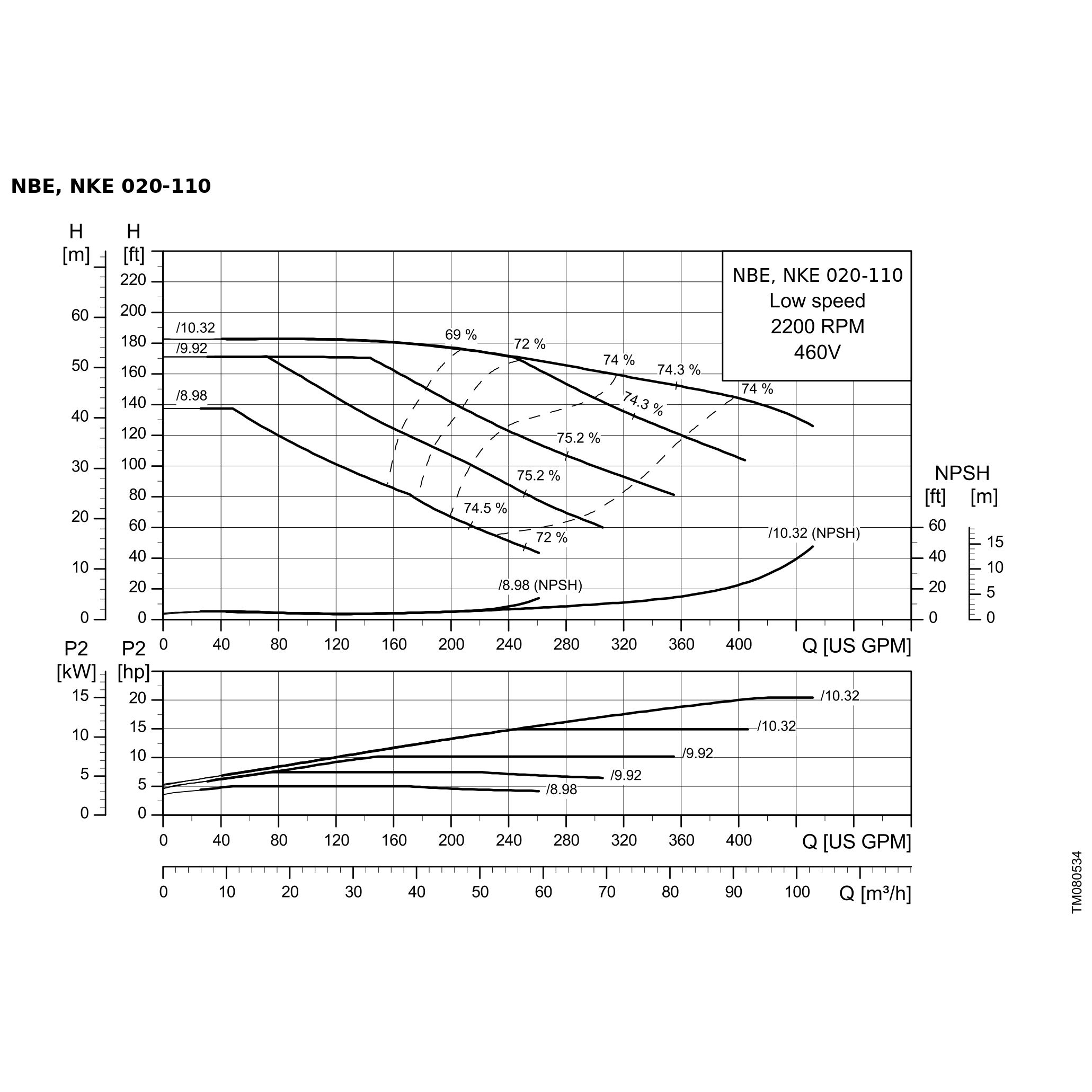

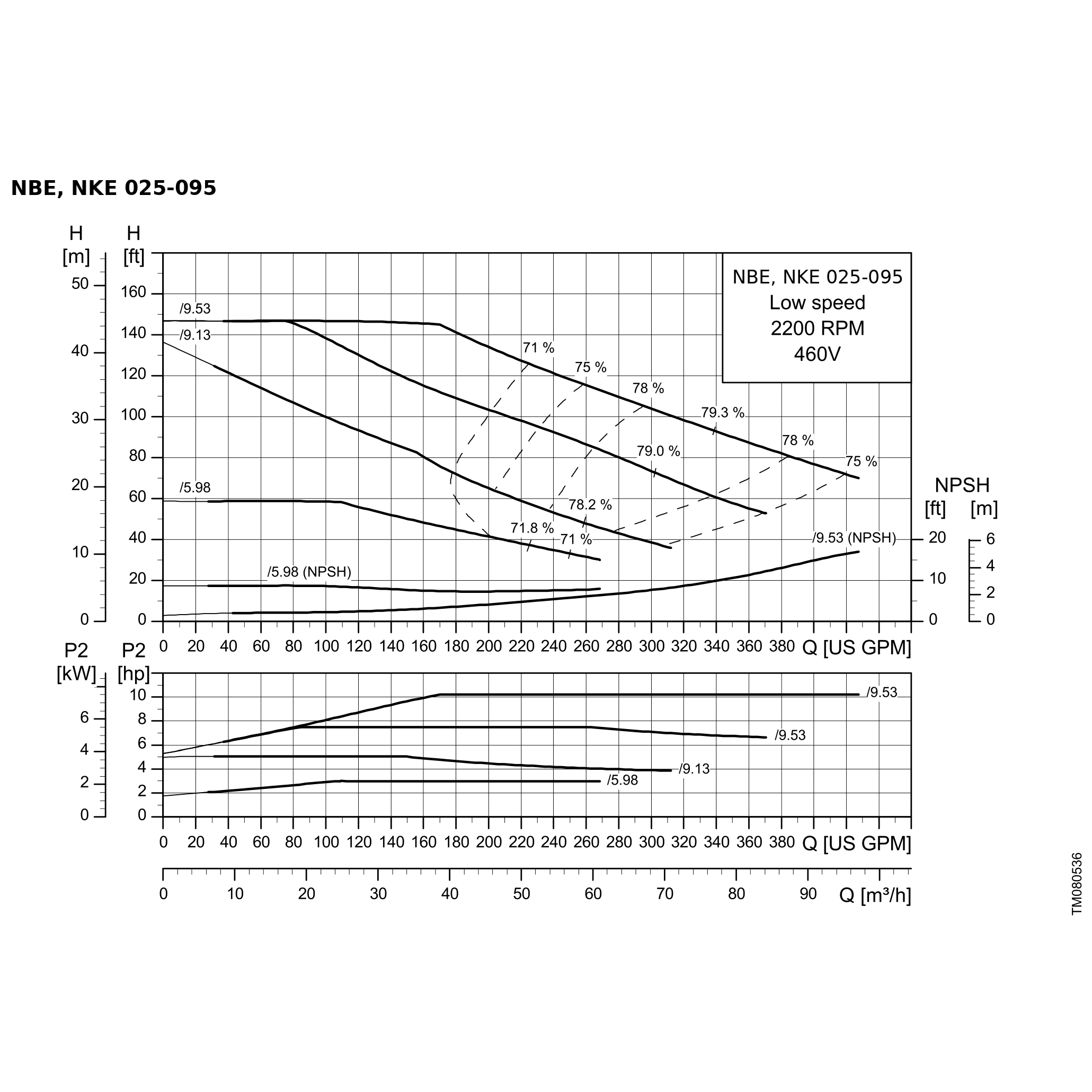

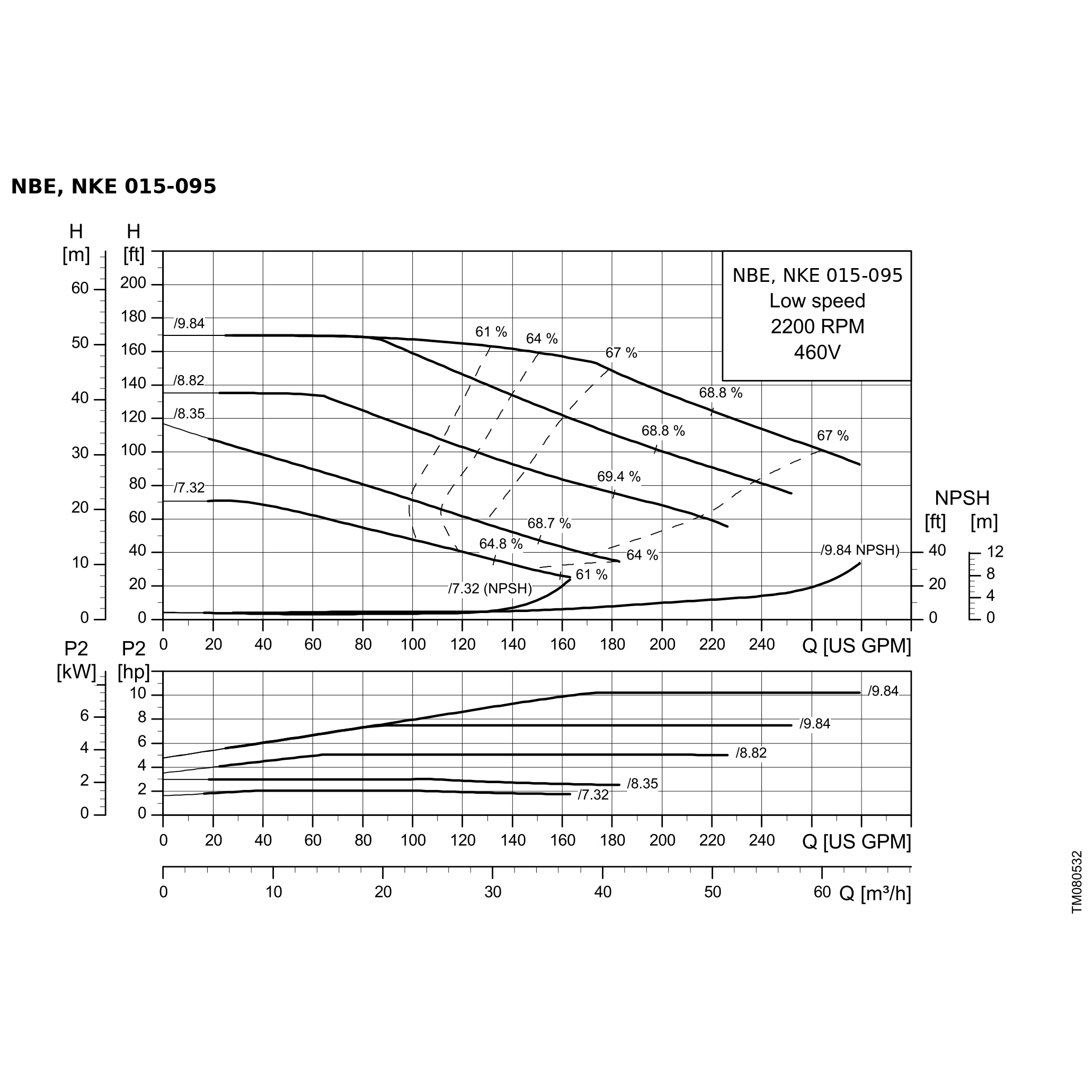

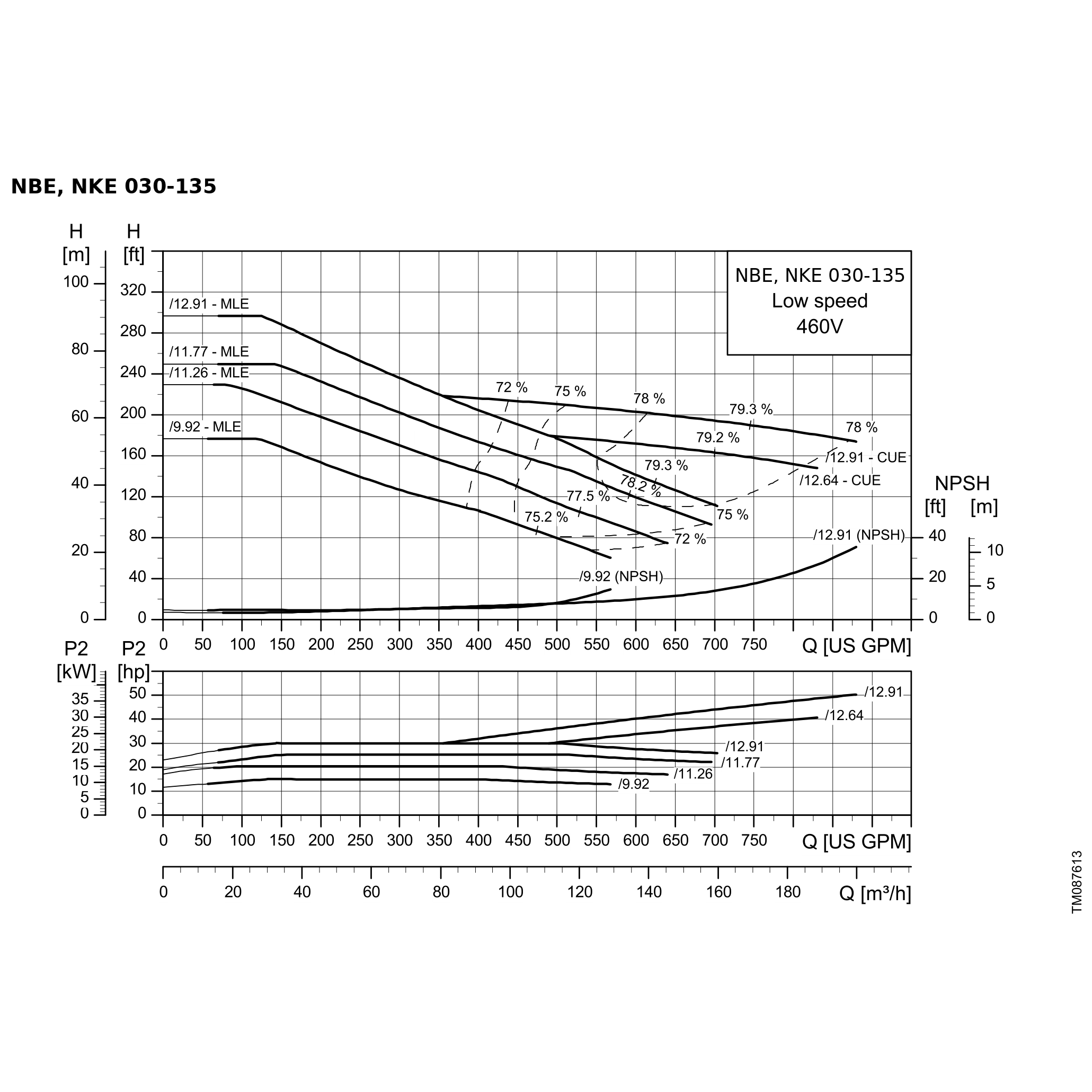

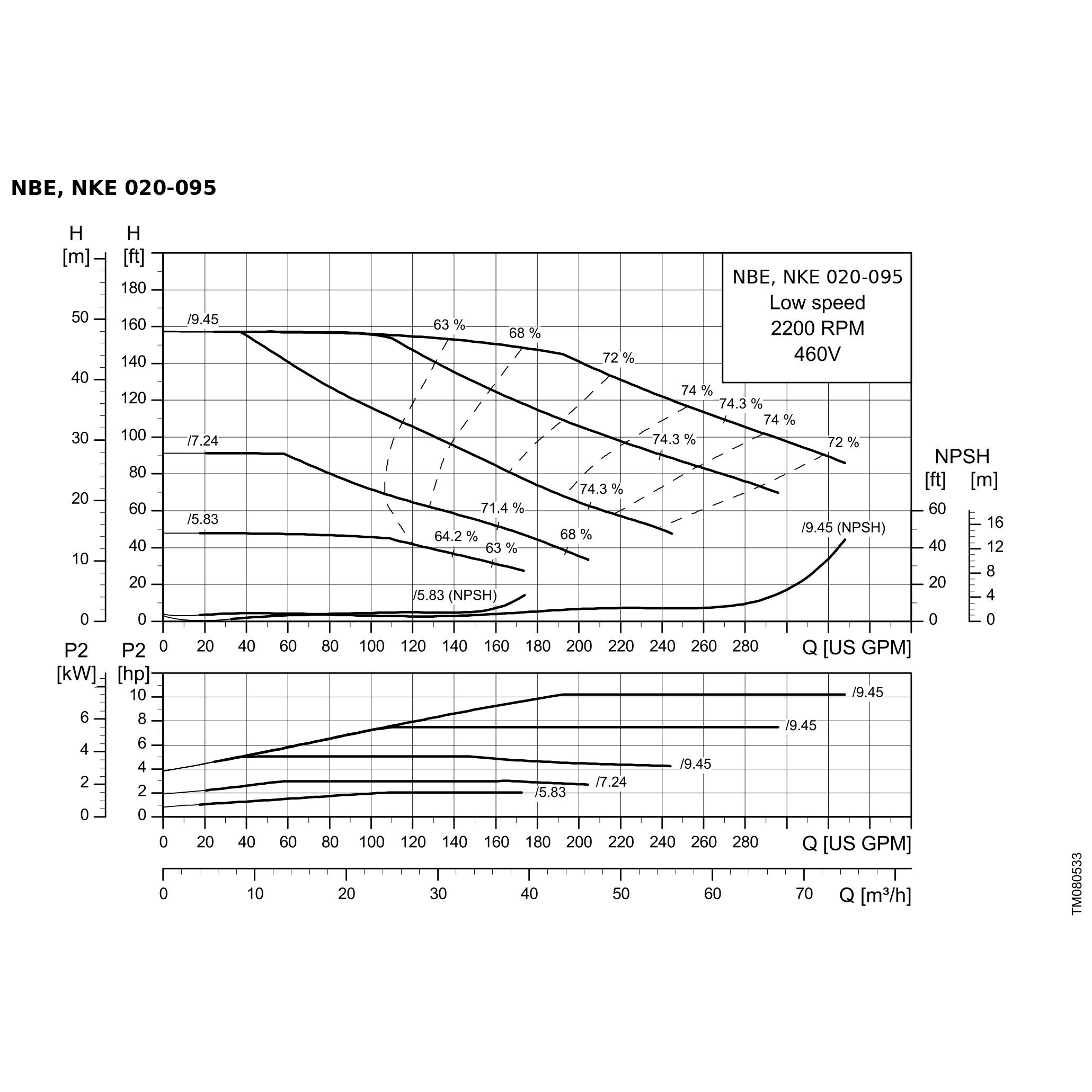

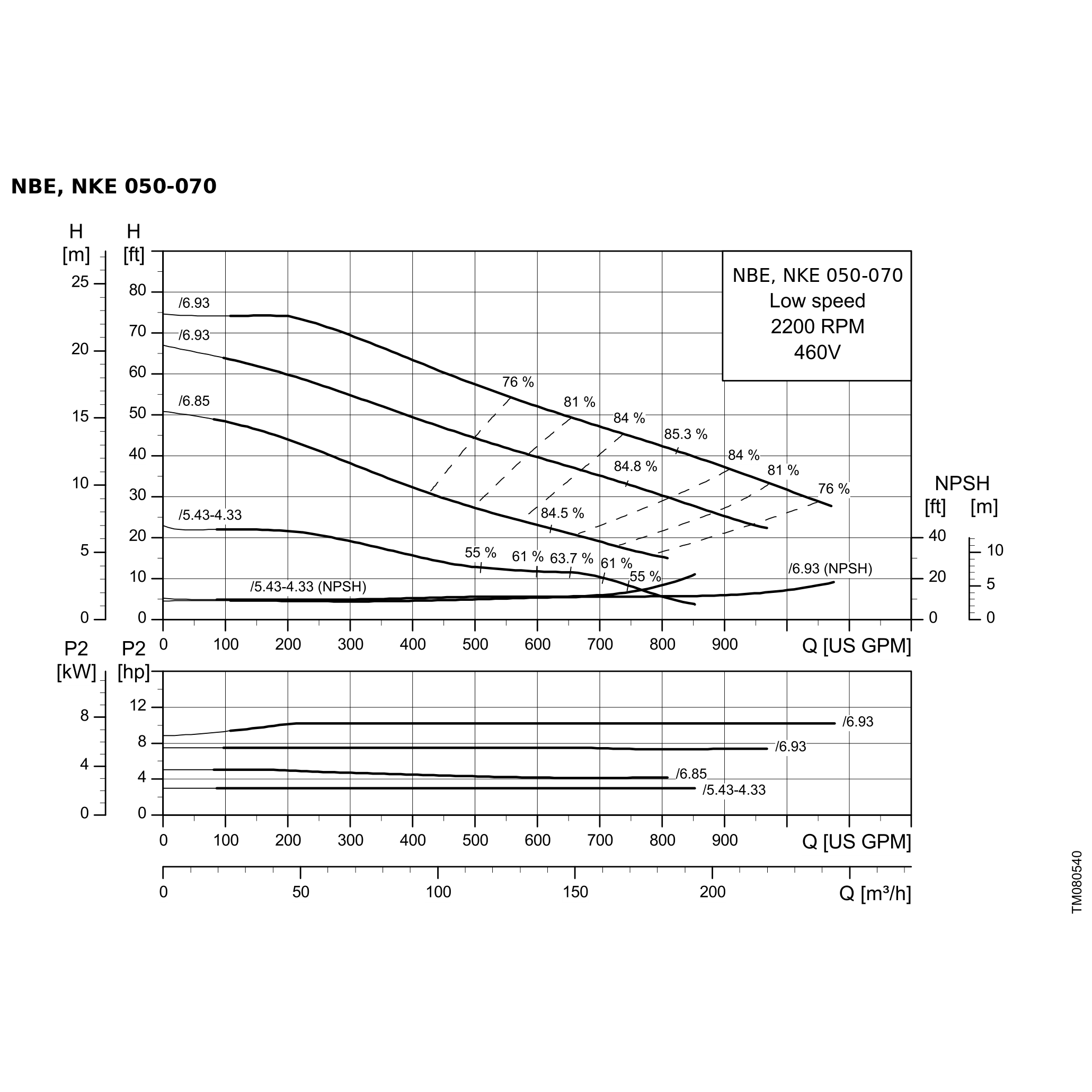

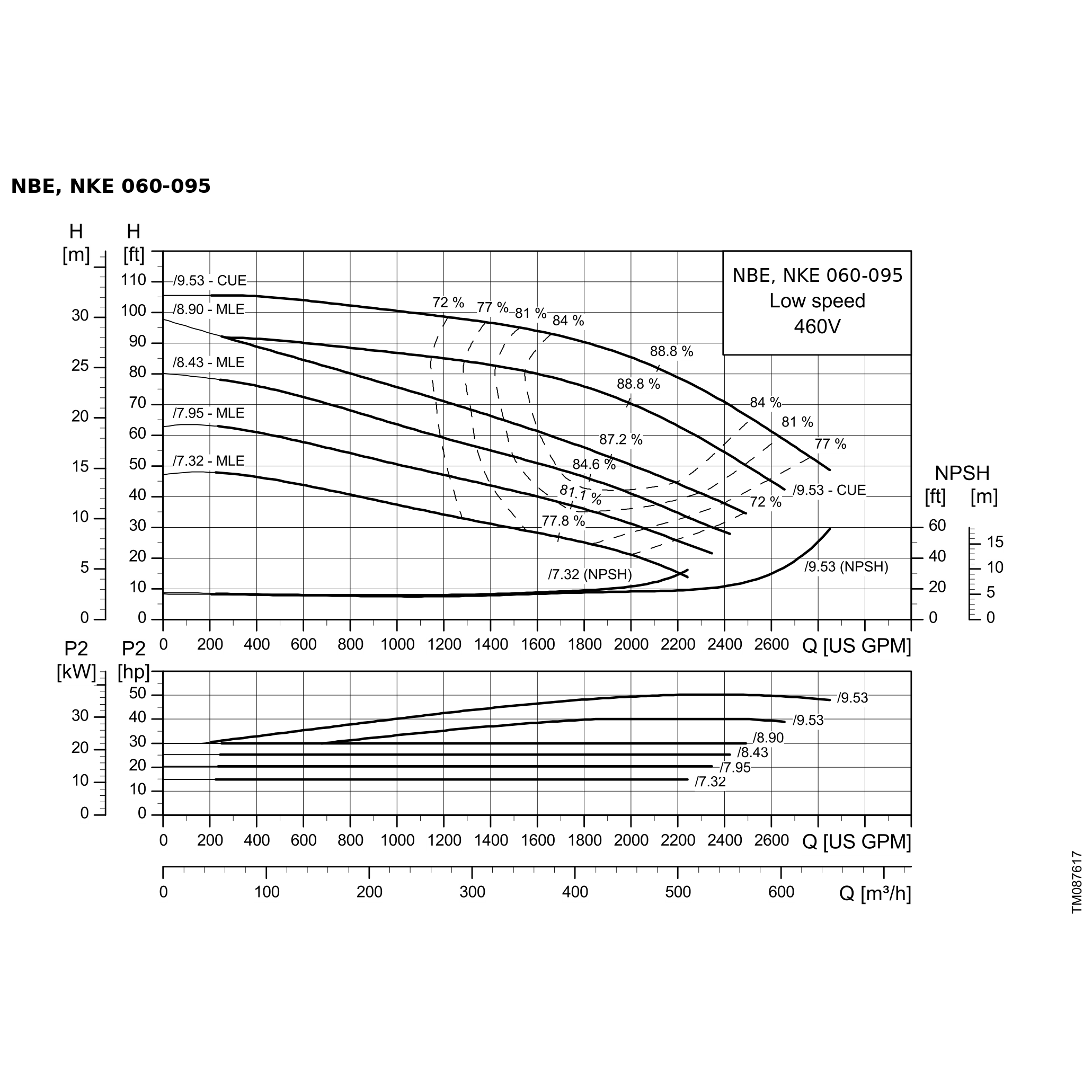

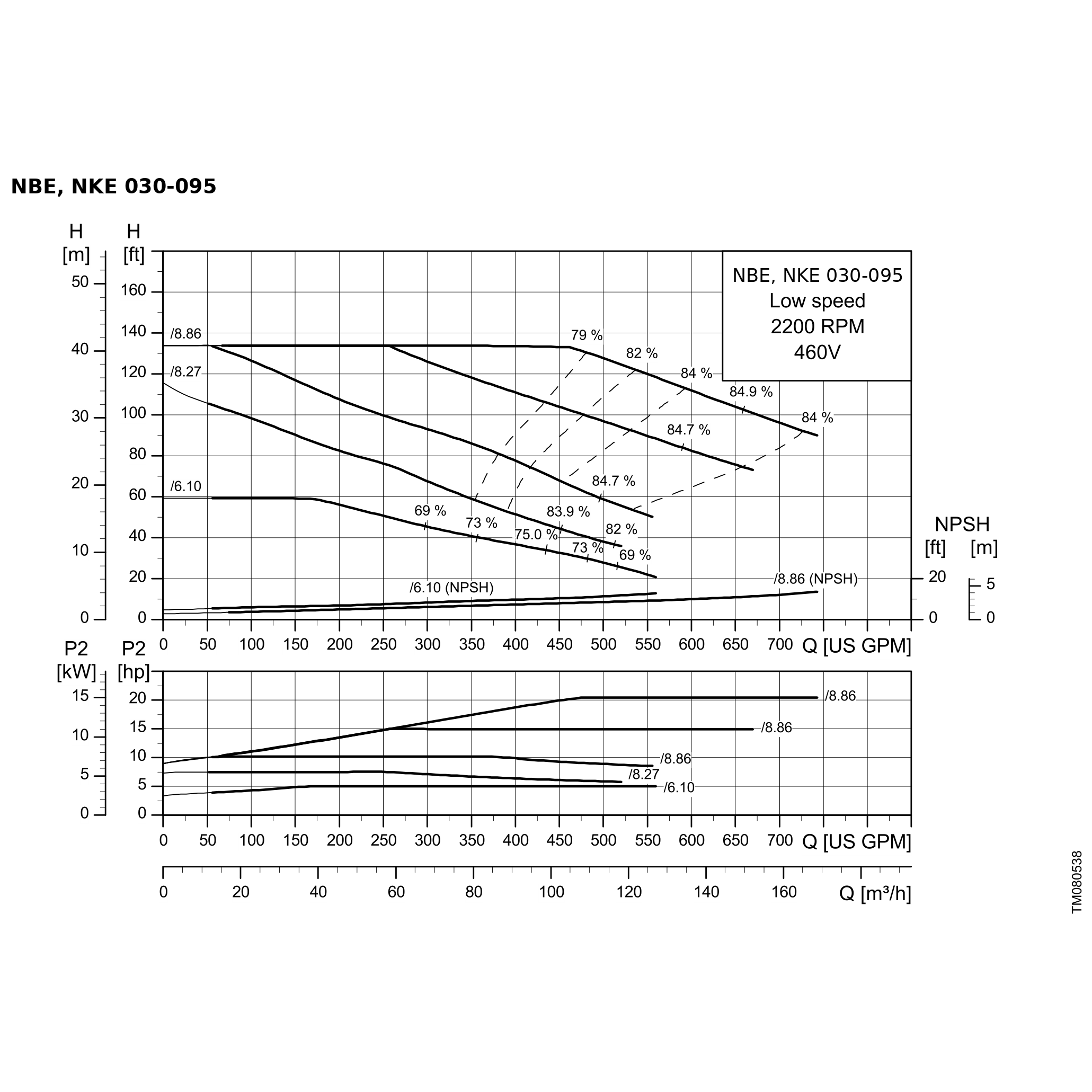

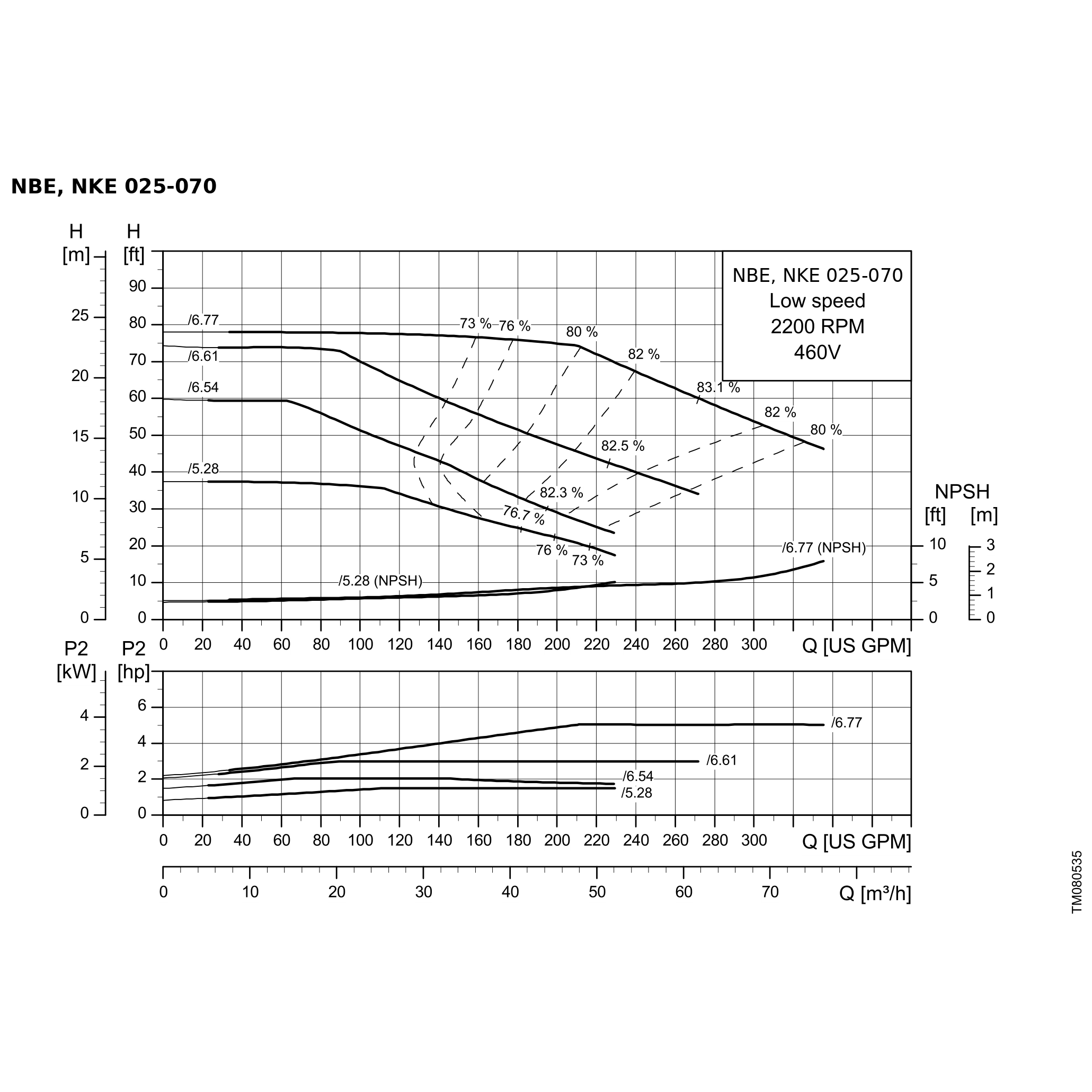

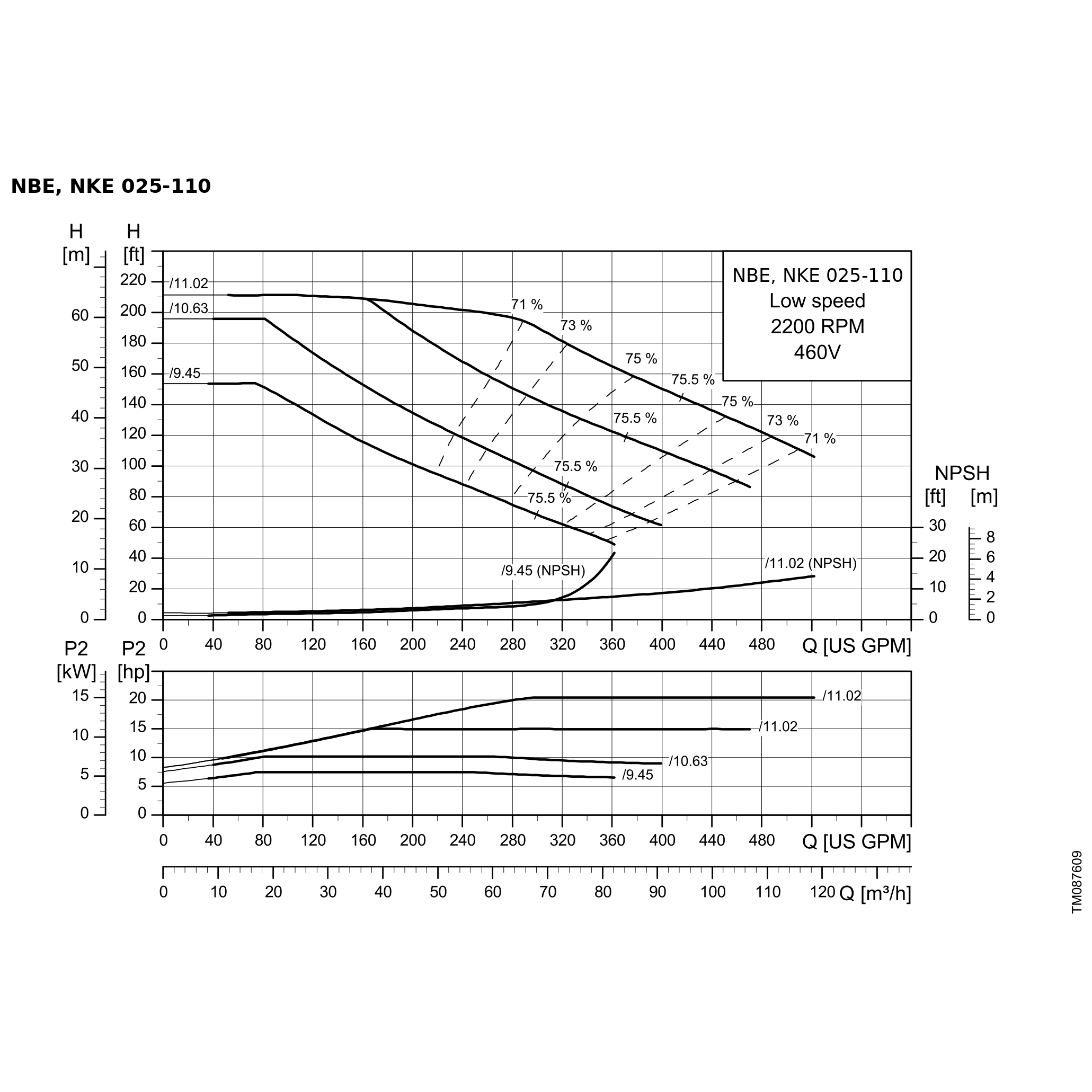

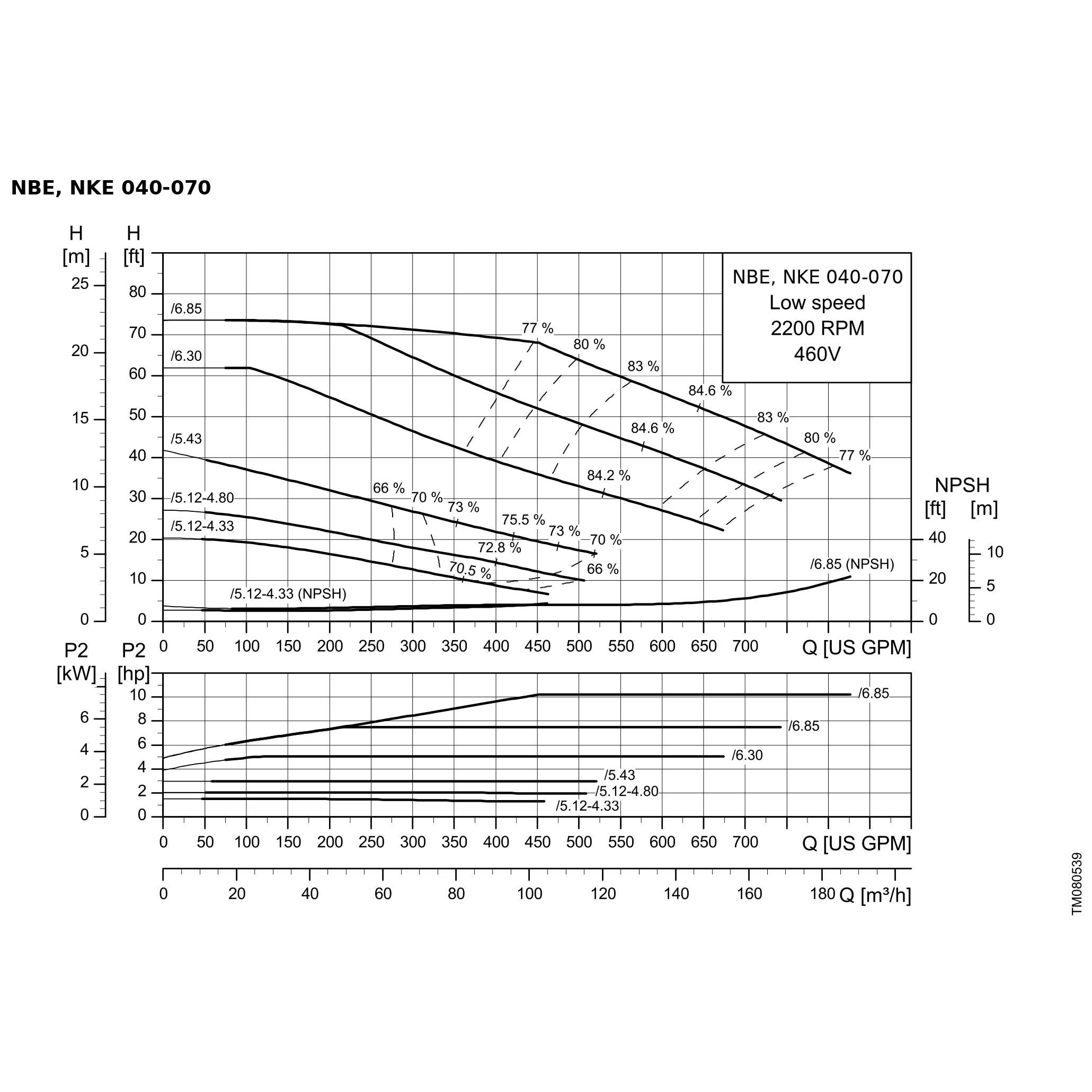

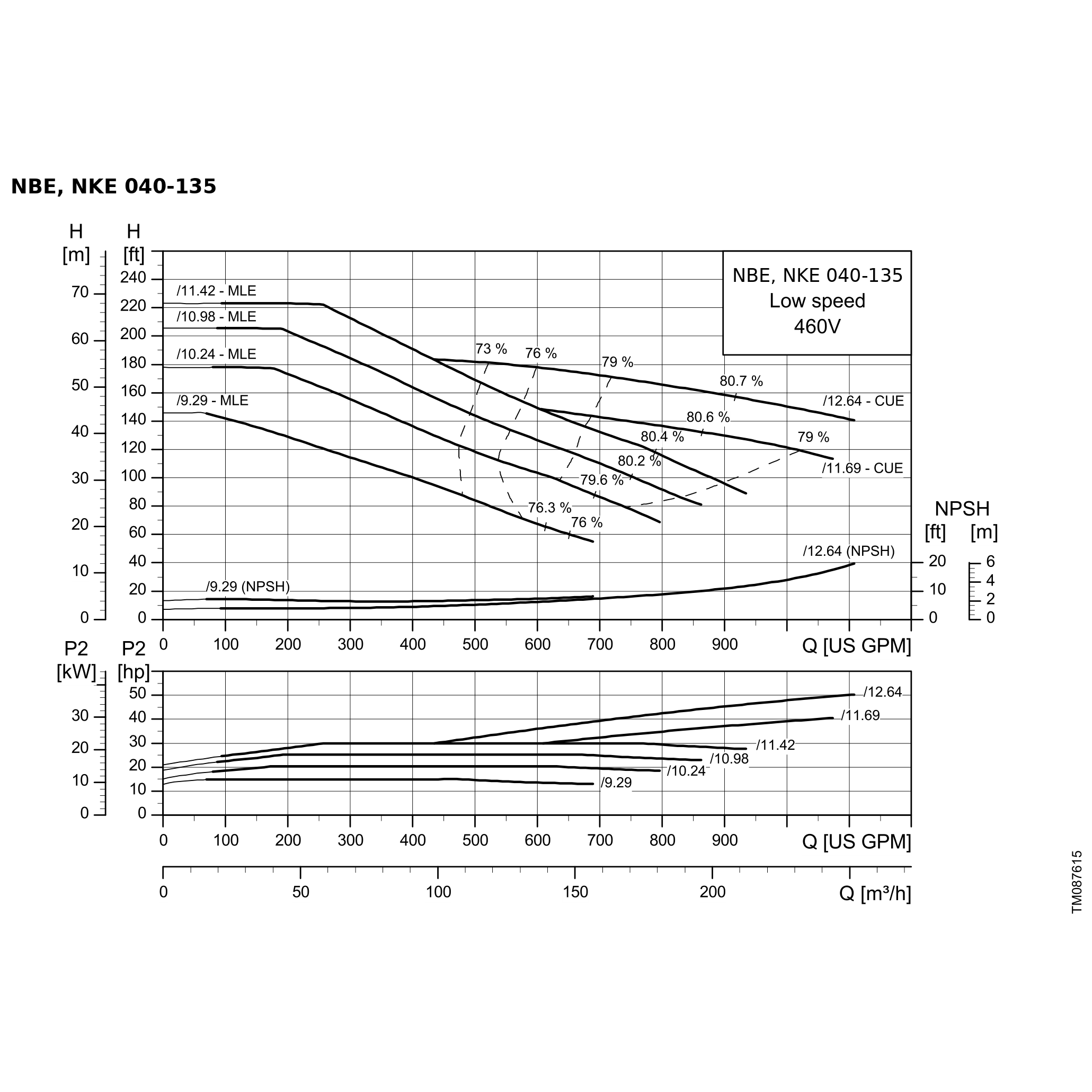

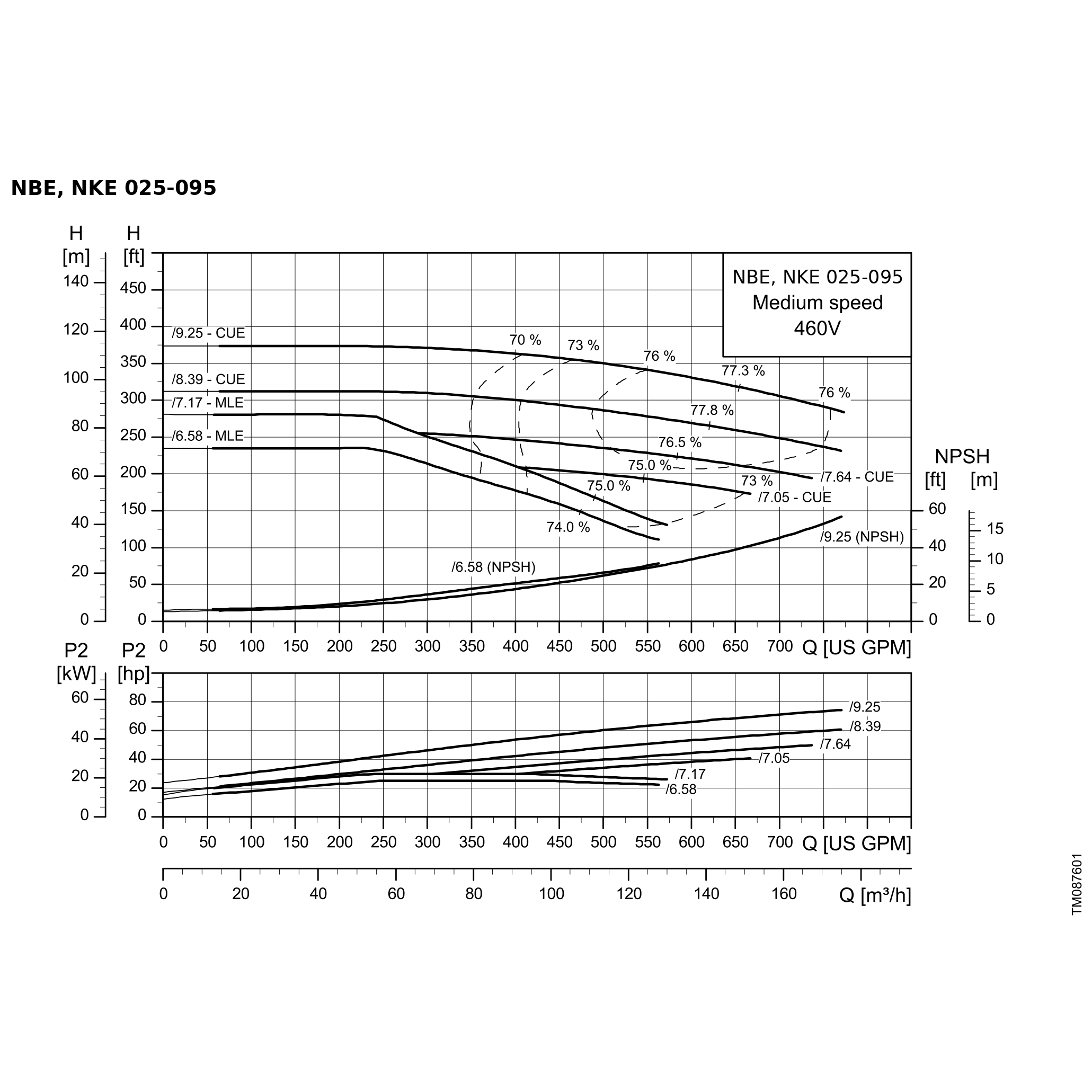

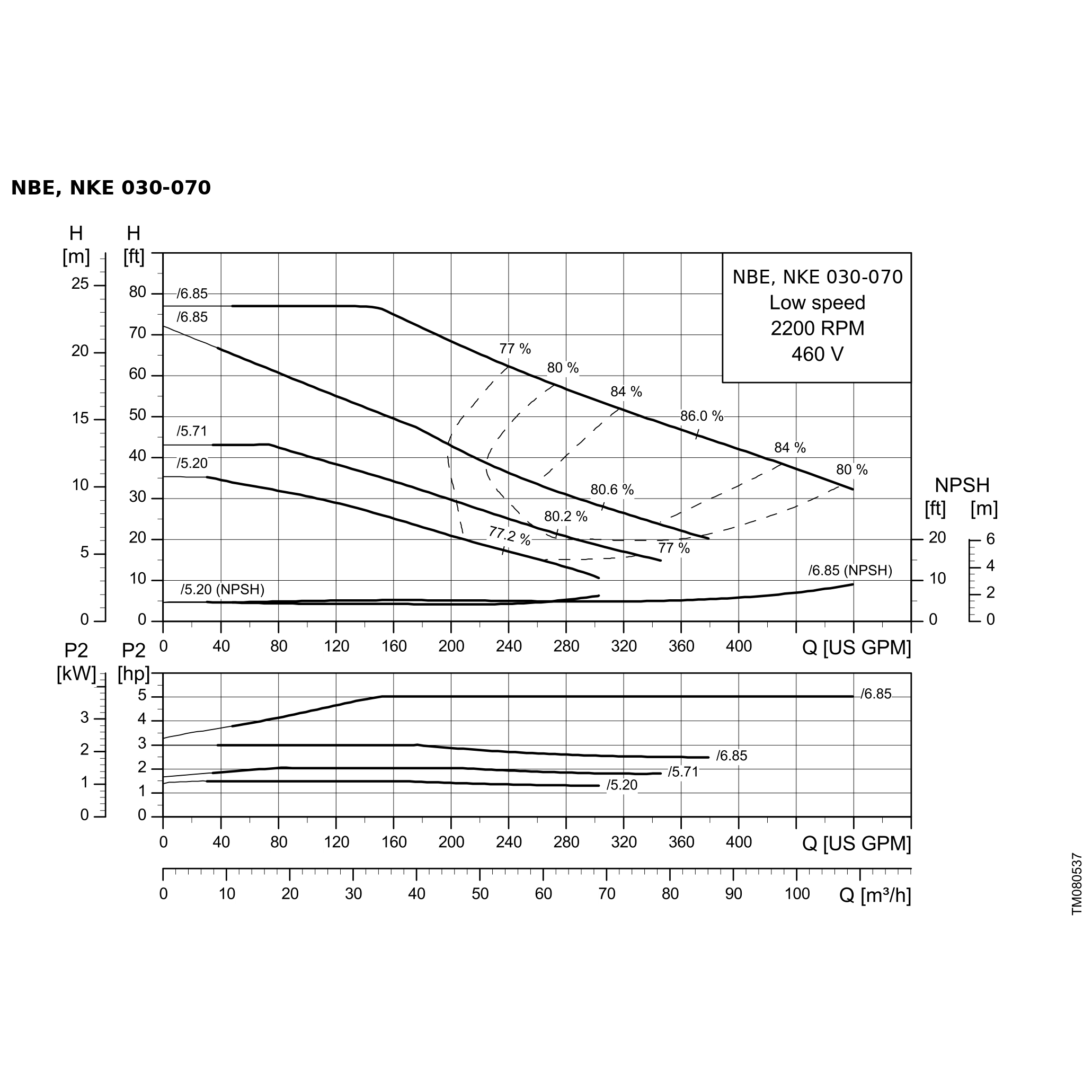

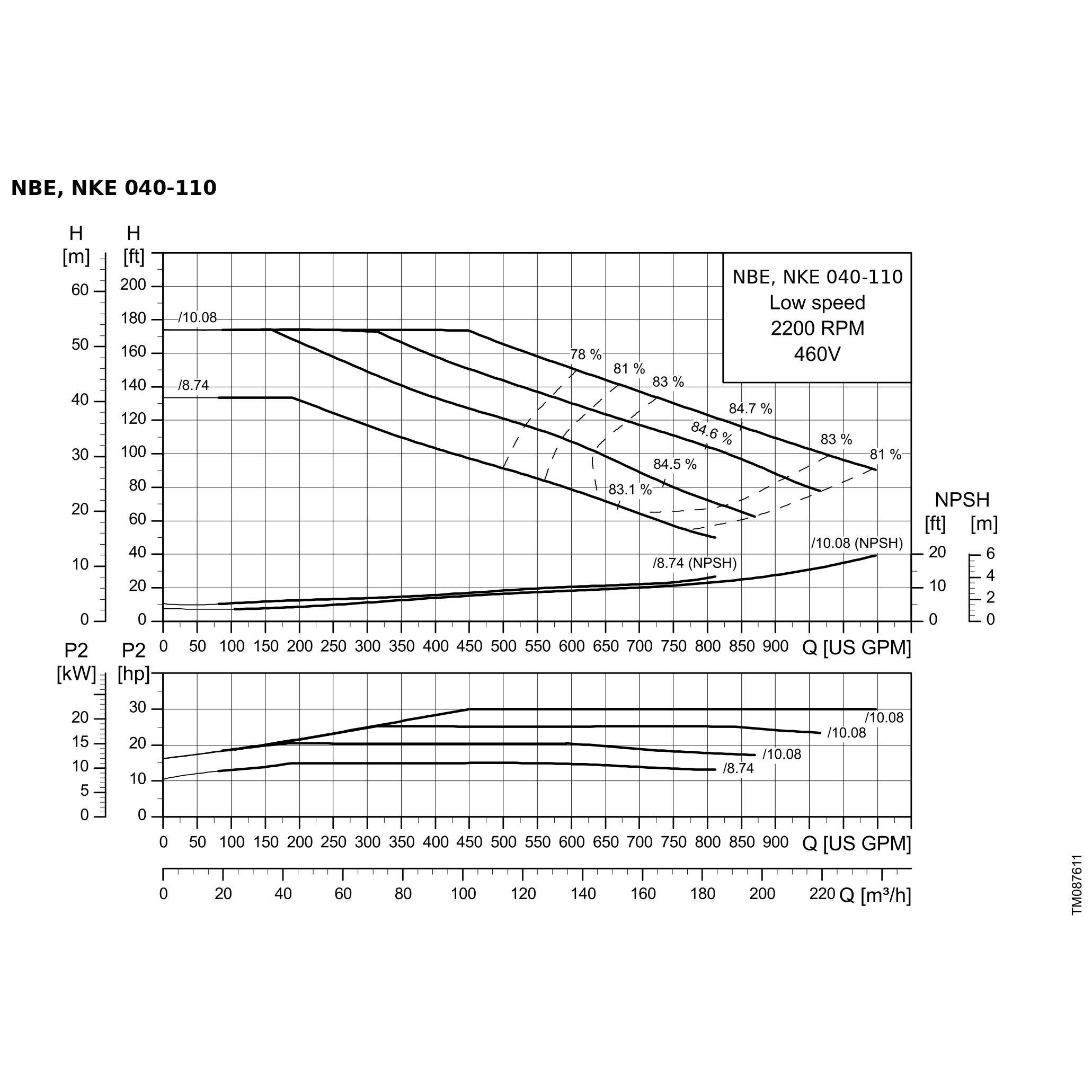

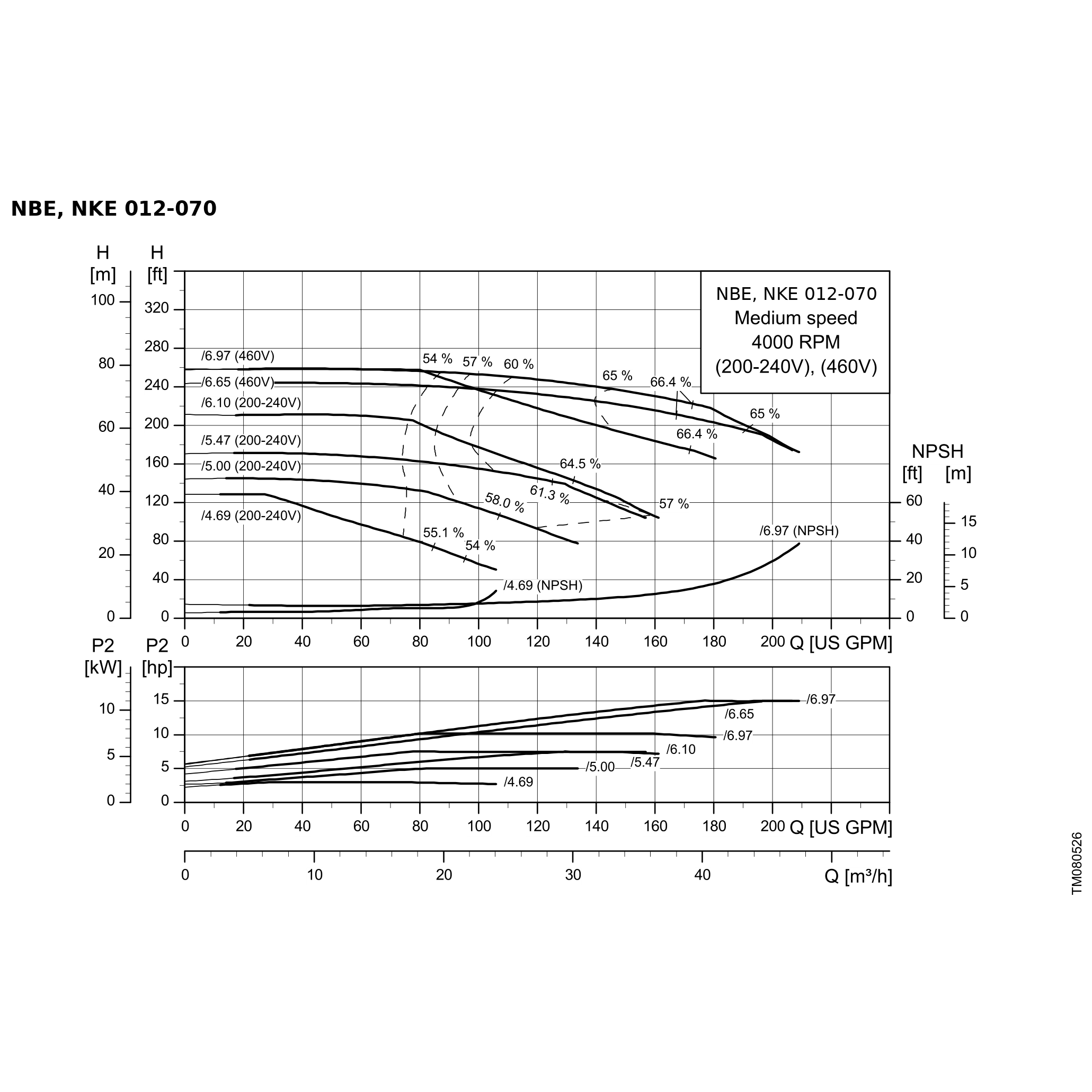

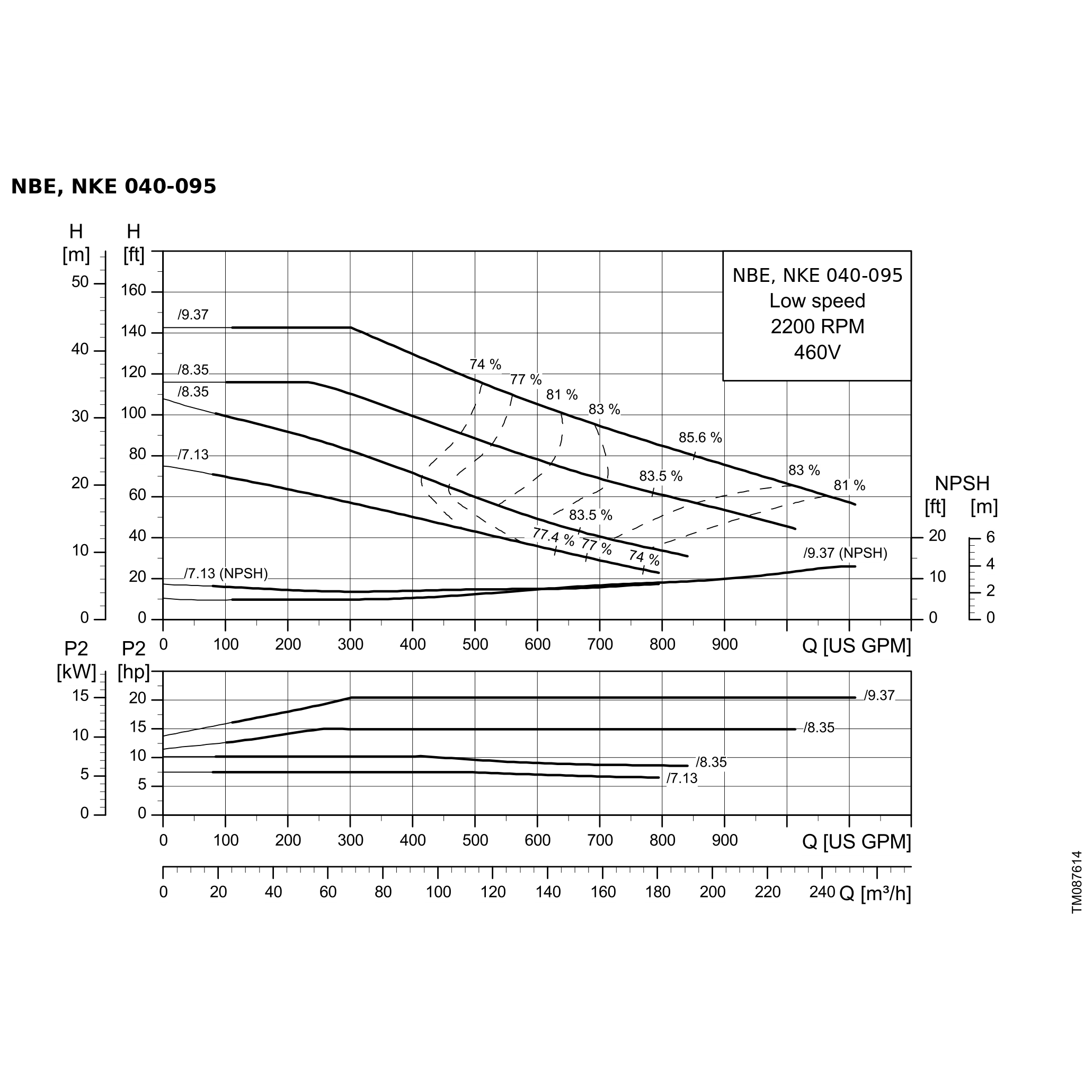

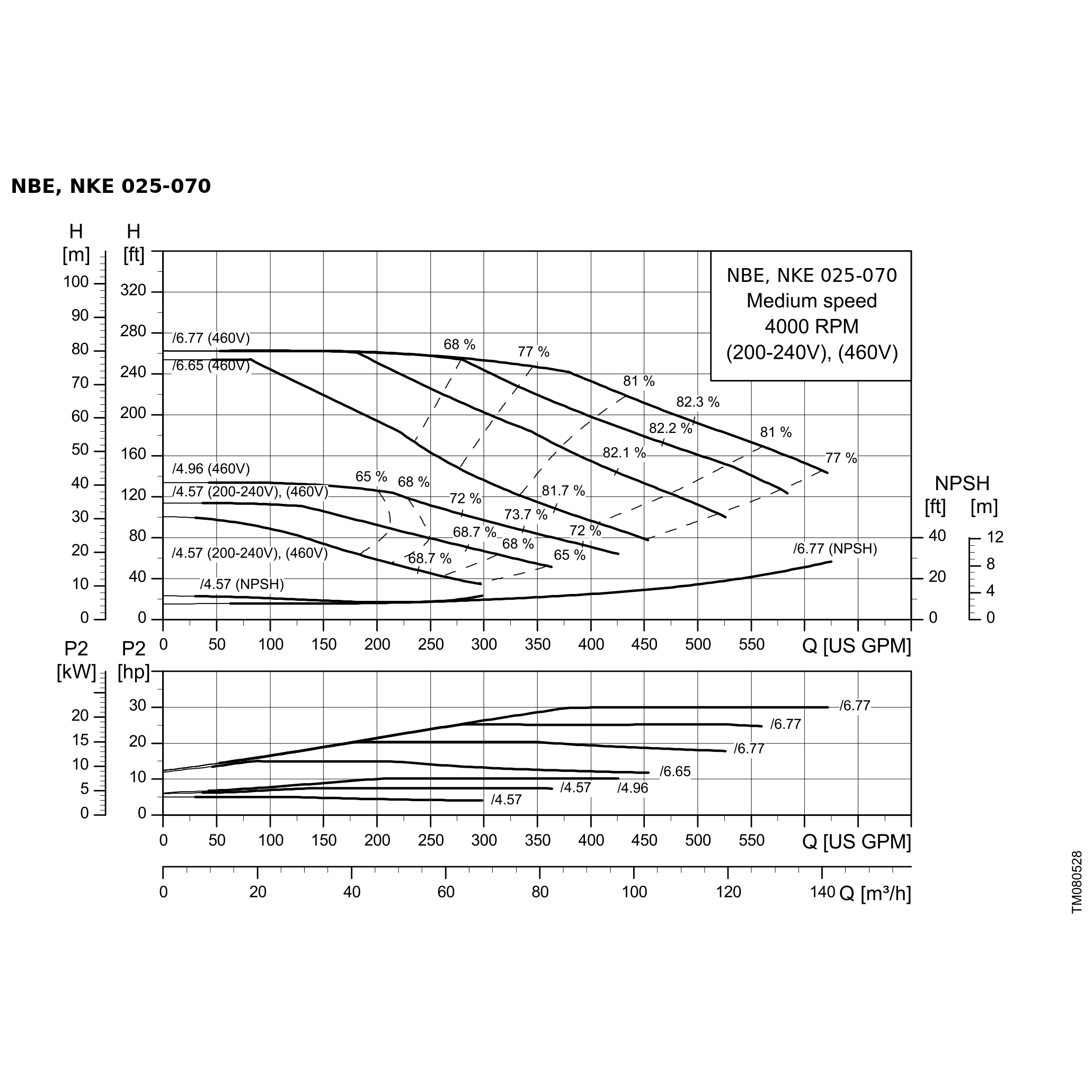

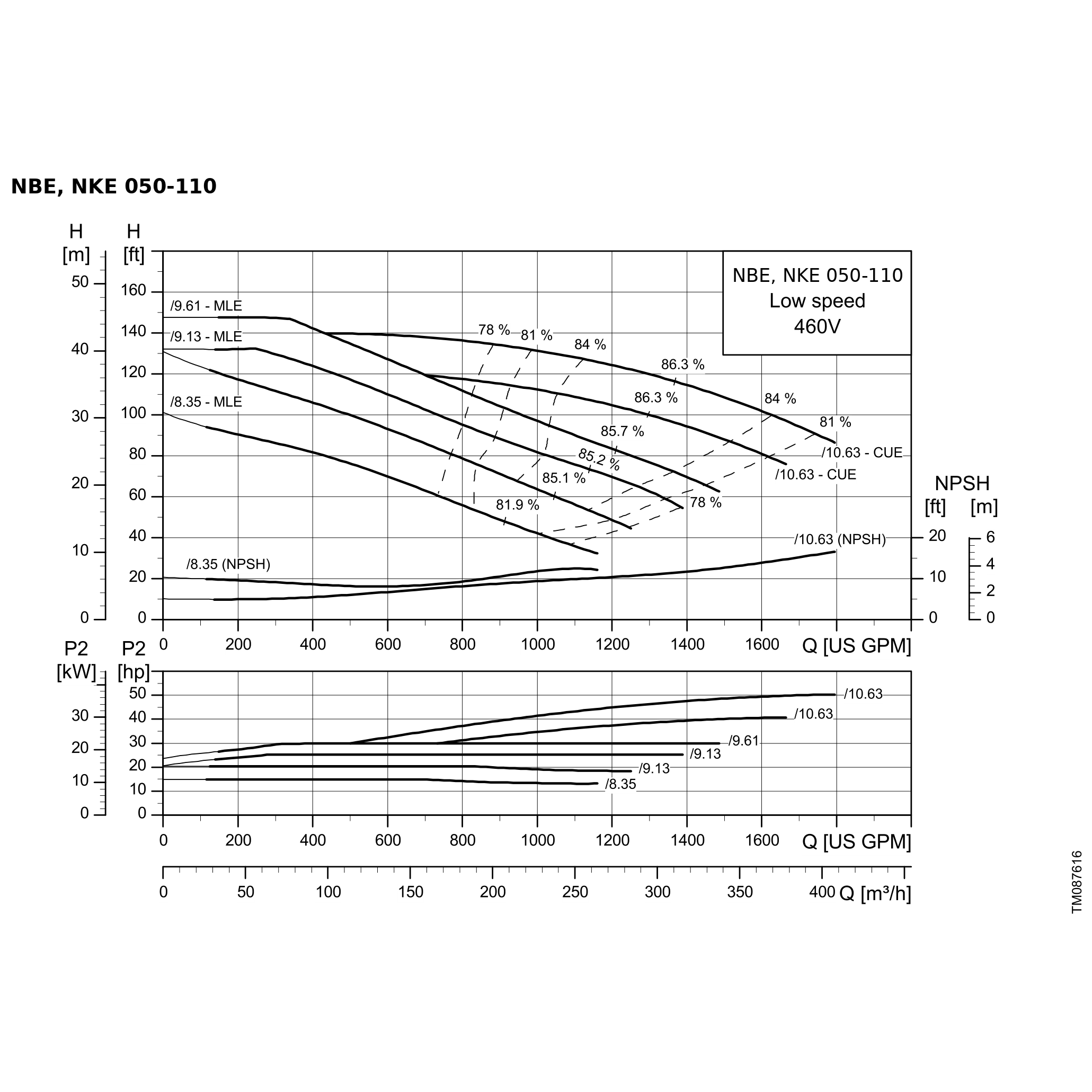

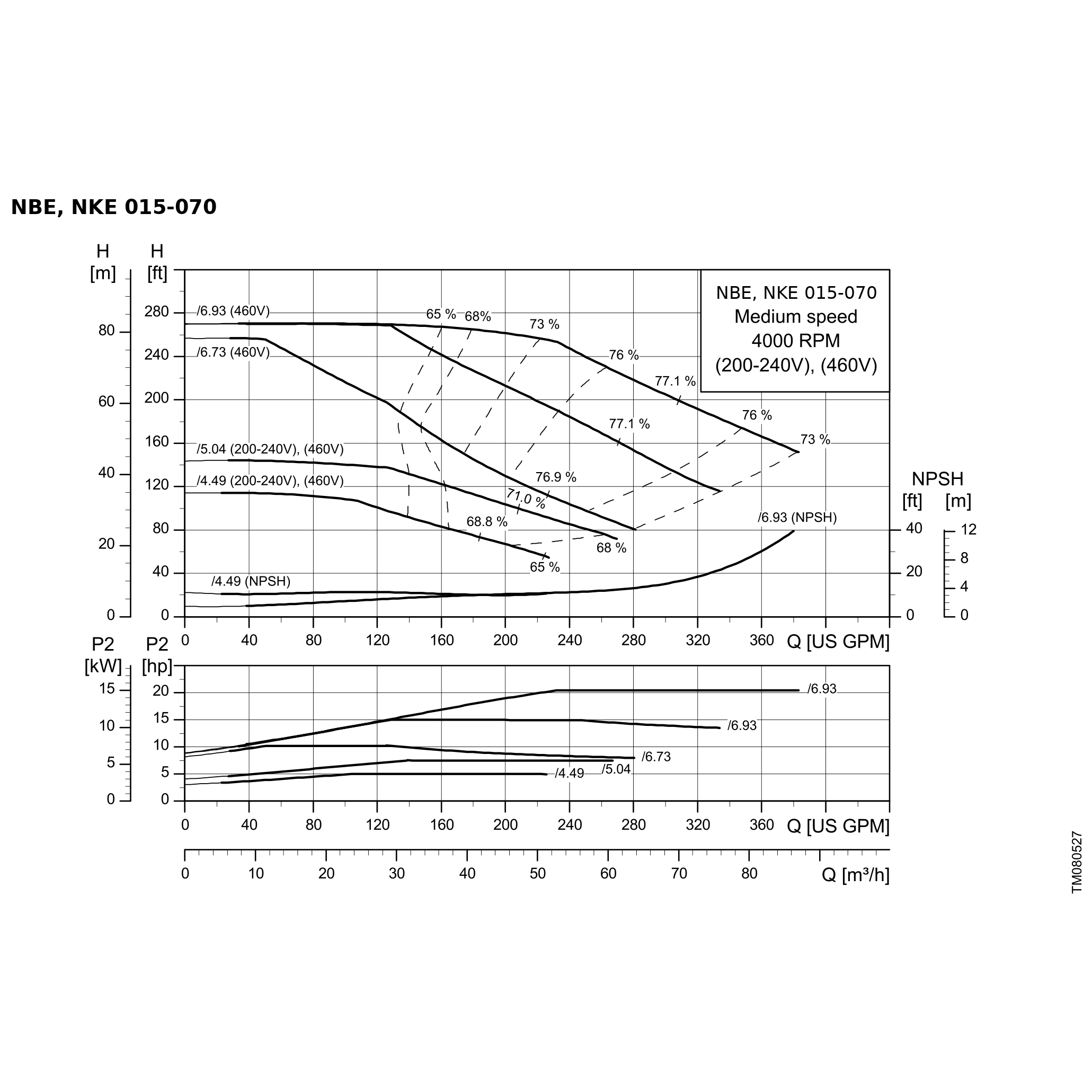

Head in feet at the flow in GPM heading each column: 50% and 75% of the largest curve, then its end. Bold = the last column that curve reaches; — = beyond its curve. Full-speed curves digitized from the Grundfos Range 6 60 Hz data booklet (Data Sheet tab) and rounded down; NB, NBS and NK share the same hydraulics by pump size. Curves are in the image gallery. PSI = feet ÷ 2.31.
No booklet curve for 025-070/4.57 at 5 HP, 025-070/6.65 at 15 HP, 025-110/11.02 at 15 HP: email your duty point and we will confirm with Grundfos.
Before You Buy — The Limits That Decide the Fit
| Duty point |
Pick the build whose curve passes through your flow and head; send it to us and we will confirm before you order |
| Liquid |
Clean, thin, non-explosive liquids without solids or fibers: water, water-glycol, cooling and heating water |
| Minimum flow |
At least 10% of the rated flow; never run against a closed valve |
| Priming |
Non-self-priming: fill the pump and suction pipe before starting |
| Power |
200-240V 3Ph, 440-480V 3Ph |
Applications
HVAC heating and cooling circulation, chilled water and cooling towers, district energy, data center cooling, water supply and pressure boosting, industrial liquid transfer and irrigation.
Materials of Construction
| Pump housing |
Cast iron, ASTM A48 Class 35 |
| Impeller |
Stainless steel, ASTM A351 CF8 |
| Shaft |
Stainless steel |
| Shaft seal |
BQQE: silicon carbide / silicon carbide, EPDM |
From Grundfos Product Center build data.
