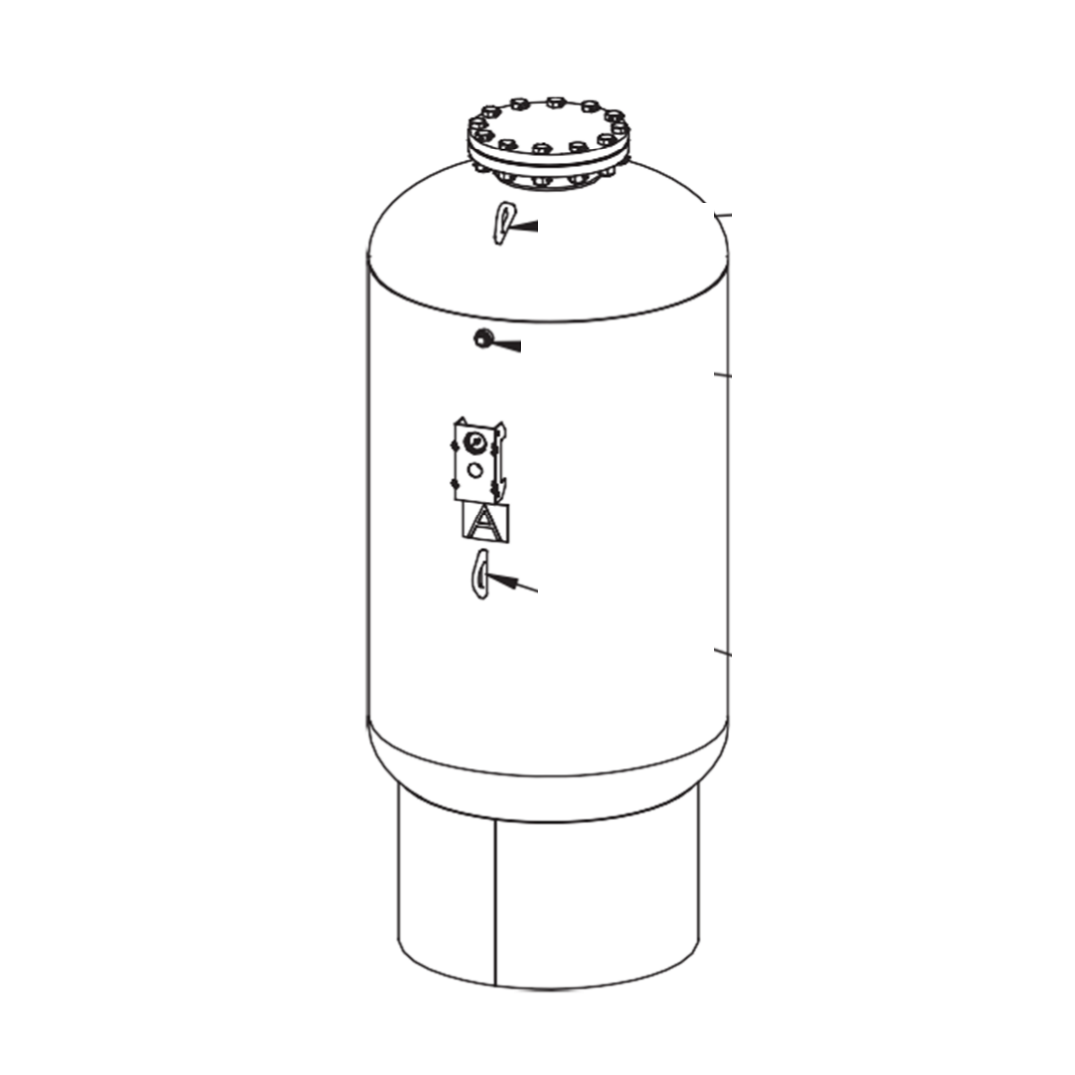

Grundfos GTXA expansion tank (representative drawing, same shell as GFXA)

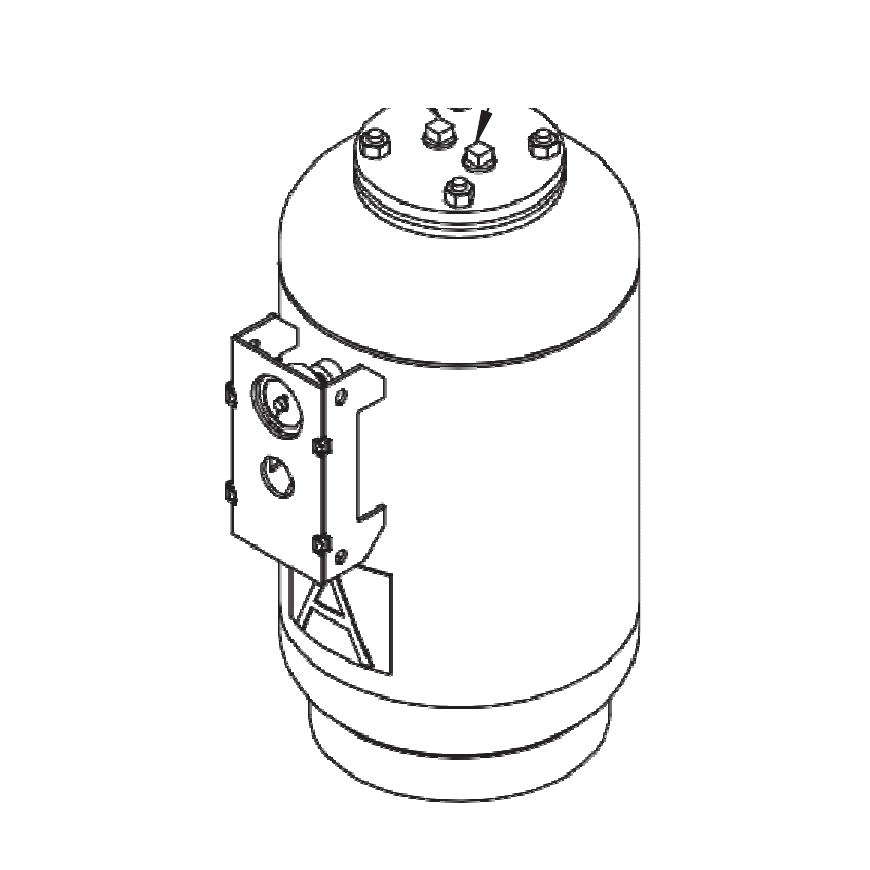

Grundfos GTXA expansion tank (representative drawing, same shell as GFXA)
Grundfos GTXA expansion tank (representative drawing, same shell as GFXA)
Grundfos GTXA expansion tank (representative drawing, same shell as GFXA)
Grundfos GTXA expansion tank (representative drawing, same shell as GFXA)
Grundfos GTXA expansion tank (representative drawing, same shell as GFXA)

Grundfos GTXA ASME Thermal Expansion Tank - 150 PSI

Capacity: 10 Gal
Model: GTXA-35

Product variant with selected options does not exist!
$4,291.16
SKU: 99470368
Weight : 40.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · ASME Thermal Expansion Tank
GTXA Thermal Expansion Tank
15 sizes from 10 to 528 gallons for potable hot water systems.
150 PSI Max Working Pressure
ASME Section VIII Div. 1
NSF/ANSI 61 Bladder, FDA Approved
Replaceable Heavy-Duty Butyl Bladder
Full Acceptance
10-528 Gallons
Up to 240°F
Factory Pre-Charged 40 PSIG
Overview

Grundfos GTXA tanks absorb the thermal expansion of potable hot water in commercial water heater and storage systems. When water is heated it expands; on a closed system (backflow preventer or check valve on the cold supply) that expansion has nowhere to go, and pressure climbs until the relief valve opens. The GTXA takes the expanded volume into its bladder and keeps system pressure below the relief setting.

Water stays inside a replaceable heavy-duty butyl bladder (NSF/ANSI 61, FDA approved) and never touches the steel shell. The full tank volume is available as acceptance. Tanks are ASME built and ship pre-charged at 40 PSIG; set the pre-charge to the incoming water pressure before filling.

What Ships and What It Needs to Run

Included: the GTXA tank with factory-installed bladder and charging valve.

Ships: about 40-1,525 lb by model, by LTL freight to a commercial dock; liftgate or residential delivery is a paid checkout option. Larger tanks ship on their own skid or base ring.

Needed to install: isolation valve and drain at the system connection, a pressure gauge or tire gauge to set the pre-charge, and a level floor or pad rated for the full-of-water weight.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Specifications
Tank type Thermal expansion, replaceable bladder, full acceptance
Code ASME Section VIII Division 1
Max working pressure 150 PSI
Max temperature 240°F
Factory pre-charge 40 PSIG, field adjustable
Listings Bladder NSF/ANSI 61, FDA approved
Models, Part Numbers and Weights
Model Part no. Gallons Acceptance (gal) Dia. x height (in) System conn. Max pressure Weight (lb)
GTXA-35 99470368 10 10 12 x 25 3/4 in 150 PSI 40
GTXA-50 99470369 13 13 14 x 25 3/4 in 150 PSI 50
GTXA-85 99470370 23 23 16 x 37 1 in 150 PSI 90
GTXA-130 99470372 35 35 20 x 37 1 in 150 PSI 132
GTXA-200 99470374 53 53 24 x 43 1-1/2 in 150 PSI 220
GTXA-300 99470376 79 79 24 x 55 1-1/2 in 150 PSI 236
GTXA-400 99470377 106 106 30 x 49 1-1/2 in 150 PSI 315
GTXA-500 99470378 132 132 30 x 57 2 in 150 PSI 347
GTXA-600 99470379 158 158 30 x 65 2 in 150 PSI 378
GTXA-800 99470380 211 211 32 x 76 2 in 150 PSI 503
GTXA-1000 99470382 264 264 36 x 87 3 in 150 PSI 795
GTXA-1200 99470383 317 317 36 x 98 3 in 150 PSI 820
GTXA-1400 99470384 370 370 36 x 111 3 in 150 PSI 980
GTXA-1600 99470385 422 422 48 x 84 3 in 150 PSI 1,395
GTXA-2000 99470386 528 528 48 x 96 3 in 150 PSI 1,525

Weights are Grundfos’s published figures (approximate shipping weight). Dimensions in inches. Tanks over 150 lb ship by LTL freight.

Before You Buy — The Limits That Decide the Fit
Pressure Relief valve setting at or below 150 PSI.
Pre-charge Set equal to the static supply pressure at the tank before filling.
Sizing From the heater and piping volume, the cold and hot temperatures, the supply pressure and the relief setting.
Liquid Potable water.
Applications

Commercial domestic hot water heaters and storage tanks, booster heaters, and any closed potable hot water system with a backflow preventer, check valve or pressure-reducing valve on the cold supply.

Materials of Construction
Shell and heads Carbon steel
Bladder Heavy-duty butyl, replaceable
Exterior Primer, black painted
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
