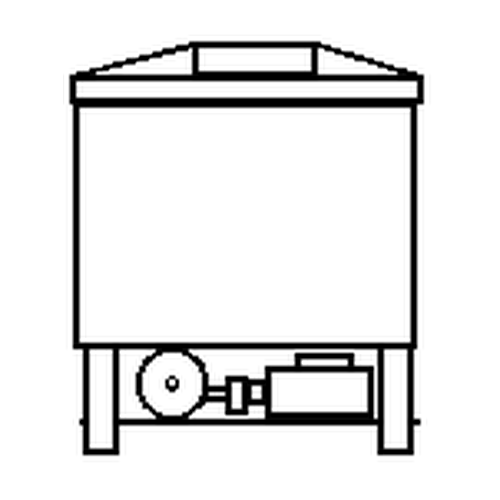

Grundfos GGMP glycol make-up package, representative drawing
Grundfos GGMP glycol make-up package, representative drawing

Grundfos GGMP Glycol Make-Up Package

Configuration: Simplex
Pump - Tank: Compact - 6 Gal
Model: GGMP-6

Product variant with selected options does not exist!
$2,194.46
SKU: 99449285
Weight : 18.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Hydronic System Package
GGMP Glycol Make-Up Package
14 packages from 6 to 100 gallon tanks: simplex, two-system and duplex.
Automatic Glycol or Water Fill
Simplex, Two-System or Duplex Pumps
6 to 100 Gal Solution Tank
Bronze Pump, 115V 1Ph
Up to 70 PSI Discharge
Liquid to 120°F
Polyethylene Tank, Steel Base
Overview

A glycol make-up package keeps a closed heating or chilled water loop full and at pressure without connecting it to the potable water supply. A small pump draws the glycol solution from its own tank and feeds the loop when system pressure drops below the setting, so leaks and air venting are made up automatically with the correct mixture — not diluted with city water.

GGMP-6 and GGMP-18 are compact single packages for small systems. GGMP-13050 to 15100 are single-system packages with a 1/3 or 1/2 HP pump and a 50 or 100 gallon tank. GGMPD packages serve two separate systems from one package; GGMPT packages serve one system with duplex pumps and an alternator for redundancy. Every unit ships set to 12 PSIG discharge, adjustable up to 70 PSIG.

What Ships and What It Needs to Run

Included: the package: polyethylene solution tank, bronze pump, controls and pressure setting, on a painted steel base.

Ships: about 18-233 lb by model; the larger packages ship LTL.

Needed to run: a 115V supply, glycol solution, and a connection to the system fill point with a check valve and isolation valve.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Specifications
Solution tank Polyethylene
Pump Bronze, 115V 1Ph 60 Hz
Max discharge pressure 70 PSIG
Factory discharge setting 12 PSIG, field adjustable
Max liquid temperature 120°F
Base Steel, gray paint
Models, Part Numbers and Weights
Model Part no. Configuration Pump HP Tank (gal) H x W (in) Weight (lb)
GGMP-6 99449285 Simplex — 6 17.5 x 10 18
GGMP-18 99449286 Simplex — 18 40 x 12 24
GGMP-13050 99432384 Simplex 1/3 50 42 x 34 100
GGMP-13100 99449254 Simplex 1/3 100 66 x 34 116
GGMP-15050 99449255 Simplex 1/2 50 42 x 34 103
GGMP-15100 99449256 Simplex 1/2 100 66 x 34 119
GGMPD-23050 99449257 Two Systems, One Package 1/3 50 52 x 34 200
GGMPD-23100 99449258 Two Systems, One Package 1/3 100 76 x 34 220
GGMPD-25050 99449259 Two Systems, One Package 1/2 50 52 x 34 206
GGMPD-25100 99449260 Two Systems, One Package 1/2 100 76 x 34 229
GGMPT-33050 99449261 Duplex Pumps with Alternator 1/3 50 52 x 43 210
GGMPT-33100 99449262 Duplex Pumps with Alternator 1/3 100 76 x 43 230
GGMPT-35050 99449283 Duplex Pumps with Alternator 1/2 50 52 x 43 216
GGMPT-35100 99449284 Duplex Pumps with Alternator 1/2 100 76 x 43 233

From the 2025 Grundfos Hydronic Components price list.

Before You Buy — The Limits That Decide the Fit
Fill pressure Set the discharge pressure to the system cold fill pressure; 70 PSIG maximum.
Liquid Water or water-glycol solution at or below 120°F.
Redundancy Choose GGMPT where a single make-up pump failure is not acceptable.
Applications

Closed-loop chilled water, hot water and process cooling systems filled with glycol: data centers, rooftop and air-cooled chiller loops, snow-melt and radiant systems.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
