Grundfos DELTA HCU packaged pumping system with 2 NBSE pumps
Grundfos DELTA HCU packaged pumping system with 3 NBSE pumps
Grundfos DELTA HCU packaged pumping system with 2 NBSE pumps
Grundfos DELTA HCU packaged pumping system with 3 NBSE pumps

Grundfos DELTA HCU Packaged HVAC Pumping System - NBSE

Pumps: 2 x NBSE (1 Duty + 1 Standby)
Rated Duty - Motor: 182 GPM at 80 ft - 5 HP
Model: DELTA HCU-I 2NBSE 015-095

Product variant with selected options does not exist!
$52,729.26
SKU: 92978389
Weight : 1580.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Packaged HVAC Pumping System

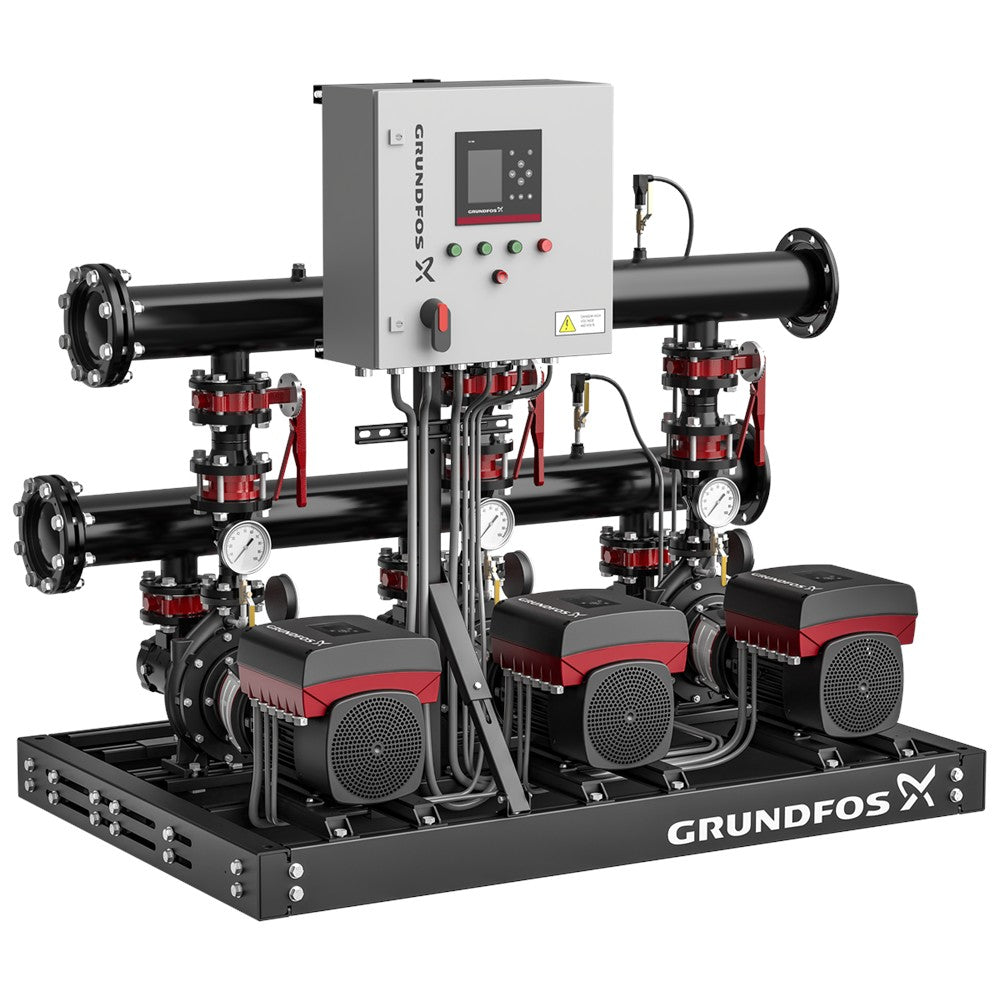

DELTA HCU with NBSE Pumps
22 pre-engineered units with 2 or 3 NBSE pumps, 182 to 1,660 GPM.
Pre-Piped, Pre-Wired, Factory Tested
2 or 3 NBSE Pumps, 1 Standby
182-1,660 GPM Rated Flow
3-8 HP MLE Motors (VSD on Board), IE5
CU 352 Controller, BACnet Standard
Stainless Steel Manifolds, ANSI Class 150
175 PSI, Liquid to 212°F
460-480V 3Ph, cULus
Overview

DELTA HCU is a complete HVAC circulation package: two or three Grundfos NBSE split-coupled end-suction pumps with permanent-magnet MLE motors and onboard drives, stainless steel suction and discharge manifolds, valves, sensors and a CU 352 controller, assembled on one powder-coated steel base and tested at the factory. It arrives ready to set, pipe to one suction and one discharge connection, wire to one power feed, and commission — no field alignment, no separate VFDs, no field-built controls.

The CU 352 runs the pumps in cascade to hold the setpoint at the lowest energy, alternates duty and standby, and alarms on faults. BACnet is standard and a CIM module adds other protocols. Each pump has a suction diffuser with strainer and isolation valve on the inlet and a check valve with isolation valve on the outlet. The split-coupled pump design keeps the seal serviceable without moving the motor; seals are silicon carbide.

The two-pump unit runs one duty pump and one standby; the three-pump unit runs two duty pumps and one standby. Rated flow below is for the whole unit at its rated head.

What Ships and What It Needs to Run

Included: the complete skid: pumps with MLE motors, manifolds, isolation and check valves, suction diffusers, pressure sensors, CU 352 controller in a painted metal cabinet, all on a steel base.

Ships: by LTL freight on its own skid, about 1,770-5,690 lb shipping weight. Built to order: lead time and freight are confirmed at quotation.

Needed to run: a 460-480V 3-phase supply, the system piping to the ANSI flanged manifolds, and a housekeeping pad.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Specifications
System Packaged HVAC circulation unit, factory assembled and tested
Pumps Grundfos NBSE split-coupled end-suction, MLE permanent-magnet motor with integrated variable speed drive, IE5
Controller CU 352, BACnet standard, other protocols with a CIM module
Supply 3 x 460-480 V, 60 Hz
Max operating pressure 175 psi at 212°F
Liquid Water, 14°F to 212°F
Ambient 32°F to 104°F, indoor
Connections ANSI Class 150 flanged manifolds, 4 to 10 in
Shaft seal BQQE (silicon carbide / silicon carbide, EPDM)
Approvals cULus
Models, Duty and Weights
Model Part no. Pumps HP each Rated duty (unit) Max head Manifold Max current Net weight (lb)
DELTA HCU-I 2NBSE 015-095 92978389 2 x NBSE 015-095 5 182 GPM at 80 ft 136 ft 4 in ANSI 150 14 A 1,580
DELTA HCU-I 2NBSE 015-095 92978400 2 x NBSE 015-095 7.5 200 GPM at 106 ft 170 ft 4 in ANSI 150 20 A 1,670
DELTA HCU-I 2NBSE 020-095 92978401 2 x NBSE 020-095 7.5 256 GPM at 86 ft 160 ft 6 in ANSI 150 20 A 1,710
DELTA HCU-I 2NBSE 020-110 92978402 2 x NBSE 020-110 10 290 GPM at 103 ft 171 ft 6 in ANSI 150 26 A 1,740
DELTA HCU-I 2NBSE 025-070 92978403 2 x NBSE 025-070 3 226 GPM at 43 ft 74 ft 6 in ANSI 150 9 A 1,740
DELTA HCU-I 2NBSE 025-070 92978404 2 x NBSE 025-070 5 269 GPM at 61 ft 78 ft 6 in ANSI 150 14 A 1,770
DELTA HCU-I 2NBSE 025-095 92978405 2 x NBSE 025-095 10 344 GPM at 92 ft 147 ft 6 in ANSI 150 26 A 1,970
DELTA HCU-I 2NBSE 030-070 92978408 2 x NBSE 030-070 5 377 GPM at 45 ft 77 ft 8 in ANSI 150 14 A 2,120
DELTA HCU-I 2NBSE 040-070 92978410 2 x NBSE 040-070 5 533 GPM at 31 ft 62 ft 8 in ANSI 150 14 A 2,170
DELTA HCU-I 2NBSE 040-070 92978411 2 x NBSE 040-070 7.5 585 GPM at 42 ft 74 ft 8 in ANSI 150 20 A 2,260
DELTA HCU-I 2NBSE 050-070 92978412 2 x NBSE 050-070 10 828 GPM at 41 ft 74 ft 10 in ANSI 150 26 A 3,730
DELTA HCU-I 3NBSE 015-095 92978437 3 x NBSE 015-095 5 364 GPM at 80 ft 136 ft 4 in ANSI 150 20 A 2,240
DELTA HCU-I 3NBSE 015-095 92978438 3 x NBSE 015-095 7.5 400 GPM at 106 ft 170 ft 4 in ANSI 150 29 A 2,370
DELTA HCU-I 3NBSE 020-095 92978439 3 x NBSE 020-095 7.5 512 GPM at 86 ft 160 ft 6 in ANSI 150 29 A 2,430
DELTA HCU-I 3NBSE 020-110 92978440 3 x NBSE 020-110 10 580 GPM at 103 ft 171 ft 6 in ANSI 150 39 A 2,460
DELTA HCU-I 3NBSE 025-070 92978441 3 x NBSE 025-070 3 451 GPM at 43 ft 74 ft 6 in ANSI 150 13 A 2,470
DELTA HCU-I 3NBSE 025-070 92978442 3 x NBSE 025-070 5 539 GPM at 61 ft 78 ft 6 in ANSI 150 20 A 2,510
DELTA HCU-I 3NBSE 025-095 92978443 3 x NBSE 025-095 10 687 GPM at 92 ft 147 ft 6 in ANSI 150 39 A 2,810
DELTA HCU-I 3NBSE 030-070 92978446 3 x NBSE 030-070 5 754 GPM at 45 ft 77 ft 8 in ANSI 150 20 A 3,030
DELTA HCU-I 3NBSE 040-070 92978448 3 x NBSE 040-070 5 1,070 GPM at 31 ft 62 ft 8 in ANSI 150 20 A 3,090
DELTA HCU-I 3NBSE 040-070 92978449 3 x NBSE 040-070 7.5 1,170 GPM at 42 ft 74 ft 8 in ANSI 150 29 A 3,220
DELTA HCU-I 3NBSE 050-070 92978450 3 x NBSE 050-070 10 1,660 GPM at 41 ft 74 ft 10 in ANSI 150 39 A 5,320

From Grundfos Product Center, 60 Hz. Rated duty is for the whole unit (one duty pump on 2-pump units, two on 3-pump units). Two builds of the same model differ by motor size and duty.

Before You Buy — The Limits That Decide the Fit
Duty point Match the unit rated duty to the system design flow and head; Grundfos also builds custom DELTA HCU packages beyond this list.
Power 460-480V 3Ph only in this range.
Space Confirm footprint and service clearance from the submittal before ordering.
Lead time Built to order; confirm with us before scheduling the job.
Materials of Construction
Manifolds Stainless steel, EN 1.4571 / AISI 316Ti
Base Carbon steel, ASTM A36, powder coated
Control cabinet Painted metal
Applications

Chilled water and hot water circulation in commercial buildings, hospitals, campuses and data centers; modular and offsite-built plant rooms; replacement of field-built pump stations where installation time and space are short.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
