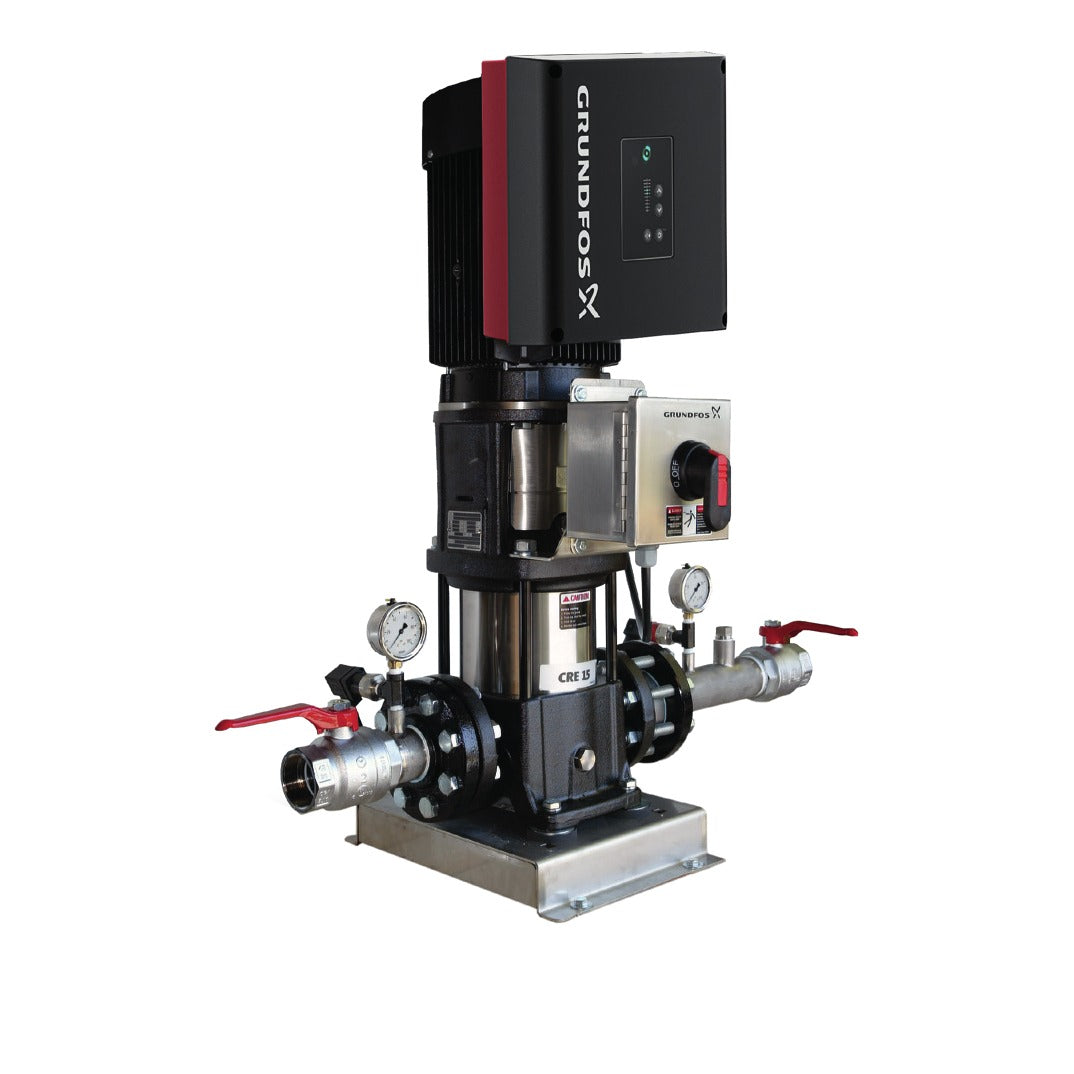

Grundfos CRE Plus simplex booster system with disconnect, valves and gauges on a stainless base

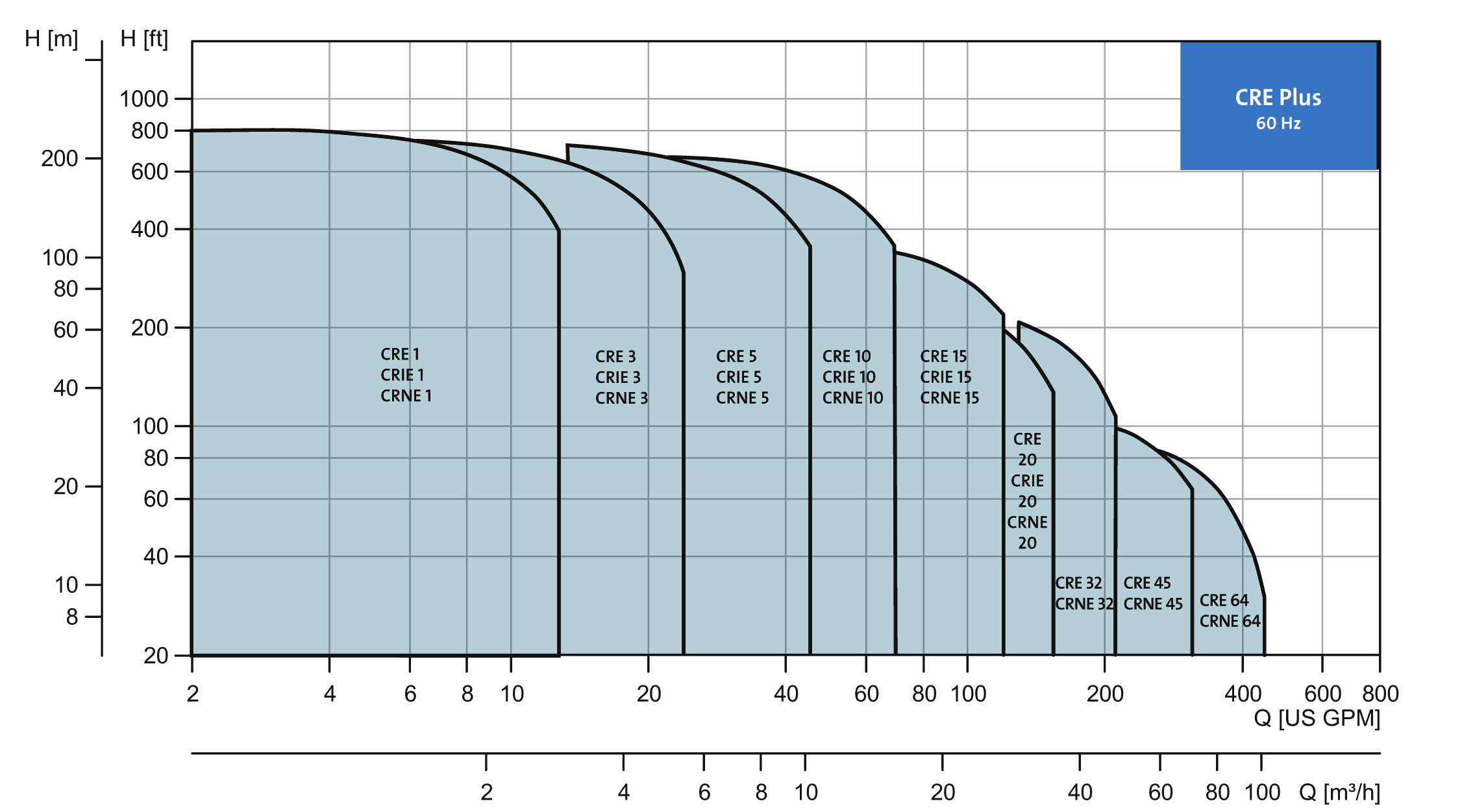

Grundfos CRE Plus 60 Hz performance range
Grundfos CRE Plus simplex booster system with disconnect, valves and gauges on a stainless base
Grundfos CRE Plus 60 Hz performance range

Grundfos CRE Plus Variable Speed Booster System

Pump Size: CRE 3
HP - Supply: 3/4 HP - 200-240V 1Ph
Model: CRE 3-4

Product variant with selected options does not exist!
$12,792.62
SKU: 91124331
Weight : 92.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Variable Speed Booster System
CRE Plus Simplex Booster
38 packaged builds on CRE 3, 5, 10, 15, 20, 32, 45, 64 pumps, 3/4 to 15 HP.
Up to 450 GPM, 790 ft Head
Up to 362 PSI Working Pressure
3/4 to 15 HP MLE Variable Speed, IE5
Factory Tested Package, UL Listed (QCZJ)
NSF 61 / UL 372
Low Inlet Pressure Switch, Disconnect, Valves
304 SS Base, 316 SS Piping
Tank Not Included
Overview

The CRE Plus is a single-pump constant pressure booster: a Grundfos CRE vertical multistage pump with an MLE motor (integrated variable frequency drive, controller and IE5 permanent-magnet motor), built onto a stainless steel base with the isolation valves, check valve, discharge piping, pressure transducer, gauges, low inlet pressure switch and a lockable disconnect. It is tested at the factory as a complete system, so on site it needs a suction and discharge connection, power and a diaphragm tank.

The MLE motor holds the setpoint by changing speed with demand, with soft pressure build-up (pipe fill), high-pressure limit and proportional pressure built in. A large graphical display on the motor sets everything without a separate tool, and every popular SCADA protocol is available through a CIM module.

What Ships and What It Needs to Run

Included: CRE pump with MLE motor, 304 SS base, 316 SS suction and discharge piping, isolation valves, check valve, 4-20 mA pressure transducer, liquid-filled gauges, low inlet pressure switch (3 psig, resets at 5 psig) and a NEMA 3R lockable disconnect.

Ships: about 80-557 lb; parcel for the smallest units, LTL for the rest.

Needed to run: a diaphragm tank (not included), the system piping, and the supply shown on the build (1Ph or 3Ph).

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Specifications
Pump Grundfos CRE 3, 5, 10, 15, 20, 32, 45, 64; cast iron / 304 stainless steel
Motor MLE with integrated VFD and controller, permanent magnet, IE5 class
Max flow / head 450 GPM / 790 ft (range)
Max working pressure 362 psi
Max liquid temperature 176°F
Isolation valves Full-port nickel-plated brass (CRE 3-20); lug butterfly, 316 SS disc, epoxy-coated cast iron (CRE 32-64)
Check valve Spring loaded: POM/316 SS (CRE 3-5), 300 series SS (CRE 10-15), epoxy-coated cast iron (CRE 20), wafer 304/316 SS (CRE 32-64)
Piping and base 316 SS piping, 304 SS base
Disconnect NEMA 3R, lockable in OFF
Approvals UL Listed packaged pumping system (QCZJ), NSF 61 / UL 372
Models, Part Numbers and Weights
Model Part no. HP Supply Sensor range (psi) Ship weight (lb)
CRE 3-4 91124331 3/4 1 x 200-240V 0-145 92
CRE 3-5 91141502 1 1 x 200-240V 0-145 93
CRE 3-6 91124333 1 3 x 440-480V 0-145 91
CRE 3-9 91124335 1-1/2 3 x 440-480V 0-232 99
CRE 5-3 91124344 1 3 x 440-480V 0-145 80
CRE 5-4 91141504 1-1/2 1 x 200-240V 0-145 92
CRE 5-4 91138474 1-1/2 3 x 200-240V 0-145 114
CRE 5-4 97670179 1-1/2 3 x 440-480V 0-145 92
CRE 5-6 91138475 2 3 x 200-240V 0-232 116
CRE 5-6 97791192 2 3 x 440-480V 0-232 114
CRE 5-7 97791196 3 3 x 440-480V 0-232 130
CRE 5-9 97794554 3 3 x 440-480V 0-232 132
CRE 5-10 97794556 5 3 x 440-480V 0-232 169
CRE 5-24 91124354 7-1/2 3 x 440-480V 0-580 229
CRE 10-2 91138481 1-1/2 3 x 200-240V 0-145 185
CRE 10-2 91124436 1-1/2 3 x 440-480V 0-145 182
CRE 10-4 91138482 3 3 x 200-240V 0-145 198
CRE 10-4 91124437 3 3 x 440-480V 0-145 194
CRE 10-6 91124438 5 3 x 440-480V 0-232 235
CRE 10-10 91124440 7-1/2 3 x 440-480V 0-362 268
CRE 15-1 91138486 2 3 x 200-240V 0-145 178
CRE 15-1 91124443 2 3 x 440-480V 0-145 185
CRE 15-2 91138487 5 3 x 200-240V 0-145 204
CRE 15-2 91124444 5 3 x 440-480V 0-145 217
CRE 15-3 91138488 7-1/2 3 x 200-240V 0-145 262
CRE 15-4 91138489 7-1/2 3 x 200-240V 0-232 264
CRE 15-4 91124446 7-1/2 3 x 440-480V 0-232 251
CRE 15-5 97794557 10 3 x 440-480V 0-232 260
CRE 20-2 91138491 5 3 x 200-240V 0-145 201
CRE 20-2 91124449 5 3 x 440-480V 0-145 229
CRE 20-3 91124450 7-1/2 3 x 440-480V 0-232 246
CRE 20-4 91124451 10 3 x 440-480V 0-232 251
CRE 32-1 91138494 5 3 x 200-240V 0-145 260
CRE 32-2-1 91138495 7-1/2 3 x 200-240V 0-145 295
CRE 32-2 91130808 10 3 x 440-480V 0-145 324
CRE 45-1-1 92913229 7-1/2 3 x 440-480V — 280
CRE 45-1 97794559 10 3 x 440-480V 0-145 266
CRE 64-1 91146108 15 3 x 440-480V 0-145 557

From the Grundfos 2026 price books (Industrial and CBS). The performance range chart is in the images; email us the duty point and we will confirm the model on its curve.

Before You Buy — The Limits That Decide the Fit
Tank A diaphragm tank is required and not included; size it for minimum run time.
Inlet The low inlet pressure switch stops the pump below 3 psig; check suction conditions.
Power 1Ph only on CRE 3-4, 3-5 and 5-4 builds; all others 3Ph 200-240V or 440-480V.
Water Clean, thin liquids to 176°F; NSF 61 for drinking water.
Applications

Building water supply and pressure boosting, irrigation, water treatment and industrial plants.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
